LA10000 Electric Linear Actuator

LA10000 Electric Linear Actuator

LA10000 Electric Linear Actuator is suitable for remote control and widely used for opening and closing of damper, valve, gate, material loading and unloading, flow control and so on.

Input Volatge: DC12~19V / DC24~32V
Maximum load:10000N/1000kg
IP Grade: IP65
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 50~2000mm

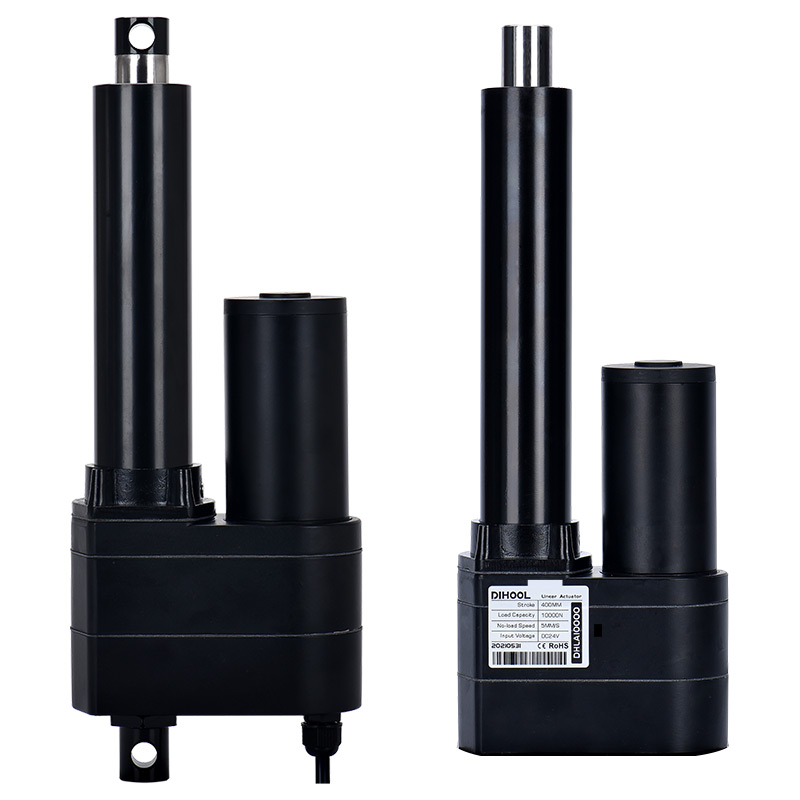

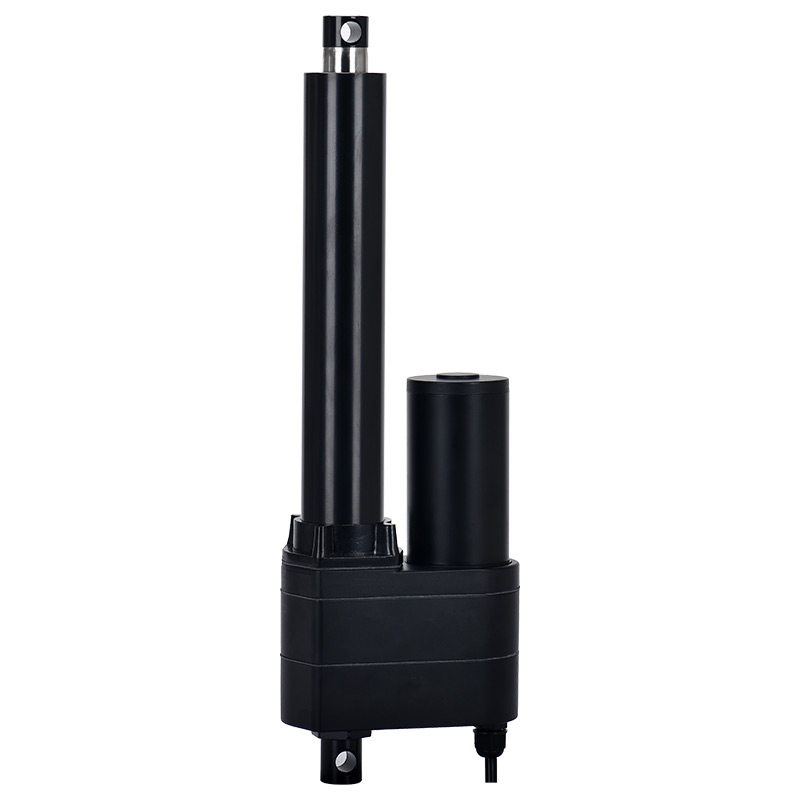

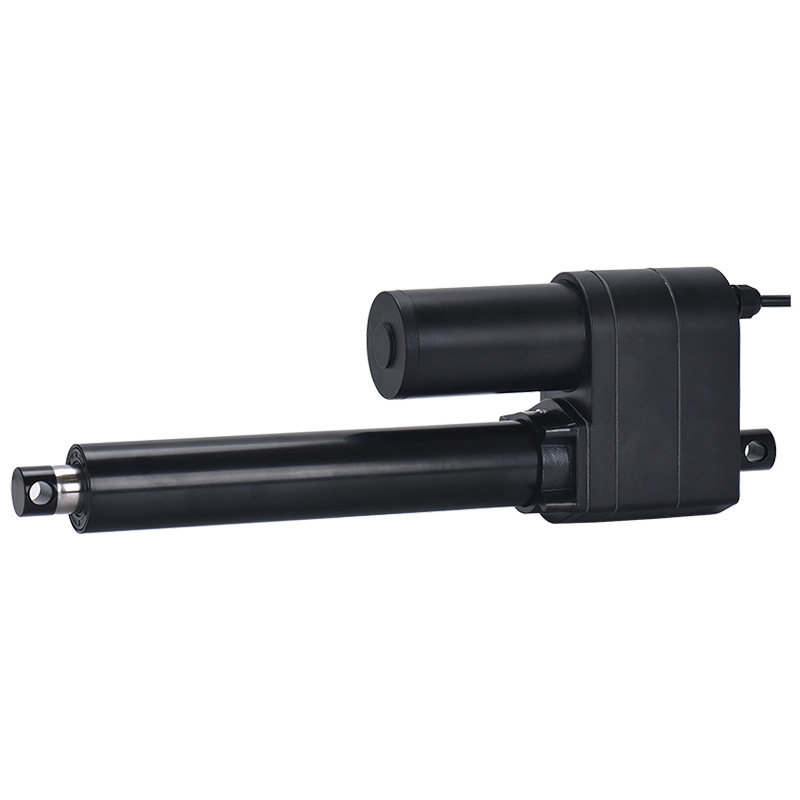

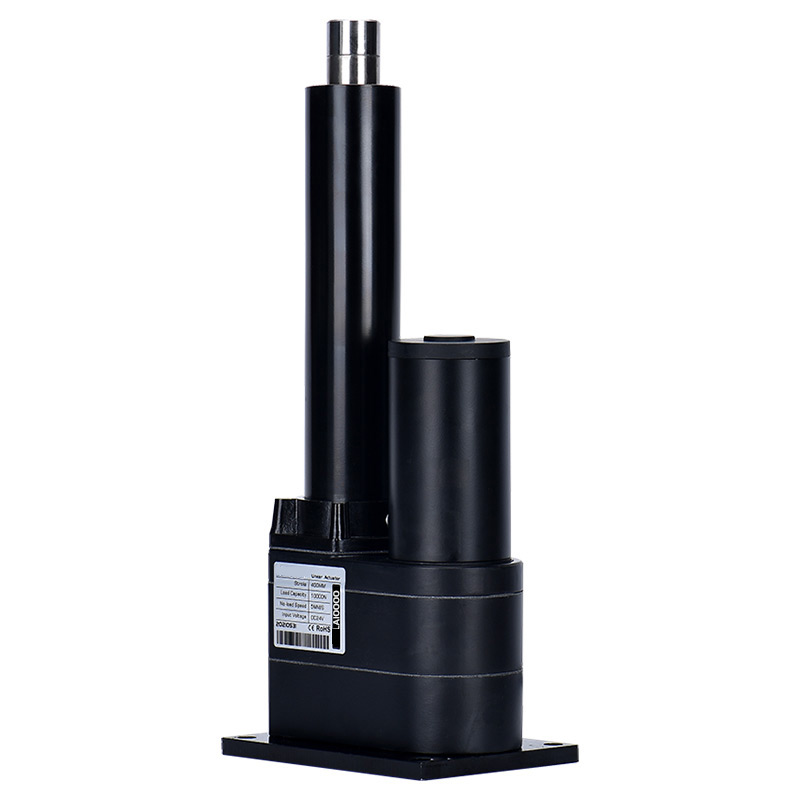

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product features

Material: Aluminum Alloy Steel
Rated power: 240W
Motor: Permanent magnet DC Motor drive;
Standard protection grade: IP65

Introduction

LA10000 Electric Linear Actuator is suitable for remote control and widely used for opening and closing of damper, valve, gate, material loading and unloading, flow control and so on in electric power, chemical industry, metallurgy, mining, light industry, transportation, shipping and other departments. It has been used by more and more departments to replace the mechanical hand, hydraulic valve, reducer transmission mechanism of the automatic device.

VoltageDC24~32V
No-load Speed (MM/S)581217223367160
Load Pull Capacity (N)10000700060004000300020001500750
Load Push Capacity (N)10000700060004000300020001500750
Self-locking Capacity (N)1100010000800050004000300030002000
VoltageDC12~19V
No-load Speed (MM/S)581217223367160
Load Pull Capacity (N)10000700060004000300020001500750
Load Push Capacity (N)10000700060004000300020001500750
Self-locking Capacity (N)1100010000800050004000300030002000
VoltageDC48~55V
No-load Speed (MM/S)581217223367160
Load Pull Capacity (N)10000700060004000300020001500750
Load Push Capacity (N)10000700060004000300020001500750
Self-locking Capacity (N)1100010000800050004000300030002000
Motor Power240W
Material304 Stainless Steel + Aluminum
Mechanical LifeMore than 30,000 times
Stroke Length50mm-2000mm
Operating Temperature-20°C~+65°C
Operating Frequency10% max 2min. continuous use
ColorBlack
Limit SwitchesBuilt-in
Protection ClassIP65

OUTLINE DIMENSION DRAWING

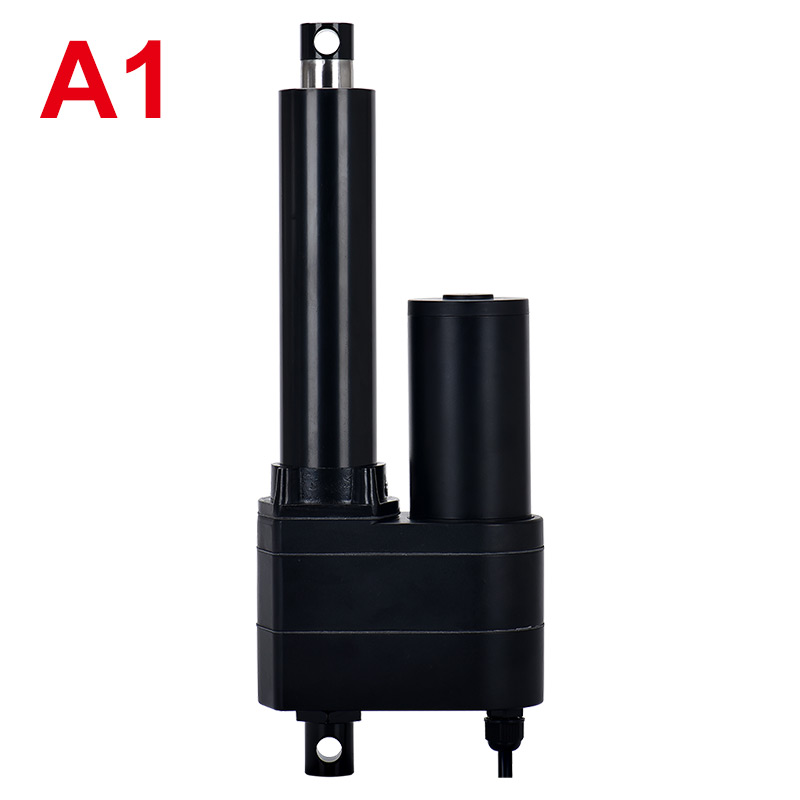

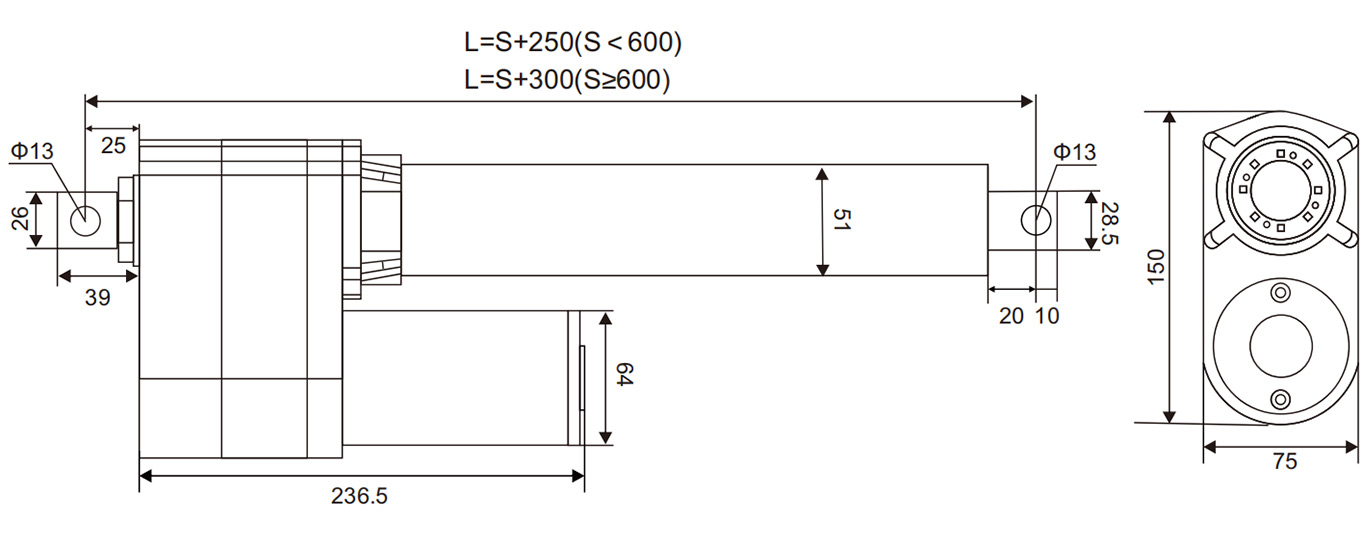

LA10000-A1

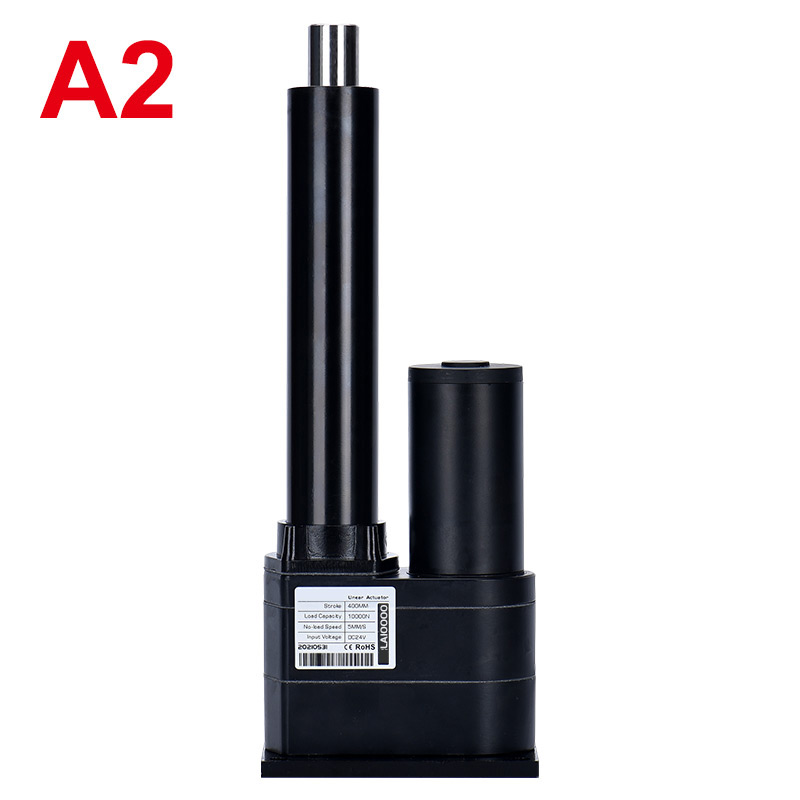

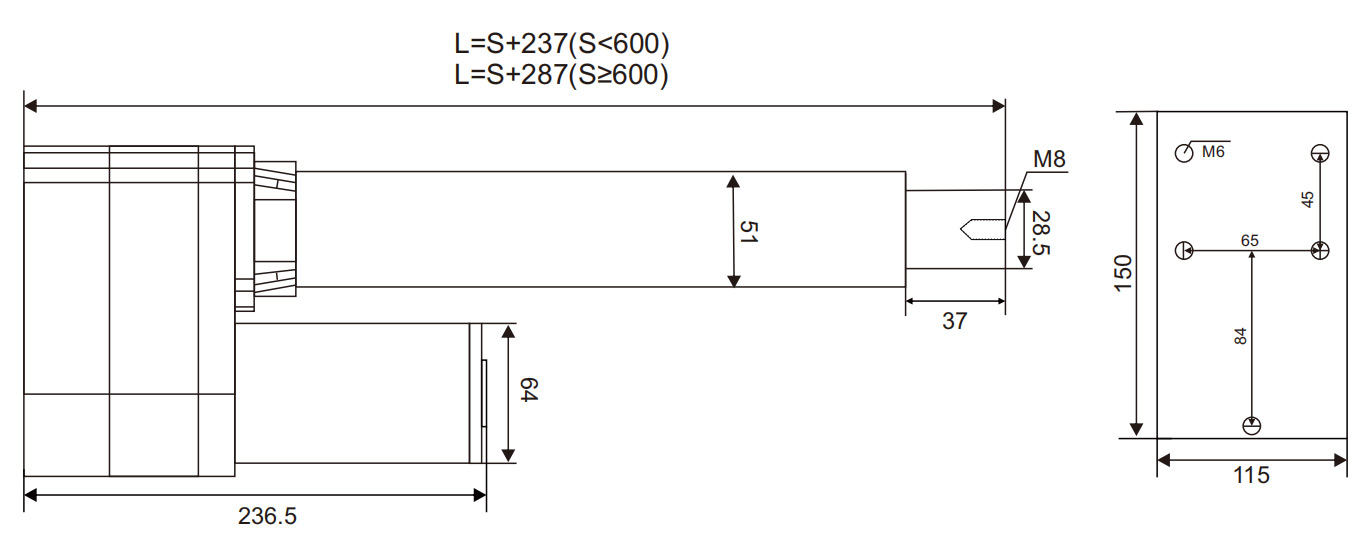

LA10000-A2
