LA-DIY-DC120-5GURA Electric Linear Actuator

LA-DIY-DC120-5GURA Electric Linear Actuator

DIY-DC120-5GURA reciprocating motors offer height adjustable furniture that adapts to its users. This adaptability on furniture such as desks ensures greater ergonomic comfort and improves working conditions.

Input Volatge: DC12~19V / DC24~32V
Power: 120W
No-load Speed (RPM): 10~600
Rated Current: 14A/7A
Stroke Length: 50mm, 100mm, 160mm

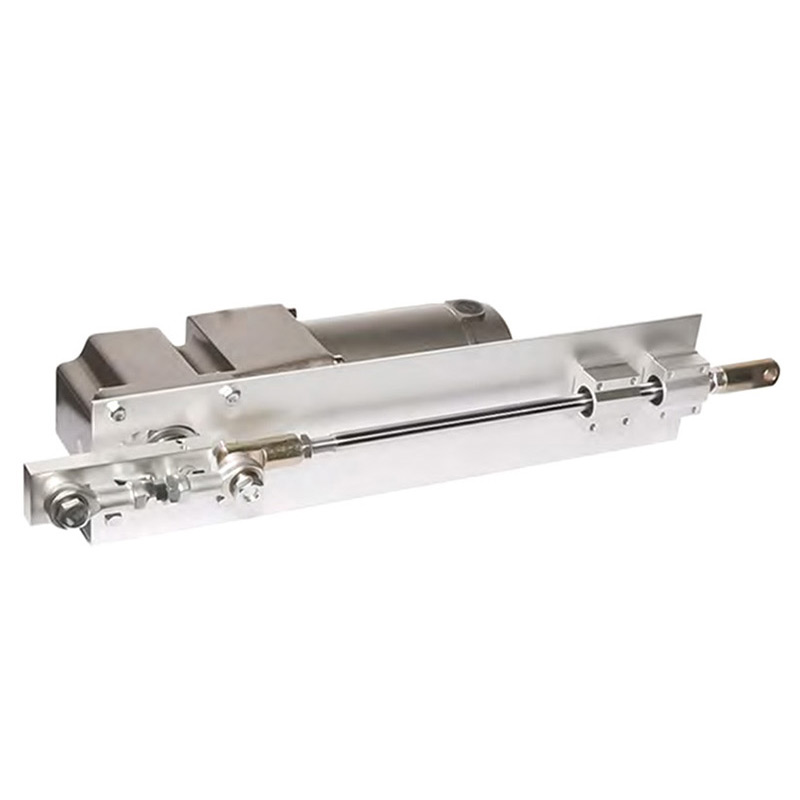

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

PRODUCT DESCRIPTION

DIY-DC120-5GURA reciprocating motors offer height adjustable furniture that adapts to its users.This adaptability on furniture such as desks ensures greater ergonomic comfort and improves working conditions.The Office series also offers push-rod solutions for industrial workstations, medical and other applications.

TECHNICAL PARAMETERS

VoltageDC12~19V / DC24~32V


Power (W)120W


Reduction Ratio33.6567.591012.51518202530


No-load Speed (RPM)600500360300240200180144120100907260


No-load Current (A)Maximum 2.5A / Maximum 2A


Rated Torque (KG.CM)152332394858658098120130160200


Rated Current (A)14A / 7A


50MM Stroke Load Torque (KG)2.13.224.485.466.728.129.111.213.7216.818.222.428


100MM Stroke Load Torque (KG)1.051.612.242.733.364.064.555.66.868.49.111.214


160MM Stroke Load Torque (KG)0.640.981.361.662.042.472.783.404.175.105.536.808.50



VoltageDC12~19V / DC24~32V


Power (W)120W


Reduction Ratio364050607590100120150180200250300


No-load Speed (RPM)50453630242018151210976


No-load Current (A)Maximum 2.5A / Maximum 2A


Rated Torque (KG.CM)23523633041048558065078010501180132016002020


Rated Current (A)14A / 7A


50MM Stroke Load Torque (KG)32.933.0446.257.467.981.291109.2147165.2184.8224282.8


100MM Stroke Load Torque (KG)16.4516.5223.128.733.9540.645.554.673.582.692.4112141.4


160MM Stroke Load Torque (KG)9.9910.0314.0317.4320.6124.6527.6333.1544.6350.1556.1068.0085.85

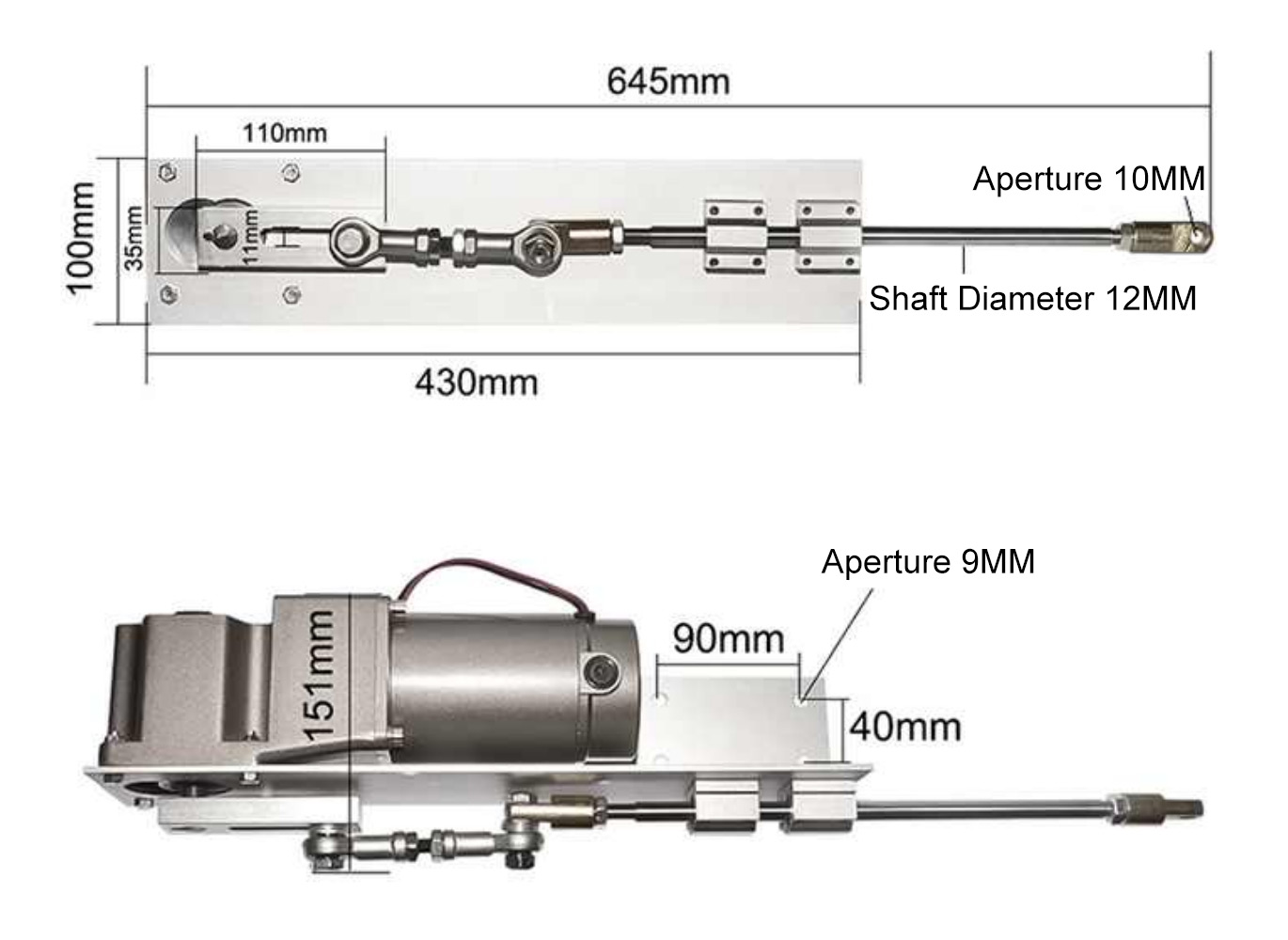

OUTLINE DIMENSION DRAWING
