LA-DIY-495Y Electric Linear Actuator

LA-DIY-495Y Electric Linear Actuator

DIY-495Y reciprocating motor can be used in hospitals and health care departments to deliver electric push-lever solutions, height adjustable sofa massage chair lifting adjustment in the home field and other fields.

Input Volatge: DC12~19V / DC24~32V
No-load Revolutions (RPM): 8~470
Stroke Length: 30mm, 50mm, 70mm

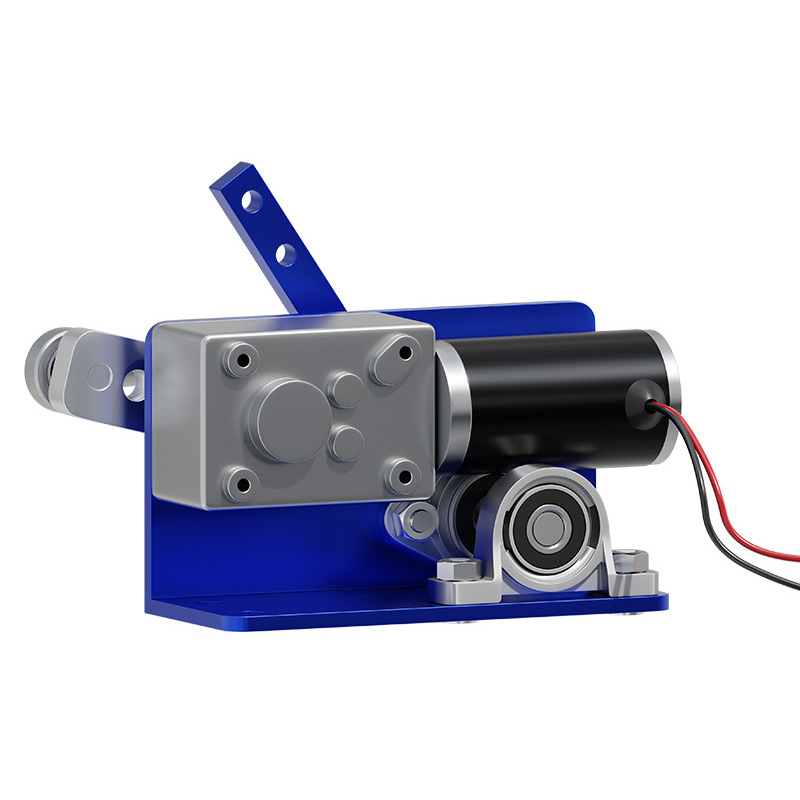

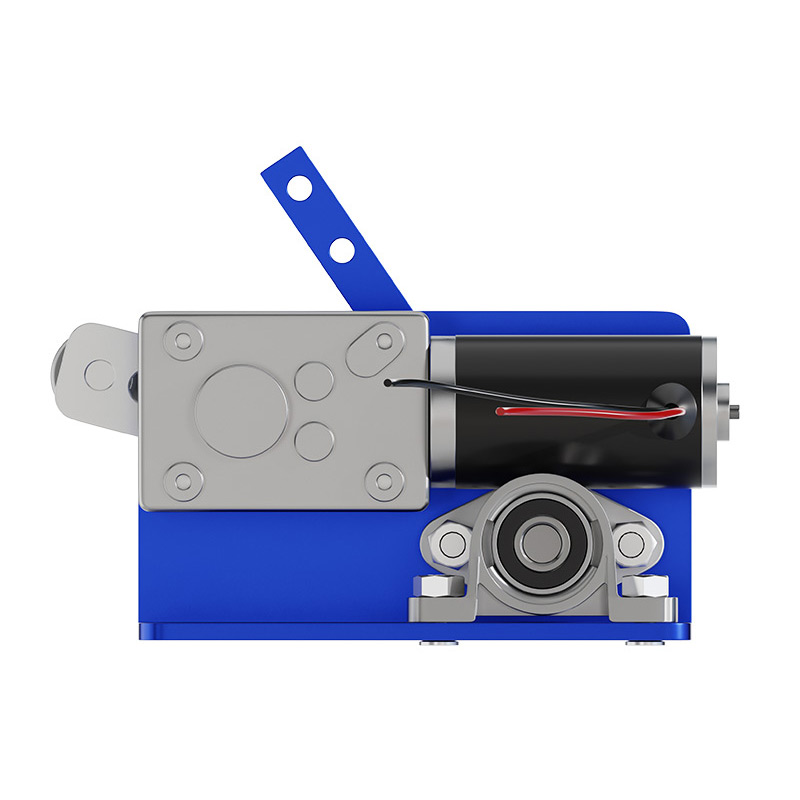

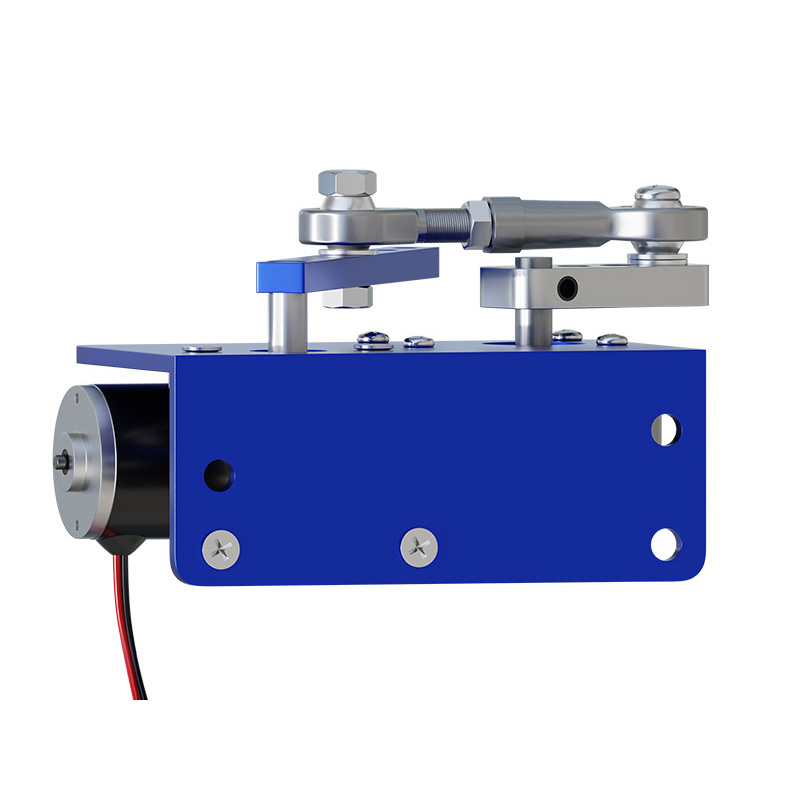

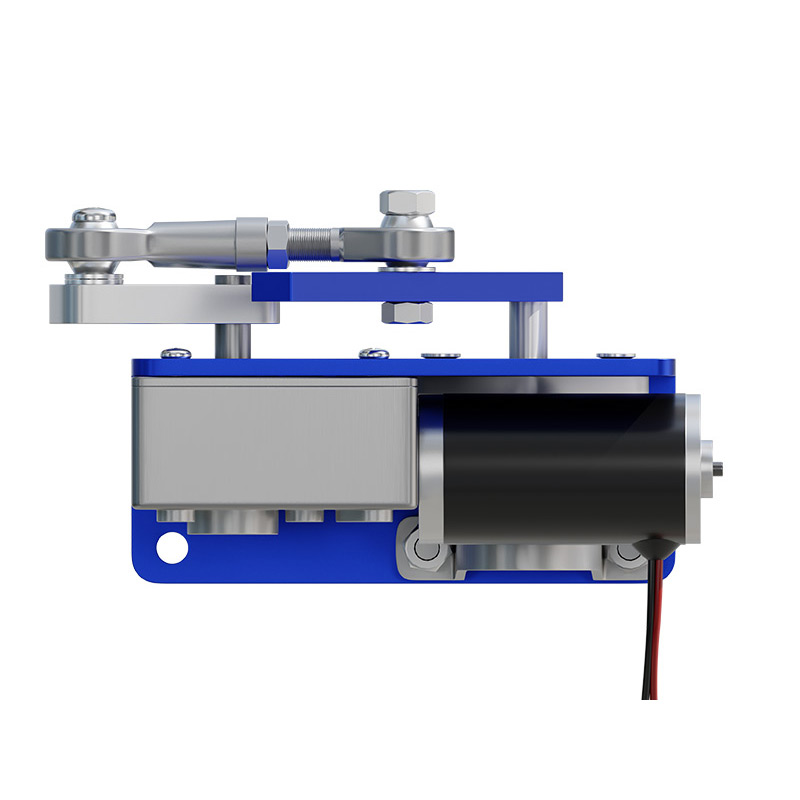

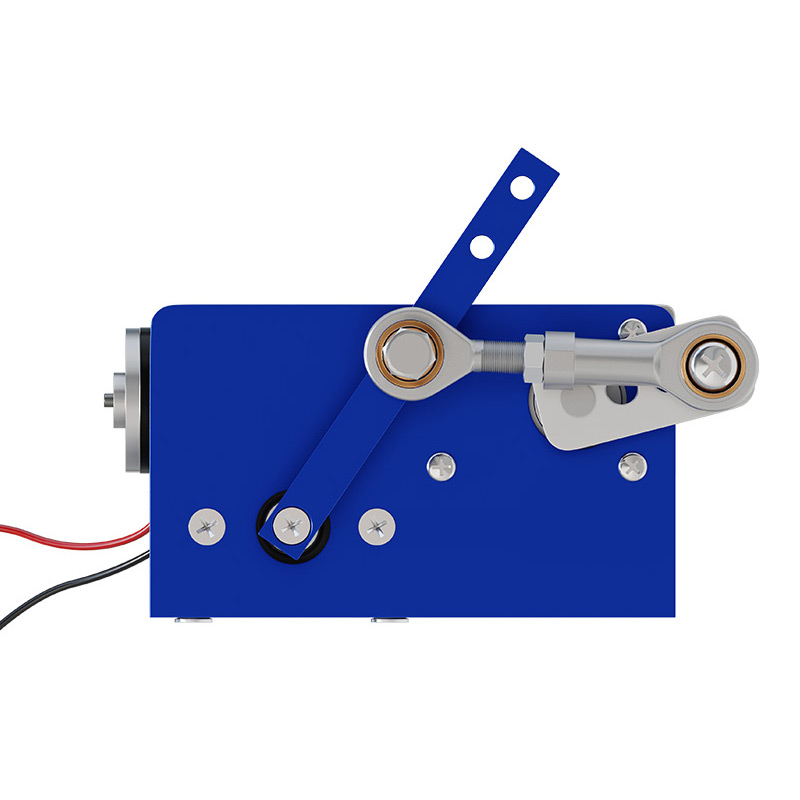

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

PRODUCT DESCRIPTION

DIY-495Y reciprocating motor can be used in hospitals and health care departments to deliver electric push-lever solutions, height adjustable sofa massage chair lifting adjustment in the home field, lifting column for lifting table tatami lifting table and other fields, and electric push-lever for automatic process function in the industrial field.

TECHNICAL PARAMETERS

VoltageDC12~19V
No-load Revolutions (RPM)812162027356070110160180200260350470
No-load Current (A)0.20.250.350.30.40.350.250.30.350.30.350.350.40.70.5
Load Revolutions (RPM)5.27.910.613.419.328415388130138148198260360
Load Current (A)0.761.71.391.41.41.391.41.41.41.391.41.41.41.491.42
Load Torque (KG.CM)252321201510.57642.522.2520.80.55
Load Power (W)9.1220.416.6816.816.816.6816.816.816.816.6816.816.816.817.8817.04
30MM Stroke Load Torque (KG)10.0013.208.408.006.004.202.802.401.601.000.800.900.800.320.22
50MM Stroke Load Torque (KG)5.006.004.204.003.002.101.401.200.800.500.400.450.400.160.11
70MM Stroke Load Torque (KG)4.175.503.503.332.501.751.171.000.670.420.330.380.330.130.09

VoltageDC24~32V
No-load Revolutions (RPM)8101320273655607080120160220250280470
No-load Current (A)0.120.120.20.150.20.20.120.150.150.150.150.250.20.20.30.3
Load Revolutions (RPM)5.36.88.714.72026.64146525675110173188198390
Load Current (A)0.520.551.021.391.41.390.680.750.70.690.81.41.41.41.41.5
Load Torque (KG.CM)353050183022814654653.531.5
Load Power (W)12.4813.224.4833.3633.633.3616.321816.816.5619.233.633.633.633.635
30MM Stroke Load Torque (KG)14.0012.0020.007.2012.008.803.205.602.402.001.602.402.001.401.200.60
50MM Stroke Load Torque (KG)7.006.0010.003.606.004.401.602.801.201.000.801.201.000.700.600.30
70MM Stroke Load Torque (KG)5.835.008.333.005.003.671.332.331.000.830.671.000.830.580.500.25

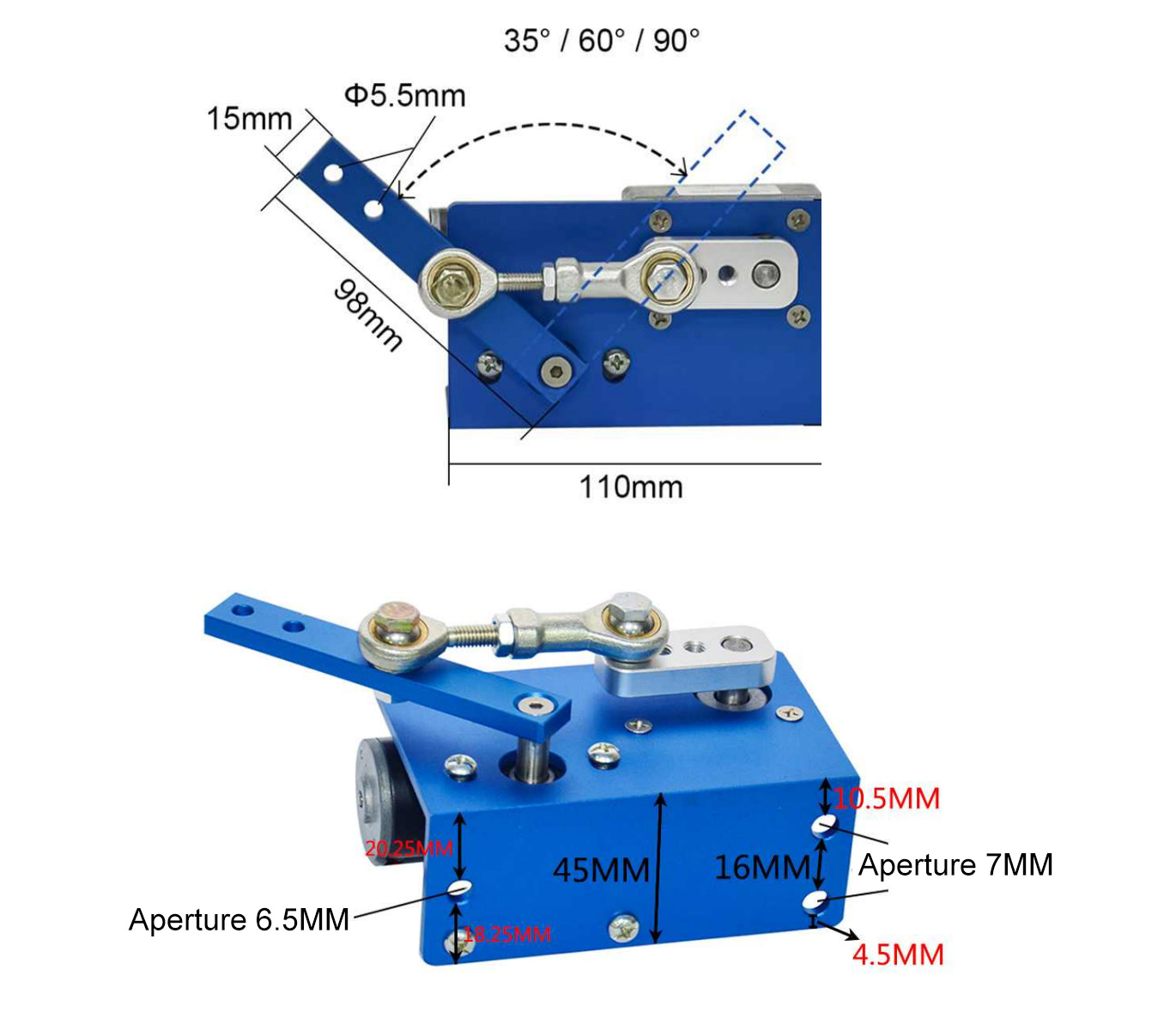

OUTLINE DIMENSION DRAWING
