LA-DIY-40GZ495 Electric Linear Actuator

DIY-40GZ495 reciprocating motors are considered to be sensitive, stable and reliable, noiseless, small in size, light in weight, large in pushing and pulling force, low in energy consumption and low in price.

Input Volatge: DC12~19V / DC24~32V
No-load Revolutions (RPM)：8~470
Stroke Length: 30mm, 50mm, 70mm

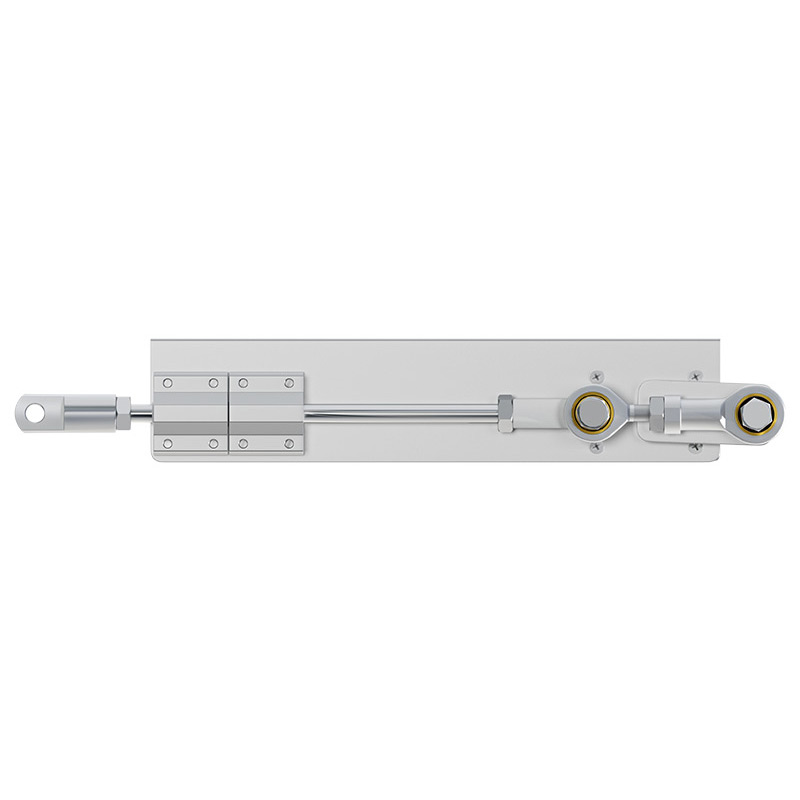

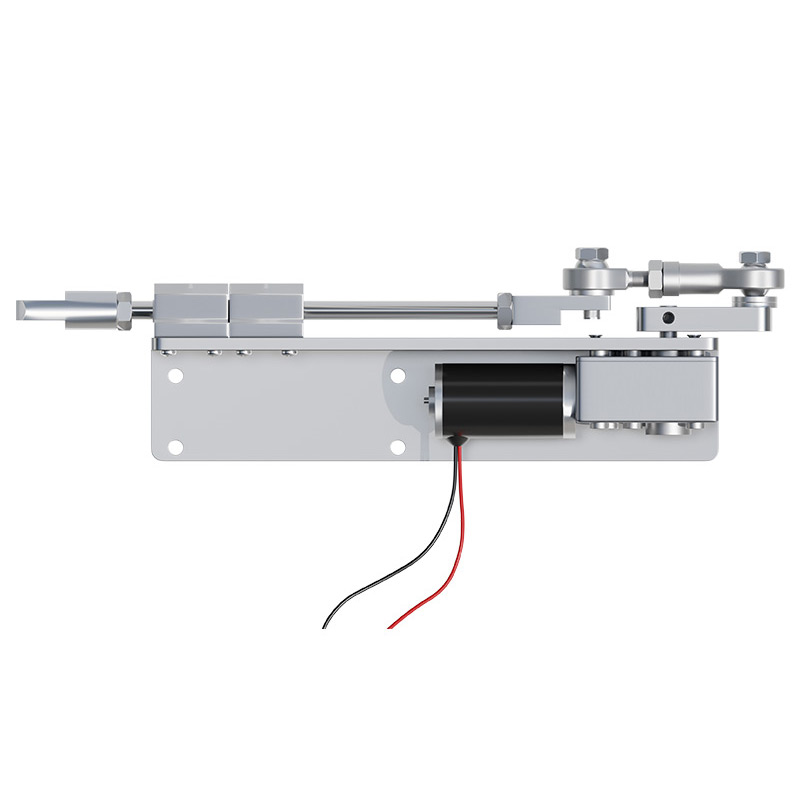

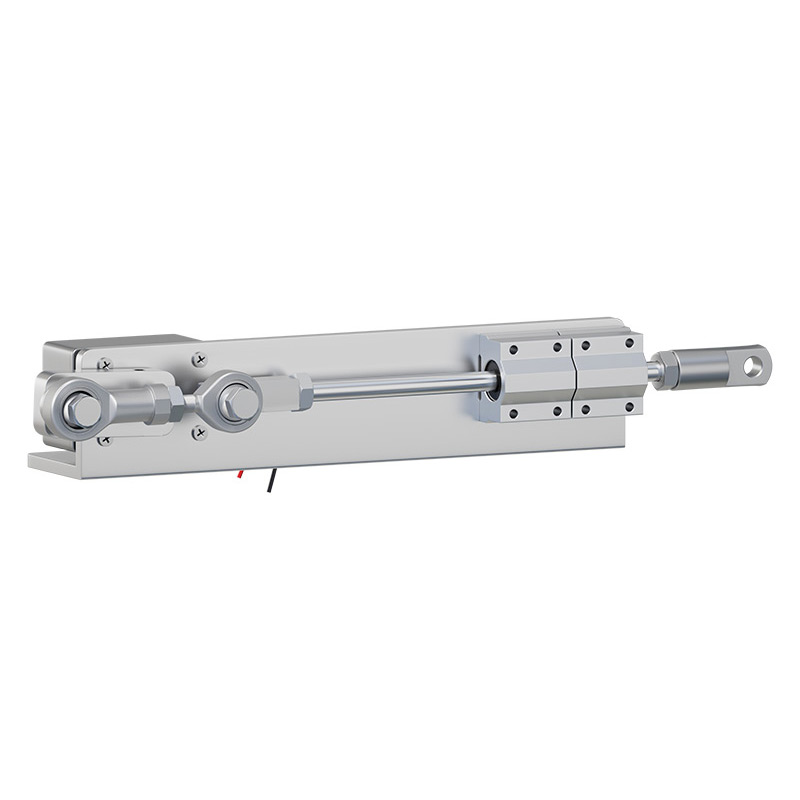

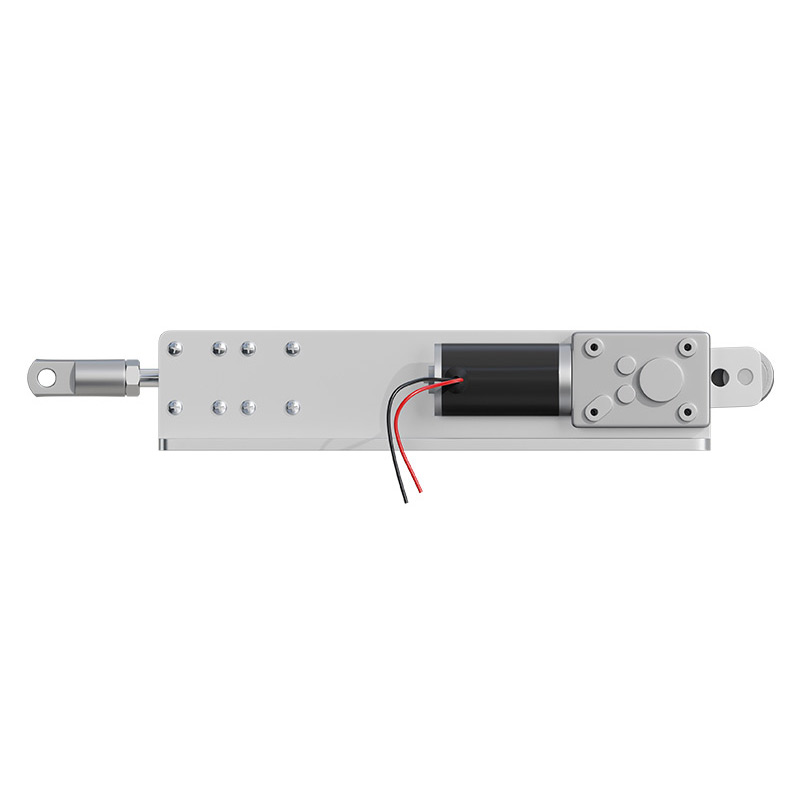

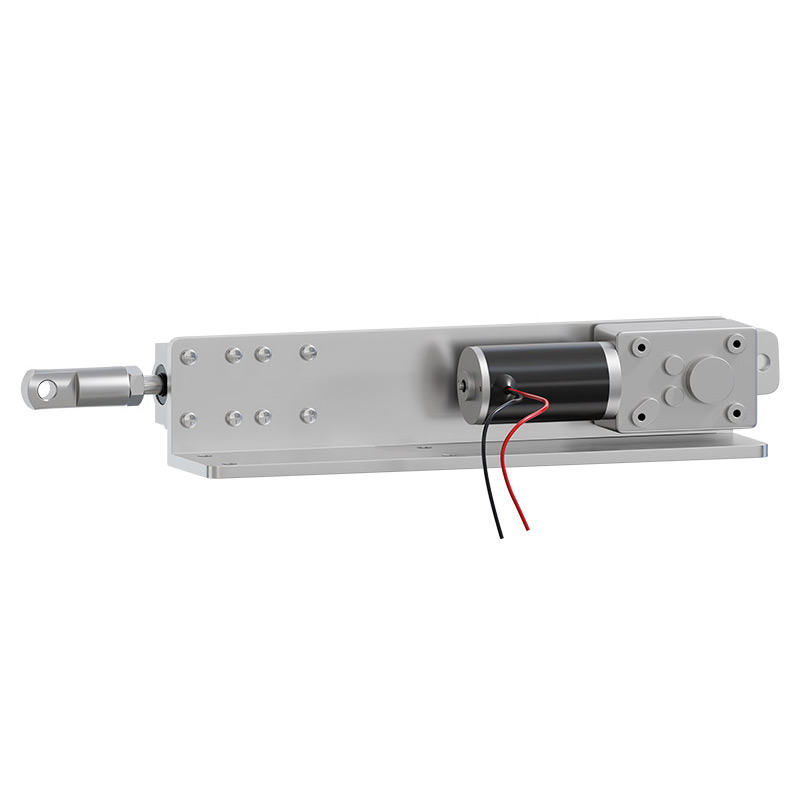

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

PRODUCT DESCRIPTION

DIY-40GZ495 reciprocating motors are considered to be sensitive, stable and reliable, noiseless, small in size, light in weight, large in pushing and pulling force, low in energy consumption and low in price. The electric Linear Actuator takes the motor as the power source, drives a pair of screw rod and nut to drive through a pair of gears to change the transmission speed, and converts the rotary motion of the motor into linear motion.

TECHNICAL PARAMETERS

Voltage	DC12~19V
No-load Revolutions (RPM)	8	12	16	20	27	35	60	70	110	160	180	200	260	350	470
No-load Current (A)	0.2	0.25	0.35	0.3	0.4	0.35	0.25	0.3	0.35	0.3	0.35	0.35	0.4	0.7	0.5
Load Revolutions (RPM)	5.2	7.9	10.6	13.4	19.3	28	41	53	88	130	138	148	198	260	360
Load Current (A)	0.76	1.7	1.39	1.4	1.4	1.39	1.4	1.4	1.4	1.39	1.4	1.4	1.4	1.49	1.42
Load Torque (KG.CM)	25	23	21	20	15	10.5	7	6	4	2.5	2	2.25	2	0.8	0.55
Load Power (W)	9.12	20.4	16.68	16.8	16.8	16.68	16.8	16.8	16.8	16.68	16.8	16.8	16.8	17.88	17.04
30MM Stroke Load Torque (KG)	5.83	7.70	4.9	4.67	3.5	2.45	1.63	1.40	0.93	0.58	0.47	0.53	0.47	0.19	0.13
50MM Stroke Load Torque (KG)	3.25	4.29	2.73	2.6	1.95	1.37	0.91	0.78	0.52	0.33	0.26	0.29	0.26	0.10	0.07
70MM Stroke Load Torque (KG)	2.14	2.83	1.8	1.71	1.29	0.90	0.60	0.51	0.34	0.21	0.17	0.19	0.17	0.07	0.05

Voltage	DC24~32V
No-load Revolutions (RPM)	8	10	13	20	27	36	55	60	70	80	120	160	220	250	280	470
No-load Current (A)	0.12	0.12	0.2	0.15	0.2	0.2	0.12	0.15	0.15	0.15	0.15	0.25	0.2	0.2	0.3	0.3
Load Revolutions (RPM)	5.3	6.8	8.7	14.7	20	26.6	41	46	52	56	75	110	173	188	198	390
Load Current (A)	0.52	0.55	1.02	1.39	1.4	1.39	0.68	0.75	0.7	0.69	0.8	1.4	1.4	1.4	1.4	1.5
Load Torque (KG.CM)	35	30	50	18	30	22	8	14	6	5	4	6	5	3.5	3	1.5
Load Power (W)	12.48	13.2	24.48	33.36	33.6	33.36	16.32	18	16.8	16.56	19.2	33.6	33.6	33.6	33.6	35
30MM Stroke Load Torque (KG)	8.17	7.00	11.67	4.20	7.00	5.13	1.87	3.27	1.40	1.17	0.93	1.40	1.17	0.82	0.70	0.35
50MM Stroke Load Torque (KG)	4.55	3.90	6.50	2.34	3.90	2.86	1.04	1.82	0.78	0.65	0.52	0.78	0.65	0.46	0.39	0.20
70MM Stroke Load Torque (KG)	3.00	2.57	4.29	1.54	2.57	1.89	0.69	1.20	0.51	0.43	0.34	0.51	0.43	0.30	0.26	0.13
