LA-DIY-37GB555 Electric Linear Actuator

LA-DIY-37GB555 Electric Linear Actuator

DIY-37GB555 motor is made of metal material, with long service life and good wear resistance. The motor can reciprocate continuously, which is different from the discontinuous operation of the ordinary linear push-rod motor.

Input Volatge: DC12~19V / DC24~32V
No-load Revolutions (RPM)：10~900
Stroke Length: 12mm, 16mm, 20mm, 25mm

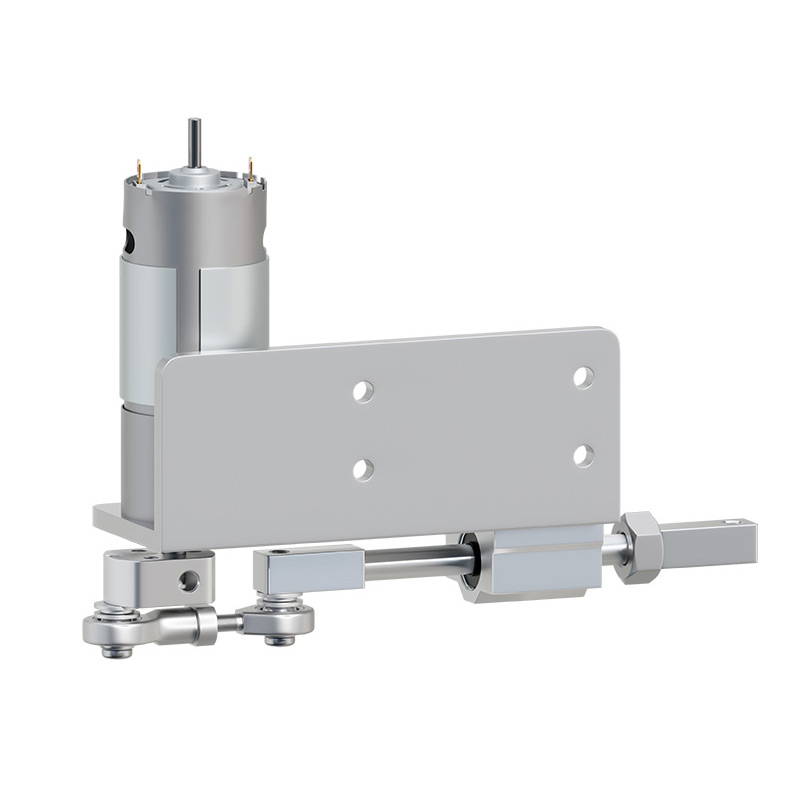

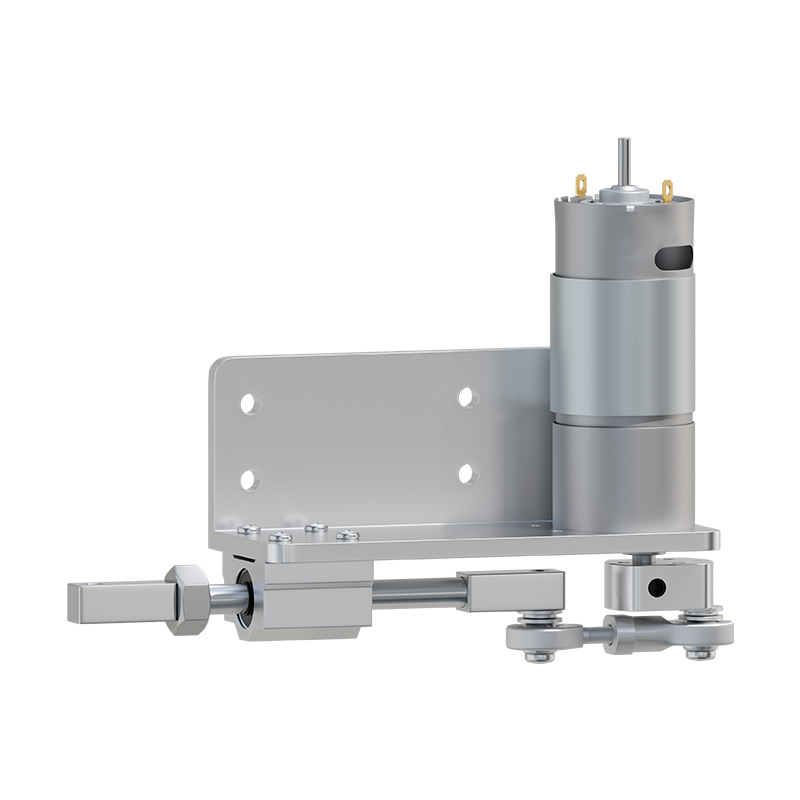

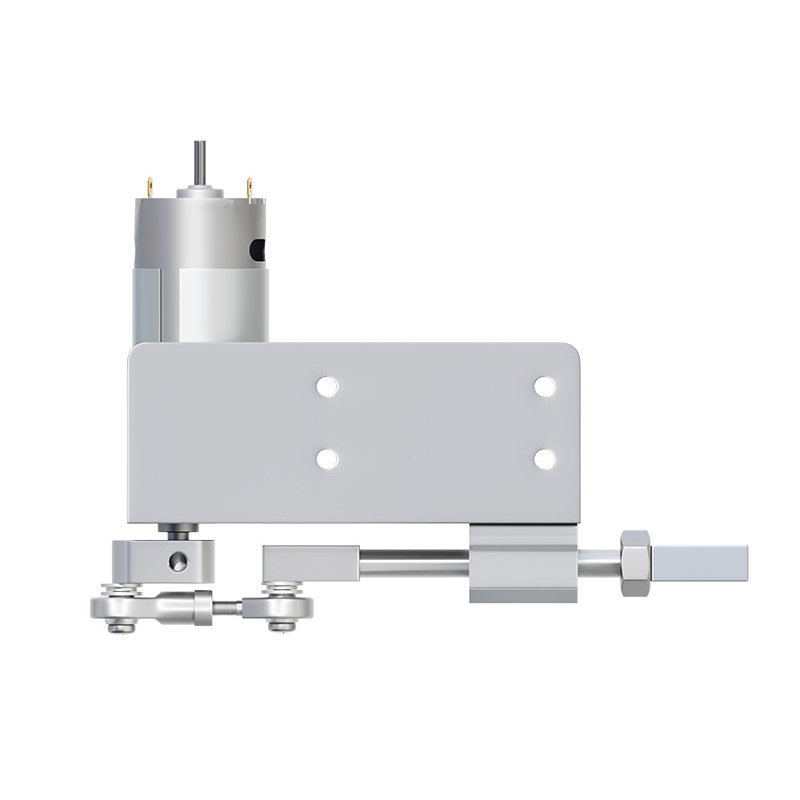

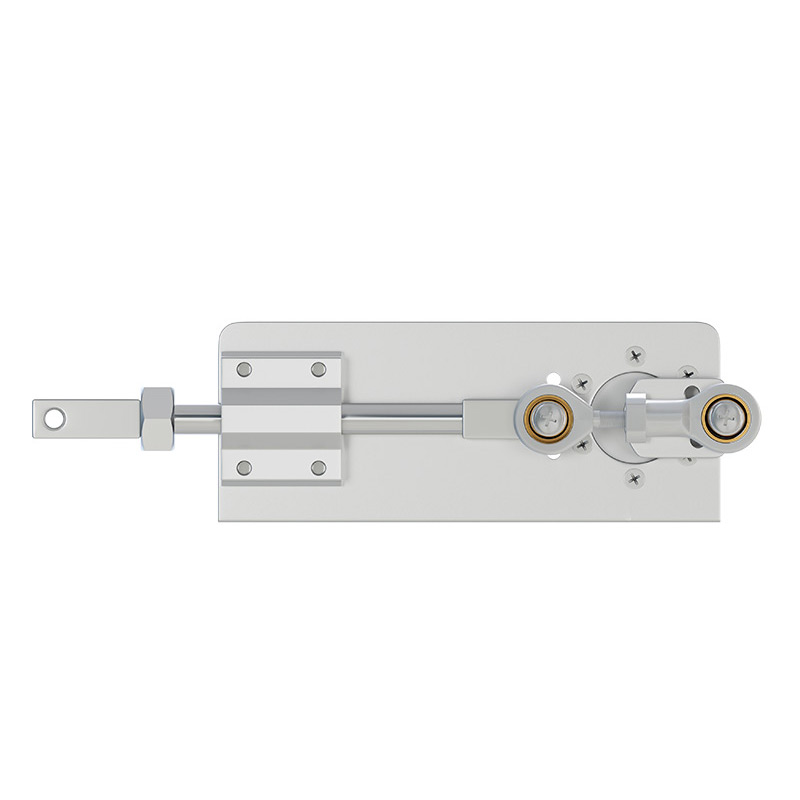

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

PRODUCT DESCRIPTION

DIY-37GB555 motor is made of metal material, with long service life and good wear resistance. The motor can reciprocate continuously, which is different from the discontinuous operation of the ordinary linear push-rod motor.

TECHNICAL PARAMETERS

VoltageDC12~19V
No-load Revolutions (RPM)1018305585120170280500900
Load Revolution (RPM)814.424446896136224400720
No-load Current (A)0.350.350.380.380.380.380.40.450.450.5
Rated Current (A)2222.22.22.22.22.32.52.5
Rated Torque (KG.CM)28.92519.518.515.212.68.84.62.81.5
12mm Stroke Torque (KG)16.8614.5811.3810.978.877.355.132.681.630.88
16mm Stroke Torque (KG)11.7410.167.927.646.185.123.581.871.140.61
20mm Stroke Torque (KG)8.677.55.855.644.563.782.641.380.840.45
25mm Stroke Torque (KG)5.7853.93.763.042.521.760.920.560.3

VoltageDC24~32V
No-load Revolutions (RPM)1018305585120170280500900
Load Revolution (RPM)814.424446896136224400720
No-load Current (A)0.30.30.350.350.350.350.350.350.40.4
Rated Current (A)1.21.21.21.41.41.41.41.51.51.5
Rated Torque (KG.CM)28.92519.518.515.212.68.84.62.81.5
12mm Stroke Torque (KG)16.8614.5811.3810.978.877.355.132.681.630.88
16mm Stroke Torque (KG)11.7410.167.927.646.185.123.581.871.140.61
20mm Stroke Torque (KG)8.677.55.855.644.563.782.641.380.840.45
25mm Stroke Torque (KG)5.7853.93.763.042.521.760.920.560.3
