LA-DIY-37GB330 Electric Actuator

Reciprocating motor is a kind of electric drive device which changes the rotation motion of the motor into the linear reciprocating motion of the Linear Actuator.

Input Volatge: DC12~19V / DC24~32V
No-load Revolutions (RPM)：DC12V: 5~600; DC24V: 5~1000
Application scenarios: electric sofa, electric booth lifting lever, industrial electric lifting system, camera frame, projector, wedding system, electric turning bed, electric nursing bed, etc.
Stroke Length: 12mm, 16mm, 20mm

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details

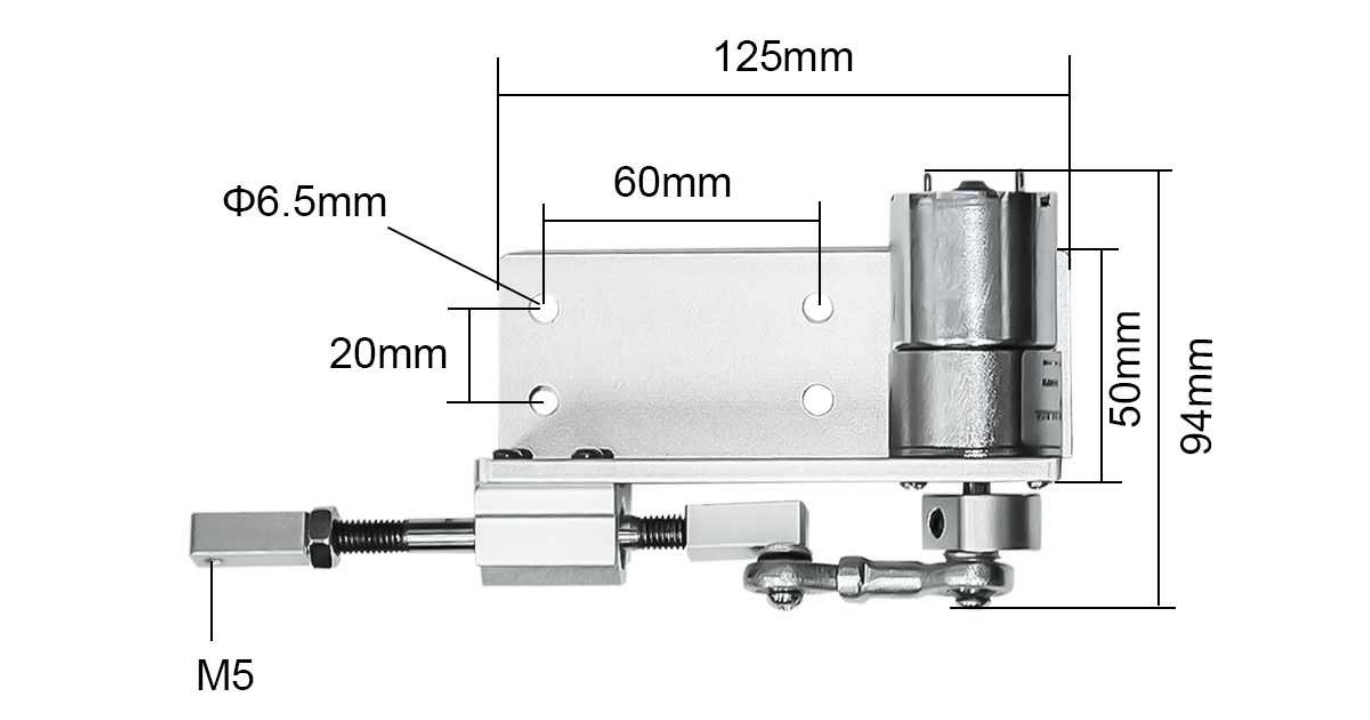

Size Weight
Related Data
Product Video

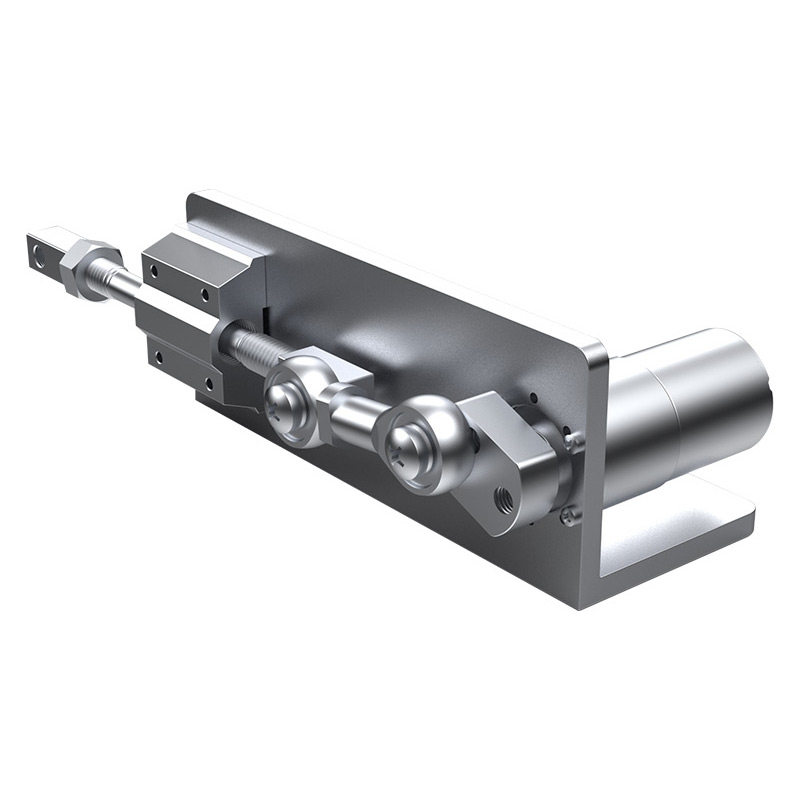

PRODUCT DESCRIPTION

Reciprocating motor is a kind of electric drive device which changes the rotation motion of the motor into the linear reciprocating motion of the Linear Actuator. It can be used as an executing machine in various simple or complex process flow to realize remote control, centralized control or automatic control. This product can be used in electric sofa, electric booth lifting lever, industrial electric lifting system, camera frame, projector, wedding system, electric turning bed, electric nursing bed, etc.

TECHNICAL PARAMETERS

Voltage	DC12~19V
No-load Revolutions (RPM)	5	10	15	20	30	40	50	60	65
Load Revolution (RPM)	4	8	12	16	24	32	40	48	52
No-load Current (A)	0.1	0.1	0.1	0.1	0.13	0.13	0.11	0.06	0.08
Rated Current (A)	0.59	0.59	0.59	0.59	0.68	0.68	0.68	0.65	0.65
Rated Torque (KG.CM)	12	12	9.5	7	5	4	3.5	2.5	2.5
Reduction Ratio	1/516	1/516	1/314	1/221	1/148	1/111	1/95	1/58	1/58
12mm Stroke Torque (KG)	7.00	7.00	5.54	4.08	2.92	2.33	2.04	1.46	1.46
16mm Stroke Torque (KG)	4.88	4.88	3.86	2.84	2.03	1.63	1.42	1.02	1.02
20mm Stroke Torque (KG)	3.6	3.6	2.85	2.1	1.5	1.2	1.05	0.75	0.75

No-load Revolutions (RPM)	87	100	120	150	200	300	400	500	600
Load Revolution (RPM)	69.6	80	96	120	160	240	320	400	480
No-load Current (A)	0.1	0.11	0.1	0.12	0.1	0.09	0.1	0.1	0.1
Rated Current (A)	0.68	0.68	0.68	0.68	0.68	0.64	0.68	0.68	0.68
Rated Torque (KG.CM)	2.5	2	2	1.8	1	0.8	0.5	0.5	0.5
Reduction Ratio	1/58	1/48	1/41	1/31	1/22	1/17	1/12	1/9	1/9
12mm Stroke Torque (KG)	1.46	1.17	1.17	1.05	0.58	0.47	0.29	0.29	0.29
16mm Stroke Torque (KG)	1.02	0.81	0.81	0.73	0.41	0.33	0.20	0.20	0.20
20mm Stroke Torque (KG)	0.75	0.6	0.6	2.1	1.5	1.2	1.05	0.75	0.75

Voltage	DC24~32V
No-load Revolutions (RPM)	5	10	15	20	30	50	60	87	100
Load Revolution (RPM)	4	8	12	16	24	40	48	69.6	80
No-load Current (A)	0.04	0.05	0.03	0.04	0.03	0.03	0.03	0.03	0.03
Rated Current (A)	0.45	0.45	0.45	0.45	0.45	0.45	0.45	0.45	0.45
Rated Torque (KG.CM)	12	12	9.5	8	5	3.5	3	3	2
Reduction Ratio	1/516	1/516	1/314	1/221	1/148	1/95	1/58	1/58	1/48
12mm Stroke Torque (KG)	7.00	7.00	5.54	4.67	2.92	2.04	1.75	1.75	1.17
16mm Stroke Torque (KG)	4.88	4.88	3.86	2.85	2.03	1.42	1.22	1.22	0.81
20mm Stroke Torque (KG)	3.6	3.6	2.85	2.4	1.5	1.05	0.9	0.9	0.6

No-load Revolutions (RPM)	150	200	300	400	500	600	800	1000
Load Revolution (RPM)	120	160	240	320	400	480	640	800
No-load Current (A)	0.06	0.03	0.03	0.02	0.04	0.04	0.07	0.04
Rated Current (A)	0.48	0.45	0.48	0.45	0.52	0.52	0.58	0.52
Rated Torque (KG.CM)	1.5	1	1	0.5	0.5	0.5	0.5	0.3
Reduction Ratio	1/31	1/22	1/17	1/9	1/9	1/9	1/9	1/3
12mm Stroke Torque (KG)	0.88	0.58	0.58	0.29	0.29	0.29	0.29	0.18
16mm Stroke Torque (KG)	0.61	0.41	0.41	0.20	0.20	0.20	0.20	0.12
20mm Stroke Torque (KG)	0.45	0.3	0.3	0.15	0.15	0.15	0.15	0.09

LA-DIY-37GB330 Electric Actuator
