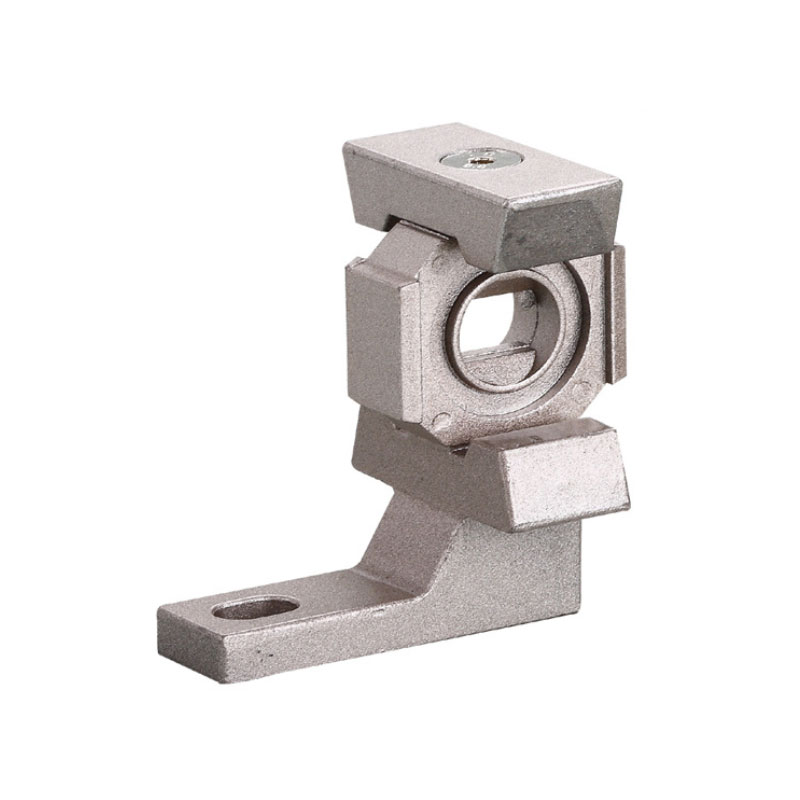

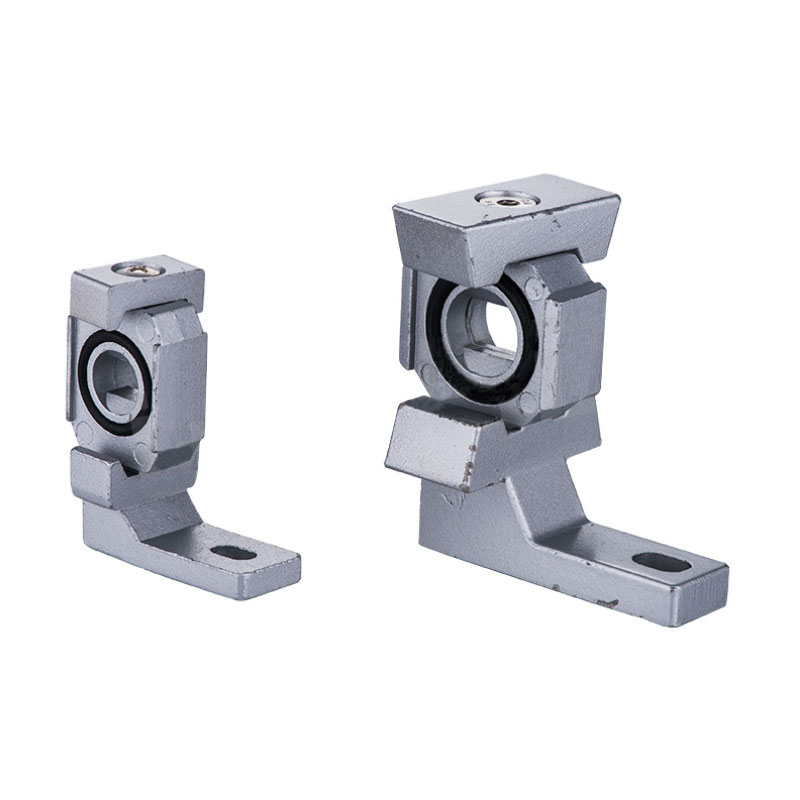

AC Series L-type Bracket

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

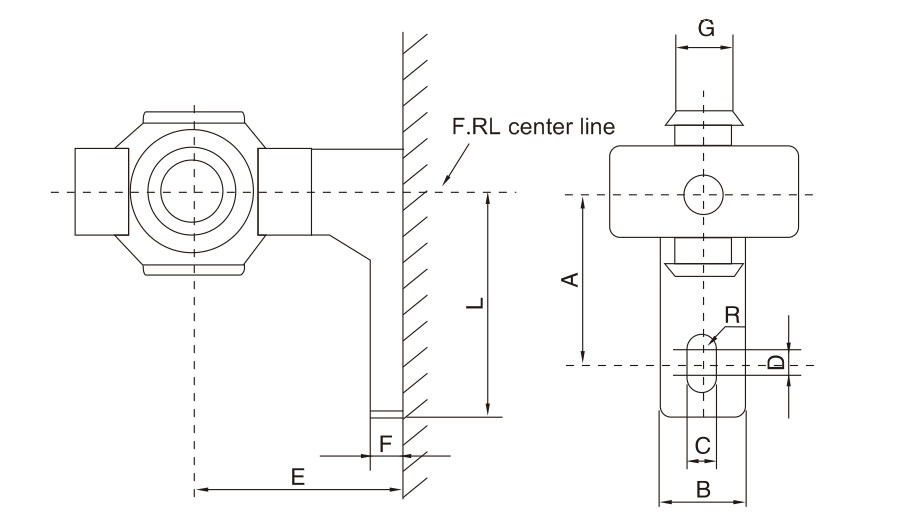

Overall Dimension for L Shaped Metal Brackets AC Series

Model A B C D E F G R L Applicable Model Material
Y10L 20 12 4.5 3 25 5 8 2.75 27 AC1000 Zinc alloy (intermediate block, connecting piece)
Aluminum alloy (bracket)
Y20L 24 15 5.5 3 30 5 10 2.75 33 AC2000
Y30L 35 16 7 4 41 7 11 3.5 45 AC2500 AC3000
Y40L 40 22 9 4 50 7 14 4.5 50 AC4000
Y50L 40 22 9 4 50 7 14 4.5 50 AC4000-06
Y60L 50 24 12 4 70 10 15 6 62.5 AC5000
