IPS-HS1 RS485 Programmable Hall Synchronous Controller

IPS-HS1 RS485 Programmable Hall Synchronous Controller

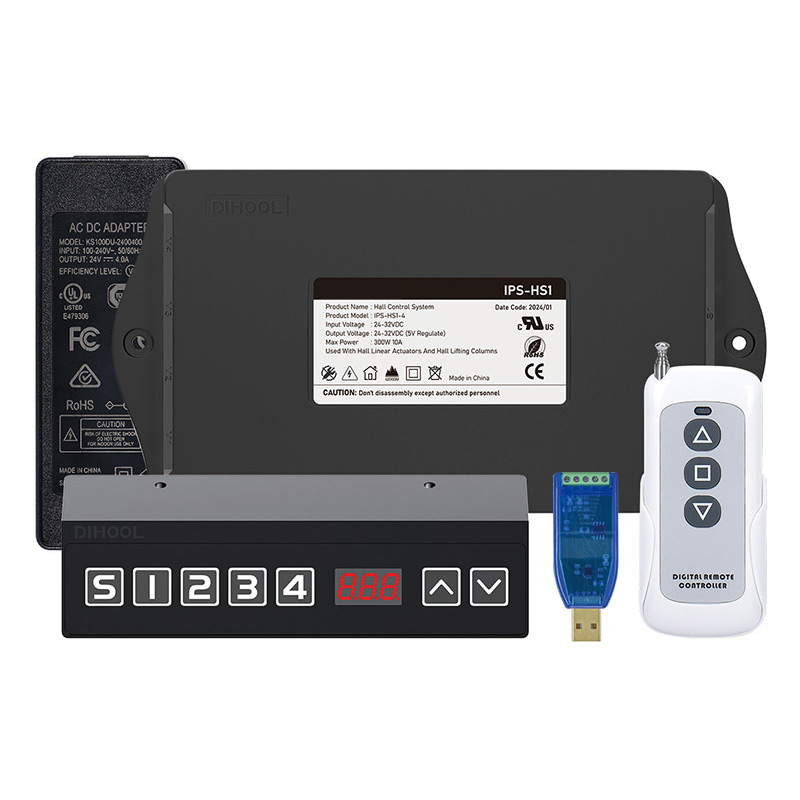

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters

ModelIPS-HS1For Motor QtyWi-Fi 2.4ghz b/g/n
Input VoltageDC24~32VWorking Temperature-20°C~ +40°C
Output VoltageDC24VWorking Humidity20%-90%
Power320W Max 10AStorage Temperature-20°C~ +90°C
ReceiverRs485/RF433/IOOther FunctionsLocation memory and display
Controller TypeHall 6-Wire ControlKey ModePress Continuous

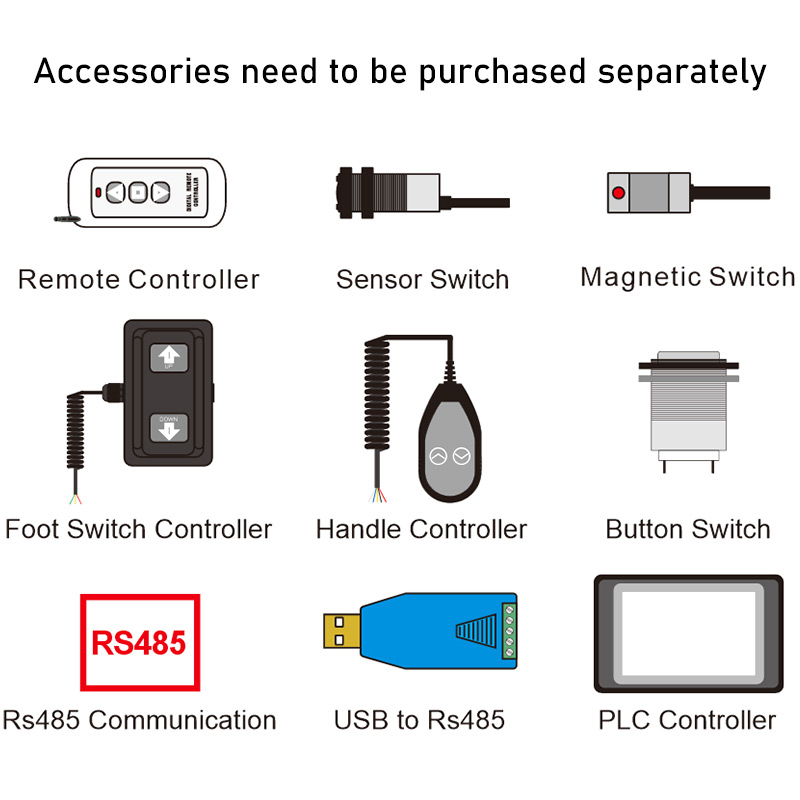

Optional Functions2.5 meter spring wire manual controller / Sensor Switch / PLC

Note: You need to consult us before you can modify the controller. Please do not modify randomly, it will cause the electric actuator damage. You Need to record every value (n01-n12) before modification
1. Press the ‘S, 1, 2, 3' buttons in sequence to enter the settings
2. RST malfunction occurs, please press the ‘V’ button to reset
3. To use sensor control, please press ‘S, 3, 2, 1' to enter the settings
4. After setting the parameters, please press ‘S’ for 3 seconds to save

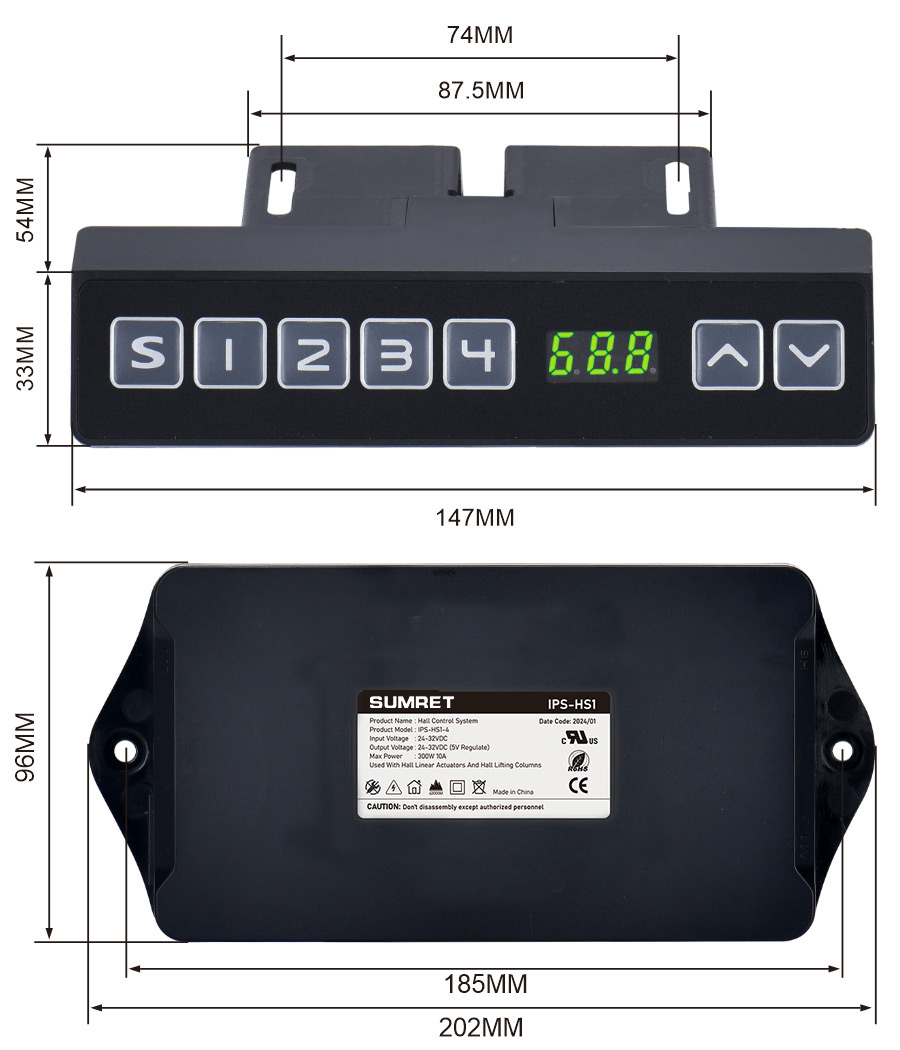

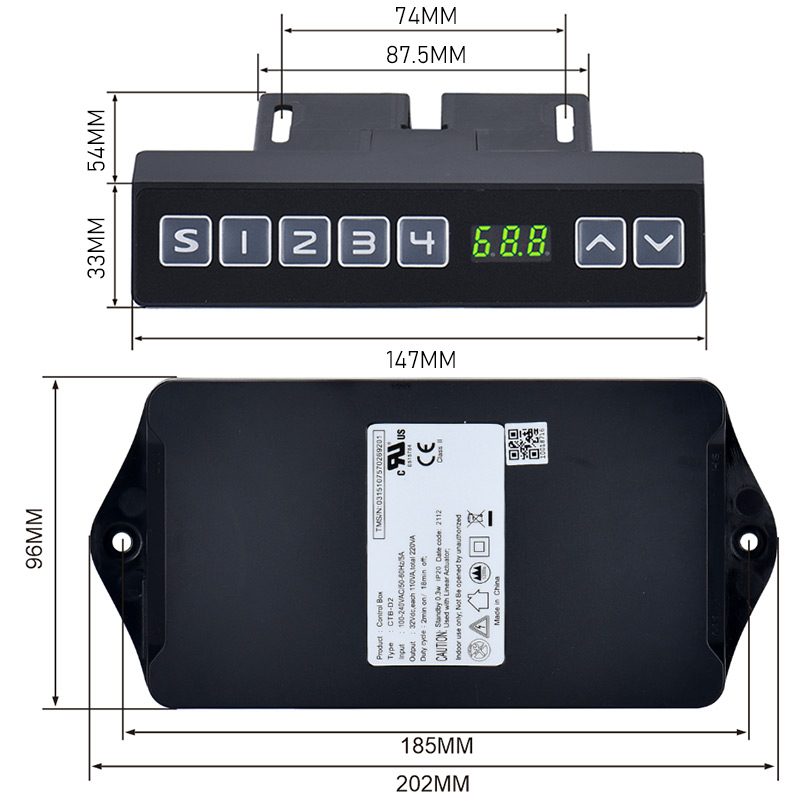

Dimensions

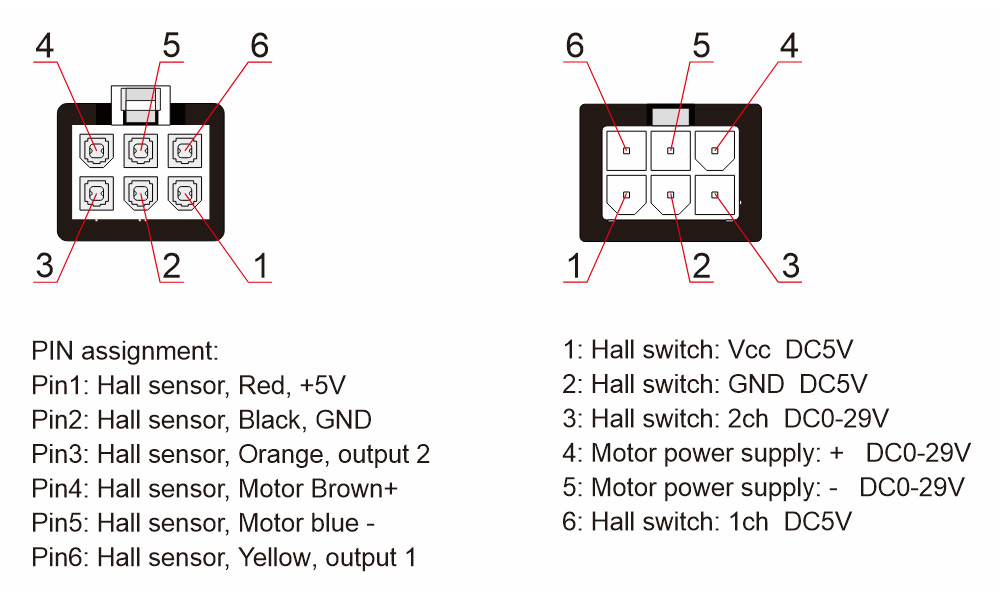

Wiring Instructions

Common Error Code

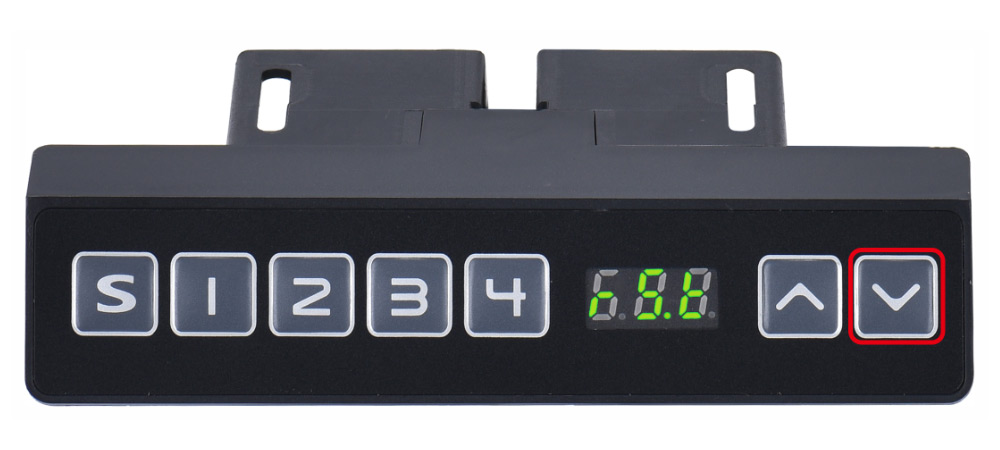

Error code ‘rst’.
Please press the ‘V’ key, and it cannot be released. The motor drops to the bottom and rebounds again. The screen will display ‘0', release the V key.
Reset successfully
