IPS-C30 High Power Hall Synchronous Controller

IPS-C30 High Power Hall Synchronous Controller

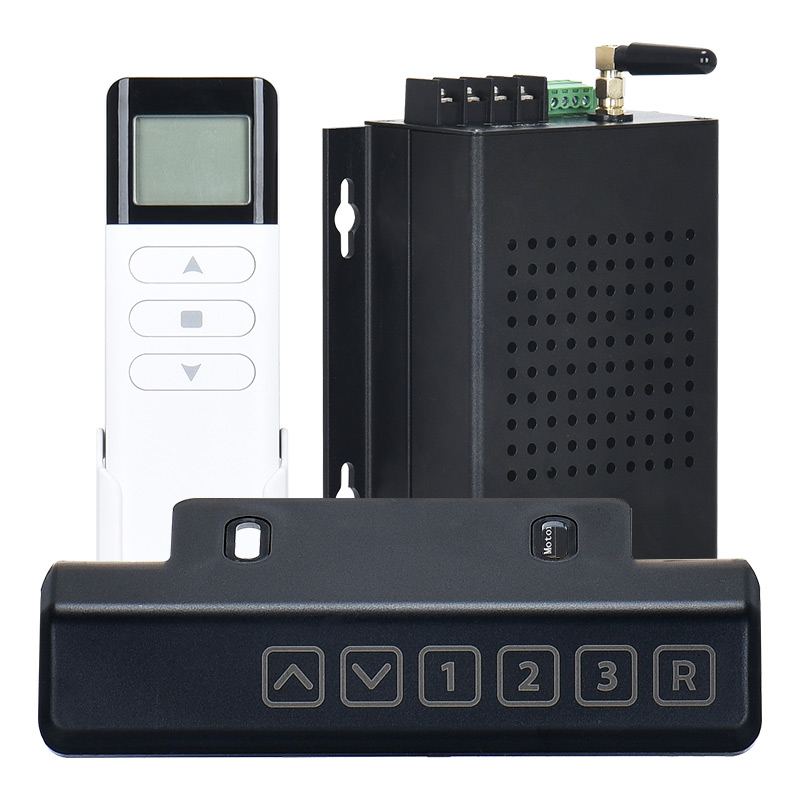

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters

ModelIPS-C30
For Motor Qty2PCS4PCS
Dimensions130*120*50MM155*150*52MM
Output VoltageDC 12~36V
Output Current25A
Communication PortsRS232, CAN2.0, Rs485
Communication ProtocolRS232 Custom Protocol/CAN Custom Protocol, RS485 Modbus RTU
Storage Temperature-20°C~ +90°C
Work Frequency10%

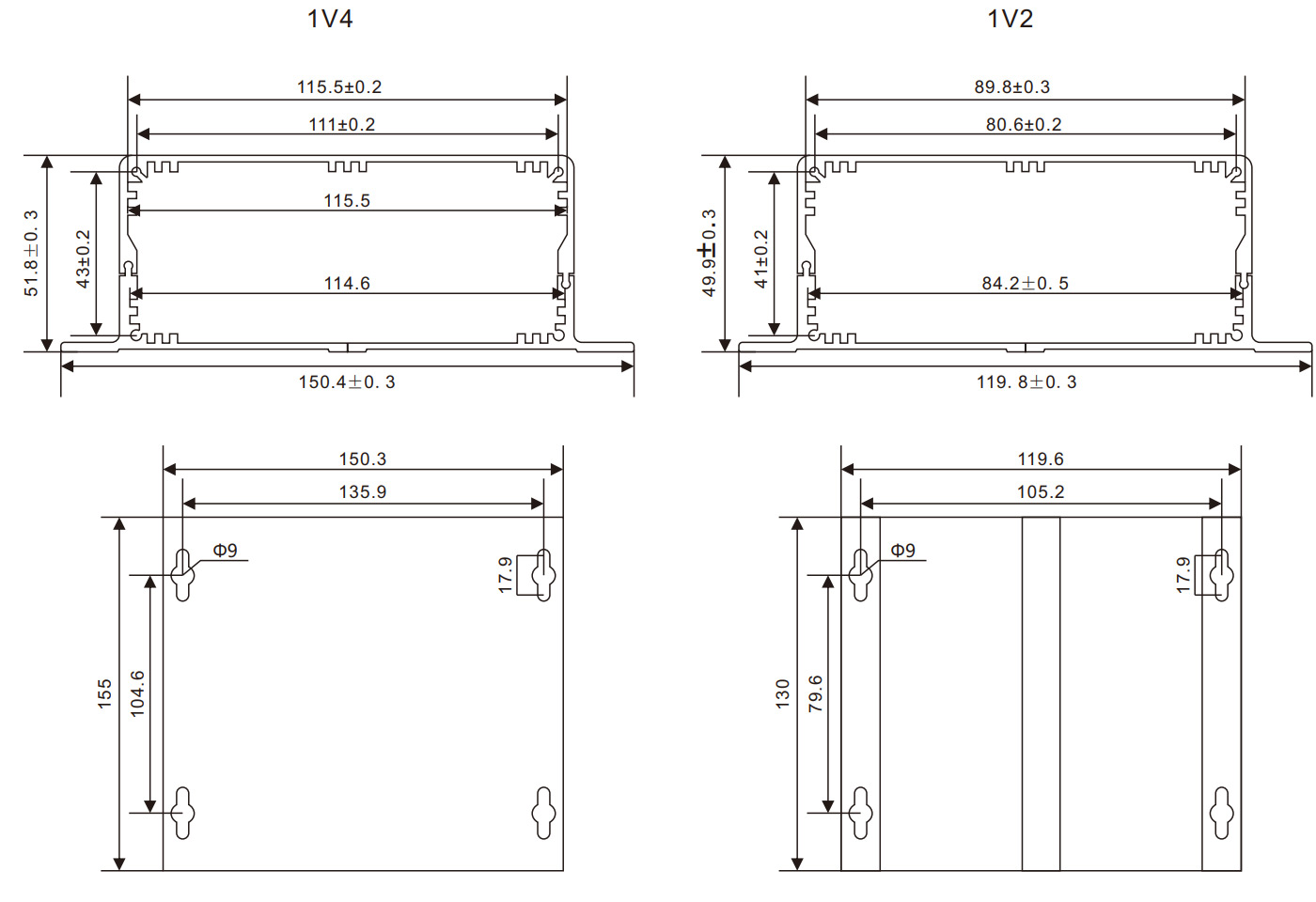

Dimensions

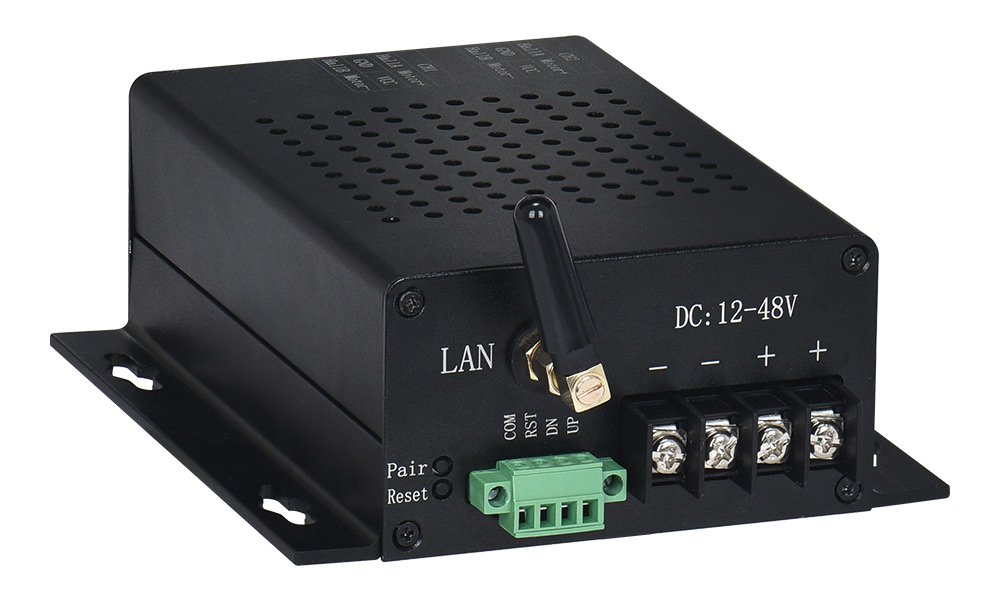

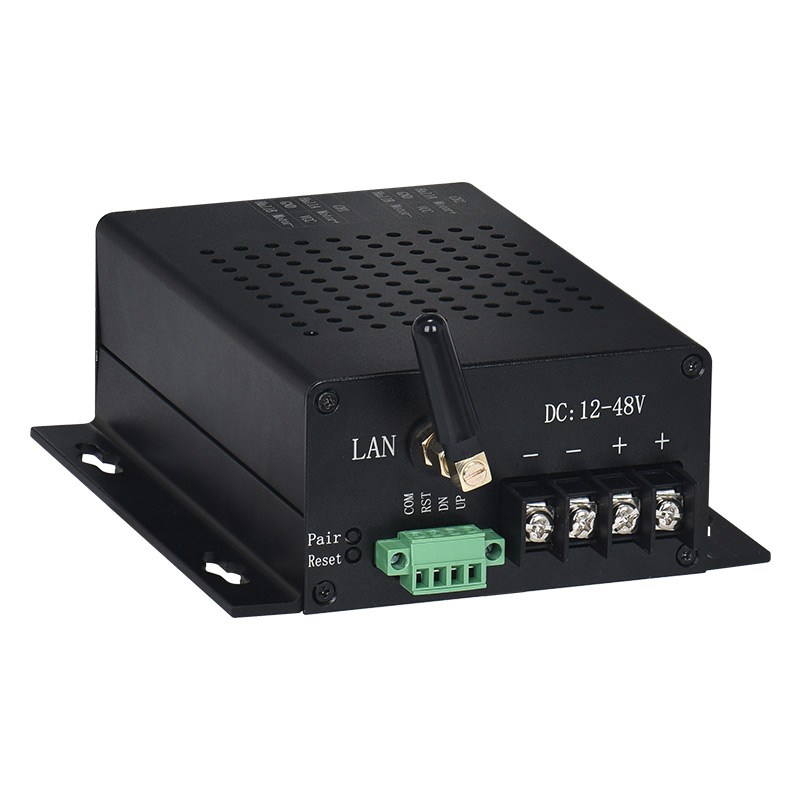

Controller Interface Definition Description


Serial   NumberController InterfaceFunction Description
1PariRemote pairing button, press and hold for 5 seconds to enter pairing mode on the controller
2ResetPush rod reset button, press and hold for 5 seconds to reset the push rod, do not release it during the reset process

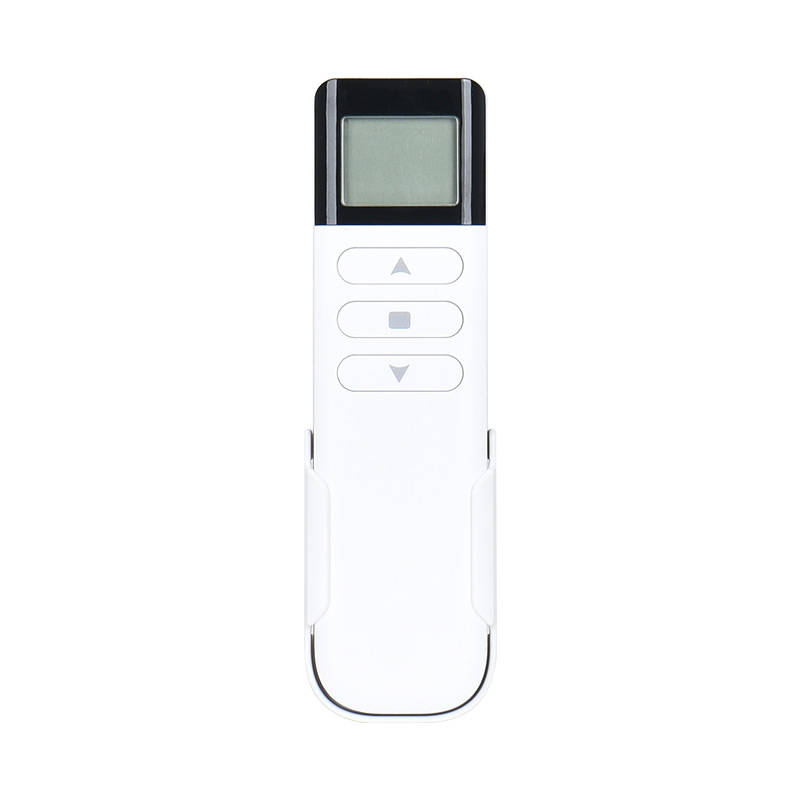

3LANRemote control antenna
4485-A/485-BRS485 communication bus interface
5CAN-H/CAN-LCAN communication bus interface

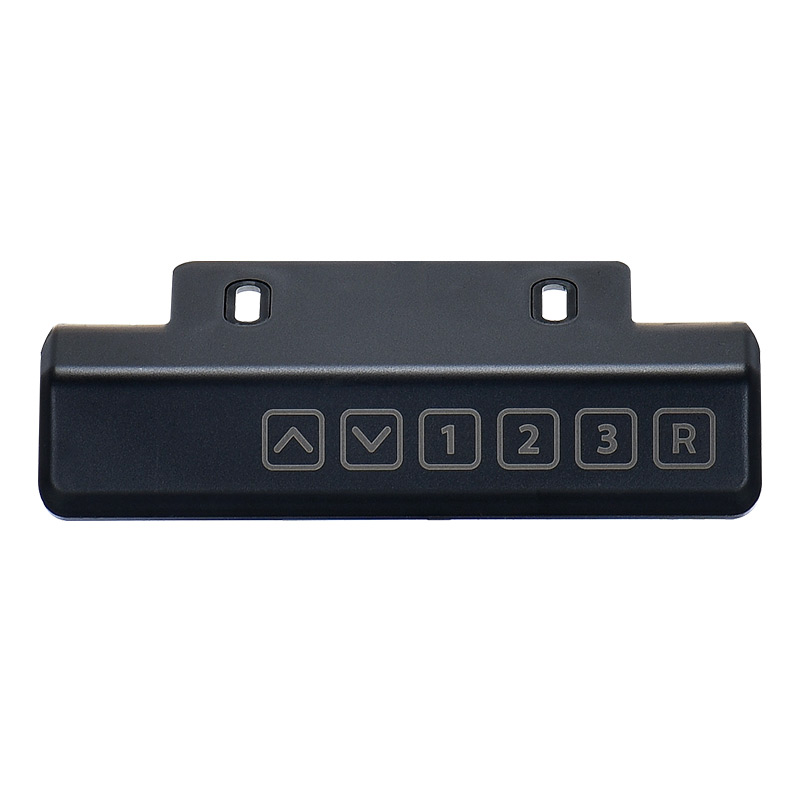

6Hand SetHandle interface/debugging touch screen interface
7PWRPower indicator light
8RUNRunning indicator light, running status indicator, error code indicator

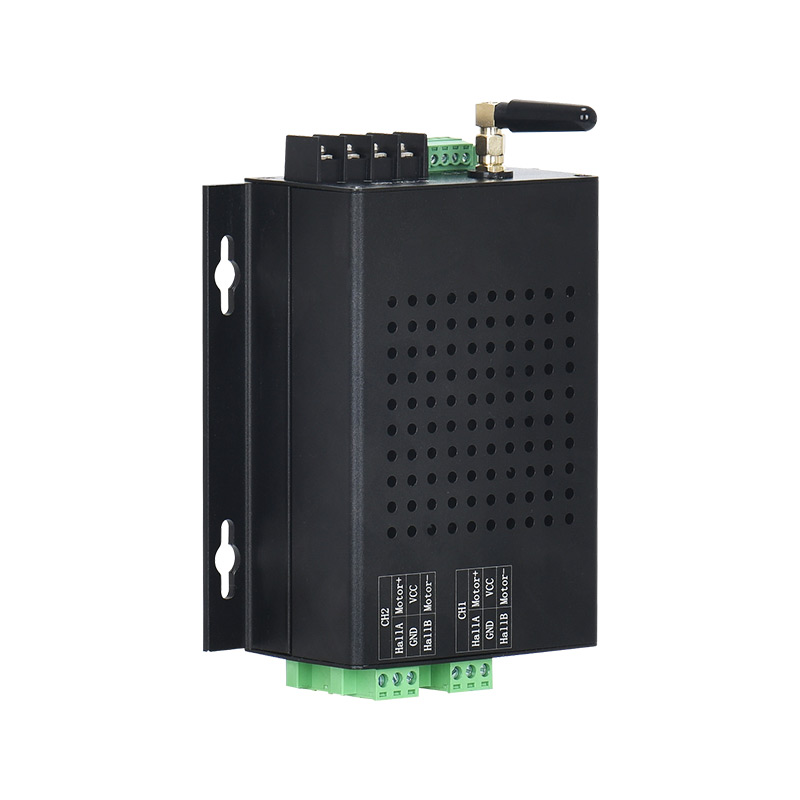

9CH1-CH4Push rod interface (motor interface+Hall signal interface)
10+ -External power supply interface (DC: 12-36V)
