IPS-C25 4 Mtors Hall Synchronous Controller

IPS-C25 4 Mtors Hall Synchronous Controller

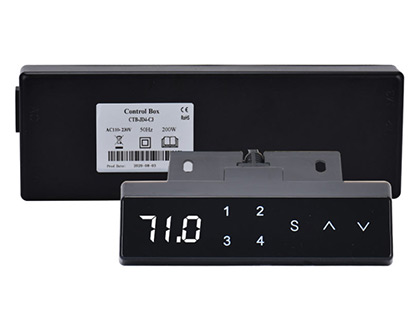

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters

ModelIPS-C25For Motor Qty4 PCS
Input VoltageAC100-240VWorking Temperature0°C~ +40℃
Output VoltageDC24VWorking Humidity20%-90%
Power240W Max 10AStorage Temperature-20°C~ +90°C
ReceiverNoneOther FunctionsLocation memory and display
Controller TypeHall 6-Wire ControlKey ModePress Continuous
Optional FunctionsRF433 Remote Control / Bluetooth APP control

Note: You need to consult us before you can modify the controller. Please do not modify randomly, it will cause the electric actuator to not work. You Need to record every value (n01-n10) before modification
1. Long press V
2. Menu index: S+∧ key combination, then press 1,2,3 key combination to enter the menu;
3. Enter the menu, adjust to 05 by using the ∧ key; display the height you need 610 or two sections 700
4. Press the S key to save the data, and then press the S+V key to display dnE save successfully

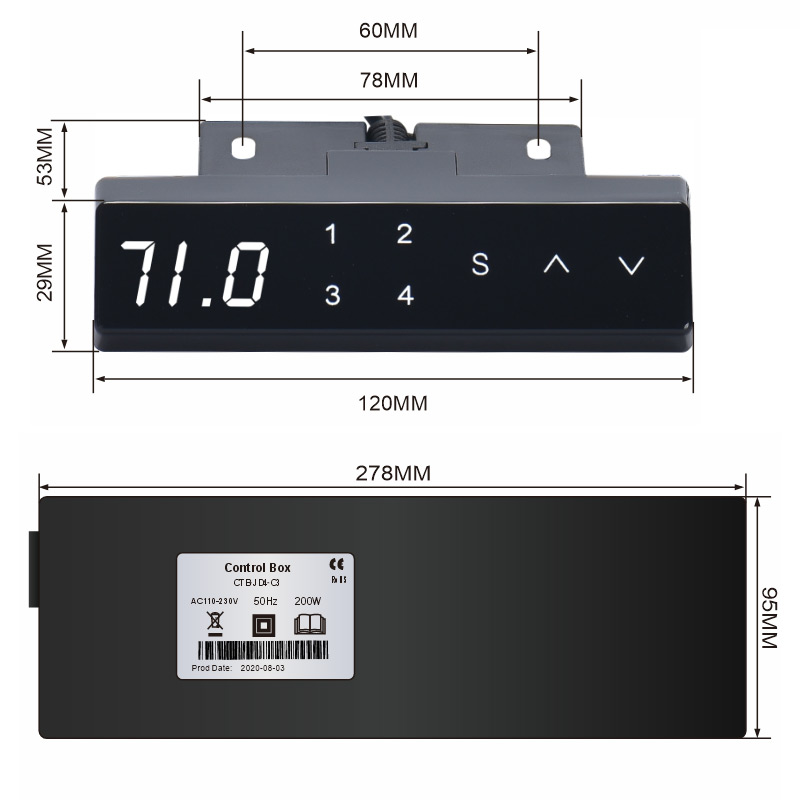

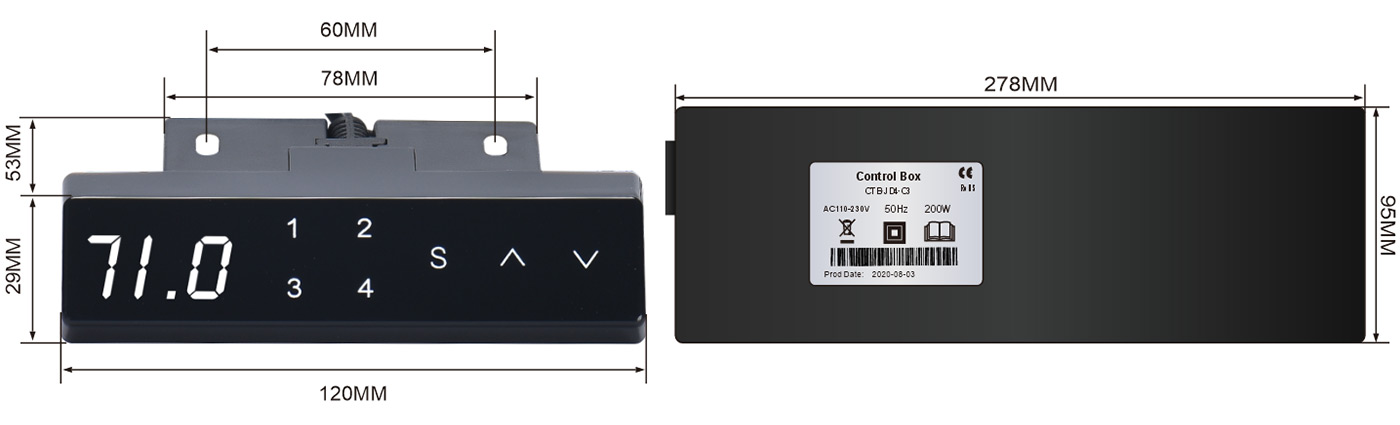

Dimensions

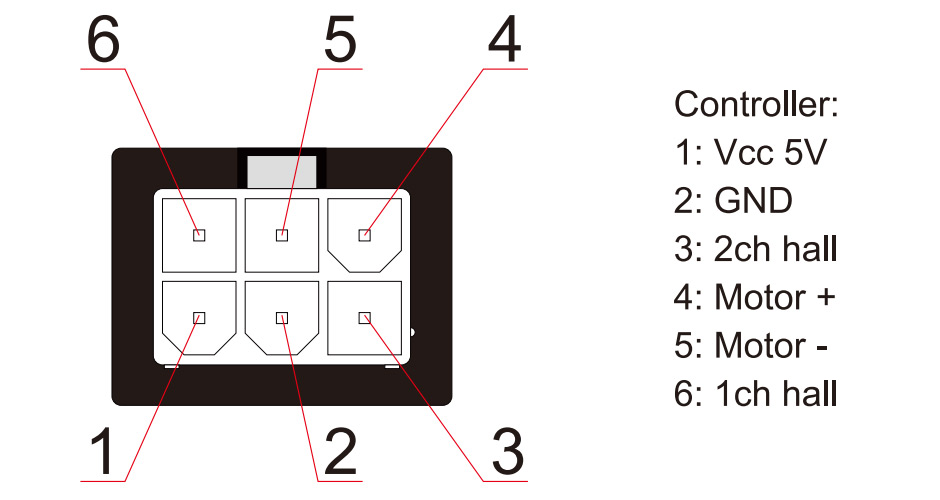

Wiring Instructions


Common Error Code

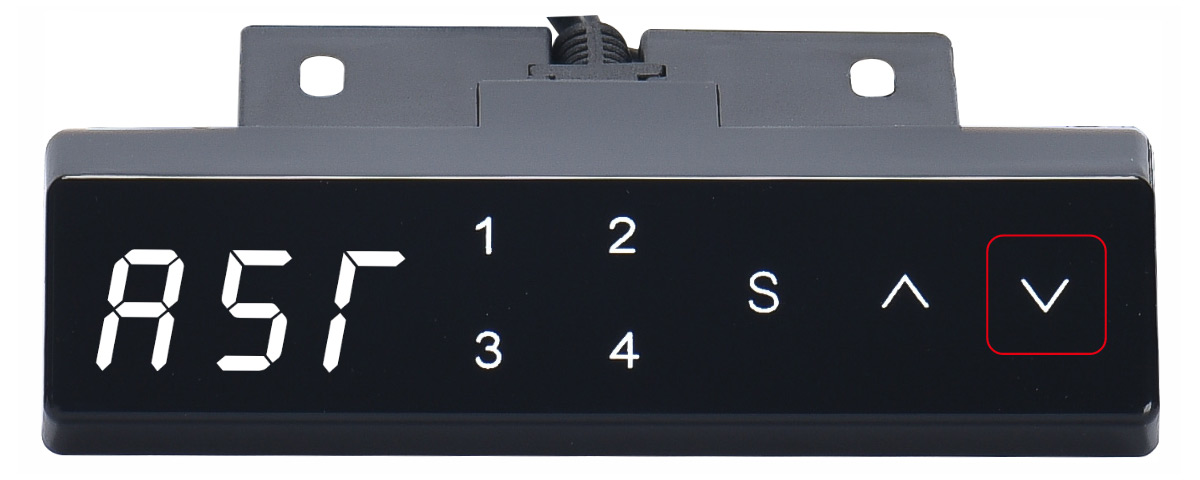

Error code ‘RST’.
Please press the ‘V’ key, and it cannot be released. The motor drops to the bottom and rebounds again. The screen will display ‘0', release the V key.
Reset successfully.
