IPS-C24 2 Mtors Hall Synchronous Controller

IPS-C24 2 Mtors Hall Synchronous Controller

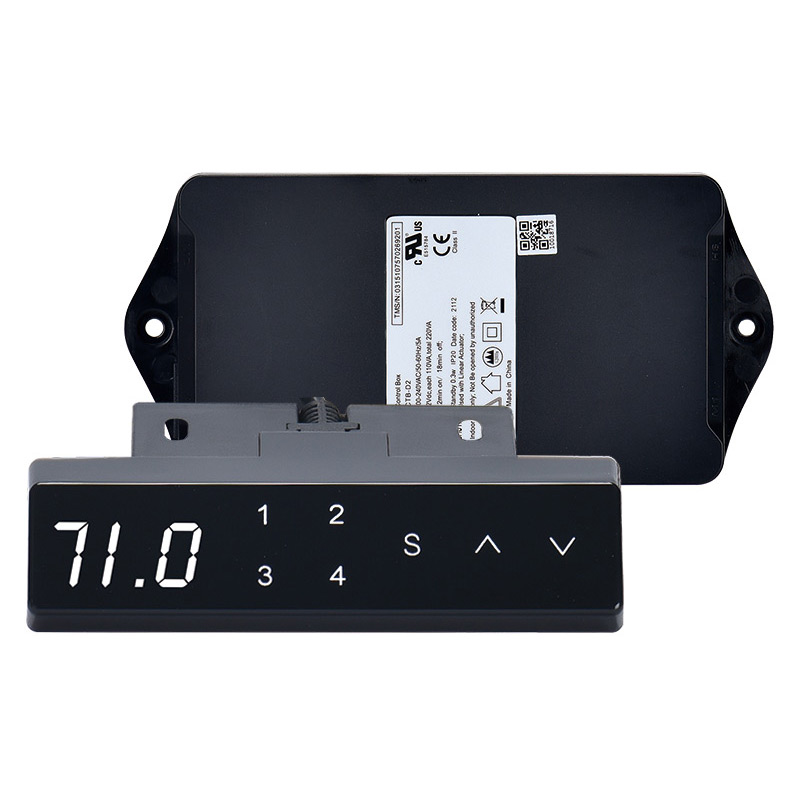

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters

Model IPS-C24 For Motor Qty 2 PCS
Input Voltage AC100-240V Working Temperature 0°C~ +40℃
Output Voltage DC24V Working Humidity 20%-90%
Power 120W Max 5A Storage Temperature -20°C~ +90°C
Receiver None Other Functions Location memory and display
Controller Type Hall 6-Wire Control Key Mode Press Continuous
Optional Functions Rf433 Remote control / Bluetooth APP control

Note: You need to consult us before you can modify the controller. Please do not modify randomly, it will cause the electric actuator to not work. You Need to record every value (n01-n10) before modification
1. Long press V
2. Menu index: S+∧ key combination, then press 1,2,3 key combination to enter the menu;
3. Enter the menu, adjust to 05 by using the ∧ key; display the height you need 610 or two sections 700
4. Press the S key to save the data, and then press the S+V key to display dnE save successfully

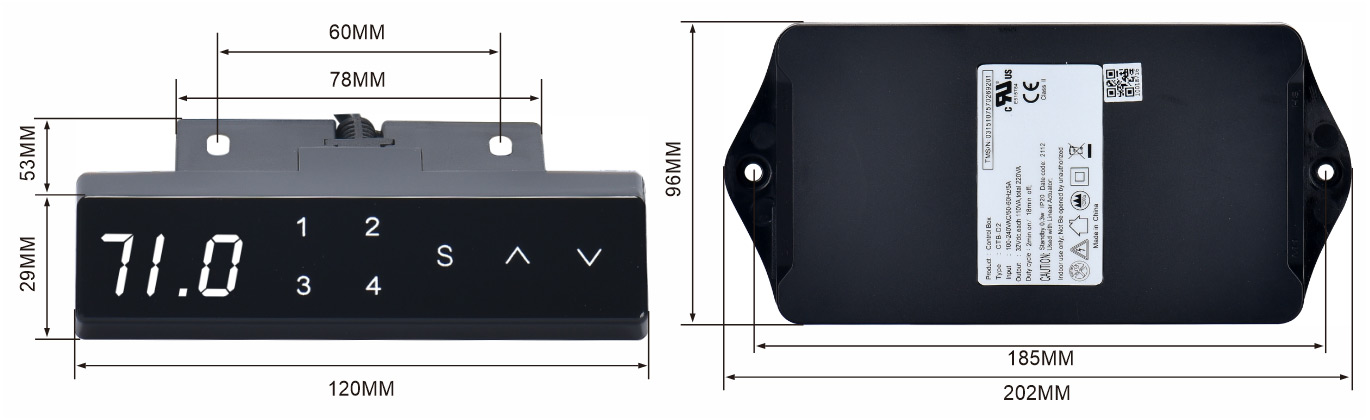

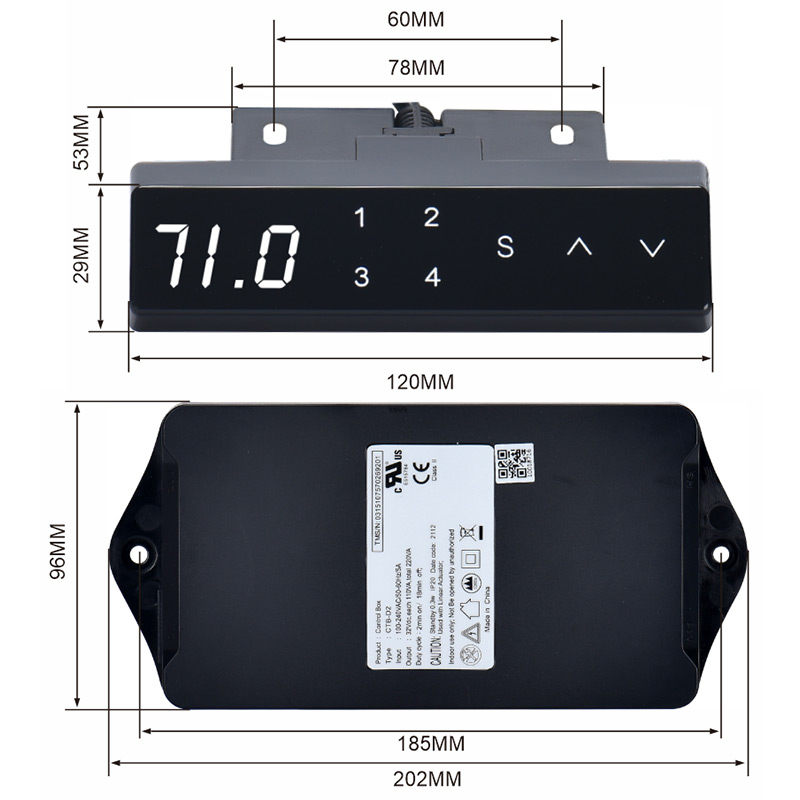

Dimensions

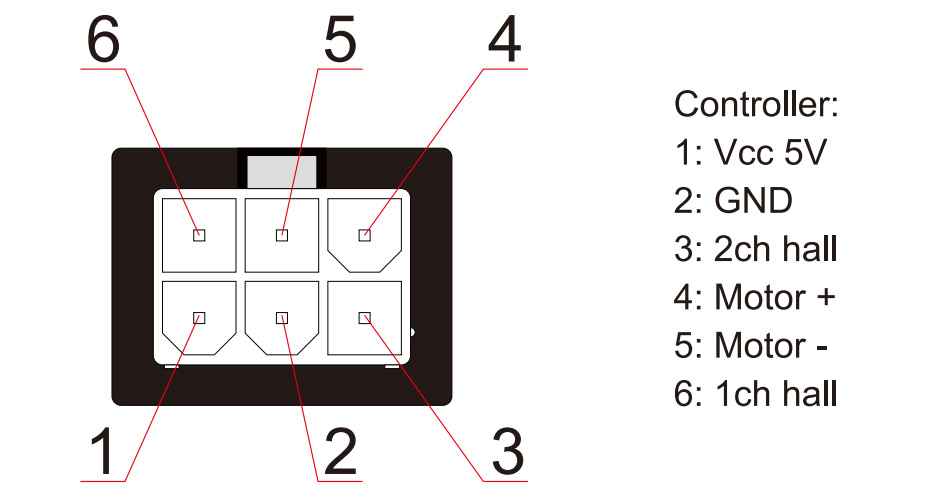

Wiring Instructions

Common Error Code

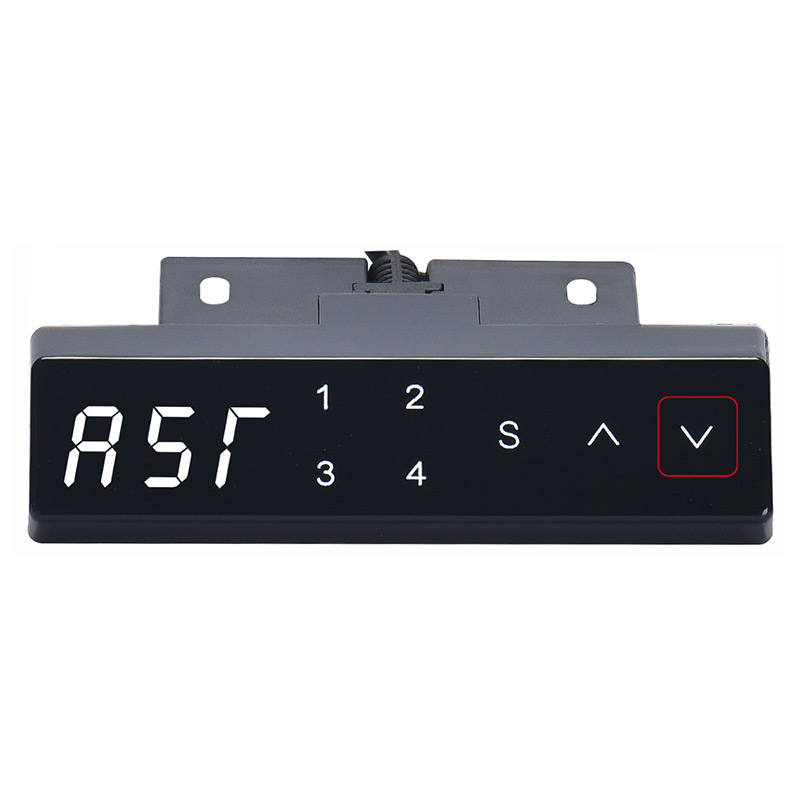

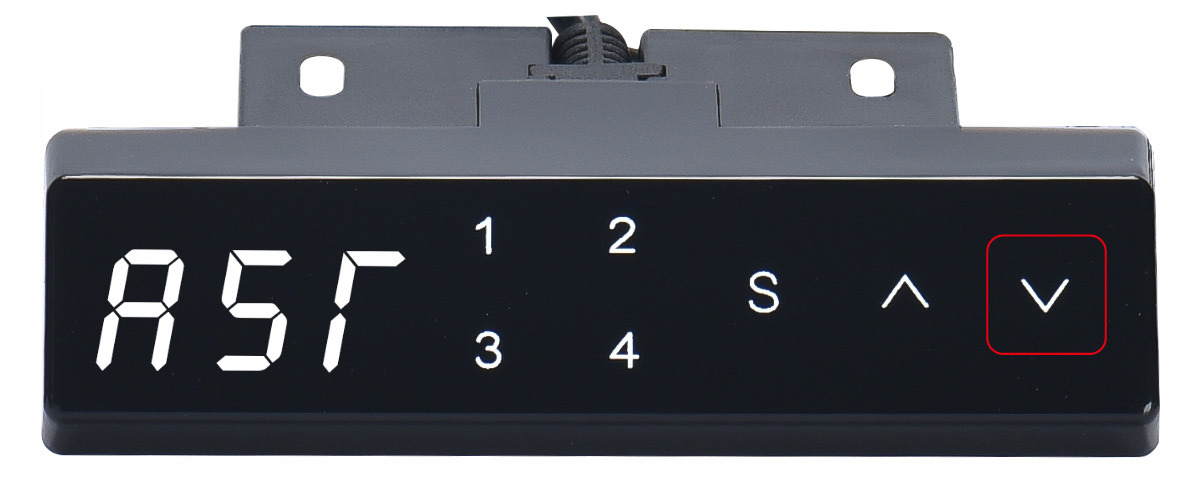

Error code ‘RST’.
Please press the ‘V’ key, and it cannot be released. The motor drops to the bottom and rebounds again. The screen will display ‘0', release the V key.
Reset successfully.
