IPS-C13 Stepper Motor Controller

IPS-C13 Stepper Motor Controller

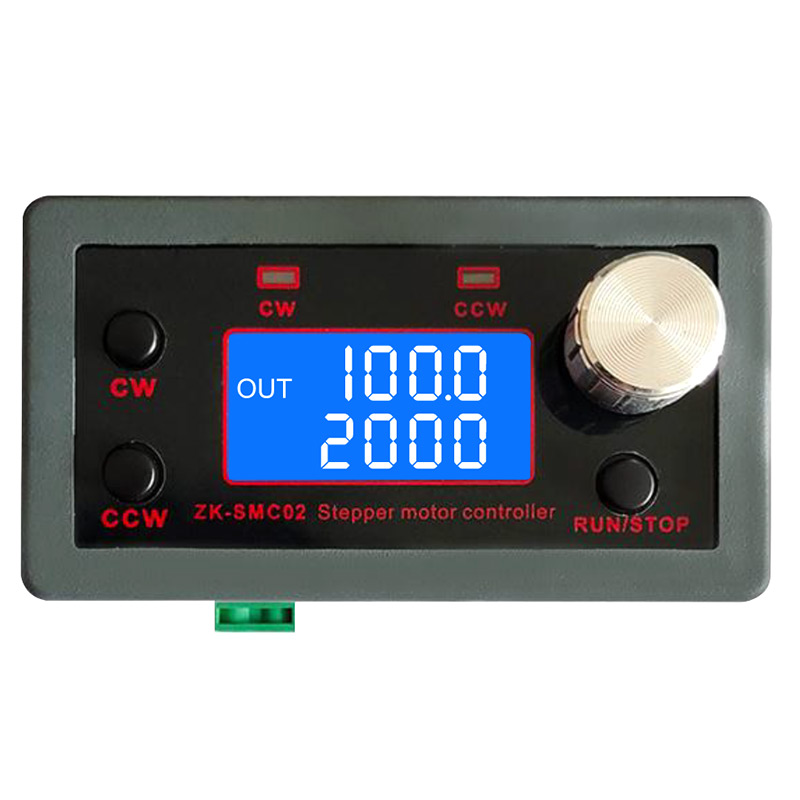

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

This is a special operation control module for single shaft stepping motor.A variety of fixed operation modes are built in the module, and users can quickly select the appropriate motion track. The distance / speed / delay / number of cycles can be saved and set after power down. It can run independently as a module, or it can be used together with other systems. It can be used in general industrial control occasions, not in special industries such as medical treatment and fire protection or life-threatening fields.

Technical Parameters

ModelIPS-C13
Adaptive MotorStepping Motor
Number Of Control AxesSingle Axis
Motor SignalCommon Cathode
Power Supply RangeDC 10-30V General
Driving Capacity4A
Instruction FeaturesStreamline and optimize multiple common instructions
Acceleration and deceleration controlYes
Input reverse connection protectionYes
Remote communication controlTTL Serial Port
Main Functions Of The SystemAutomatic, Manual, Setting And Serial Port Control
Speed Range0.1 ~ 999 laps / min
Number Of Forward Rotation Pulses1-9999999 pulses
Number Of Reverse Pulses1-9999999 pulses
Number Of Cycles1-9999
Forward Rotation Delay Time0.0-999.9 seconds
Reverse Delay Time0.0-999.9 seconds
Subdivision Detection Range1-128 subdivision
Product Service Environment-5°C~ +60°C

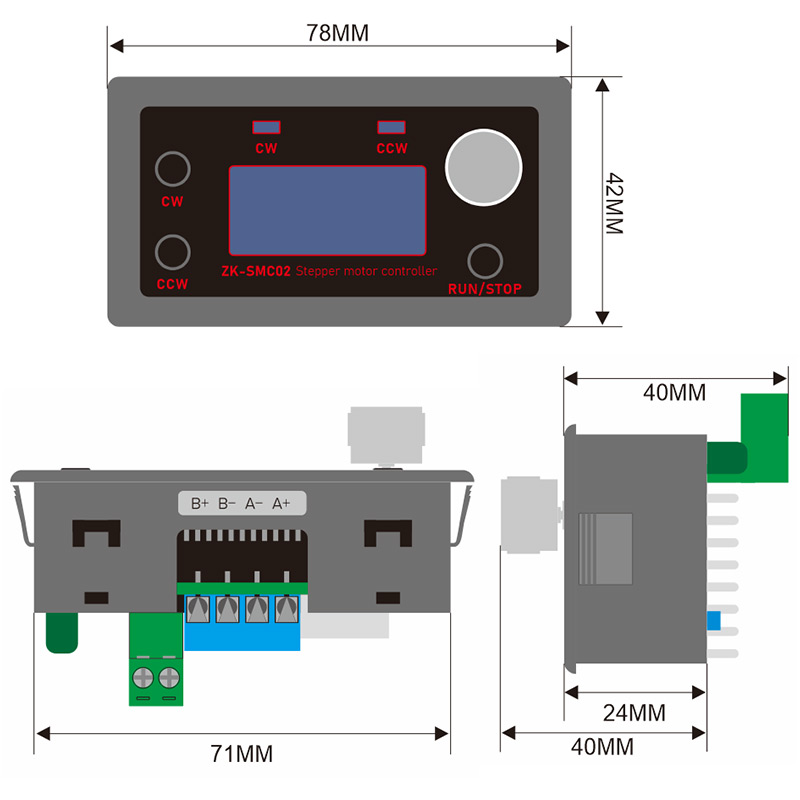

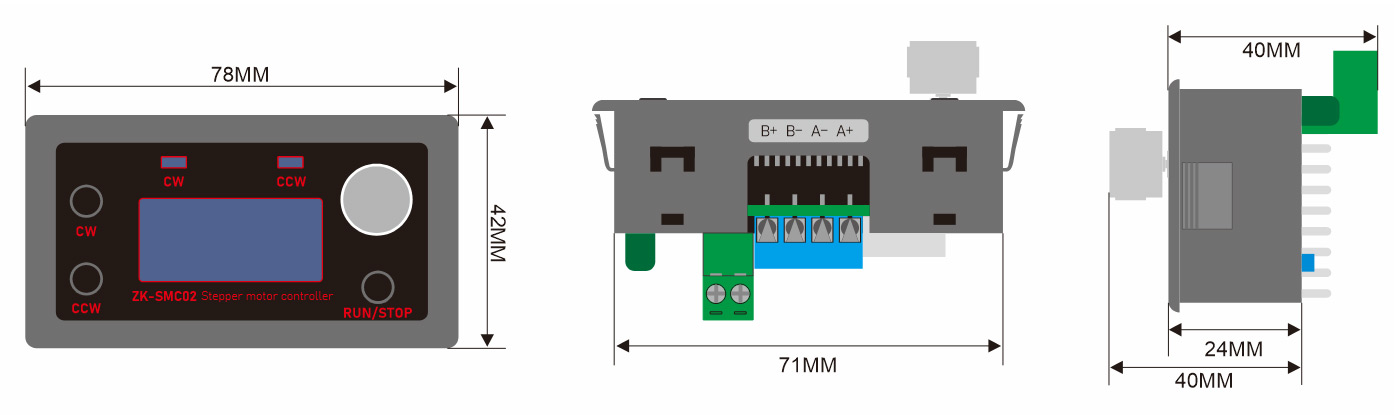

Dimensions

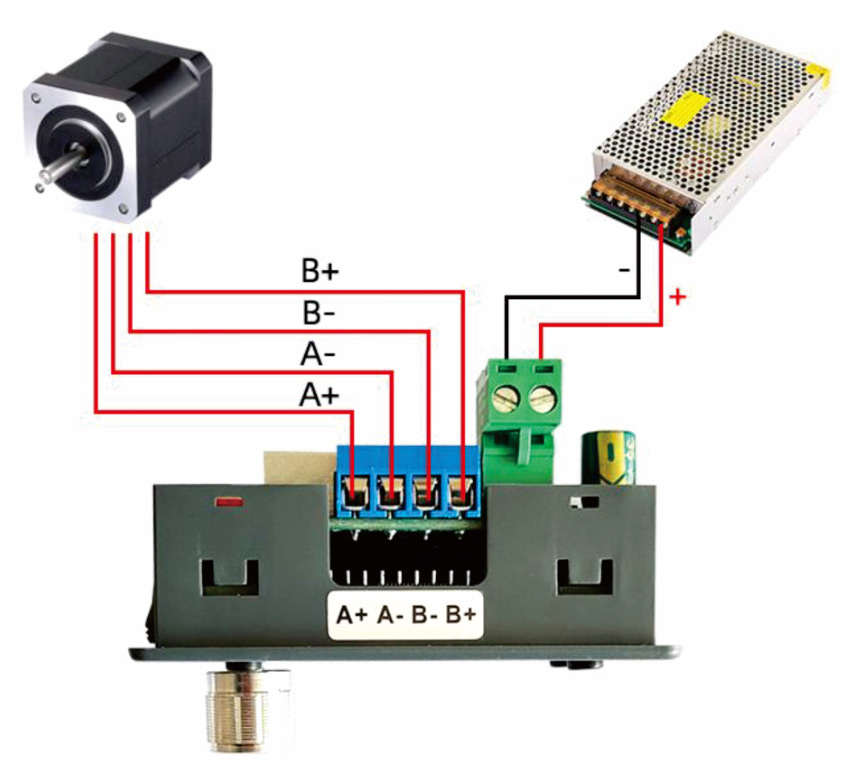

Wiring Instructions

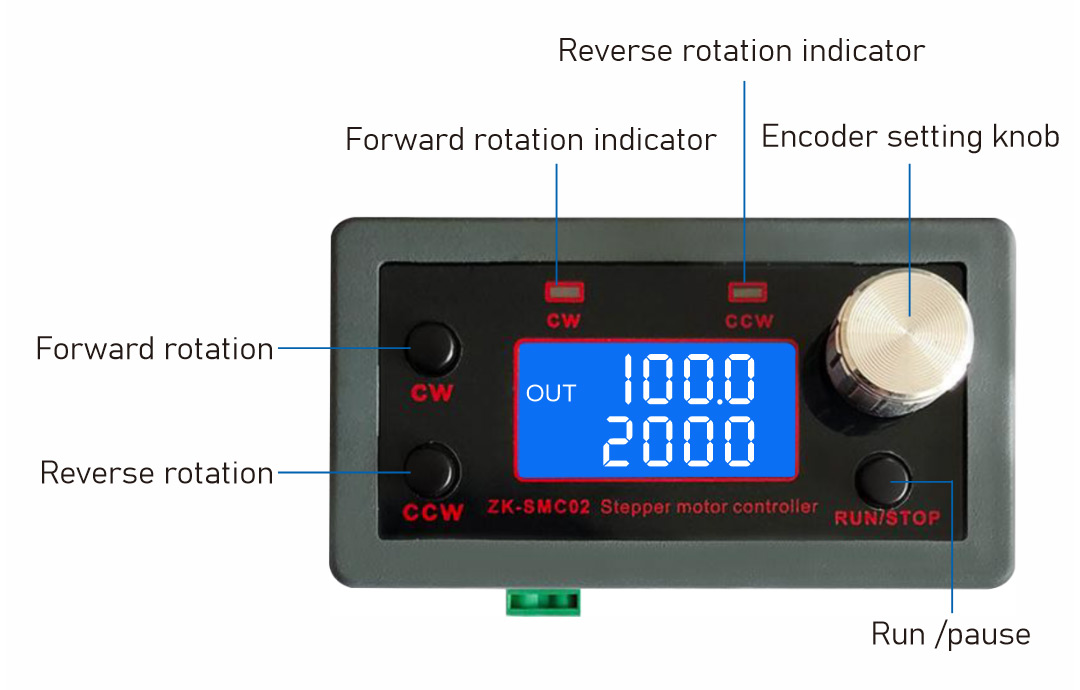

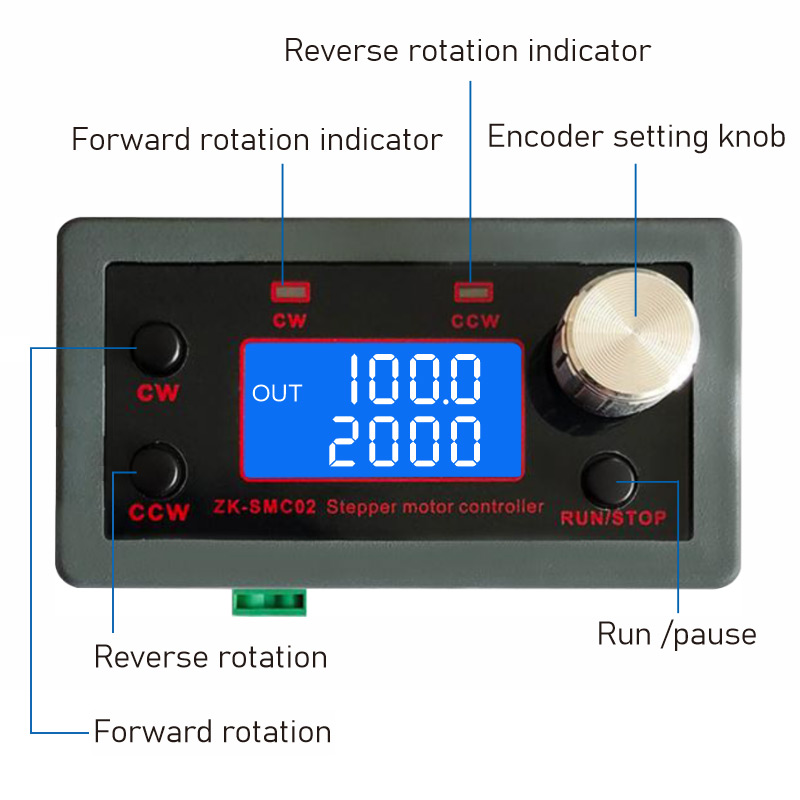

Product Functions

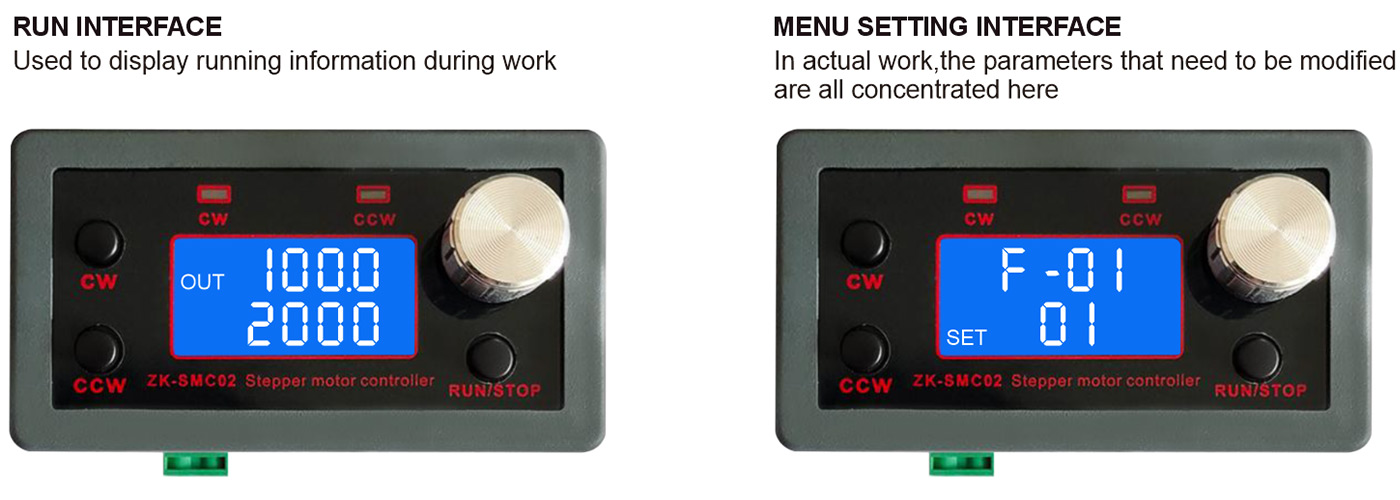

Interface function introduction and operation method

The controller is divided into two interfaces: operation + interface + [F] menu setting interface
