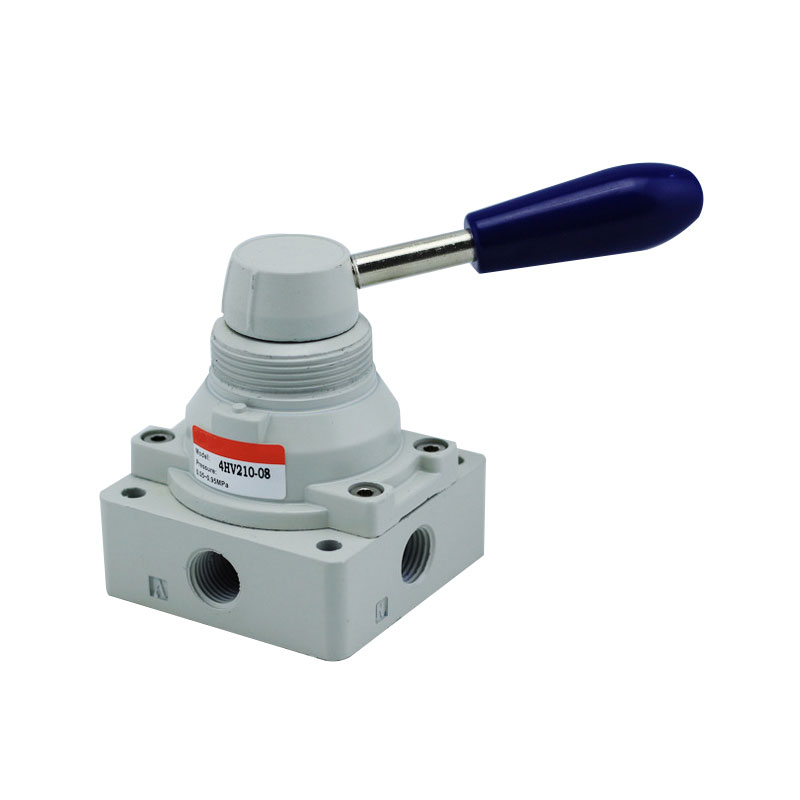

4HV Hand Air Valve Four-way three-position hand-switch valve has three central functions to choose from.
The reversing rotation is light, the feel is good, and the positioning is accurate.
The effective circulation area is large and the pressure loss is small.
It adopts integral slot slide valve disc structure, which has faster response speed and lighter operation.
The machining center is used to process the valve body, and the machining accuracy is higher.
Hand Operated Valve adopts the oxidation and then painting process, double protect the valve body to adapt to the harsh environment.
4HV Hand Air Valve is a three-position four-way valve, the valve body is compact in structure; beautiful in appearance; comfortable in hand; long service life.
Port Size: G1/8,G1/4,G1/4,G3/8,G1/2,G3/4
Operating Pressure: 1.0MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,Nylon

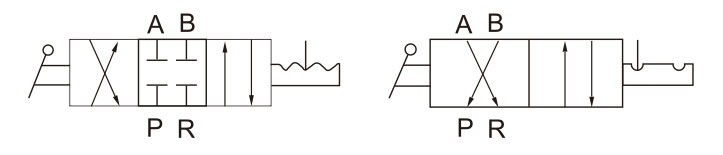

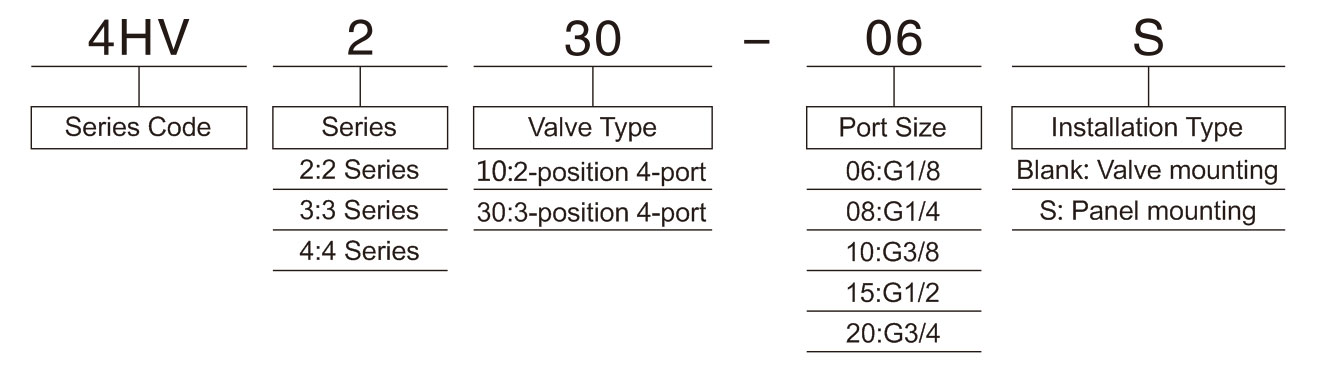

| Model | 4HV2□□-06 | 4HV2□□-08 | 4HV3□□-08 | 4HV3□□-10 | 4HV4□□-15 | 4HV4□□-20 | |
| Working Medium | Compressed Air | ||||||
| Valve Type | 3-position 4-port / 2-position 4-port | ||||||
| Port Size | G1/8 | G1/4 | G1/4 | G3/8 | G1/2 | G3/4 | |
| Effective sectional area (mm²) | 14(0.78) | 16(0.89) | 30(1.67) | 33(1.83) | 88(4.89) | 95(5.27) | |
| Operating Pressure | 1.0MPa | ||||||
| Proof Pressure | 1.5MPa | ||||||
| Operating Temp. | 0~60℃ | ||||||
| Working angle | 90° | ||||||
| Main parts material | Body | Aluminium Alloy | |||||
| Sealing element | Nylon | ||||||

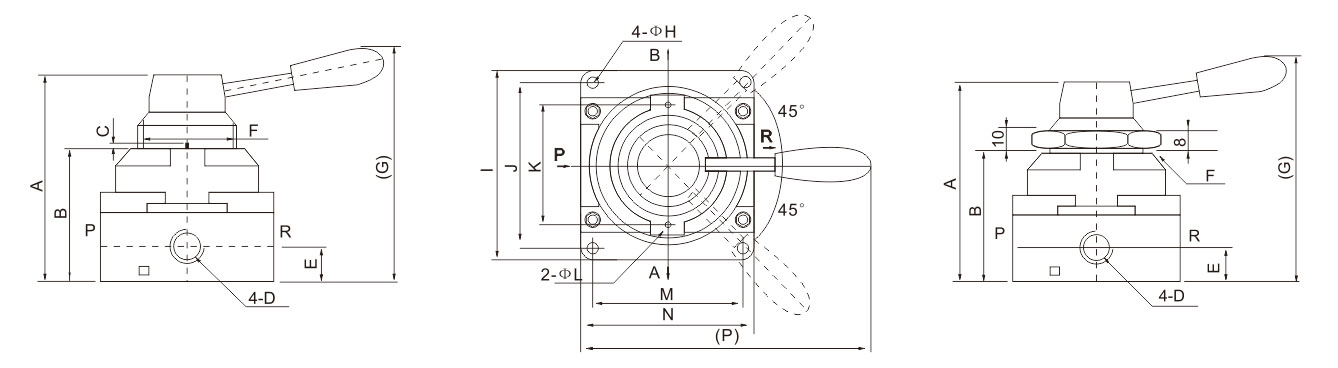

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P |
| 4HV2□□-06 | 74 | 45.5 | 1.5 | G1/8 | 11.5 | M34×1.5 | 91 | 5 | 62 | 49 | 40 | 3 | 49 | 62 | 120 |
| 4HV2□□-08 | 74 | 45.5 | 1.5 | G1/4 | 11.5 | M34×1.5 | 91 | 5 | 62 | 49 | 40 | 3 | 49 | 62 | 120 |
| 4HV3□□-08 | 88 | 56 | 1.5 | G1/4 | 13 | M40×1.5 | 108 | 6.5 | 73.5 | 62 | 51 | 3 | 62 | 74 | 140 |
| 4HV3□□-10 | 88 | 56 | 1.5 | G3/8 | 13 | M40×1.5 | 108 | 6.5 | 73.5 | 62 | 51 | 3 | 62 | 74 | 140 |
| 4HV4□□-15 | 109 | 70.5 | 2 | G1/2 | 17.5 | M52×1.5 | 130 | 6.5 | 101.5 | 89 | 63.5 | 3 | 81 | 94 | 160 |
| 4HV4□□-20 | 109 | 70.5 | 2 | G3/4 | 17.5 | M52×1.5 | 130 | 6.5 | 101.5 | 89 | 63.5 | 3 | 81 | 94 | 160 |
