Fluid Pneumatic Solenoid Valves Q22XD

Voltage: AC110V,AC220V,DC24V
Operating Pressure: 1.0MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy , NBR

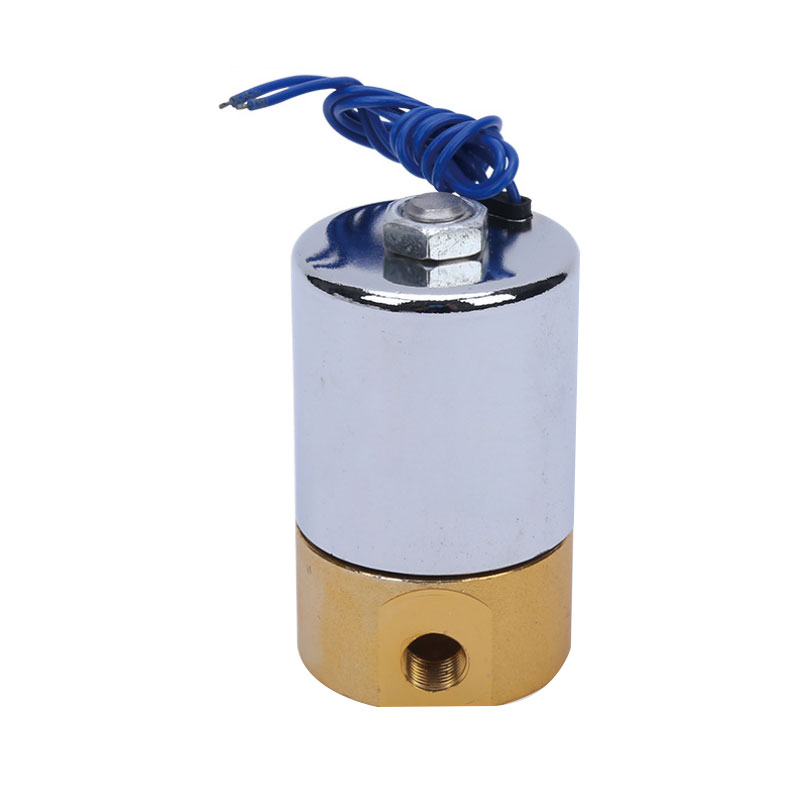

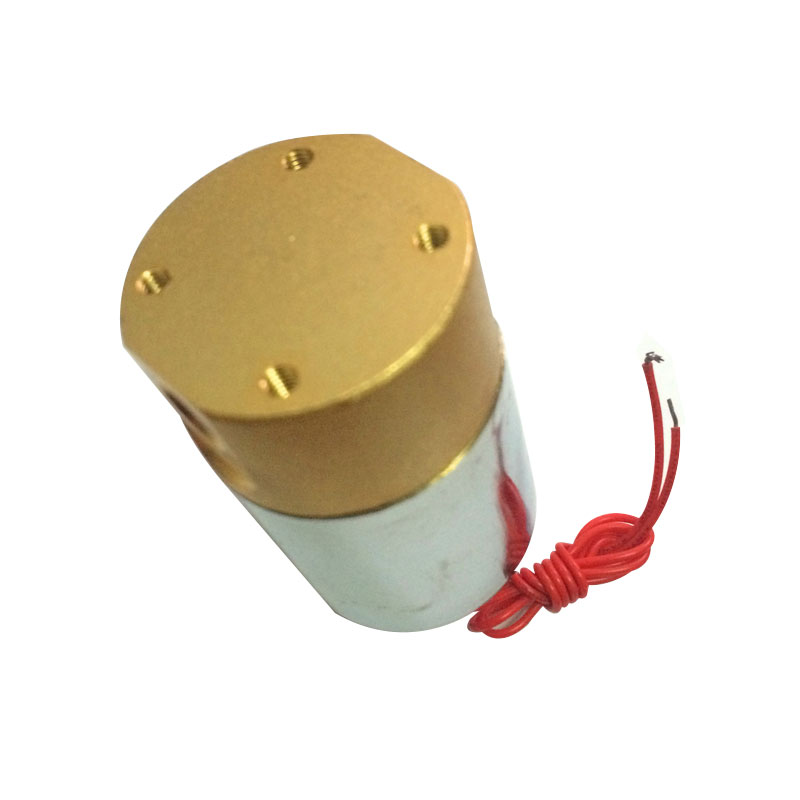

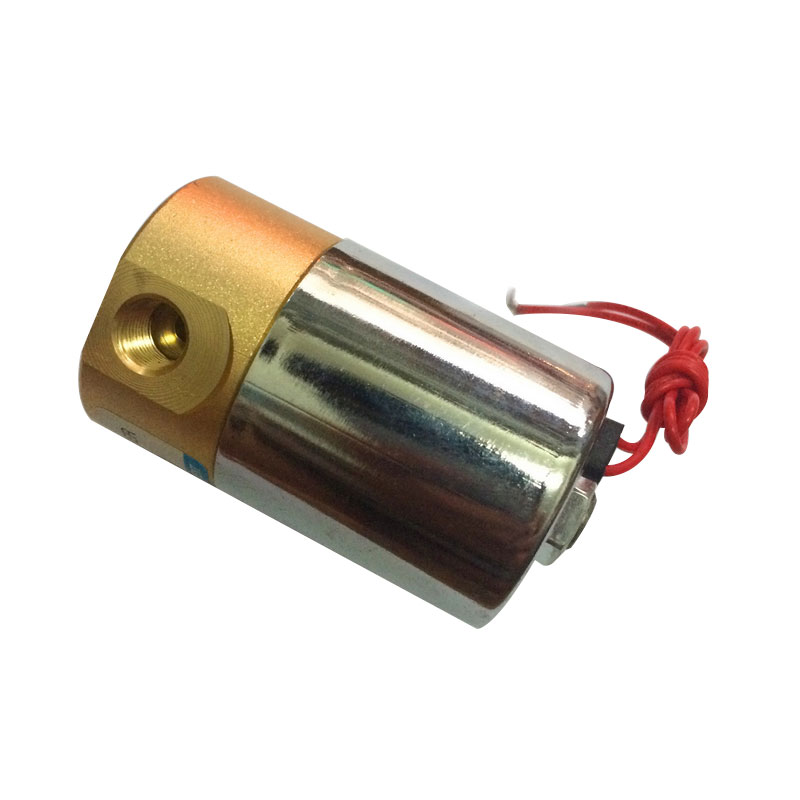

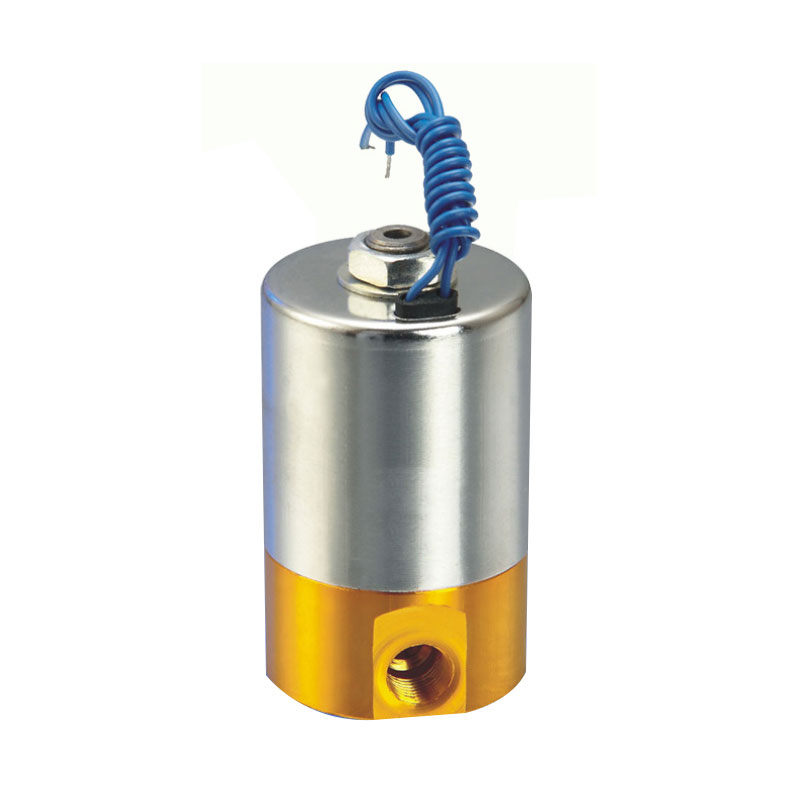

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Solenoid Operated Valve

Voltage: AC110V,AC220V,DC24V
Operating Pressure: 1.0MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy , NBR

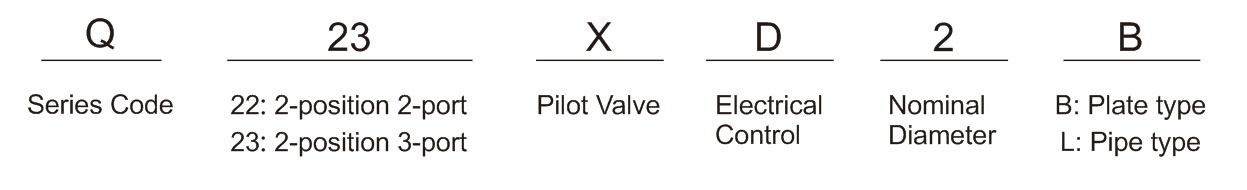

Ordering Code for Fluid Solenoid Valves Q22XD

Technical Parameter for Fluid Solenoid Valves Q22XD

Model Q23XD Q22XD
Operating Pressure 0.08MPa
Proof Pressure 1.0MPa
Reversal Time ≤0.04s
Leakage ≤10cm²/min
Life ≥3 million cycles
Voltage AC110V/AC220V/DC24V
Main parts material Body Aluminium Alloy
Sealing element NBR

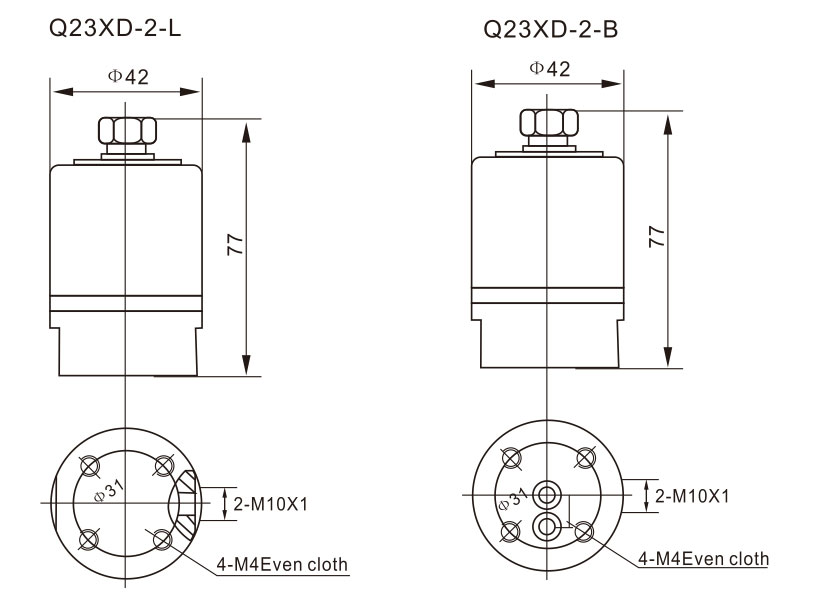

Overall Dimension for Fluid Solenoid Valves Q22XD
