Overview for Solenoid Operated Valve

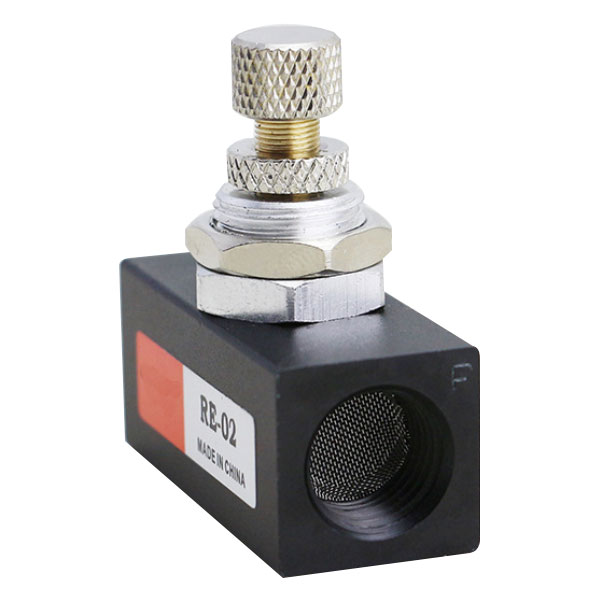

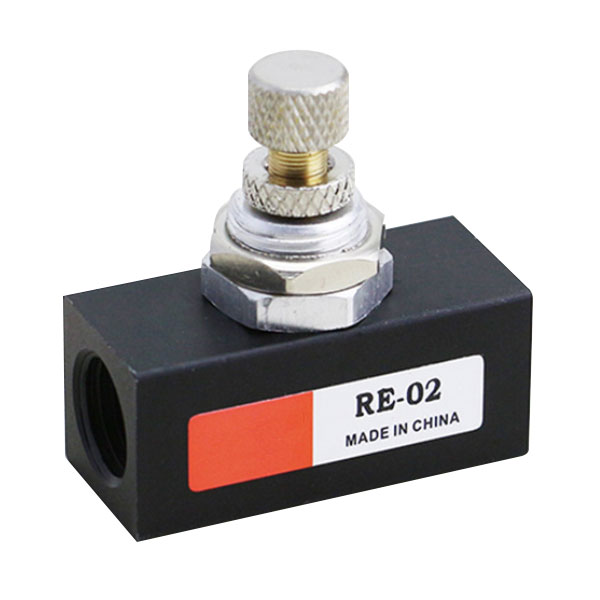

RE Flow Control Valve, good performance and superior quality. Models are: RE-01 throttle valve, RE-02 throttle valve, RE-03 throttle valve, RE-04 throttle valve. Port sizes are: G1/8, G1/4, G3/8, G1/2.
Model and meaning of RE-02 flow control valve:
RE-02 (RE: flow control valve, 02: G1/4)
Product use scope:
Products are mainly used in: public transportation, rail transit, electronics industry, machinery, manufacturing, printing and dyeing, light industry, textile industry, packaging industry, large hydropower stations.
Product name:
Solenoid valve, vacuum generator, pneumatic control valve, hand-pull valve, hand-wrench valve, hand-switch valve, confluence board , solenoid valve coil, one-way throttle valve, quick exhaust valve, shuttle valve, hand slide valve, pedal valves, mechanical valves, cylinders, air source processors, pneumatic connectors, plugs, mufflers, PU air pipes and other customizable cylinders and valves.
Technical Parameters for Solenoid Operated Valve
Port Size: G1/8,G1/4,G3/8,G1/2
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~70℃
Material: Aluminium Alloy,NBR

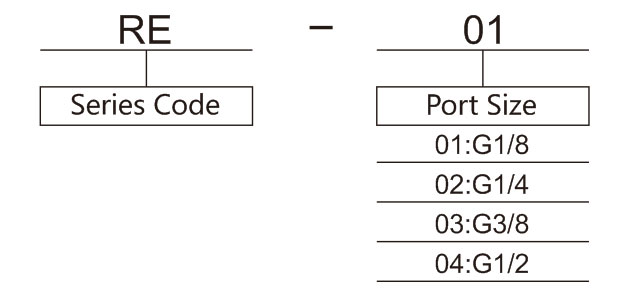

Ordering Code for Pneumatic Speed Control Valve RE Series

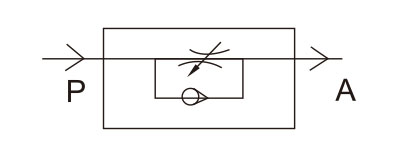

Symbol for Pneumatic Speed Control Valve RE Series
Technical Parameter for Pneumatic Speed Control Valve RE Series
| Model |
RE-01 |
RE-02 |
RE-03 |
RE-04 |
| Working Medium |
Compressed Air |
| Port Size |
G1/8 |
G1/4 |
G3/8 |
G1/2 |
| Max. Operating Pressure |
0.8MPa |
| Max. Proof Pressure |
1.0MPa |
| Ambient Temp. |
0~70℃ |
| Main parts material |
Body |
Aluminium Alloy |
| Sealing element |
NBR |

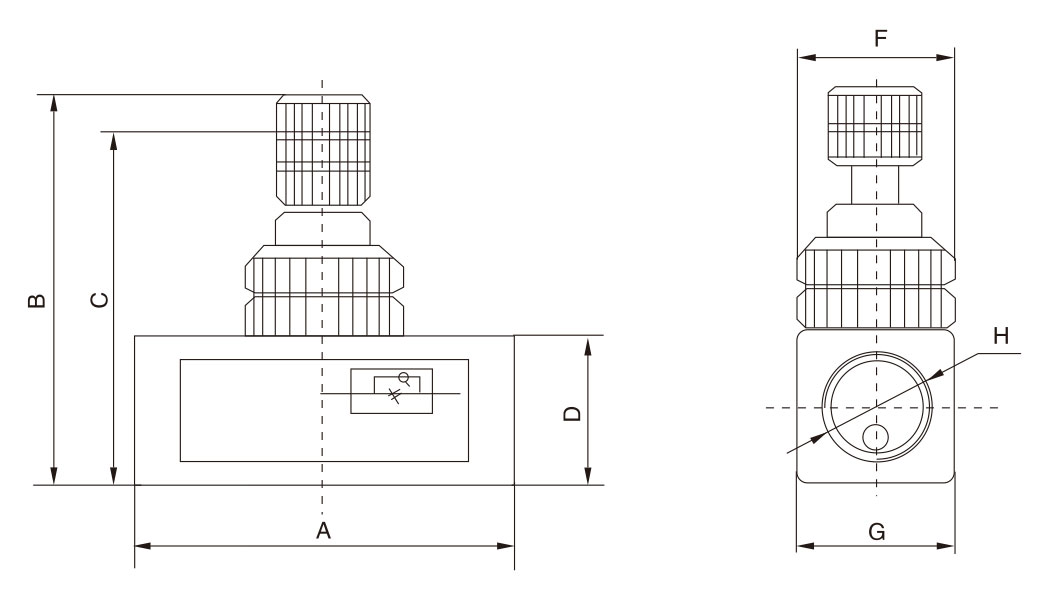

Overall Dimension for Pneumatic Speed Control Valve RE Series
| Model |
A |
B |
C |
D |
F |
G |
H |
| RE-01 |
43 |
50 |
41 |
20 |
18 |
20 |
G1/8 |
| RE-02 |
43 |
50 |
41 |
20 |
18 |
20 |
G1/4 |
| RE-03 |
52 |
57 |
51 |
25 |
24 |
25 |
G3/8 |
| RE-04 |
52 |
57 |
51 |
25 |
24 |
25 |
G1/2 |
