Air Flow Control Valve ASC

ASC-08 flow control valve, also known as ASC-08 one-way throttle valve, is a G1/4 interface one-way throttle valve.

Port Size: G1/8,G1/4,G3/8,G1/2
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~70℃
Material: Aluminium Alloy,NBR

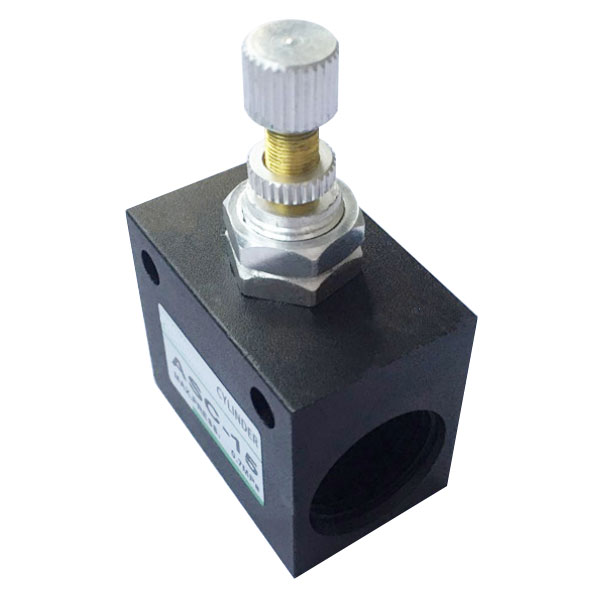

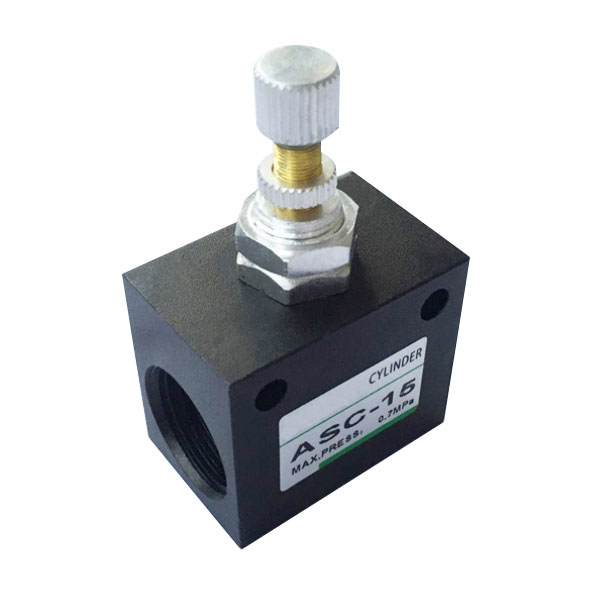

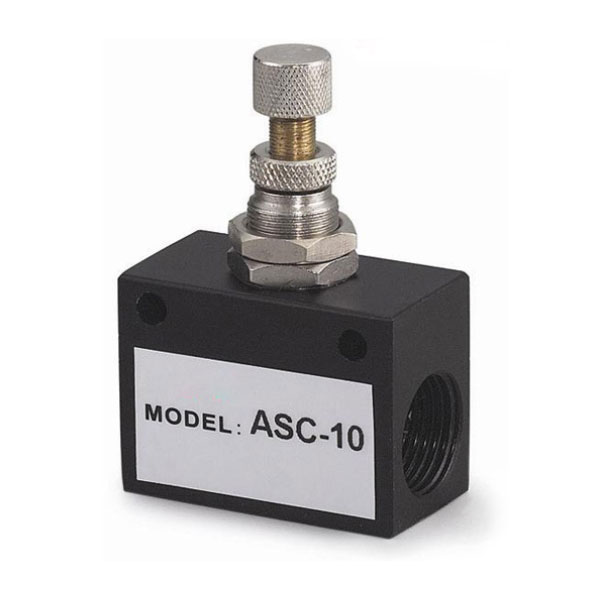

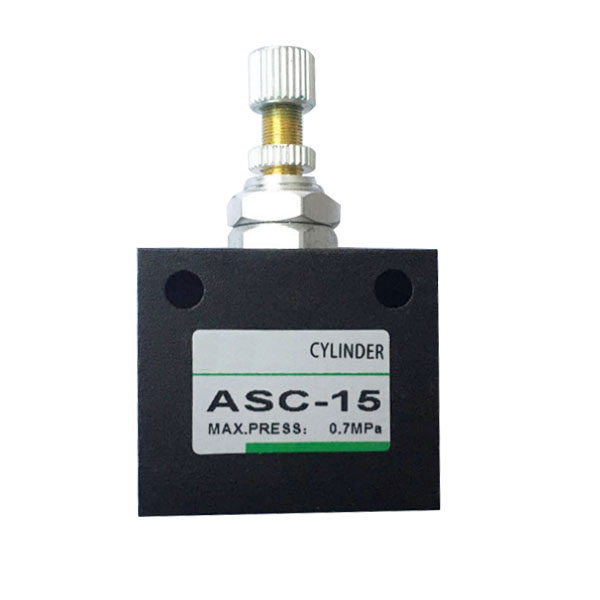

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Flow Control Valve ASC

ASC-08 flow control valve, also known as ASC-08 one-way throttle valve, is a G1/4 interface one-way throttle valve. The ASC-08 one-way throttle valve is reliable and easy to use, very popular with the majority of domestic customers. The ASC-08 flow control valve is a one-way throttle valve that is used more in China. ASC-08 one-way throttle valve is a flow control valve consisting of check valve and throttle valve. When the airflow flows in the direction of P->A, the check valve is closed and the throttle valve is throttled; and when the flow is reversed, the air flow control valve is opened without throttling. It is often used to control the different speeds of the cylinder in both directions, so it is also called the speed control valve.

Technical Parameters for Flow Control Valve ASC

Port Size: G1/8,G1/4,G3/8,G1/2
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~70℃
Material: Aluminium Alloy,NBR

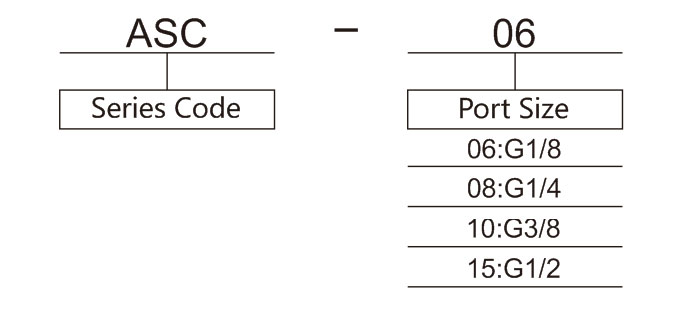

Ordering Code for Flow Control Valve ASC

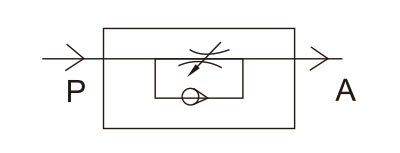

Symbol for Flow Control Valve ASC

Technical Parameter for Flow Control Valve ASC

Model ASC-06 ASC-08 ASC-10 ASC-15
Working Medium Compressed Air
Port Size G1/8 G1/4 G3/8 G1/2
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Ambient Temp. 0~70℃
Main parts material Body Aluminium Alloy
Sealing element NBR

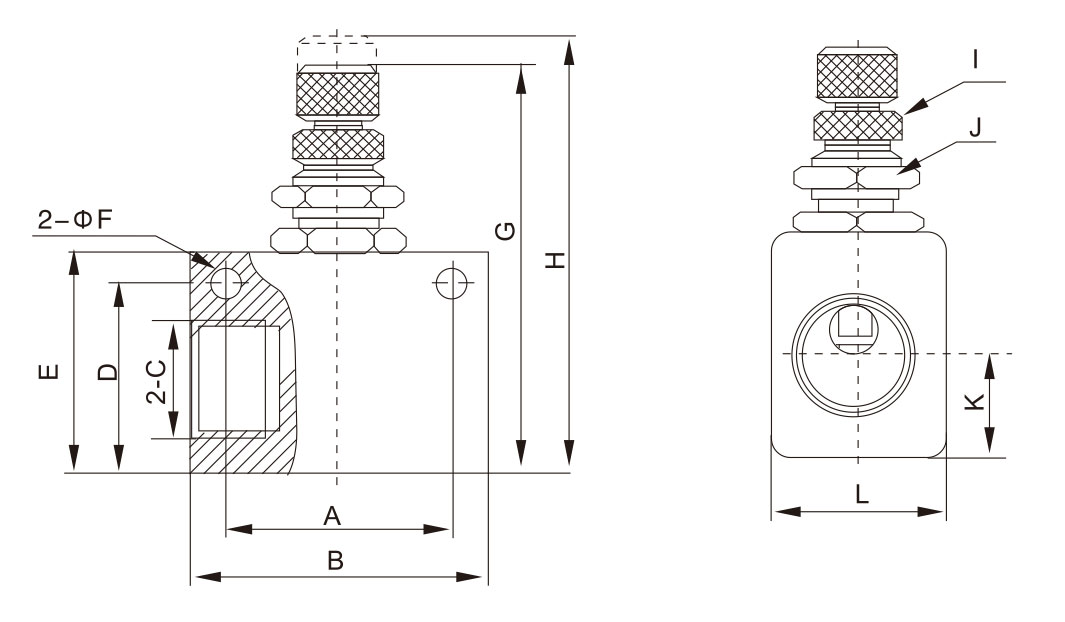

Overall Dimension

Model A B C D E F G H K L
ASC-06 29.5 40 G1/8 23.5 28 4.3 50 57 14 18
ASC-08 29.5 40 G1/4 23.5 28 4.3 50 57 14 18
ASC-10 39 50 G3/8 34.5 40 5 70 79 20 25
