Overview for Quick Exhaust Valve SEU
SEU Quick Exhaust Valve is suitable for the pipeline where the industrial medium is water. As a device for quickly removing the gas in the pipeline, it is an essential equipment for the pipeline to improve the efficiency of the water conveyance equipment and protect the pipeline from deformation and cracking.
Quick Exhaust Air Valve SEU is used for exhaust pipe exhaust in independent heating systems, central heating systems, heating boilers, central air conditioning, floor heating and solar heating systems.
Technical Parameters for Quick Exhaust Valve SEU
Port Size: G1/2;
Proof Pressure: 15kgf/cm²
Working Environment Temperature: -5~60℃
Material: Aluminum Alloy

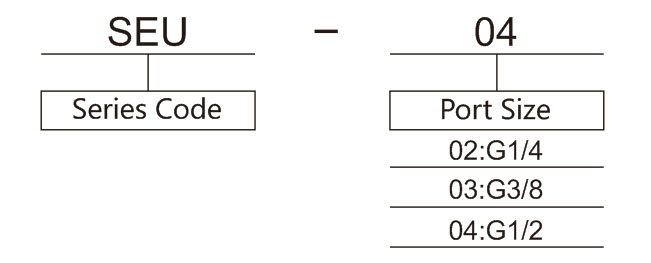

Ordering Code for Quick Exhaust Valve SEU

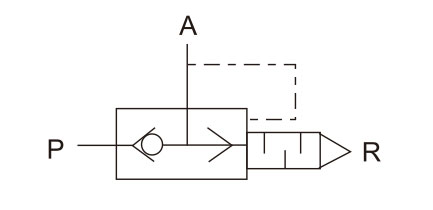

Symbol for Quick Exhaust Valve SEU
Technical Parameter for Quick Exhaust Valve SEU
| Model |
SEU-04 |
| Working Medium |
Compressed Air |
| Effective sectional area (mm²) |
106 |
| Cv value |
5.59 |
| Port Size |
G1/2 |
| Max. Operating Pressure |
1.0MPa |
| Proof Pressure |
1.5MPa |
| Operating temp. range |
-5~60℃ |
| Main parts material |
Body |
Aluminium Alloy |
| Sealing element |
NBR |

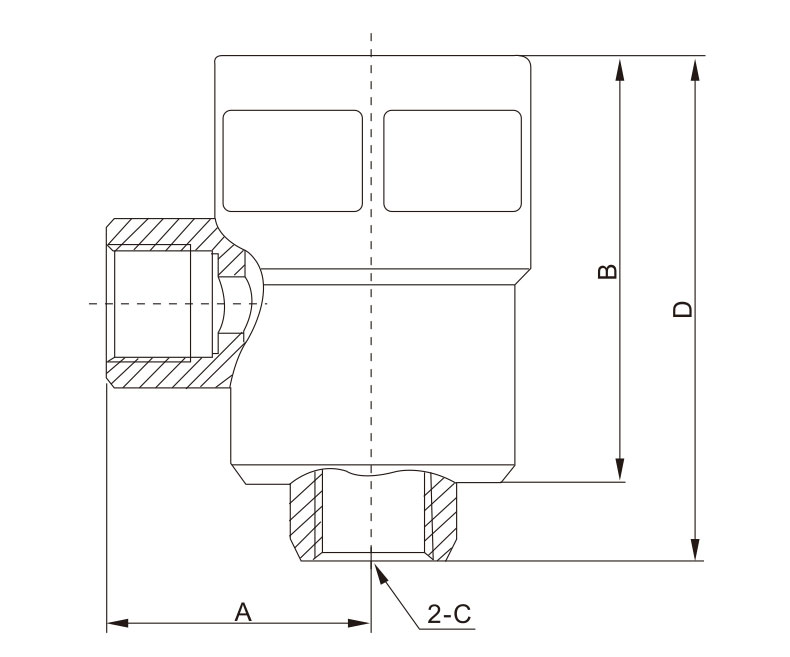

Overall Dimension
| Model |
A |
B |
C |
D |
| SEU-02 |
28 |
33 |
G1/4 |
42.5 |
| SEU-03 |
38 |
60 |
G3/8 |
71 |
| SEU-04 |
47.5 |
77.5 |
G1/2 |
90.5 |
