Air Filter Regulator Lubricator AB

From left to right, FRL Combination AB Series is Filter, Regulator and Lubricator. The pressure regulating range of the Regulator is 0~1.0MPA, the pressure is increased by clockwise adjustment , and the pressure is reduced by counterclockwise adjustment.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Range of pressure regulation: 0.5~0.85MPa
Filtration aperture: 40μm(routine) or 5μm(customized)

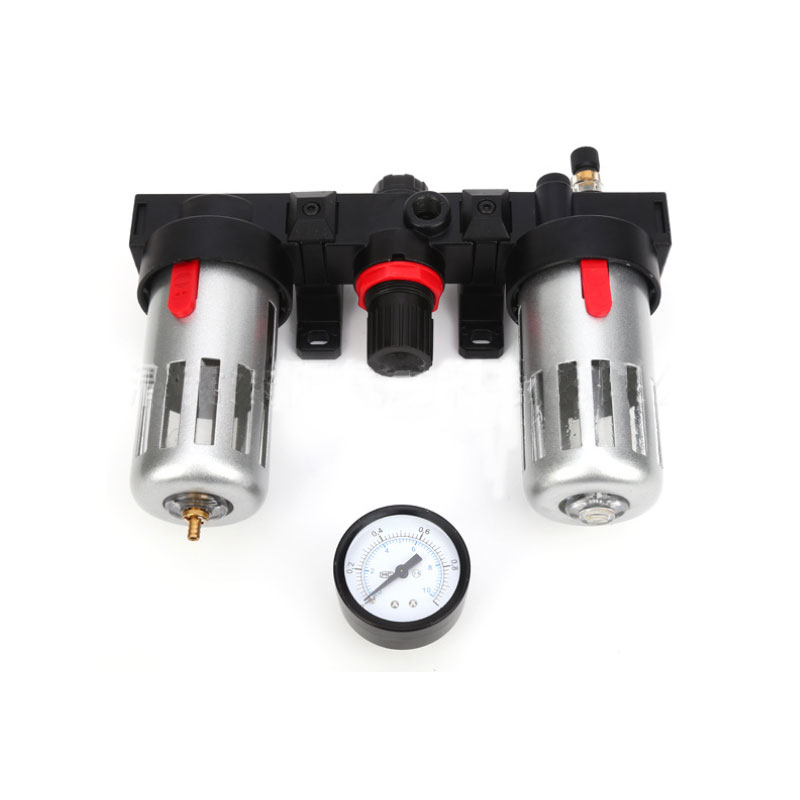

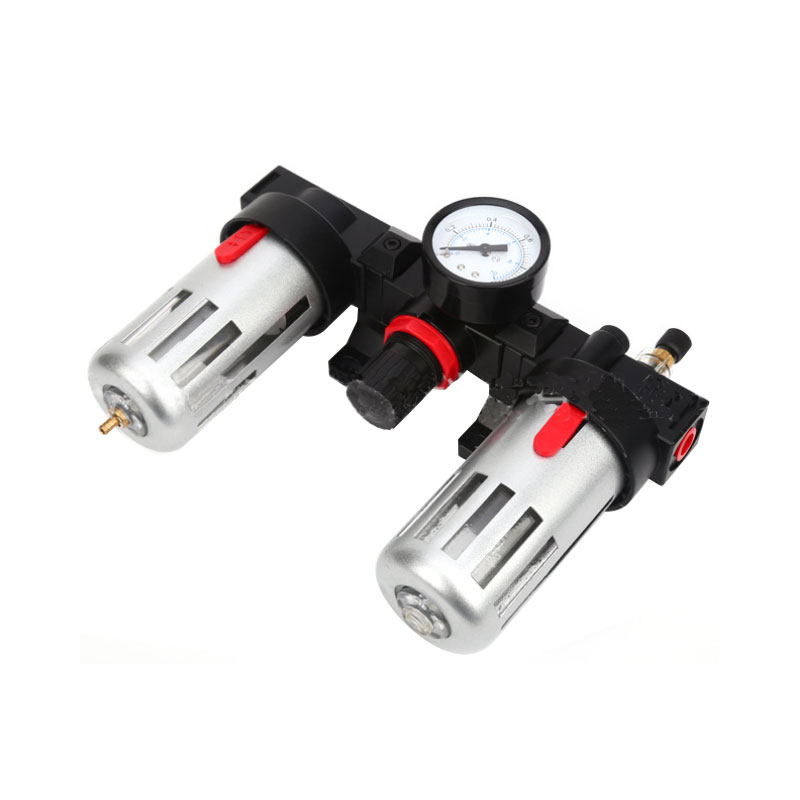

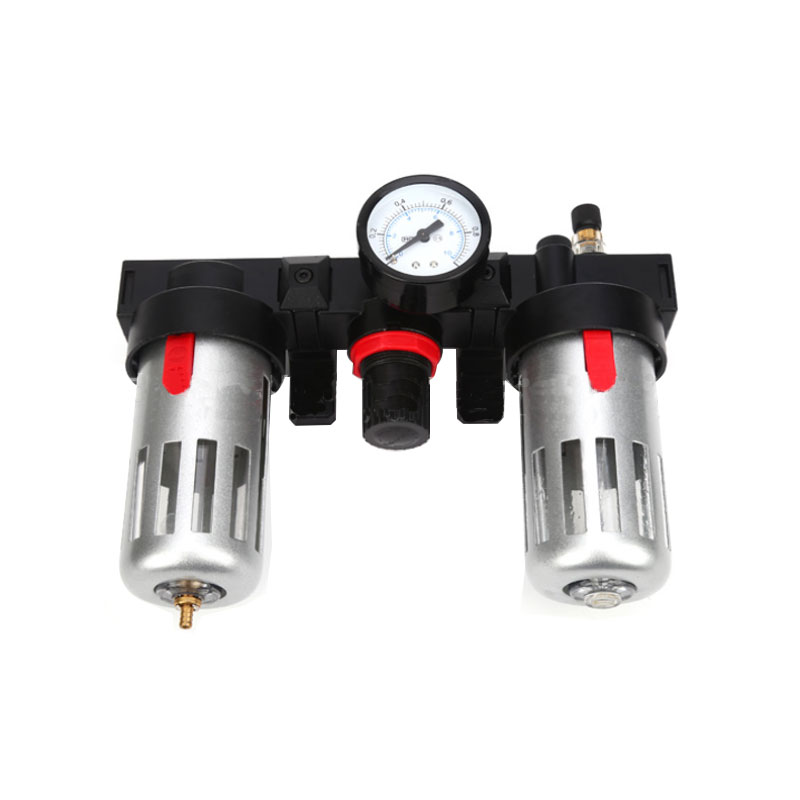

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for FRL Combination AB Series

FRL Combination AB Series is made up of three parts: water-separating gas filter, pressure reducing valve and Lubricator. The FRL Combination connected by three parts without pipes are called FRL. The FRL Combination are indispensable gas source devices in most pneumatic systems. Installed near the gas equipment, they are the final guarantee of compressed air quality. The installation sequence of the FRL Combination is Filter, Regulator and Lubricator according to the inlet direction. In use, one, two or three pieces can be used according to actual requirements.
From left to right, FRL Combination AB Series from China Air Filter Regulator Lubricator FRL Manufacturers And Suppliers is Filter, Regulator and Lubricator. The pressure regulating range of the Regulator is 0~1.0MPA, the pressure is increased by clockwise adjustment , and the pressure is reduced by counterclockwise adjustment.

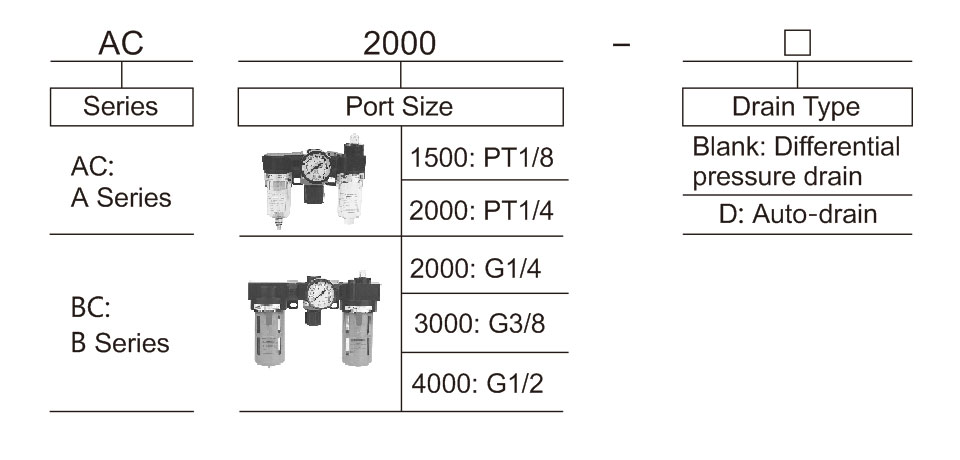

Ordering Code for FRL Combination AB Series

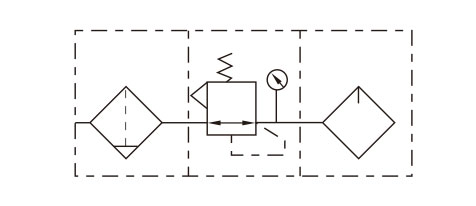

Symbol for FRL Combination AB Series

Technical Parameter for FRL Combination

Model AC1500 AC2000 BC2000 BC3000 BC4000
Assembly Filter AF1500 AF2000 BF2000 BF3000 BF4000
Regulator AR1500 AR2000 BR2000 BR3000 BR4000
Lubricator AL1500 AL2000 BL2000 BL3000 BL4000
Port Size RC (PT) PT1/8 PT1/4 G1/4 G3/8 G1/2
Working Medium Compressed Air
Proof Pressure 1.5MPa
Range of pressure regulation 0.5~0.85MPa
Ambient temperature 5~60℃
Filtration aperture 40μm(routine) or 5μm(customized)
Lubrication ISO VG32
Water bowl capacity 15ml 60ml
Oil bowl capacity 25ml 90ml
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guide AC1500~AC2000: no; BC2000~BC4000: yes ( plastics)

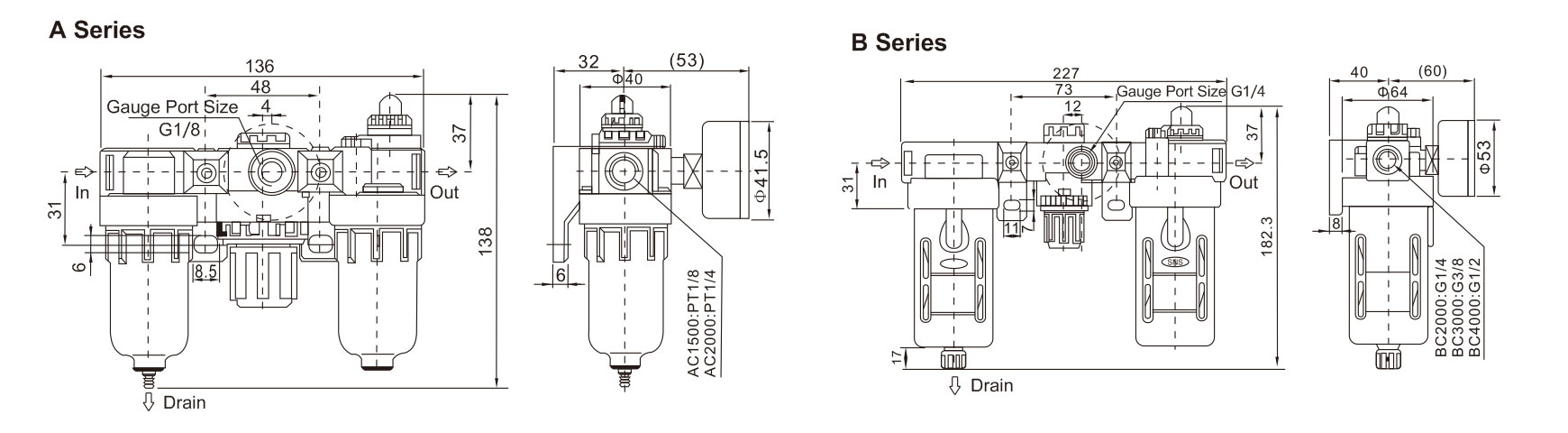

Overall Dimension

Note: due to the different drainage components, the total height of the product will be slightly different. If necessary, please contact the sales department.
