Air Filter Regulator NFC (Explosion-proof)

The structure of NFC Air Combination is light and compact, easy to install and use. The pressing self locking mechanism of NFC Explosion Proof Filter Regulator can prevent the setting pressure from being disturbed by external disturbances.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Max. adjustable pressure: 1.0MPa

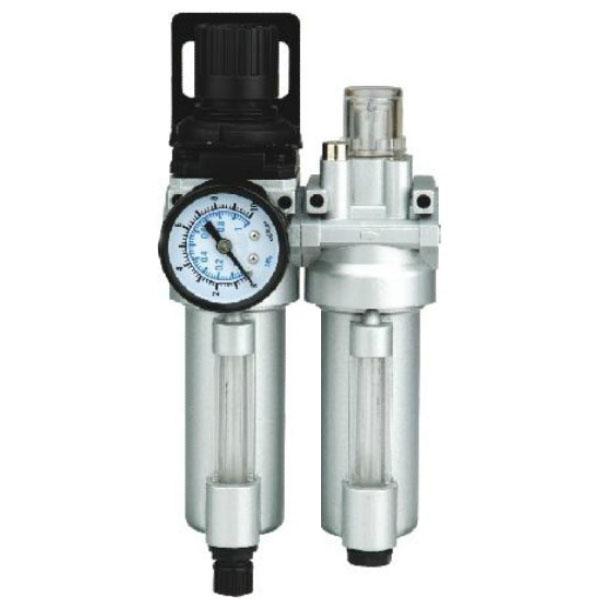

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Features for NFC Air Combination

1. The structure of NFC Air Combination is light and compact, easy to install and use.
2. The pressing self locking mechanism of NFC Explosion Proof Filter Regulator can prevent the setting pressure from being disturbed by external disturbances.
3. The pressure loss of Pneumatic Air Filter Regulator AFR is small and the water separation efficiency is high.
4. The transparent inspection cover of NFC Explosion Proof Filter Regulator can directly inspect the amount of drip oil.
5. In addition to the standard form, there is another low pressure type available. (Max adjustable pressure 0.4Mpa).

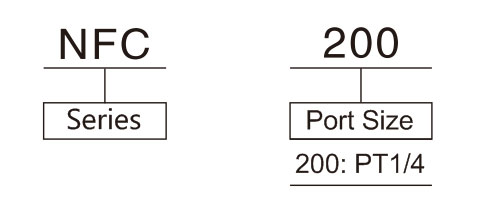

Ordering Code for NFC Air Combination

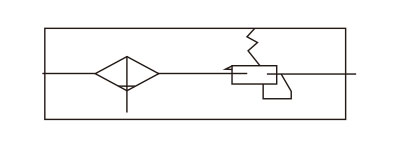

Symbol for NFC Air Combination

Technical Parameter for NFC Explosion Proof Filter Regulator

Model NFC 200
Port Size PT1/4
Working Medium Compressed air
Proof Pressure 1.5MPa
Max. adjustable pressure 1.0MPa
Operating Temperature Range 5~60℃
Filtration aperture 40μm(routine) or 5μm(customized)
Lubrication ISO VG32
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guide Aluminium Alloy

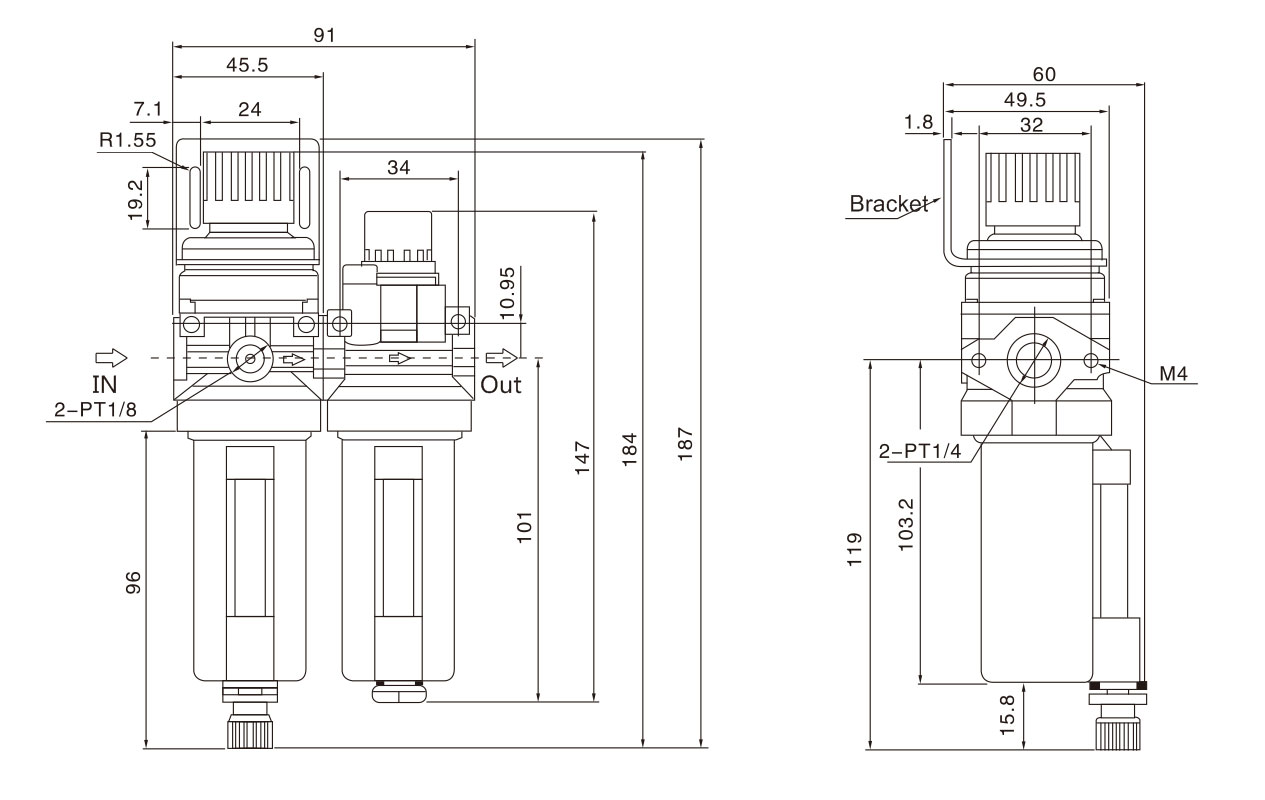

Overall Dimension for NFC Explosion Proof Filter Regulator

Keywords:

NFC Air Combination | NFC Explosion Proof Filter Regulator
