Directional Control Valves JM

JM-06 Mechanical Directional Control Valves is actually a manual valve, JM-06 manual Directional Control Valves control reversing of valve by manpower, button switch has memory function, so it needs manual reset.

Port Size: G1/4,G3/8
Operating Pressure: 0~8.0kgf/cm²
Working Environment Temperature: -20~70℃
Material: Aluminium Alloy,NBR

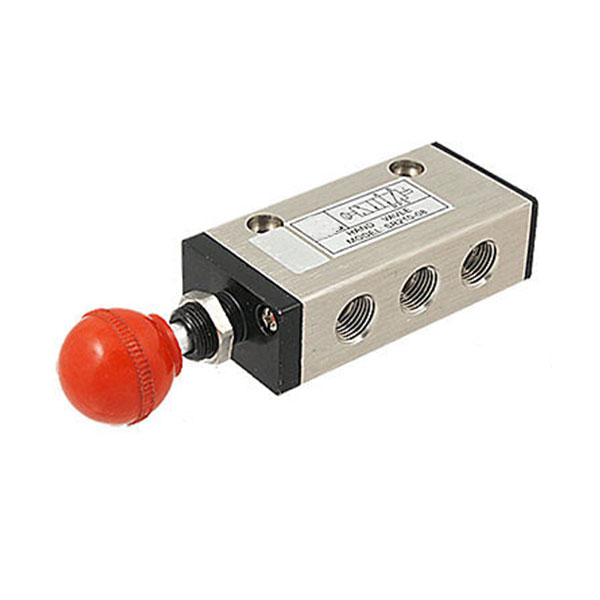

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Directional Control Valves JM

JM-06 Mechanical Directional Control Valves is actually a manual valve, JM-06 manual Directional Control Valves control reversing of valve by manpower, button switch has memory function, so it needs manual reset. It is usually used to control the output signal of pneumatic system. It can also directly drive the actuation element.
JM-06 manual Directional Control Valves are two-position three-way manual valves.

Technical Parameters for Directional Control Valves JM

Port Size: G1/4,G3/8
Operating Pressure: 0~8.0kgf/cm²
Working Environment Temperature: -20~70℃
Material: Aluminium Alloy,NBR

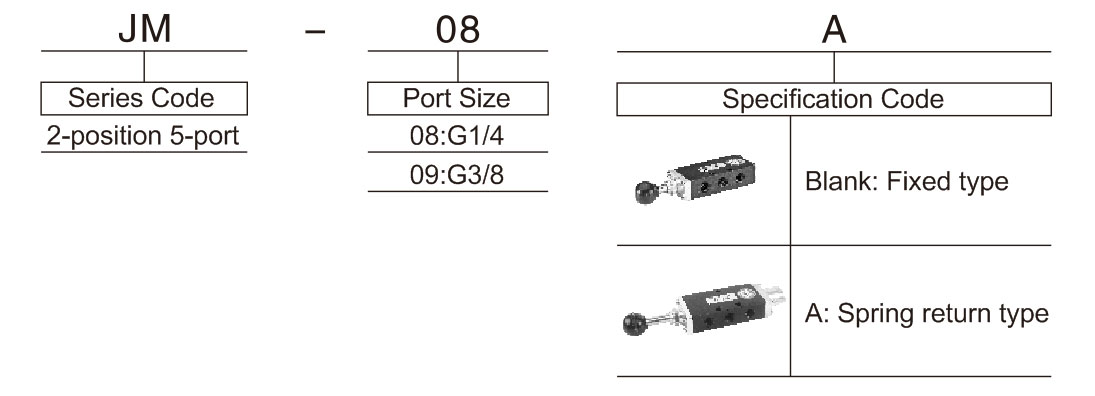

Ordering Code for Directional Control Valves JM Series

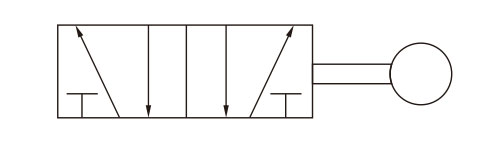

Symbol for Directional Control Valves

Technical Parameter for Directional Control Valves

Model JM-08 JM-08A JM-09 JM-09A
Working Medium Compressed Air
Motion Pattern Hand-operated direct-acting
Port Size G1/4 G3/8
Operating Pressure 0~8.0kgf/cm²
Operating Temp. -20~70℃
Lubrication Non-lube
Operating Angle ±15°
Main parts material Body Aluminium Alloy
Sealing element NBR

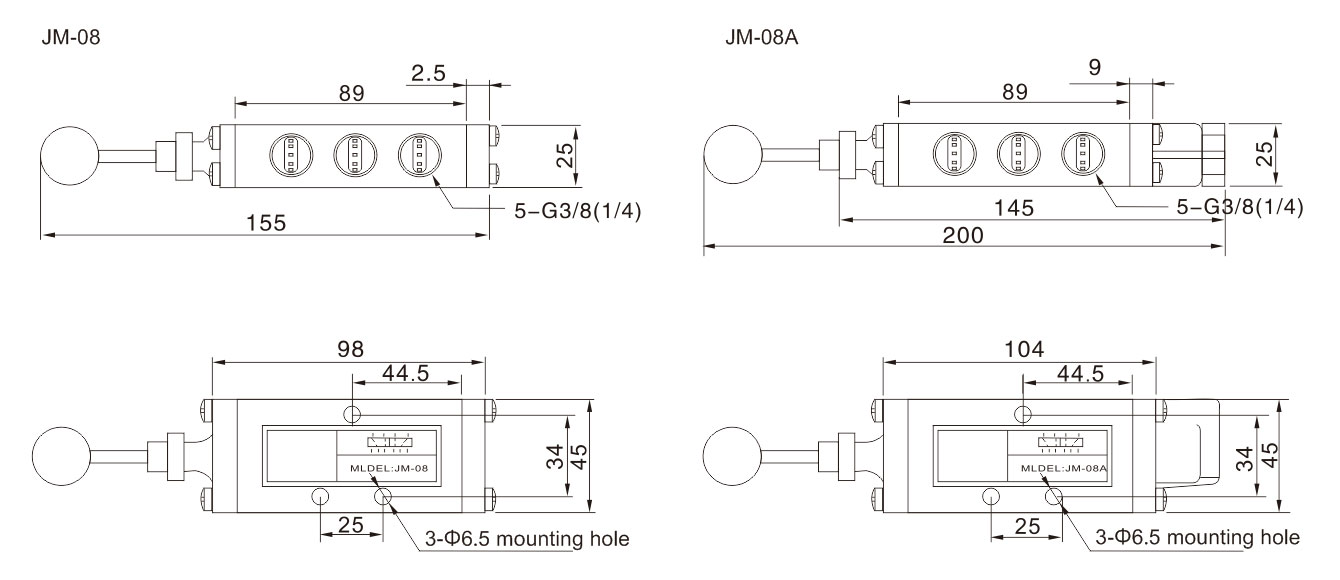

Overall Dimension
