Cylinder Base 4A/4V

4A-4V Series Solenoid Valve Base, Pneumatic Confluence Plate, Dedicated Confluence Baseplate

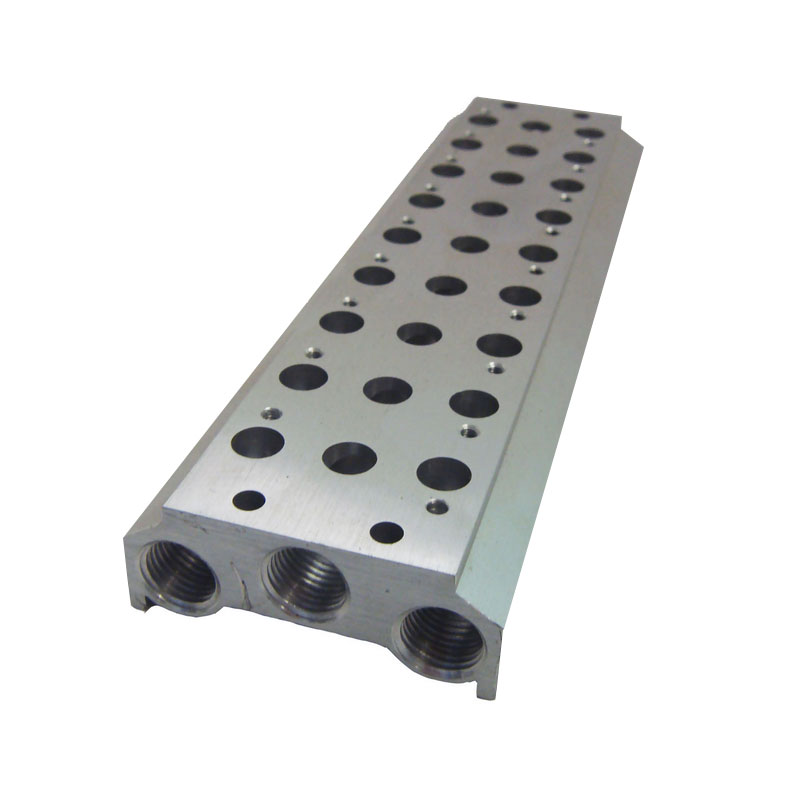

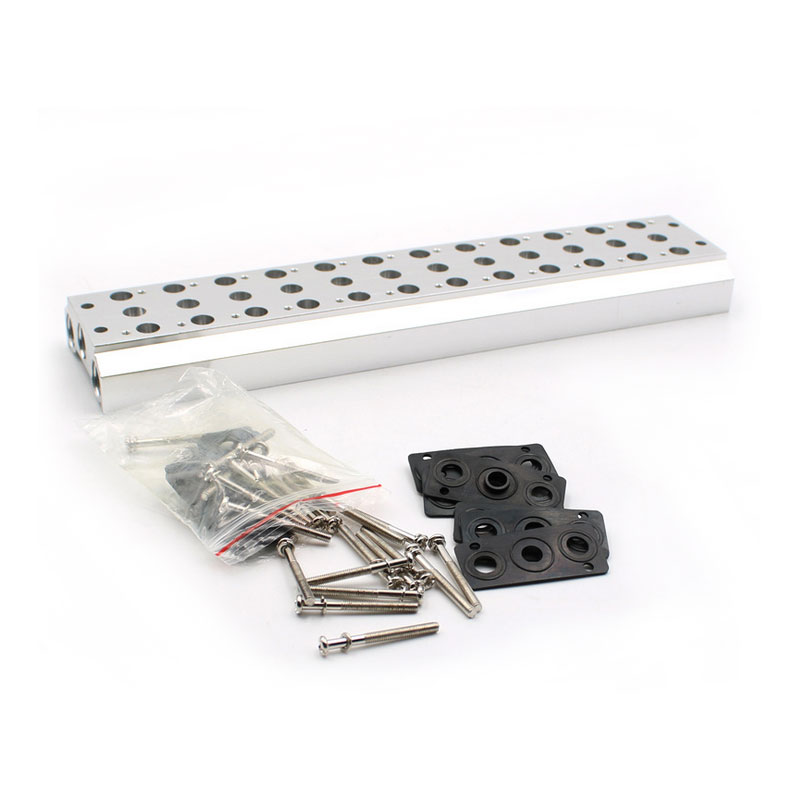

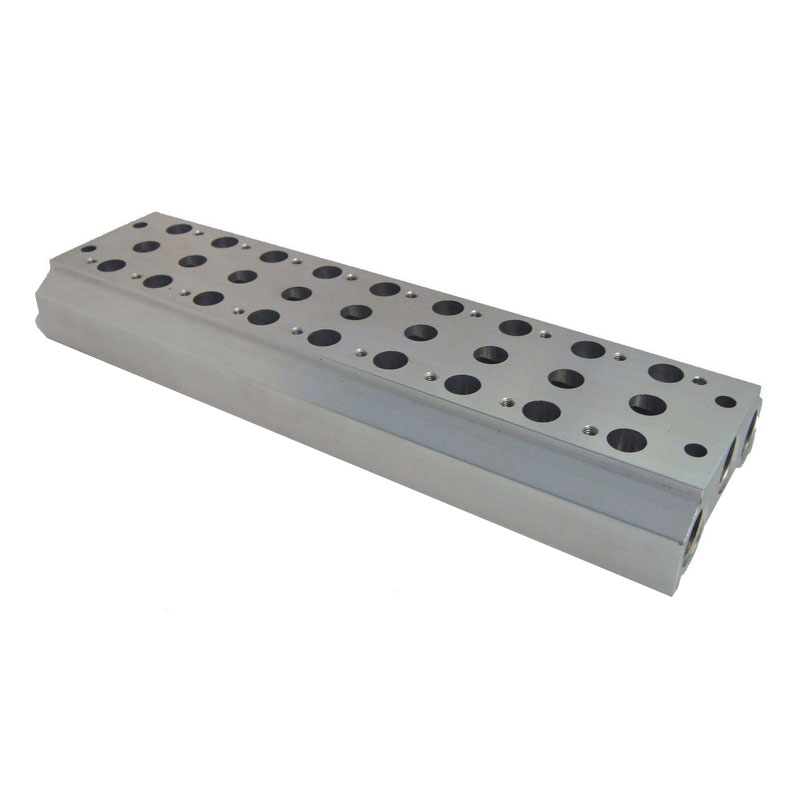

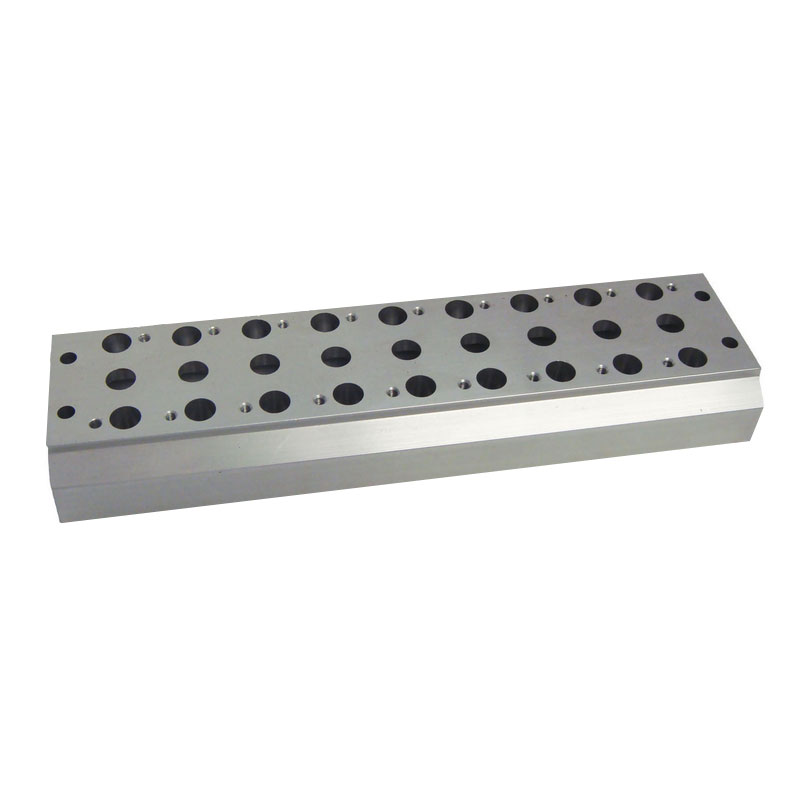

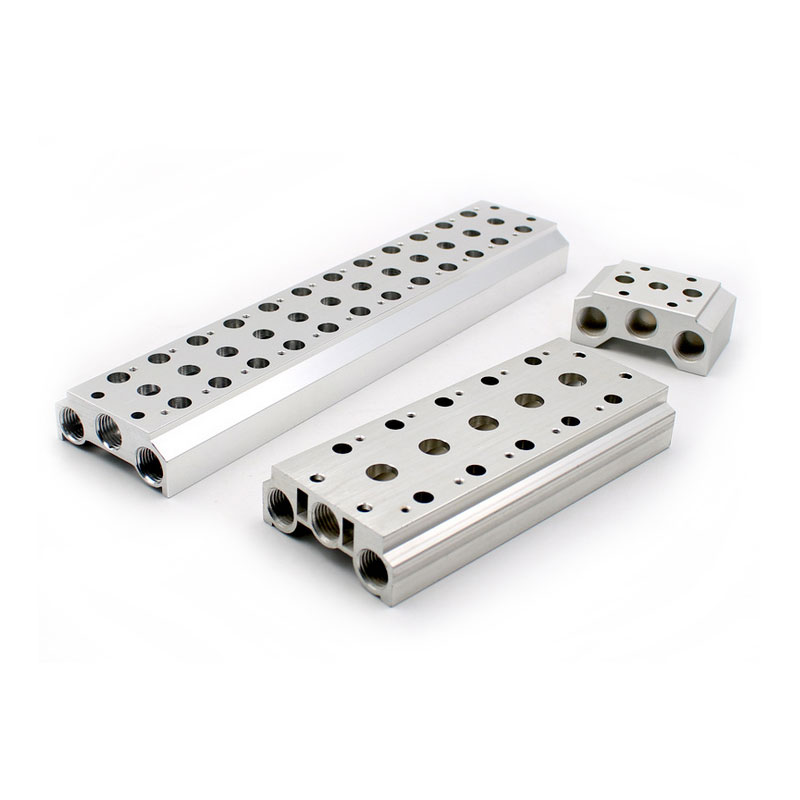

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

Overview for Cylinder Base 4A/4V

4A-4V Series Solenoid Valve Base, Pneumatic Confluence Plate, Dedicated Confluence Baseplate
1. It can integrate the same series of directional control valves into the valve group, saving space and saving cost;
2. Unified intake and exhaust, unified wiring, easy to find when there is a fault;
3. Flexible combination, strong expansion, The number of directional control valves connected can be arbitrarily combined or expanded.

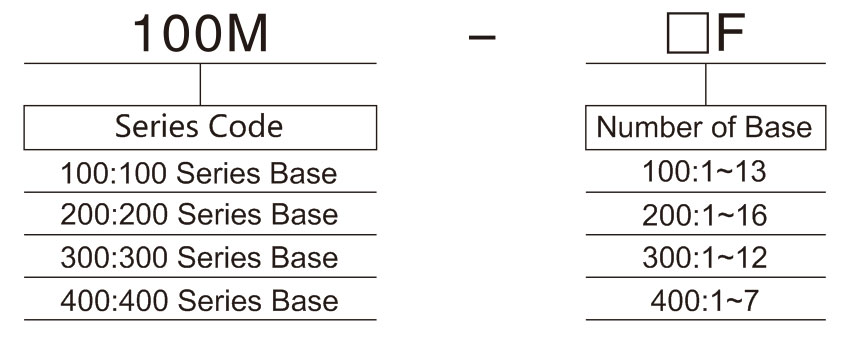

Ordering Code for Cylinder Base 4A/4V

Technical Parameter for Solenoid Valve Base 4A 4V Series

Pedestal type / Valve type	4V1	4A1	4V2	4A2	4V3	4A3	4V4	4A4
100M	●
200M			●
300M					●
400M							●
Material	Aluminium Alloy

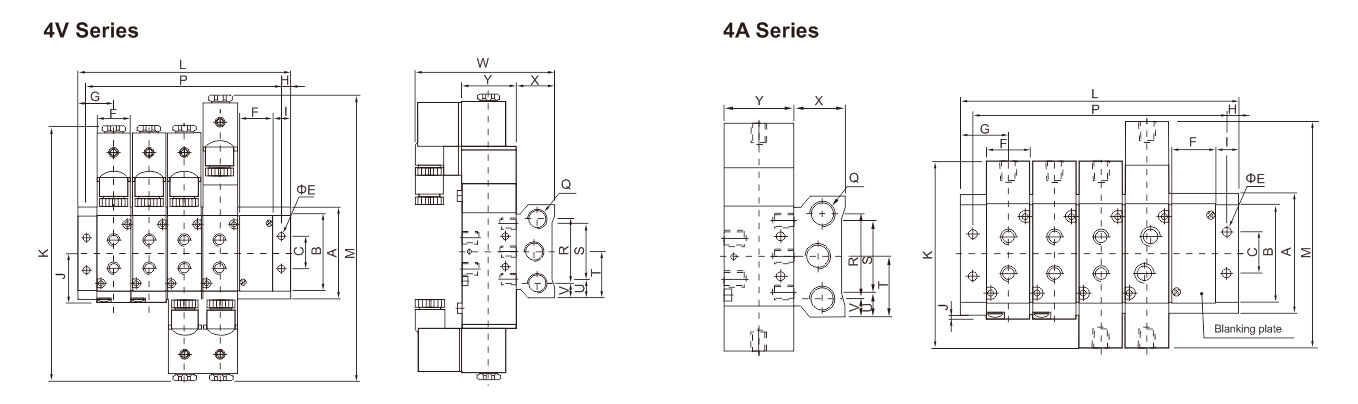

Overall Dimension for Solenoid Valve Base 4A 4V Series

4V Series

Model	A	B	C	E	F	G	H	I	J	K	L																M	P																Q	R	S	T	U	V	W	X	Y
Model	A	B	C	E	F	G	H	I	J	K	1F	2F	3F	4F	5F	6F	7F	8F	9F	10F	11F	12F	13F	14F	15F	16F	M	1F	2F	3F	4F	5F	6F	7F	8F	9F	10F	11F	12F	13F	14F	15F	16F	Q	R	S	T	U	V	W	X	Y
100M-□F	58	43.2	20	4.2	18.3	19	5	9.9	-0.8	139.4	38	57	76	95	114	133	152	171	190	209	228	247	266	285	304	323	154.5	28	47	66	85	104	123	142	161	180	199	218	237	256	275	294	313	PT1/4	40	30	29	14	9	78.5	25	27
200M-□F	61	50.7	21	4.3	22.4	23	6	11.8	1.2	170	46	69	92	115	138	161	184	207	230	253	276	299	322	345	368	391	189	34	57	80	103	126	149	172	195	218	241	264	287	310	333	356	379	PT1/4	43	32	30.5	14.5	9	92.5	26	35
300M-□F	75	64.8	26	4.5	27.3	27	6	13.4	2.5	188.8	54	82	110	138	166	194	222	250	278	306	334	362	390	418	446	474	208	42	70	98	126	154	182	210	238	266	294	322	350	378	406	434	462	PT3/8	53	48	37.5	13.5	11	99	30	40
400M-□F	104	94.5	32	5.5	34.3	31.5	7	18.4	5	211.3	71	98	133	168	203	128	273	308	343	378	413	448	483	518	553	588	243	57	84	119	154	189	224	259	294	239	264	399	434	469	504	539	574	PT1/2	68	67	52	18.5	18	112	38	50

4A Series

Model	A	B	C	E	F	G	H	I	J	K	L																M	P																Q	R	S	T	U	V	X	Y
Model	A	B	C	E	F	G	H	I	J	K	1F	2F	3F	4F	5F	6F	7F	8F	9F	10F	11F	12F	13F	14F	15F	16F	M	1F	2F	3F	4F	5F	6F	7F	8F	9F	10F	11F	12F	13F	14F	15F	16F	Q	R	S	T	U	V	X	Y
100M-□F	58	43.2	20	4.2	18.3	19	5	9.9	-0.8	68.7	38	57	76	95	114	133	152	171	190	209	228	247	266	285	304	323	96	28	47	66	85	104	123	142	161	180	199	218	237	256	275	294	313	PT1/4	40	30	29	14	9	25	27
200M-□F	61	50.7	21	4.3	22.4	23	6	11.8	1.2	77.7	46	69	92	115	138	161	184	207	230	253	276	299	322	345	368	391	111	34	57	80	103	126	149	172	195	218	241	264	287	310	333	356	379	PT1/4	43	32	30.5	14.5	9	26	35
300M-□F	75	64.8	26	4.5	27.3	27	6	13.4	2.5	95.5	54	82	110	138	166	194	222	250	278	306	334	362	390	418	446	474	130	42	70	98	126	154	182	210	238	266	294	322	350	378	406	434	462	PT3/8	53	48	37.5	13.5	11	30	40
400M-□F	104	94.5	32	5.5	34.3	31.5	7	18.4	5	128	71	98	133	168	203	128	273	308	343	378	413	448	483	518	553	588	163	57	84	119	154	189	224	259	294	239	264	399	434	469	504	539	574	PT1/2	68	67	52	18.5	18	38	50
