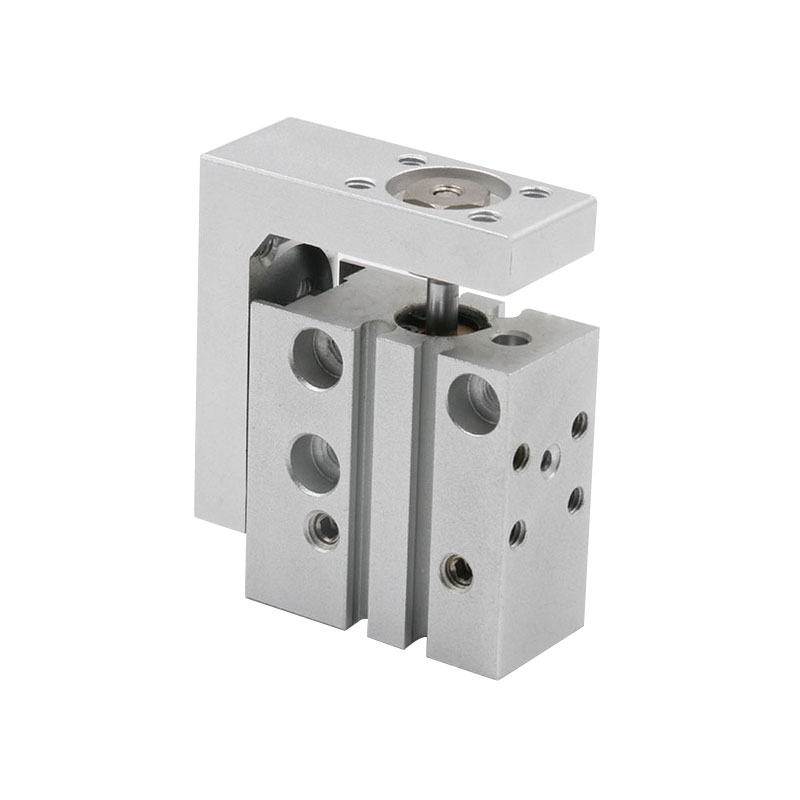

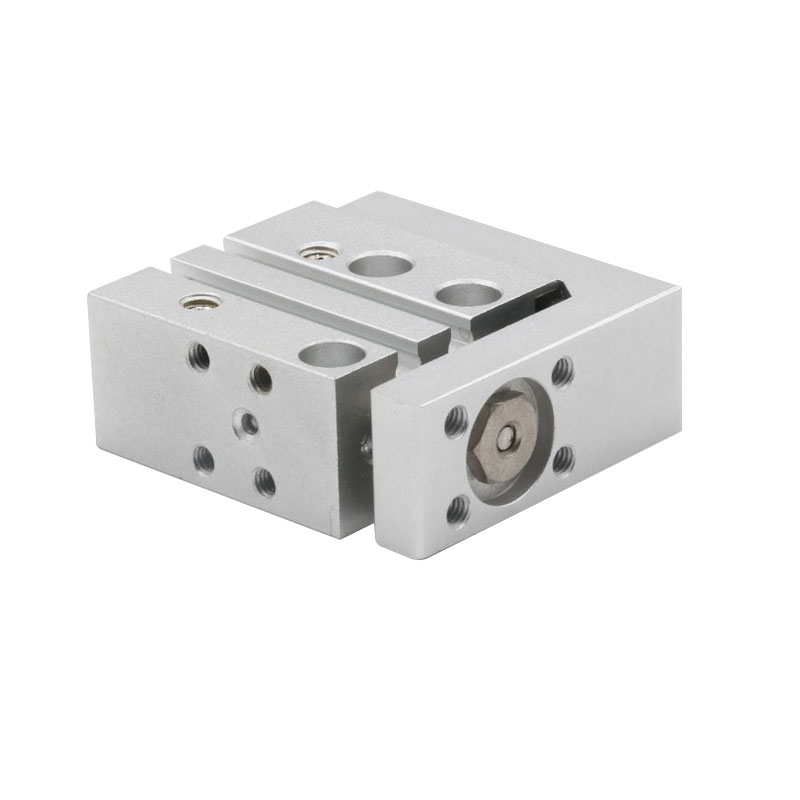

Precision Slide Table Pneumatic Cylinder MXH

MXH Compact Slide Table is equipped with a linear guide bearing to improve the piston rod's non-rotation accuracy; standard built-in magnetic ring, MXH Slide Table can install stroke induction magnetic switch.

Bore sizes: 6, 10, 16, 20 mm
Special (non-standard) porting option
Rubber bumpers
RoHS compliant
Auto switch capable

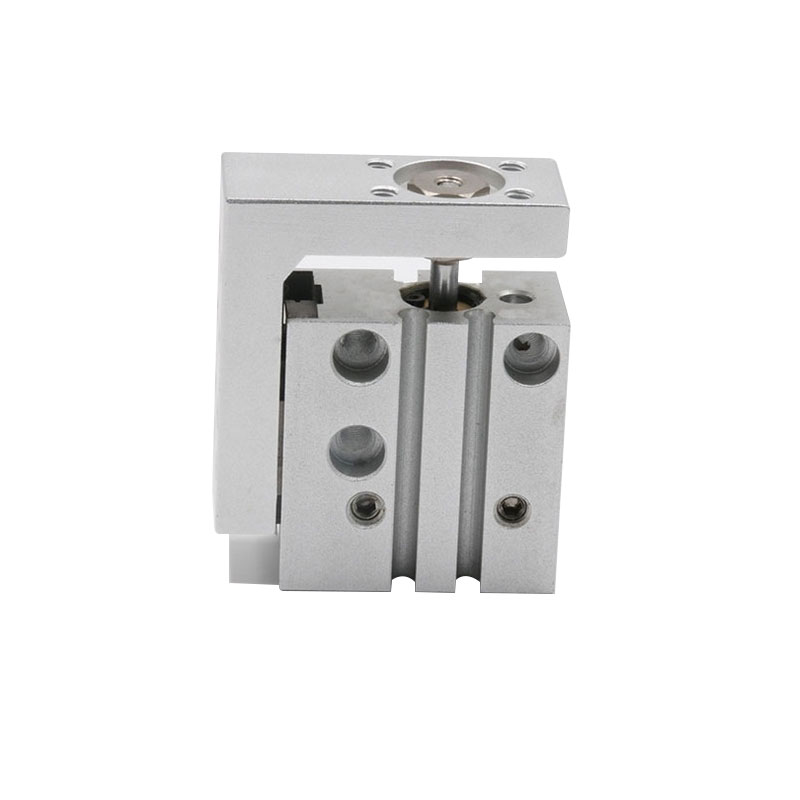

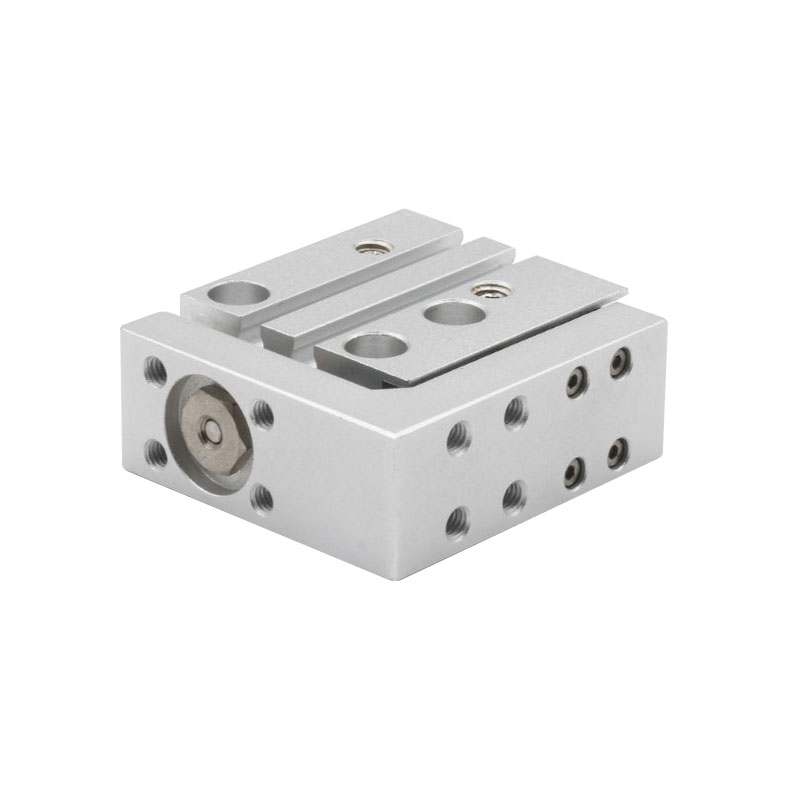

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MXH Compact Slide Table

MXH Compact Slide Table is equipped with a linear guide bearing to improve the piston rod's non-rotation accuracy; standard built-in magnetic ring, MXH Slide Table can install stroke induction magnetic switch, MXH Slide Table can install magnetic switch on both sides, the standard type is rubber cushion at both ends.

Product Feature for MXH Compact Slide Table

* Equipped with linear guide bearings to improve the non rotation accuracy of the piston rod.
* Standard built-in magnetic ring, stroke induction magnetic switch can be installed.
* Connect air supply from three sides.
* Installed the magnetic switch from both sides.
* Standard type rubber cushion at both ends.
* Allowable torque of Precision Slide Table is 6 times that of the MXU series.

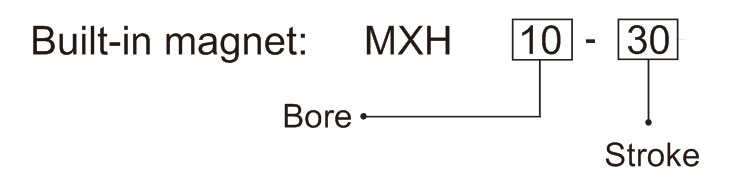

Ordering Code for MXH Compact Slide Table

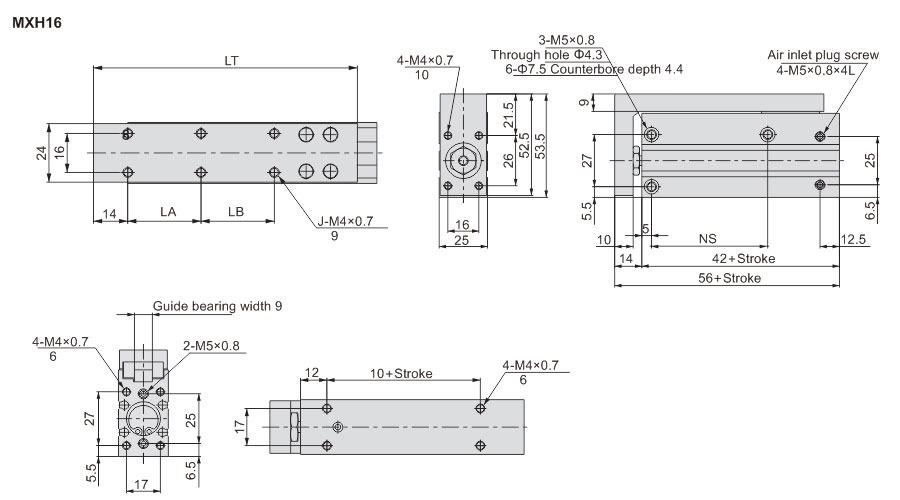

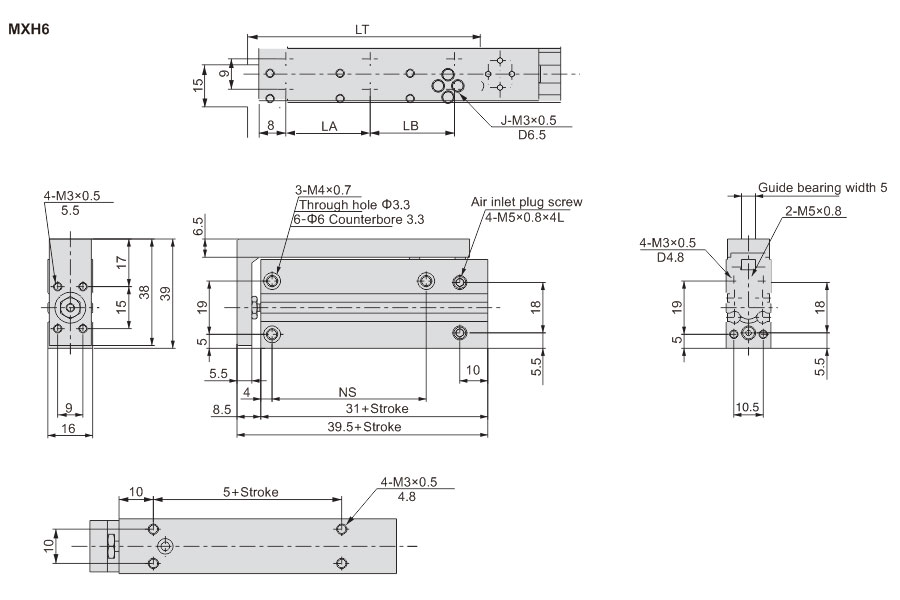

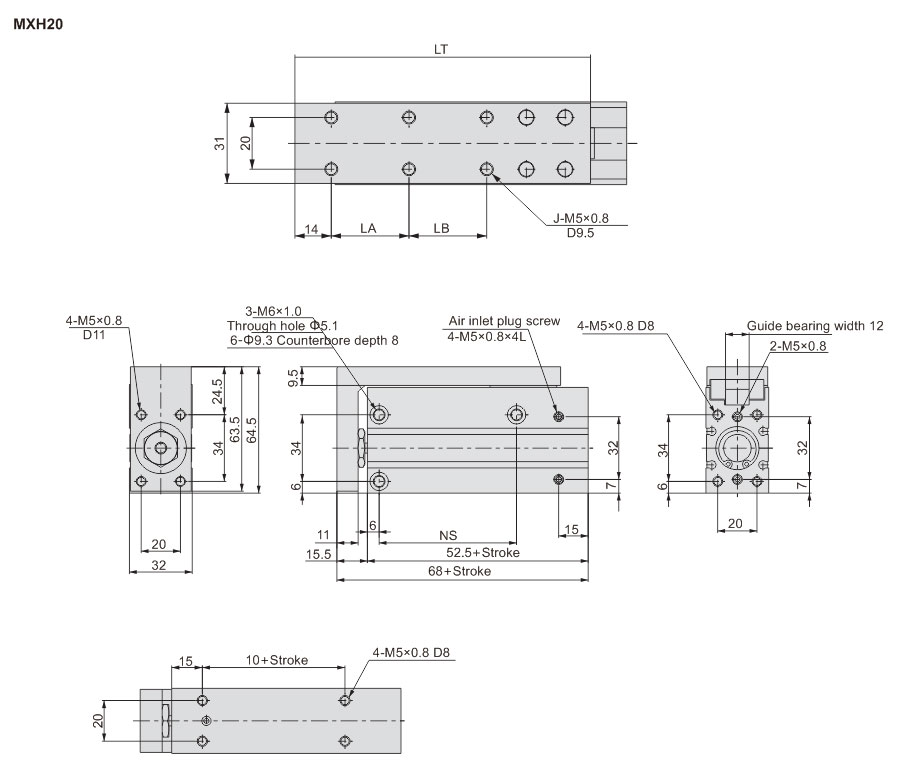

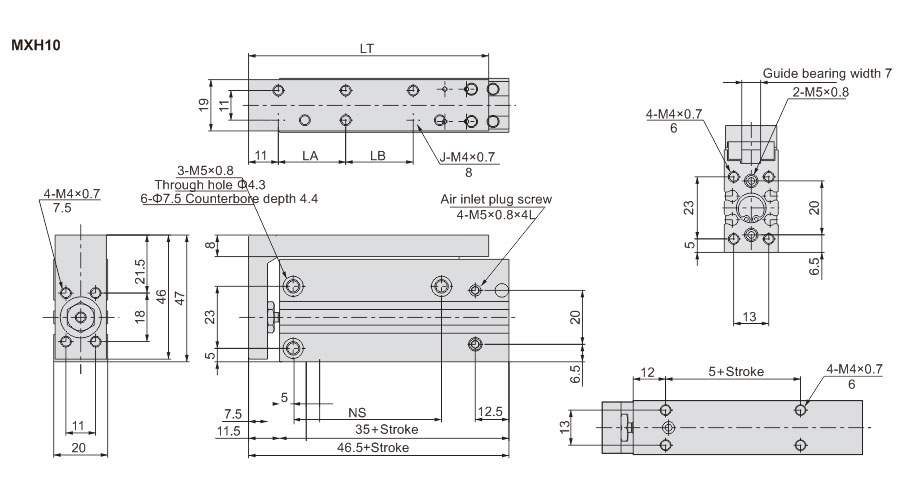

Dimension (mm) for MXH Slide Table

Stroke(mm) J LA LB LT NS
5 4 10 - 42 14
10 4 10 - 42 14
15 4 20 - 52 24
20 4 20 - 52 24
25 4 30 - 62 30
30 4 30 - 62 30
40 6 20 20 72 45
50 6 25 25 82 55
60 6 30 30 92 60

Stroke(mm) J LA LB LT NS
5 4 10 - 49 14
10 4 10 - 49 14
15 4 20 - 59 24
20 4 20 - 59 24
25 4 30 - 69 30
30 4 30 - 69 30
40 6 20 20 79 45
50 6 25 25 89 55
60 6 30 30 99 60

Stroke(mm) J LA LB LT NS
5 4 10 - 58 20
10 4 10 - 58 20
15 4 20 - 68 30
20 4 20 - 68 30
25 4 30 - 78 40
30 4 30 - 78 40
40 6 20 20 88 50
50 6 25 25 98 60
60 6 30 30 108 60

Stroke(mm) J LA LB LT NS
5 4 10 - 64 20
10 4 10 - 64 20
15 4 20 - 74 25
20 4 20 - 74 25
25 4 30 - 84 40
30 4 30 - 84 40
40 6 20 20 94 50
50 6 25 25 104 70
60 6 30 30 114 70
