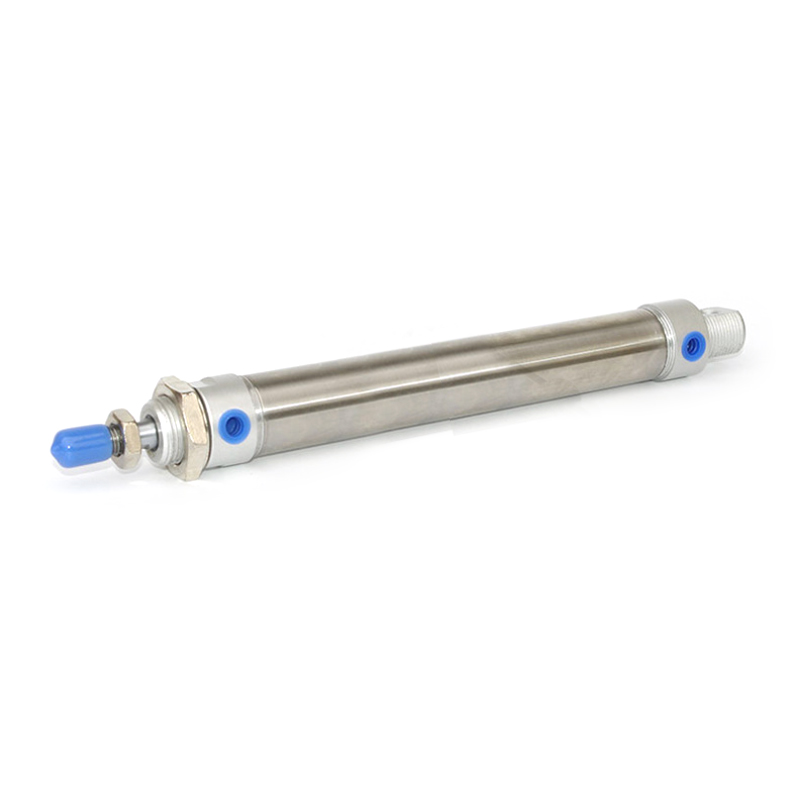

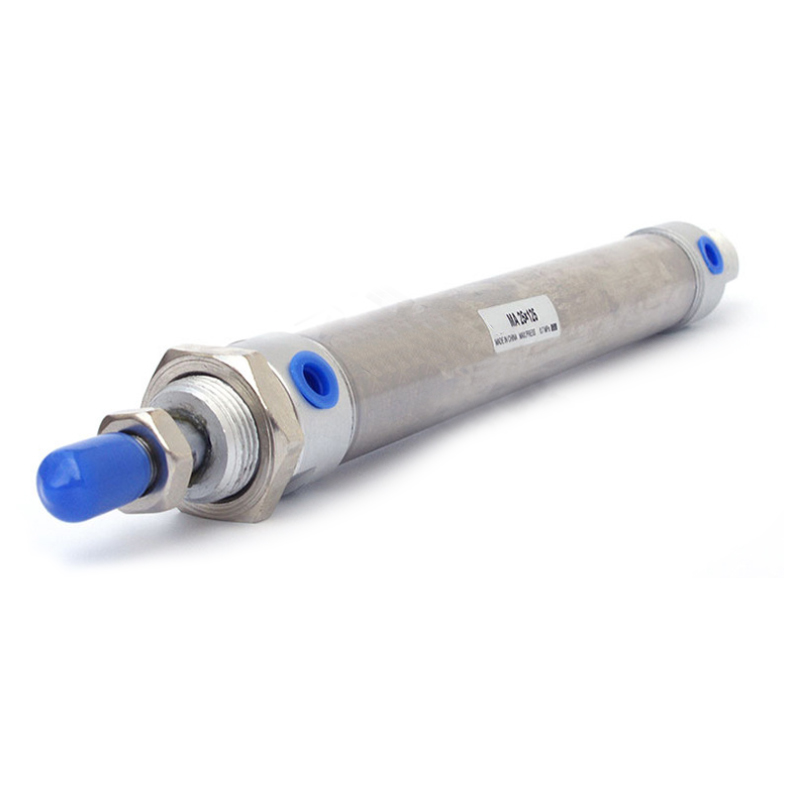

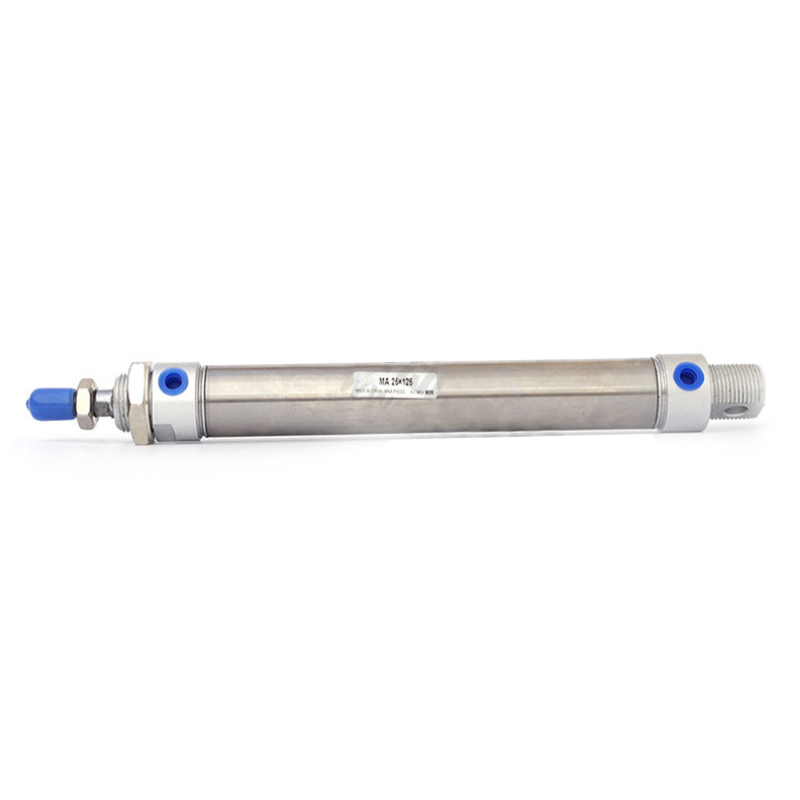

Overview for MA Mini Cylinder
The piston seal of
MA Mini Cylinder adopts special-shaped two-way sealing structure, has compact size and oil storage function; The front and rear covers of the MA Mini Cylinder have the fixed anti-collision pad to reduce reversal impact; MA Mini Cylinder has a variety of rear cover forms to make cylinder installation more convenient; front and rear cover and
China Stainless Steel Cylinder adopts riveting roller package structure, and the connection is reliable. The cylinder body is made of high precision stainless steel pipe with high strength and corrosion resistance. Various specifications of the China Stainless Steel Cylinder and cylinder installation accessories are available for customers to choose.
Product Feature for MA Mini Cylinder
1. Implement this stainless steel cylinders manufacturer standard
2. Piston seal with special-shaped two-way sealed structure, compact size, with oil storage function;
3. Front and rear cover with a fixed type of anti-collision pad, can reduce the impact of the cylinder;
4. A variety of back cover form, the cylinder installation is more convenient;
5. Front and rear cover and Stainless Steel Cylinder with riveting roll package structure, reliable connection;
6. The cylinder from stainless steel cylinders manufacturer adopts high precision stainless steel tube, high strength, anti-corrosion;
7. A variety of specifications of the cylinder and cylinder installation accessories available for customers to choose to use;
8. This series of cylinders from stainless steel cylinders manufacturer all magnetized.

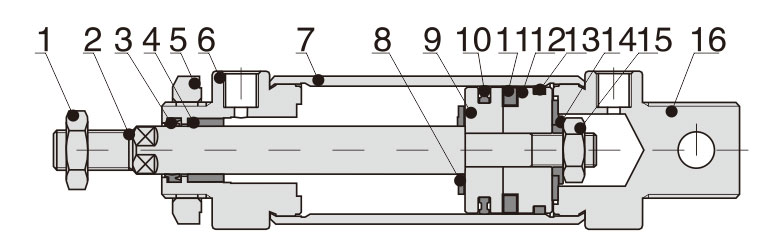

Inner structure and material of major parts
No. |
Item |
Material |
No. |
Item |
Material |
1 |
Nut |
Carbon Steel |
9 |
Piston |
Aluminium Alloy |
2 |
Piston Rod |
S45C Durionise Grinding Rod |
10 |
Piston O-ring |
NBR |
3 |
Front Cover O-ring |
NBR |
11 |
Magnet |
Plastics |
4 |
Bushing |
Wear Material |
12 |
Magnet Base |
Aluminium Alloy |
5 |
Front Cover Nut |
Carbon Steel |
13 |
Wearing Pad (Ring) |
Wear Material |
6 |
Front Cover |
Aluminium Alloy |
14 |
Back shim washer |
Free Cutting Steel |
7 |
Stainless steel tube |
Stainless steel |
15 |
Hex Nut |
Carbon Steel |
8 |
Cushion Gasket |
NBR |
16 |
Back Cover |
Aluminium Alloy |
Specification for China Stainless Steel Cylinder MA Series
Bore (mm) |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
Motion Pattern |
MSA/MTA |
Single-acting |
- |
MAR |
- |
Double-acting |
MA/MAD/MAJ |
Double-acting |
- |
MAC/MACD/MACJ |
- |
Double-acting and Buffer Type |
Working Medium |
Air |
Operating Pressure |
Double-acting |
0.1~1.0MPa(15~145Psi) |
Single-acting |
0.2~1.0MPa(28~145Psi) |
Proof Pressure |
1.5MPa(215Psi) |
Working Temperature |
-20~70°C |
Working Speed |
Single-acting: 50~800mm/s; Double-acting: 30~800mm/s |
Stroke Tolerance Range |
0~150 (+1.0/0) >150(+1.4/0) |
Buffer Type |
MAC/MACD/MACJ Series: Adjustable buffer; Other Series: Bumper |
Port Size |
M5×0.8 |
PT1/8 |
PT1/4 |
Stroke for China Stainless Steel Cylinder MA Series
Bore (mm) |
Standard Stroke (mm) |
Max. Stroke |
Allowable Stroke |
MA
MAC |
16 |
25 50 75 80 100 125 150 160 175 200 |
200 |
500 |
20 |
25 50 75 80 100 125 150 160 175 200 250 300 |
MAR |
20 |
25 50 75 80 100 125 150 160 175 200 250 300 |
300 |
600 |
25 |
25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 |
25 |
25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 |
500 |
700 |
32 |
32 |
500 |
700 |
40 |
40 |
500 |
700 |
50 |
50 |
500 |
700 |
63 |
63 |
500 |
700 |
MSA |
16 |
25 50 75 80 100 |
MTA |
16 |
25 50 75 80 100 |
- |
- |
20 |
25 50 75 80 100 125 150 |
20 |
- |
- |
25 |
25 |
- |
- |
32 |
32 |
- |
- |
40 |
40 |
- |
- |
MAD
MACD
MAJ
MACJ |
16 |
25 50 75 80 100 125 150 160 |
- |
- |
20 |
25 50 75 80 100 125 150 160 175 200 |
- |
- |
25 |
25 50 75 80 100 125 150 160 175 200 250 |
- |
- |
32 |
- |
- |
40 |
- |
- |
50 |
- |
- |
63 |
- |
- |

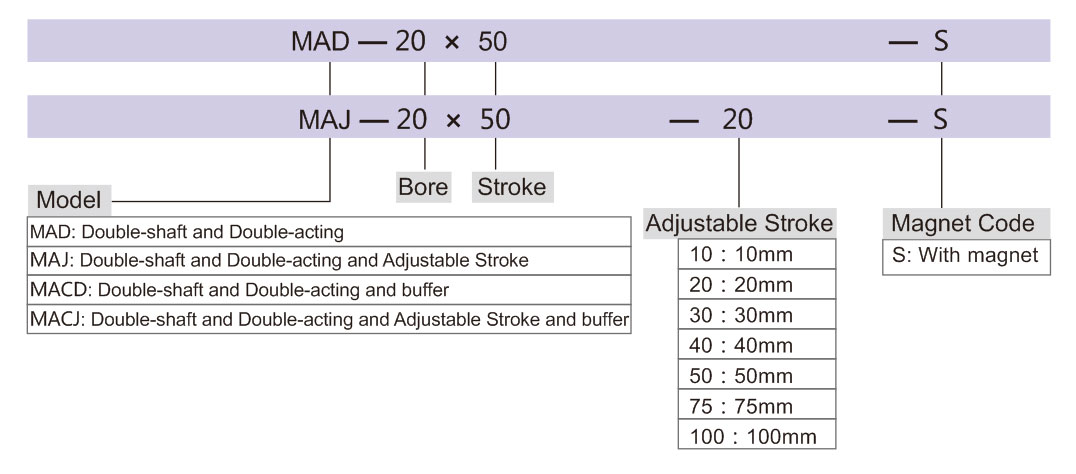

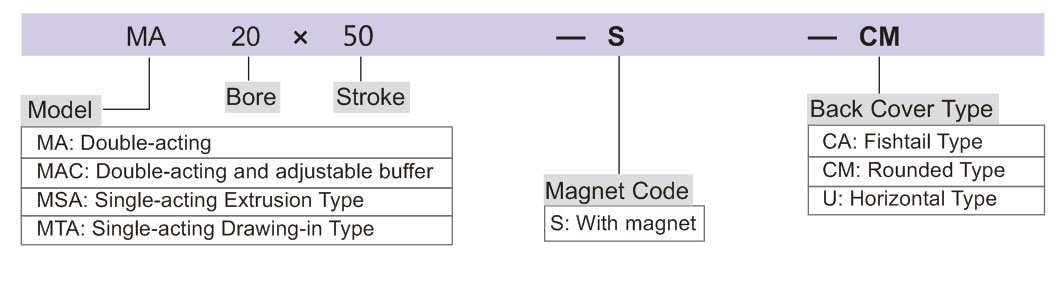

Ordering Code of MA, MAC, MSA, MTA
Ordering Code of MAD, MACD, MAJ, MACJ

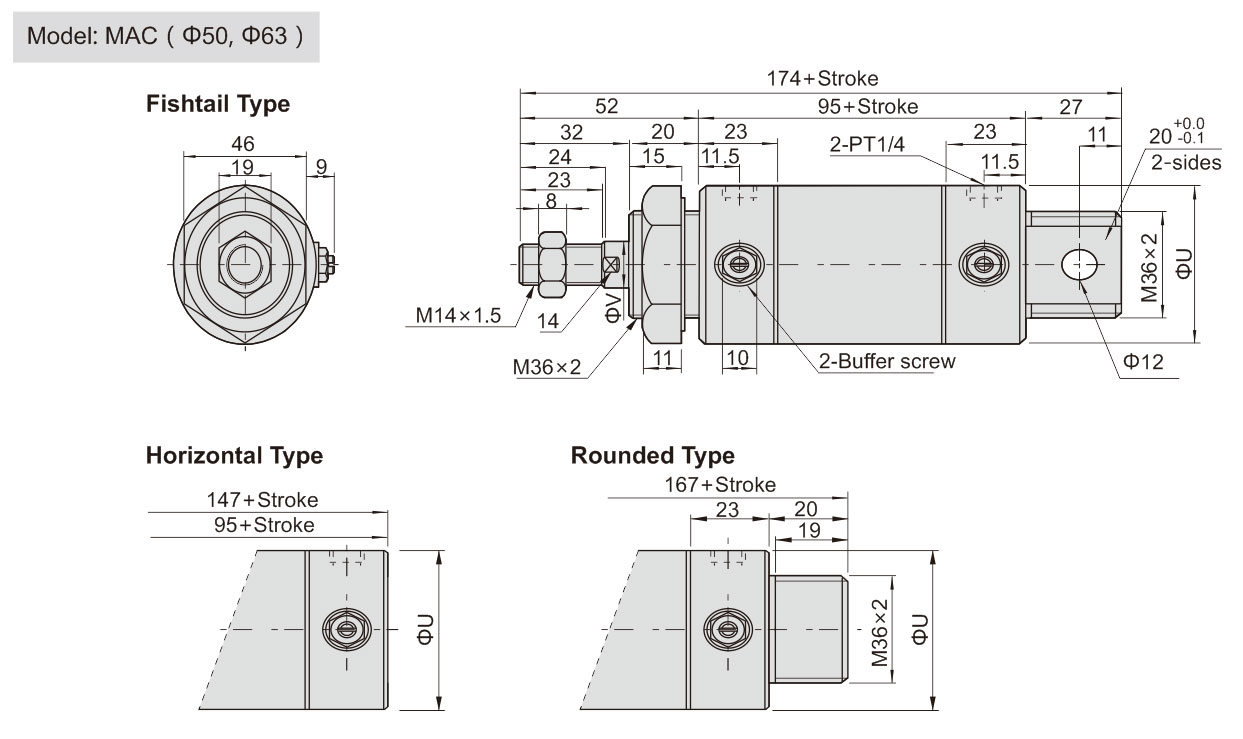

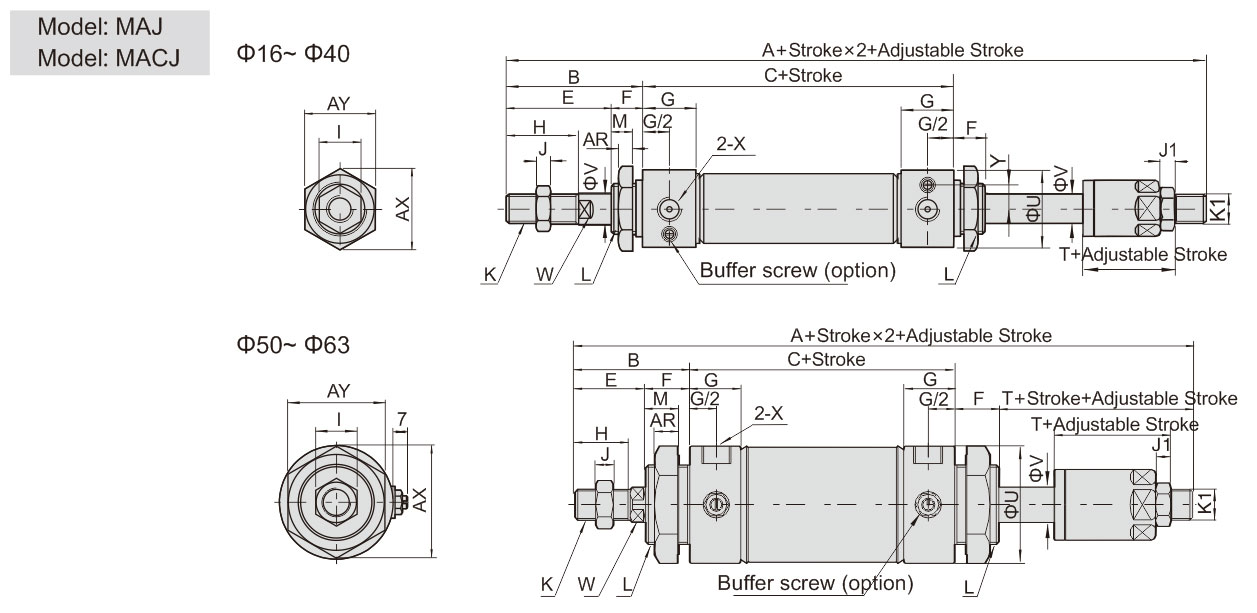

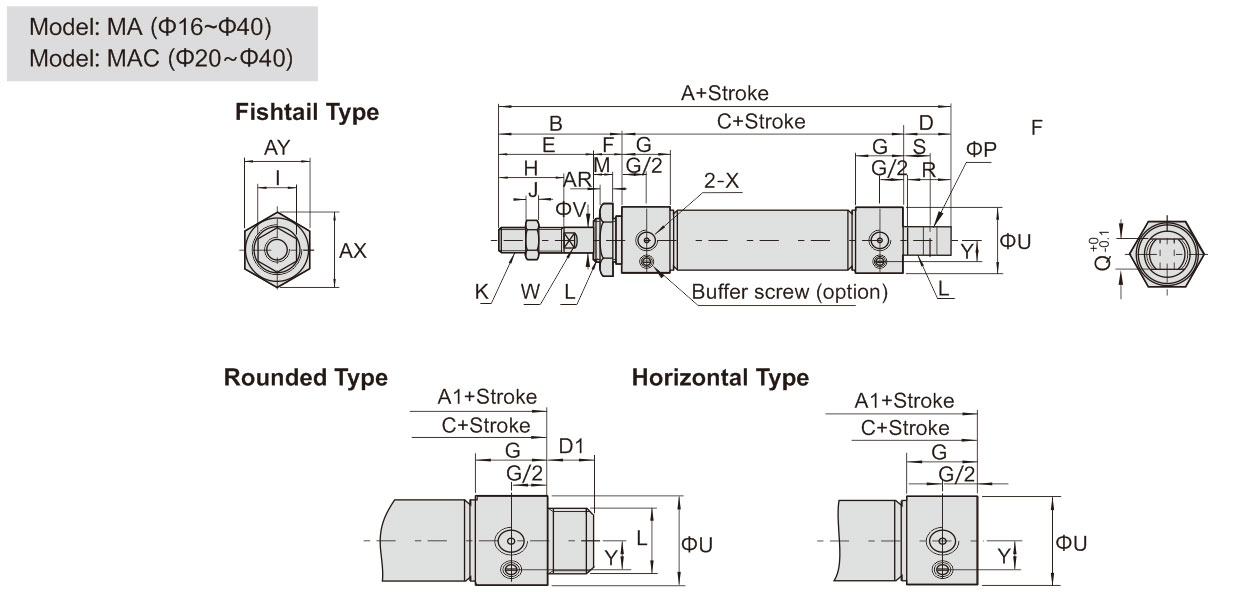

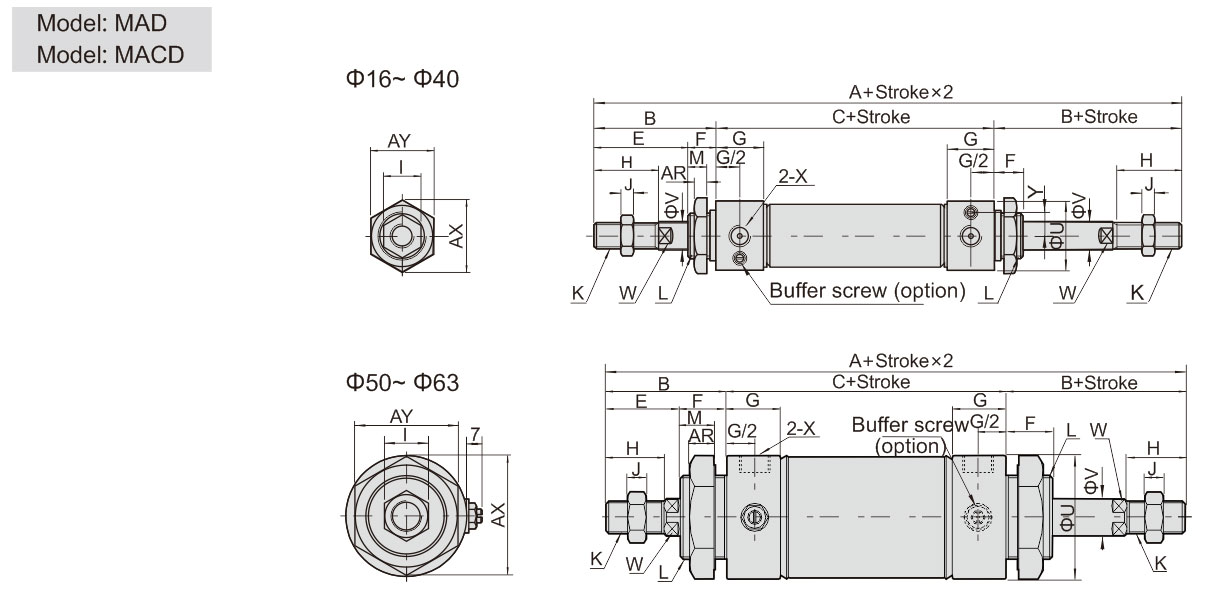

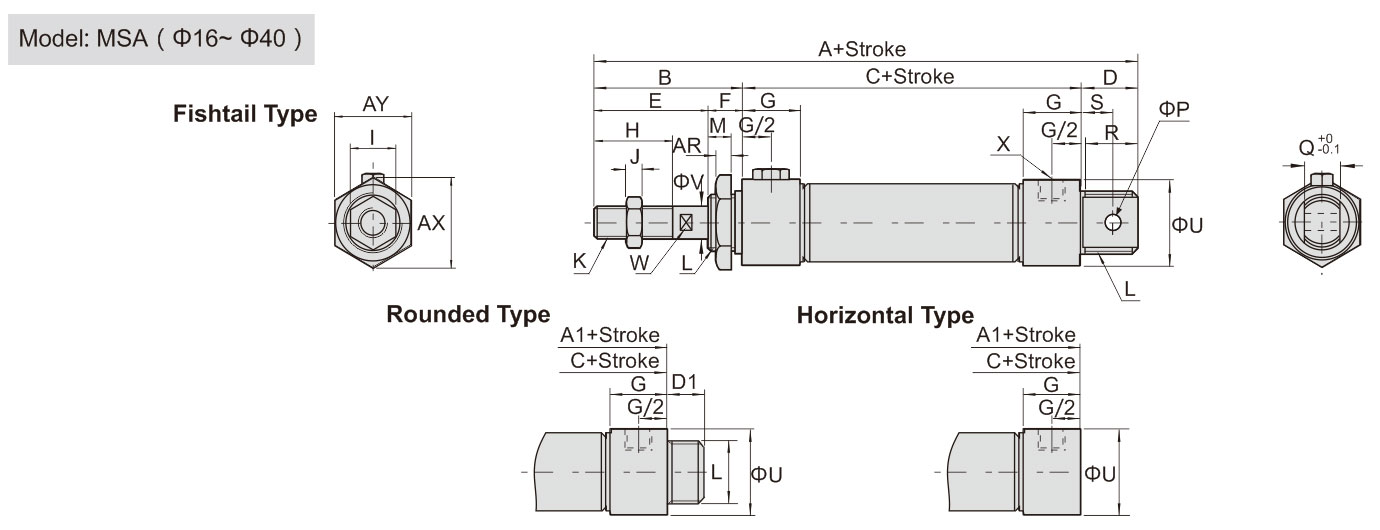

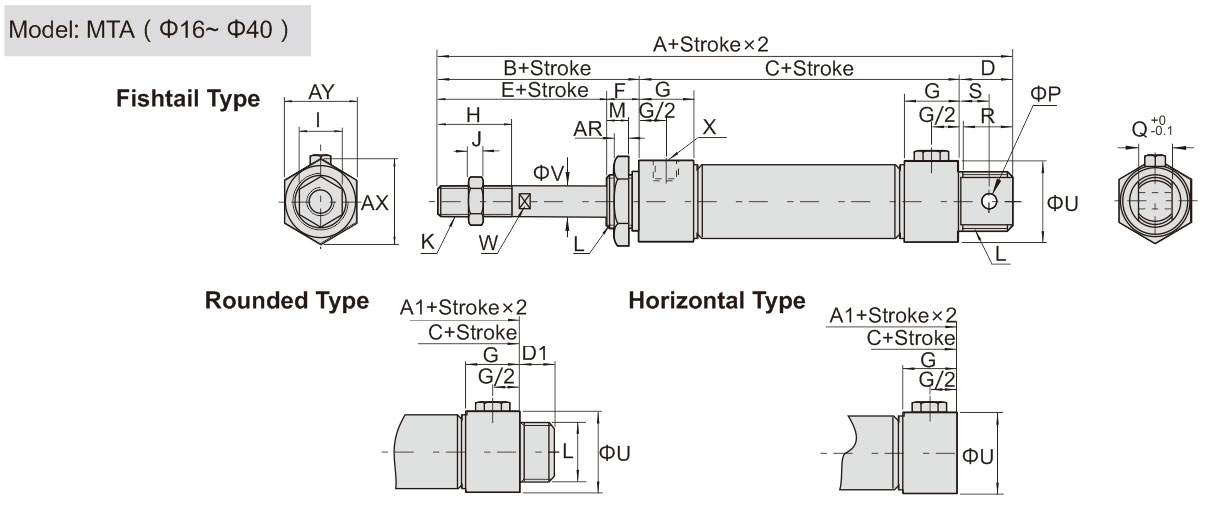

Overall Dimension
Bore |
A |
A1 |
B |
C |
D |
D1 |
E |
F |
G |
H |
I |
J |
K |
16 |
114 |
98 |
38 |
60 |
16 |
16 |
22 |
16 |
10 |
16 |
10 |
5 |
M6x1.0 |
20 |
137 |
116 |
40 |
76 |
21 |
12 |
28 |
12 |
16 |
20 |
12 |
6 |
M8x1.25 |
25 |
141 |
120 |
44 |
76 |
21 |
14 |
30 |
14 |
16 |
22 |
17 |
6 |
M10x1.25 |
32 |
147 |
120 |
44 |
76 |
27 |
14 |
30 |
4 |
16 |
22 |
17 |
6 |
M10x1.25 |
40 |
149 |
122 |
46 |
76 |
27 |
14 |
32 |
14 |
16.7 |
24 |
17 |
7 |
M12x1.25 |
Bore |
L |
M |
P |
Q |
R |
S |
U |
V |
W |
X |
AR |
AX |
AY |
Y |
16 |
M16x1.5 |
14 |
6 |
12 |
14 |
9 |
21 |
6 |
5 |
M5x0.8 |
6 |
25 |
22 |
- |
20 |
M22x1.5 |
10 |
8 |
16 |
19 |
12 |
27 |
8 |
6 |
PT1/8 |
7 |
33 |
29 |
8.7 |
25 |
M22x1.5 |
12 |
8 |
16 |
19 |
12 |
30 |
10 |
8 |
PT1/8 |
7 |
33 |
29 |
10.2 |
32 |
M24x2.0 |
12 |
10 |
16 |
25 |
15 |
35 |
12 |
10 |
PT1/8 |
8 |
37 |
32 |
12 |
40 |
M30x2.0 |
12 |
12 |
20 |
25 |
15 |
41.6 |
16 |
14 |
PT1/8 |
9 |
47 |
41 |
15 |
Symbol |
A |
A1 |
B |
C |
D |
D1 |
E |
F |
G |
H |
I |
Bore |
≤50 |
51-100 |
≥101 |
≤50 |
51-100 |
≥101 |
≤50 |
51-100 |
≥101 |
16 |
139 |
164 |
- |
123 |
148 |
- |
38 |
85 |
110 |
- |
16 |
16 |
22 |
16 |
10 |
16 |
10 |
20 |
162 |
187 |
212 |
141 |
166 |
191 |
40 |
101 |
126 |
151 |
21 |
12 |
28 |
12 |
16 |
20 |
12 |
25 |
166 |
191 |
216 |
145 |
170 |
195 |
44 |
101 |
126 |
151 |
21 |
14 |
30 |
14 |
16 |
22 |
17 |
32 |
172 |
197 |
222 |
145 |
170 |
195 |
44 |
101 |
126 |
151 |
27 |
14 |
30 |
16 |
16 |
22 |
17 |
40 |
174 |
199 |
224 |
147 |
172 |
197 |
46 |
101 |
126 |
151 |
27 |
14 |
32 |
14 |
16.7 |
24 |
17 |
Bore |
J |
K |
L |
M |
P |
Q |
R |
S |
U |
V |
W |
X |
AR |
AX |
AY |
16 |
5 |
M6x1.0 |
M16x1.5 |
14 |
6 |
12 |
14 |
9 |
21 |
6 |
5 |
M5x0.8 |
6 |
25 |
22 |
20 |
6 |
M8x1.25 |
M22x1.5 |
10 |
8 |
16 |
19 |
12 |
27 |
8 |
6 |
PT1/8 |
7 |
33 |
29 |
25 |
6 |
M10x1.25 |
M22x1.5 |
12 |
8 |
16 |
19 |
12 |
30 |
10 |
8 |
PT1/8 |
7 |
33 |
29 |
32 |
6 |
M10x1.25 |
M24x2.0 |
12 |
10 |
16 |
25 |
15 |
35 |
12 |
10 |
PT1/8 |
8 |
37 |
32 |
40 |
7 |
M12x1.25 |
M30x2.0 |
12 |
12 |
20 |
25 |
15 |
41.5 |
16 |
14 |
PT1/8 |
9 |
47 |
41 |
Symbol |
A |
A1 |
B |
C |
D |
D1 |
E |
F |
Bore |
≤25 |
≤50 |
≤75 |
≤100 |
≤25 |
≤50 |
≤75 |
≤100 |
≤25 |
≤50 |
≤75 |
≤100 |
16 |
129 |
139 |
154 |
164 |
113 |
123 |
138 |
148 |
38 |
75 |
85 |
100 |
110 |
16 |
16 |
22 |
16 |
20 |
152 |
162 |
177 |
187 |
131 |
141 |
156 |
166 |
40 |
91 |
101 |
116 |
126 |
21 |
12 |
28 |
12 |
25 |
156 |
166 |
181 |
191 |
135 |
145 |
160 |
170 |
44 |
91 |
101 |
116 |
126 |
21 |
14 |
30 |
14 |
32 |
162 |
172 |
192 |
192 |
135 |
145 |
165 |
165 |
44 |
91 |
101 |
121 |
121 |
27 |
14 |
30 |
14 |
40 |
164 |
174 |
194 |
204 |
137 |
147 |
167 |
177 |
46 |
91 |
101 |
121 |
131 |
27 |
14 |
32 |
14 |
Bore |
G |
H |
I |
J |
K |
L |
M |
P |
Q |
R |
S |
U |
V |
W |
X |
AR |
AX |
AY |
16 |
10 |
16 |
10 |
5 |
M6x1.0 |
M16x1.5 |
14 |
6 |
12 |
14 |
9 |
21 |
6 |
5 |
M5x0.8 |
6 |
25 |
22 |
20 |
16 |
20 |
12 |
6 |
M8x1.25 |
M22x1.5 |
10 |
8 |
16 |
19 |
12 |
27 |
8 |
6 |
PT1/8 |
7 |
33 |
29 |
25 |
16 |
22 |
17 |
6 |
M10x1.25 |
M22x1.5 |
12 |
8 |
16 |
19 |
12 |
30 |
10 |
8 |
PT1/8 |
7 |
33 |
29 |
32 |
16 |
22 |
17 |
6 |
M10x1.25 |
M24x2.0 |
12 |
10 |
16 |
25 |
15 |
35 |
12 |
10 |
PT1/8 |
8 |
37 |
32 |
40 |
16.7 |
24 |
17 |
7 |
M12x1.25 |
M30x2.0 |
12 |
12 |
20 |
25 |
15 |
41.5 |
16 |
14 |
PT1/8 |
9 |
47 |
41 |
Bore |
G |
H |
I |
J |
K |
L |
M |
P |
Q |
R |
S |
U |
V |
W |
X |
AR |
AX |
AY |
16 |
10 |
16 |
10 |
5 |
M6x1.0 |
M16x1.5 |
14 |
6 |
12 |
14 |
9 |
21 |
6 |
5 |
M5x0.8 |
6 |
25 |
22 |
20 |
16 |
20 |
12 |
6 |
M8x1.25 |
M22x1.5 |
10 |
8 |
16 |
19 |
12 |
27 |
8 |
6 |
PT1/8 |
7 |
33 |
29 |
25 |
16 |
22 |
17 |
6 |
M10x1.25 |
M22x1.5 |
12 |
8 |
16 |
19 |
12 |
30 |
10 |
8 |
PT1/8 |
7 |
33 |
29 |
32 |
16 |
22 |
17 |
6 |
M10x1.25 |
M24x2.0 |
12 |
10 |
16 |
25 |
15 |
35 |
12 |
10 |
PT1/8 |
8 |
37 |
32 |
40 |
16.7 |
24 |
17 |
7 |
M12x1.25 |
M30x2.0 |
12 |
12 |
20 |
25 |
15 |
41.5 |
16 |
14 |
PT1/8 |
9 |
47 |
41 |
Bore |
A |
B |
C |
E |
F |
G |
H |
I |
J |
K |
L |
M |
U |
V |
W |
X |
AR |
AX |
AY |
Y |
16 |
136 |
38 |
60 |
22 |
16 |
10 |
16 |
10 |
5 |
M6x1.0 |
M16x1.5 |
14 |
21 |
6 |
5 |
M5x0.8 |
6 |
25 |
22 |
- |
20 |
156 |
40 |
76 |
28 |
12 |
16 |
20 |
12 |
6 |
M8x1.25 |
M22x1.5 |
10 |
27 |
8 |
6 |
PT1/8 |
7 |
33 |
29 |
8.7 |
25 |
164 |
44 |
76 |
30 |
14 |
16 |
22 |
17 |
6 |
M10x1.25 |
M22x1.5 |
12 |
30 |
10 |
8 |
PT1/8 |
7 |
33 |
29 |
10.2 |
32 |
164 |
44 |
76 |
30 |
14 |
16 |
22 |
17 |
6 |
M10x1.25 |
M24x2.0 |
12 |
35 |
12 |
10 |
PT1/8 |
8 |
37 |
32 |
12 |
40 |
168 |
46 |
76 |
32 |
14 |
16.7 |
24 |
17 |
7 |
M12x1.25 |
M30x2.0 |
12 |
41.6 |
16 |
14 |
PT1/8 |
9 |
47 |
41 |
15 |
50 |
199 |
52 |
95 |
32 |
20 |
23 |
24 |
19 |
8 |
M14x1.5 |
M36x2.0 |
15 |
53 |
16 |
14 |
PT1/4 |
11 |
53 |
46 |
- |
63 |
199 |
52 |
95 |
32 |
20 |
23 |
24 |
19 |
8 |
M14x1.5 |
M36x2.0 |
15 |
67 |
16 |
14 |
PT1/4 |
11 |
53 |
46 |
- |
Bore |
A |
B |
C |
E |
F |
G |
H |
I |
J |
J1 |
K |
K1 |
L |
M |
U |
V |
W |
X |
AR |
AX |
AY |
Y |
T |
16 |
135 |
38 |
60 |
22 |
16 |
10 |
16 |
10 |
5 |
5 |
M6x1.0 |
M6x1.0 |
M16x1.5 |
14 |
21 |
6 |
5 |
M5x0.8 |
6 |
25 |
22 |
- |
16 |
20 |
153 |
40 |
76 |
28 |
12 |
16 |
20 |
12 |
6 |
6 |
M8x1.25 |
M8x1.25 |
M22x1.5 |
10 |
27 |
8 |
6 |
PT1/8 |
7 |
33 |
29 |
8.7 |
19 |
25 |
161 |
44 |
76 |
30 |
14 |
16 |
22 |
17 |
6 |
6 |
M10x1.25 |
M10x1.25 |
M22x1.5 |
12 |
30 |
10 |
8 |
PT1/8 |
7 |
33 |
29 |
10.2 |
21 |
32 |
161 |
44 |
76 |
30 |
14 |
16 |
22 |
17 |
6 |
6 |
M10x1.25 |
M10x1.25 |
M24x2.0 |
12 |
35 |
12 |
10 |
PT1/8 |
8 |
37 |
32 |
12 |
21 |
40 |
164 |
46 |
76 |
32 |
14 |
16.7 |
24 |
17 |
7 |
7 |
M12x1.25 |
M12x1.25 |
M30x2.0 |
12 |
41.6 |
16 |
14 |
PT1/8 |
9 |
47 |
41 |
15 |
21 |
50 |
195 |
52 |
95 |
32 |
20 |
23 |
24 |
19 |
8 |
7 |
M14x1.5 |
M12x1.25 |
M36x2.0 |
15 |
53 |
16 |
14 |
PT1/4 |
11 |
53 |
46 |
- |
28 |
63 |
195 |
52 |
95 |
32 |
20 |
23 |
24 |
19 |
8 |
7 |
M14x1.5 |
M12x1.25 |
M36x2.0 |
15 |
67 |
16 |
14 |
PT1/4 |
11 |
53 |
46 |
- |
28 |
Keywords:
MA Mini Cylinder | China Stainless Steel Cylinder | stainless steel cylinders manufacturer
