Compact Pneumatic Cylinder CQS

CQS Compact Pneumatic Cylinder has compact structure, can effectively save installation space; Occupy less space, lightweight structure, beautiful appearance, can withstand large lateral load, can be directly installed on various fixtures and special equipment without installing accessories;

Bore Sizes: 12,16,20,25
Stroke Lengths: 5,10,15,20,25,30,35,40,45,50mm
Operating Pressure: 0.1-1.0 MPa
Speed: 50-500mm/s
Working Environment Temperature: -10 to 60°C

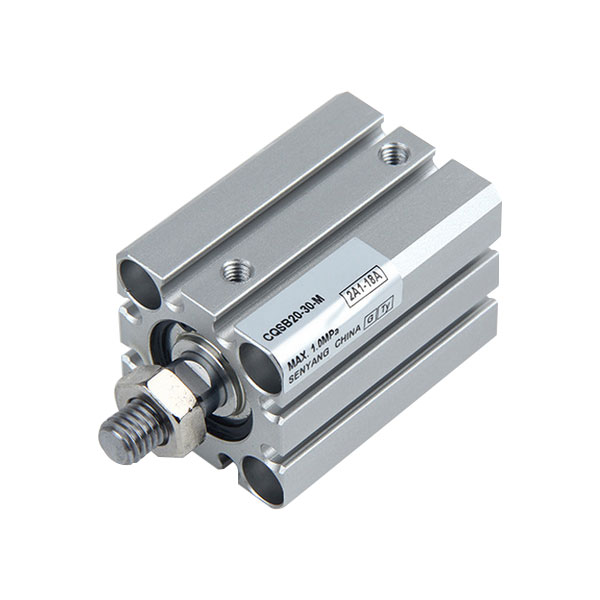

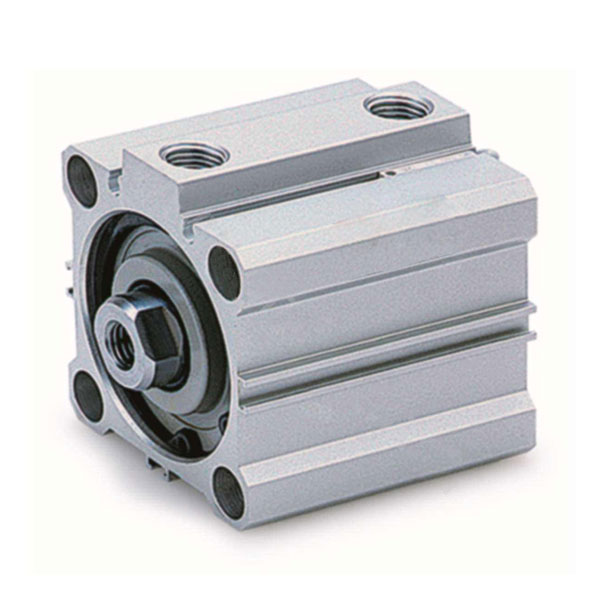

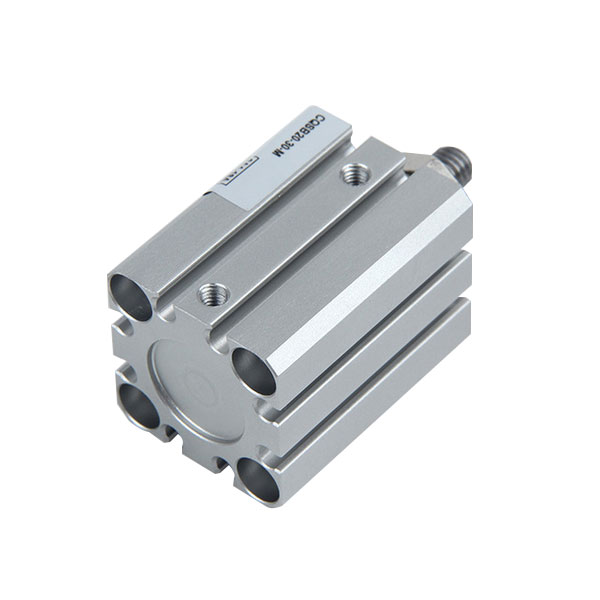

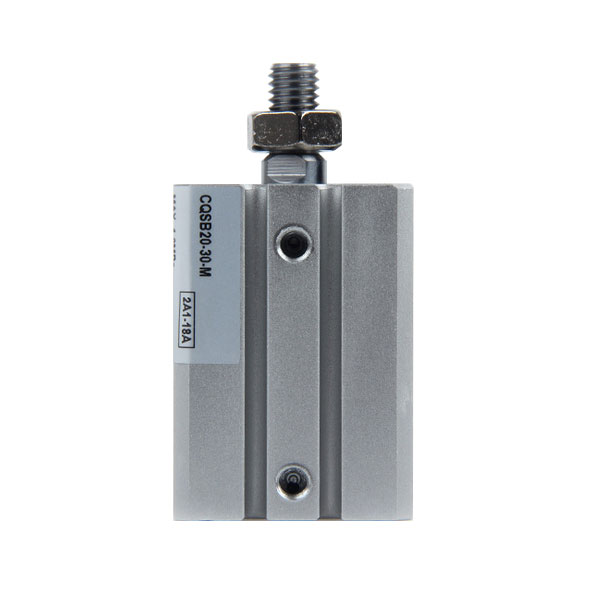

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for CQS Compact Pneumatic Cylinder

CQS Compact Pneumatic Cylinder has compact structure, can effectively save installation space; Occupy less space, lightweight structure, beautiful appearance, can withstand large lateral load, can be directly installed on various fixtures and special equipment without installing accessories; It is a cylindrical metal part that guides the piston to reciprocate in a straight line. The structure of CQS Compact Pneumatic Cylinder is composed of cylinder barrel, end cover, piston, piston rod and seals; CDQSB Compact Air Cylinder converts the pressure energy of compressed air into mechanical energy, and the driving mechanism performs linear reciprocating motion, swing and rotating motion. The shells of turbines and rotary piston engines are also commonly referred to as cylinders.

Technical Parameters for CQS Compact Pneumatic Cylinder

Bore Sizes: 12,16,20,25
Stroke Lengths: 5,10,15,20,25,30,35,40,45,50mm
Operating Pressure: 0.1-1.0 MPa
Speed: 50-500mm/s
Working Environment Temperature: -10 to 60°C

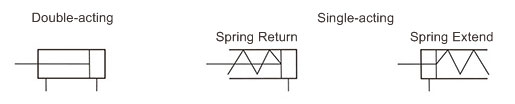

Symbol For CQS Compact Cylinder

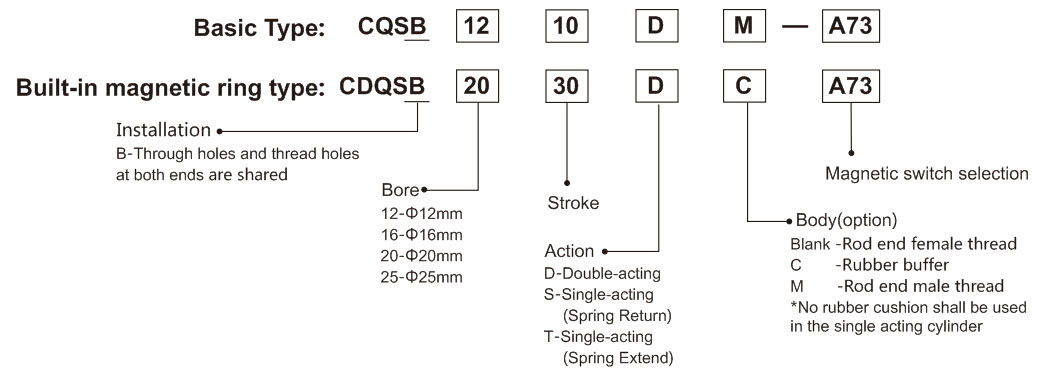

Ordering Code

Specification For CQS Compact Cylinder

Bore (mm) 12 16 20 25
Working Medium Air
Motion Pattern Double acting; Single acting: Spring return/extend
Proof Pressure 1.5MPa(15.3kgf/cm2)
Max. Operating Pressure 1.0MPa(10.2kgf/cm2)
Ambient and fluid temperature -10℃~+60℃
Rod End Thread Female thread (standard), male thread (option)
Cushion No
Piston Speed 50~500mm/ s
Stroke Tolerance +1.0/0
*Lubrication Non-lube
Installation Hole, two-ends female thread(common)
Port Size M5×0.8

*For Lubrication, please use ISOVG32.

Stroke / magnetic switch type table For CQS Compact Cylinder

Bore(mm) Standard Stroke Magnetic switch
Double acting Single acting Rail Mounting
12 5,10,15, 20,25,30 5, 10 A93(V) A96(V)
M9N(V) F9NW
M9B(V) M9P(V)
F9BA
16
20 5,10,15,20,25, 30,35,40,45,50 5, 10
25

*The specifications and characteristics of magnetic switches refer to the series of magnetic switches

Feature For CQS Compact Cylinder

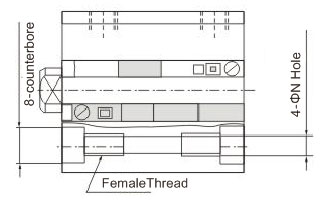

1. Easy installation
Shared by through holes with two ends thread holes.

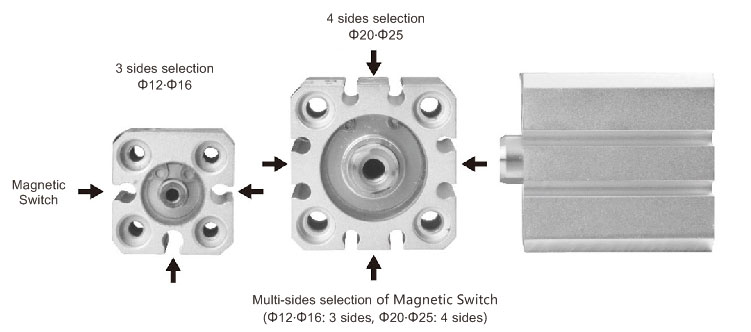

2. Save Space
The micro magnetic switch is arranged in the cylinder groove, and the cylinder can not be exposed outside

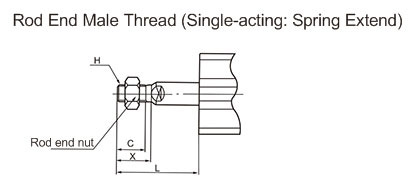

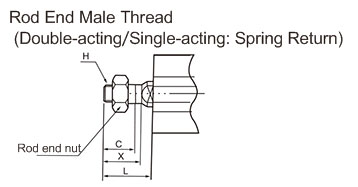

Dimension (mm)

Bore (mm) C H L X
12 9 M5×0.8 14 10.5
16 10 M6×1.0 15.5 12
20 12 M8×1.25 18.5 14
25 15 M10×1.25 22.5 17.5

Bore (mm) C H L X
5ST 10ST
12 9 M5×0.8 19 24 10.5
16 10 M6×1.0 20.5 25.5 12
20 12 M8×1.25 23.5 28.5 14
25 16 M10×1.25 27.5 32.5 17.5

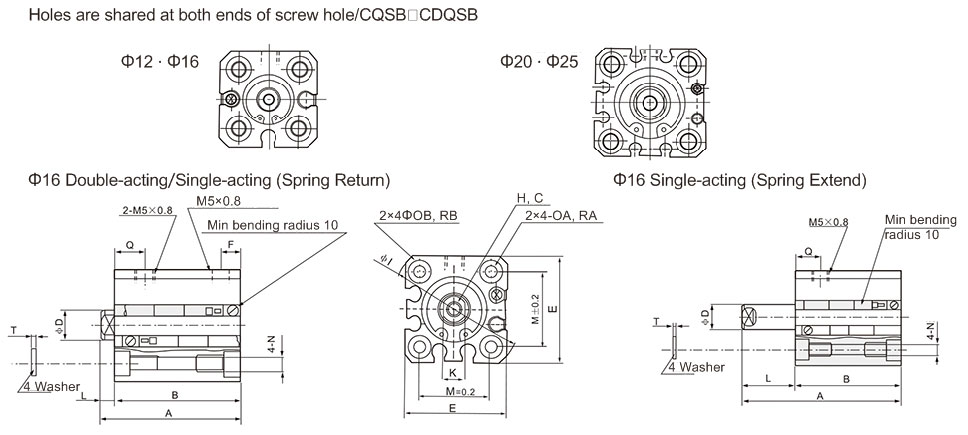

Common size table of Double-acting, Single-acting

Bore
(mm)		 Basic Type
C D E H I K M N OA OB RA RB T Q
12 6 6 25 M3×0.5 32 5 15.5 3.5 M4×0.7 6.5 7 4 0.5 7.5
16 8 8 29 M4×0.7 38 6 20 3.5 M4×0.7 6.5 7 4 0.5 7.5
20 7 10 36 M5×0.8 47 8 25.5 5.4 M6×1.0 9 10 7 1 9
25 12 12 40 M6×1.0 52 10 28 5.4 M6×1.0 9 10 7 1 11

Double-acting

Double-acting Stroke Range
(mm)		 Basic Type Built-in magnet type
A B F L Q A B
12 5~30 20.5+ST 17+ST 5 3.5 7.5 25.5+ST 22+ST
16 5~30 20.5+ST 17+ST 5 3.5 7.5 25.5+ST 22+ST
20 5~30 24+ST 19.5+ST 5.5 4.5 9 34+ST 29.5+ST
25 5~30 27.5+ST 22.5+ST 5.5 5 11 37.5+ST 32.5+ST

Single-acting: Spring Return

Bore
(mm)		 Stroke Range
(mm)		 Basic Type Built-in magnet type
A B F L A B
5ST 10ST 5ST 10ST 5ST 10ST 5ST 10ST
12 5, 10 25.5 30.5 22 27 5 3.5 30.5 35.5 27 32
16 25.5 30.5 22 27 5 3.5 30.5 35.5 27 32
20 29 34 24.5 29.5 5.5 4.5 39 44 34.5 39.5
25 32.5 37.5 27.5 32.5 5.5 5 42.5 47.5 37.5 42.5

Single-acting: Spring Extend

Bore
(mm)		 Stroke Range
(mm)		 Basic Type Built-in magnet type
A B L Q A B
5ST 10ST 5ST 10ST 5ST 10ST 5ST 10ST 5ST 10ST
12 5, 10 30.5 40.5 22 27 8.5 13.5 7.5 35.5 45.5 27 32
16 30.5 40.5 22 27 8.5 13.5 7.5 35.5 45.5 27 32
20 34 39 24.5 29.5 9.5 14.5 9 44 49 34.5 39.5
25 37.5 42.5 27.5 32.5 10 15 11 47.5 52.5 37.5 42.5
