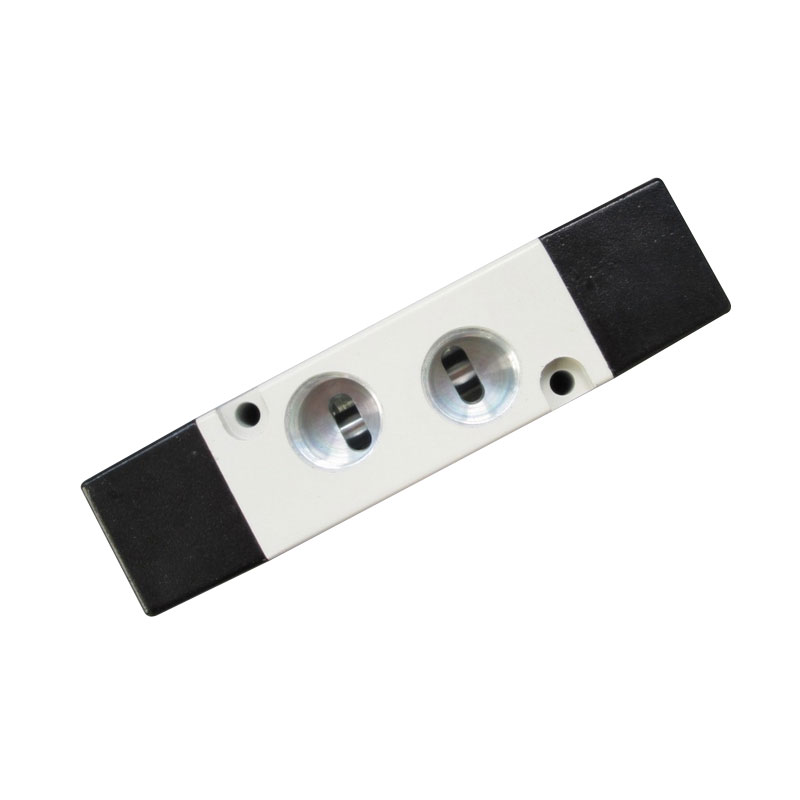

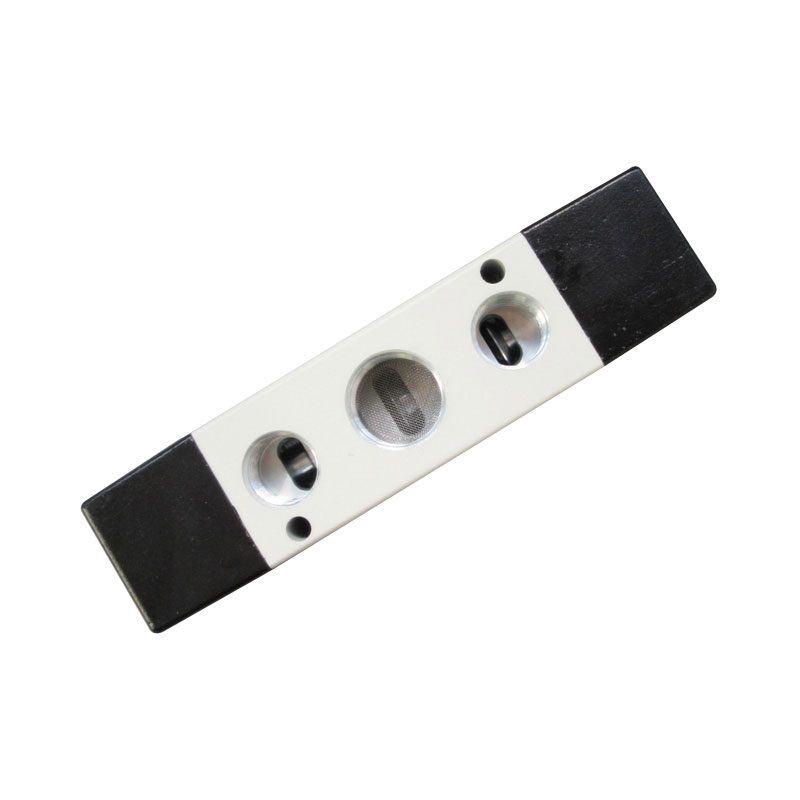

Technical Parameters for Solenoid Operated Valve
Port Size: G1/4,G3/8
Operating Pressure: 0.15~0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

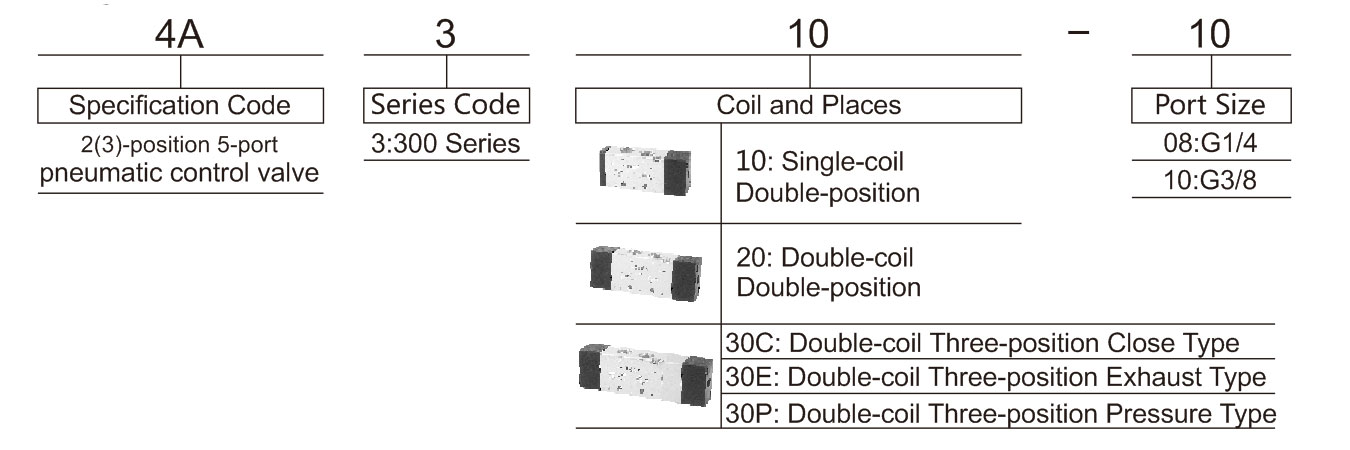

Ordering Code for Pneumatic Operated Valve 4A3 Series

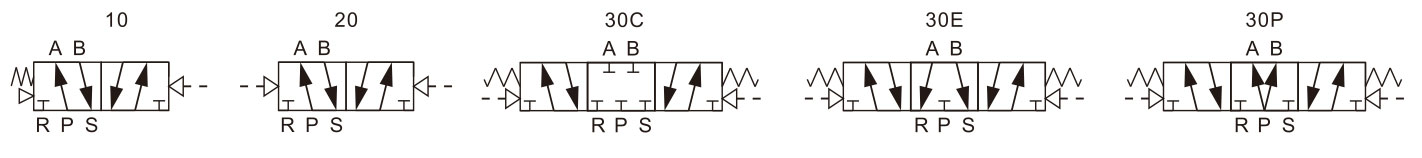

Symbol for Pneumatic Operated Valve 4A3 Series

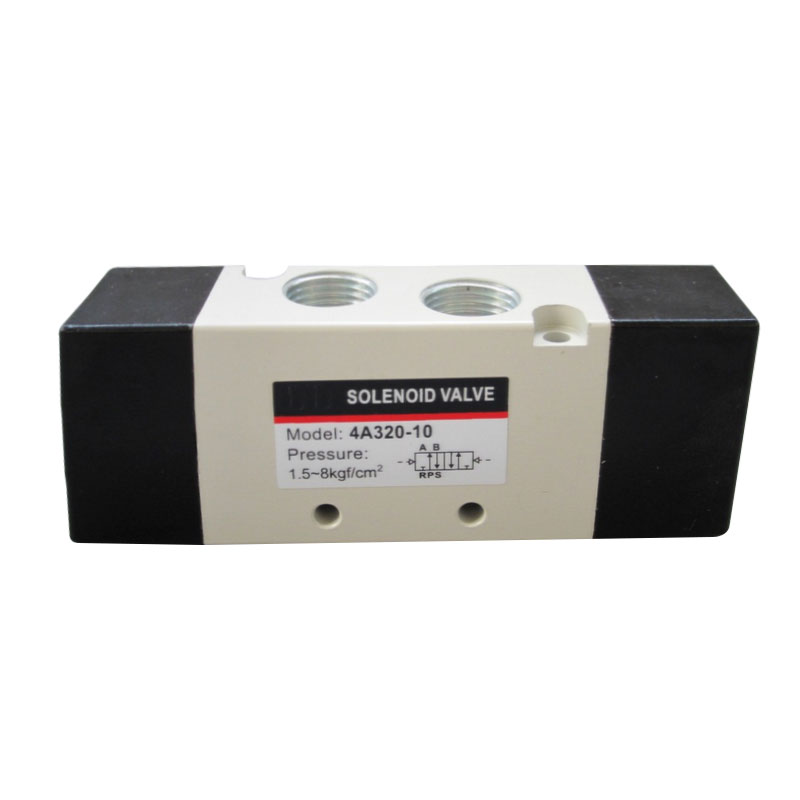

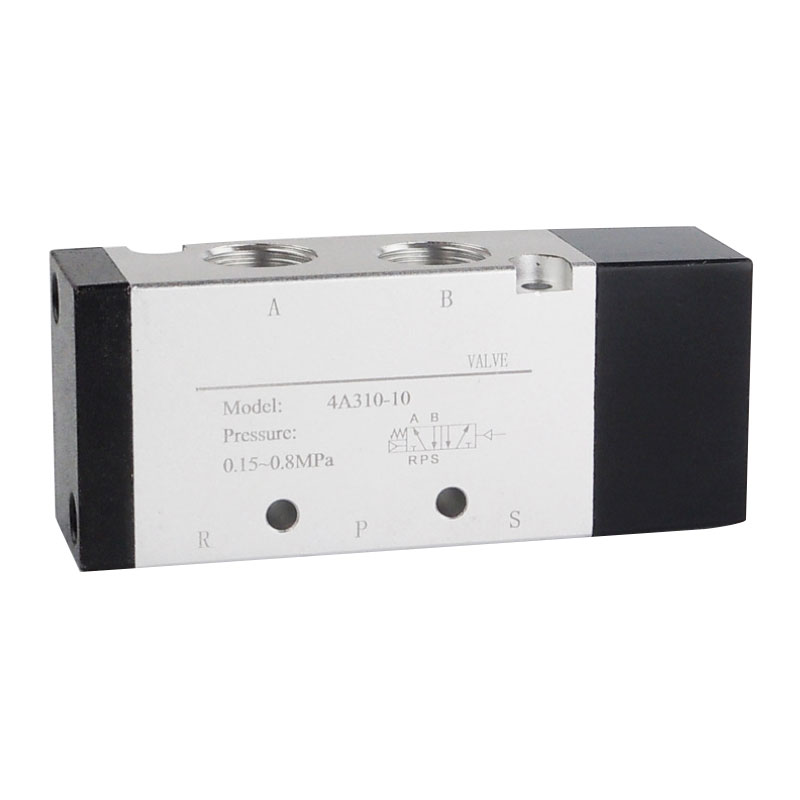

Technical Parameter for Pneumatic Operated Valve 4A3 Series
| Model |
4A310-08 |
4A320-08 |
4A330C-08 |
4A330E-08 |
4A330P-08 |
4A310-10 |
4A320-10 |
4A330C-10 |
4A330E-10 |
4A330P-10 |
| Working Medium |
Air |
| Motion Pattern |
External pneumatic control type |
| Valve Type |
2-position 5-port |
3-position 5-port |
2-position 5-port |
3-position 5-port |
| Effective sectional area |
25.0mm²(Cv=1.40) |
18.0mm²(Cv=1.00) |
30.0mm²(Cv=1.68) |
18.0mm²(Cv=1.00) |
| Port Size |
Intake=Outlet=Exhaust=G1/4 |
Intake=Outlet=G3/8 ; Exhaust=G1/4 |
| Lubrication |
Non-lube |
| Operating Pressure |
0.15~0.8MPa |
| Max. Proof Pressure |
1.0MPa |
| Operating Temp. |
0~60℃ |
| Max. operating frequency |
5 times/s |
3 times/s |
5 times/s |
3 times/s |
| Main parts material |
Body |
Aluminium Alloy |
| Sealing element |
NBR |

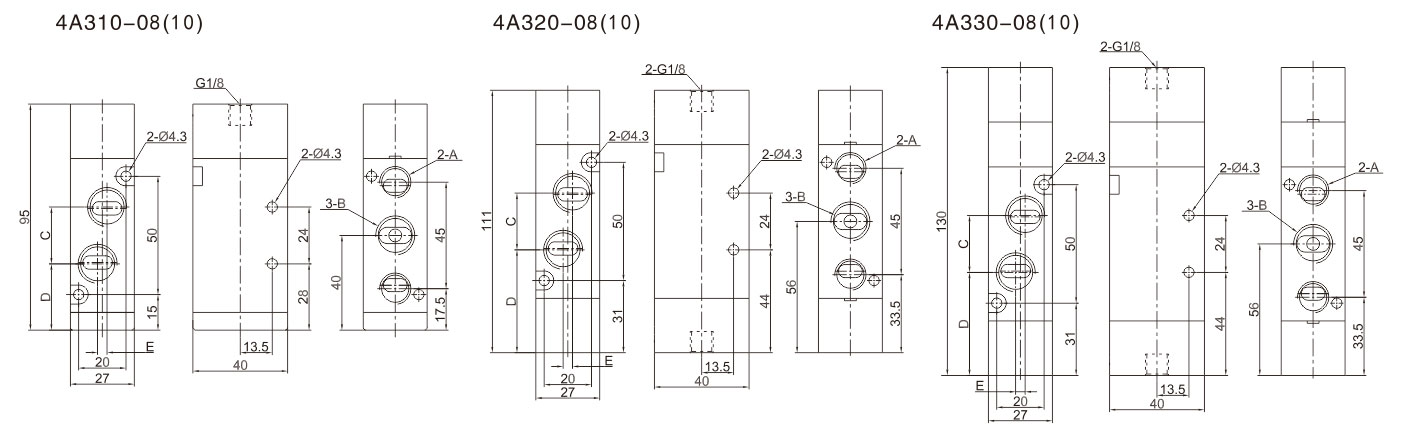

Overall Dimension
| Model |
A |
B |
C |
D |
E |
| 4A310-08 |
G1/4 |
G1/4 |
21 |
28.8 |
3 |
| 4A310-10 |
G1/4 |
G3/8 |
24 |
27.5 |
4 |
| 4A320-08 |
G1/4 |
G1/4 |
21 |
44.8 |
3 |
| 4A320-10 |
G1/4 |
G3/8 |
24 |
43.5 |
4 |
| 4A330-08 |
G1/4 |
G1/4 |
21 |
44.8 |
3 |
| 4A330-10 |
G1/4 |
G3/8 |
24 |
43.5 |
4 |
