Compact Pneumatic Cylinder SDAJ

SDAJ Compact Pneumatic Cylinder axial size is small, the structure is compact, light and beautiful. Direct installation, without additional accessories.

Bore Sizes: 12,16,20,25,32,40,50,63,80,100mm
Stroke Lengths: 20-20,30-20,40-30,50-30,75-50,100-50mm
Operating Pressure: 0.1-0.9 MPa
Speed:30~500mm/s;30~350mm/s;30~250mm/s;100~500mm/s;
Working Environment Temperature: -5 to 70℃

Product Images

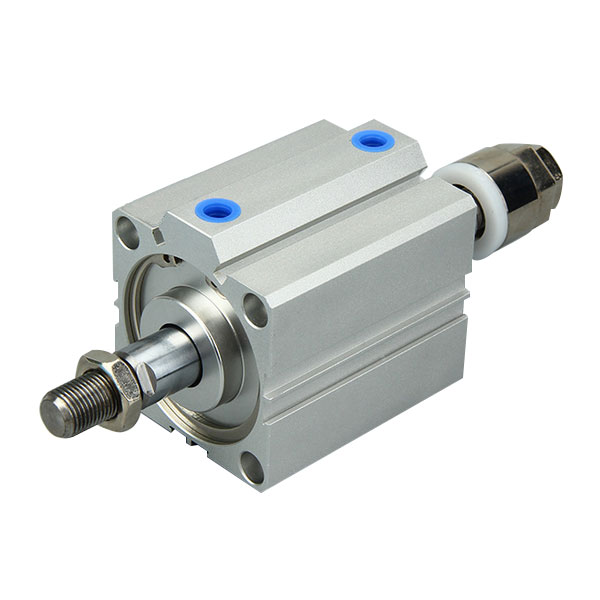

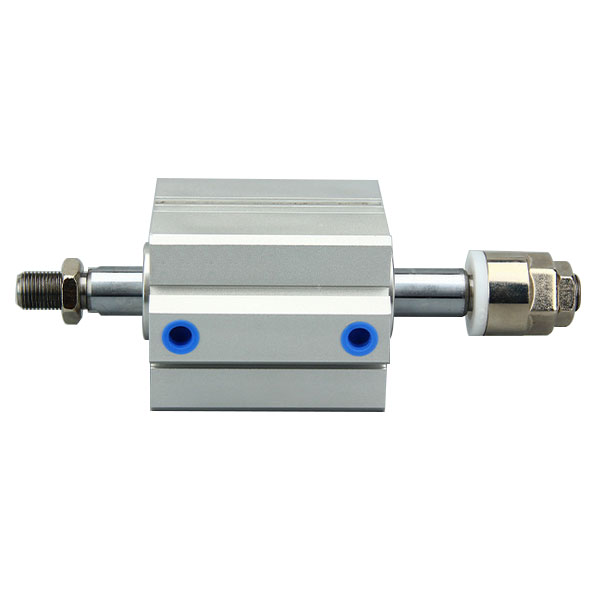

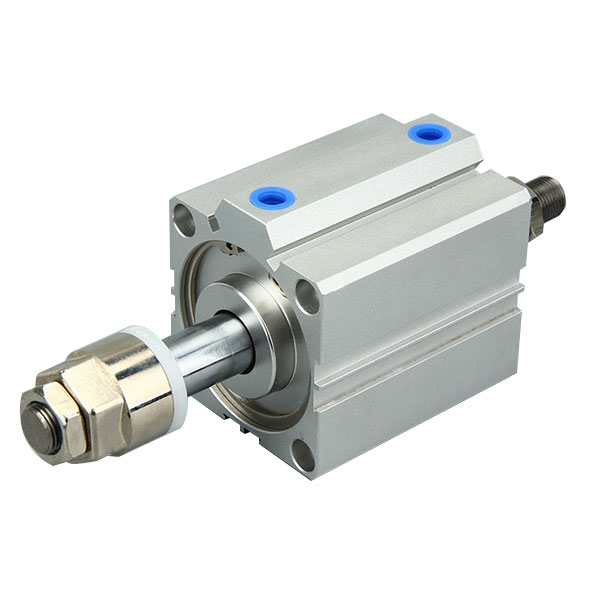

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for SDAJ Cylinder

SDAJ Compact Pneumatic Cylinder
1. The axial size is small, the structure is compact, light and beautiful.
2. Direct installation, without additional accessories.
3. Can produce high temperature resistant type, please specify when selecting.
Working medium: Purified dry compressed air
Lubrication: Non-lube (or lubrication).
Bore: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 stroke can be adjusted.
Motion pattern: double-acting, single-acting return, and single-acting extend.
Widely used in: silk printing, transfer printing machinery, manipulators, plastic machinery, packaging machinery, carton machinery, ceramic machinery, textile machinery, printing and dyeing machinery, medical machinery, CNC processing center, environmental protection machinery, shoe machinery, automation equipment and others.

Overview for SDAJ Cylinder

Bore Sizes: 12,16,20,25,32,40,50,63,80,100mm
Stroke Lengths: 20-20,30-20,40-30,50-30,75-50,100-50mm
Operating Pressure: 0.1-0.9 MPa
Speed:30~500mm/s;30~350mm/s;30~250mm/s;100~500mm/s;
Working Environment Temperature: -5 to 70℃

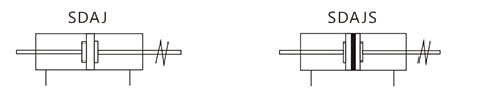

Symbol for SDAJ Compact Pneumatic Cylinder

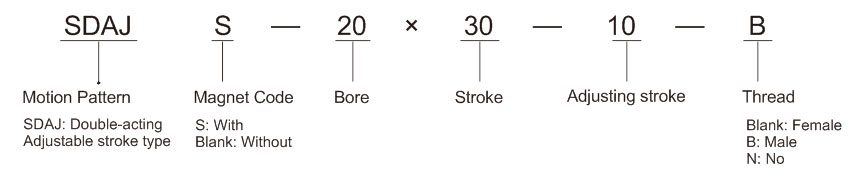

Ordering Code for Compact Pneumatic Cylinder SDAJ Series

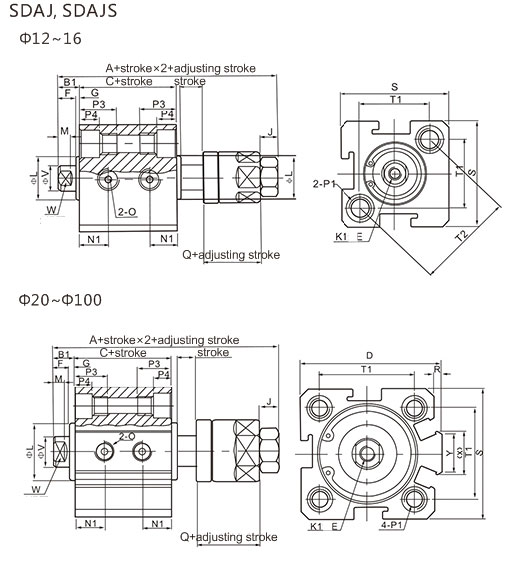

Overall Dimension for Compact Pneumatic Cylinder SDAJ Series

Bore / symbol Without magnet With magnet B1 D E F G K1 L M N O P1 P3 P4 Q R S T1 T2 V W X Y
A C A C ST≤10 ST>10 S=5 S>5
12 40 17 50 27 5 - 6 4 1 M3×0.5 10.2 3 5.5 6.3 M5×0.8 Both sides: Φ6.5 Thread M5×0.8 Hole: Φ4.2 12 4.5 12 - 25 16.3 23 6 5 - -
16 42.5 18.5 52.5 28.5 5.5 - 6 4 1.5 M3×0.5 11 3 6.5 7.3 M5×0.8 Both sides: Φ6.5 Thread M5×0.8 Hole: Φ4.2 12 4.5 12 - 29 19.8 28 6 5 - -
20 47.5 19.5 57.5 29.5 5.5 36 8(st=5,6.5) 4 1.5 M4×0.7 13 3 7.5 M5×0.8 Both sides: Φ6.5 Thread M5×0.8 Hole: Φ4.2 14 4.5 15 2 34 24 - 8 6 11.3 10
25 55 21 65 31 6 42 10(st=5,7) 4 2 M5×0.8 17 3 8 M5×0.8 Both sides:Φ8.2 Thread M6×1.0 Hole: Φ4.6 15 5.5 18 2 40 28 - 10 8 12 10
32 61.5 24.5 71.5 34.5 7 50 8 12 4 3 M6×1 22 3 8 9 PT1/8 Both sides:Φ8.2 Thread M6×1.0 Hole: Φ4.6 16 5.5 20 6 44 34 - 12 10 18.3 15
40 65 26 75 36 7 58.5 8 12 4 3 M8×1.25 28 3 8 10 PT1/8 Both sides:Φ10 Thread M8×1.25 Hole: Φ6.5 20 7.5 20 6.5 52 40 - 16 14 21.3 16
50 73 28 83 38 9 71.5 8 15 5 4 M10×1.5 38 3 8 10.5 PT1/4 Both sides:Φ11 Thread M8×1.25 Hole: Φ6.5 25 8.5 20 9.5 62 48 - 20 17 30 20
63 77 32 87 42 9 84.5 10 15 5 4 M10×1.5 40 3 9.5 11.8 PT1/4 Both sides:Φ11 Thread M8×1.25 Hole: Φ6.5 25 8.5 20 9.5 75 60 - 20 17 28.7 20
80 94 41 104 51 11 104 13 20 6 5 M14×1.5 45 4 11.5 14.5 PT3/8 Both sides:Φ14 Thread M12×1.75 Hole: Φ9.2 25 10.5 23 10 94 74 - 25 22 36 26
100 105 51 115 61 12 124 18 20 7 5 M18×1.5 55 4 16 20.5 PT3/8 Both sides:Φ17.5 Thread M14×2 Hole: Φ11.3 30 13 23 10 114 90 - 32 27 35 26
