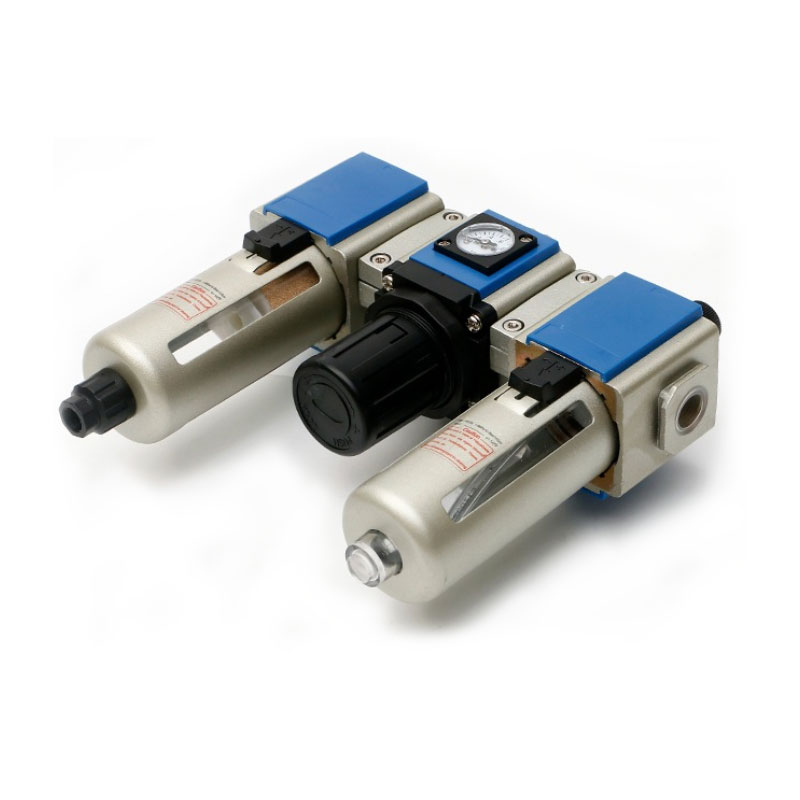

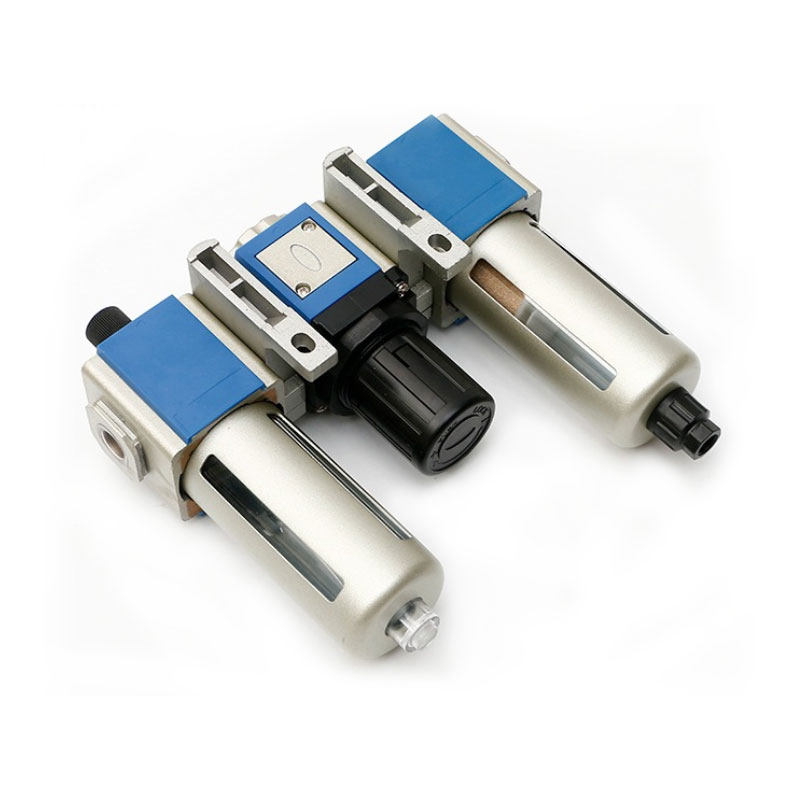

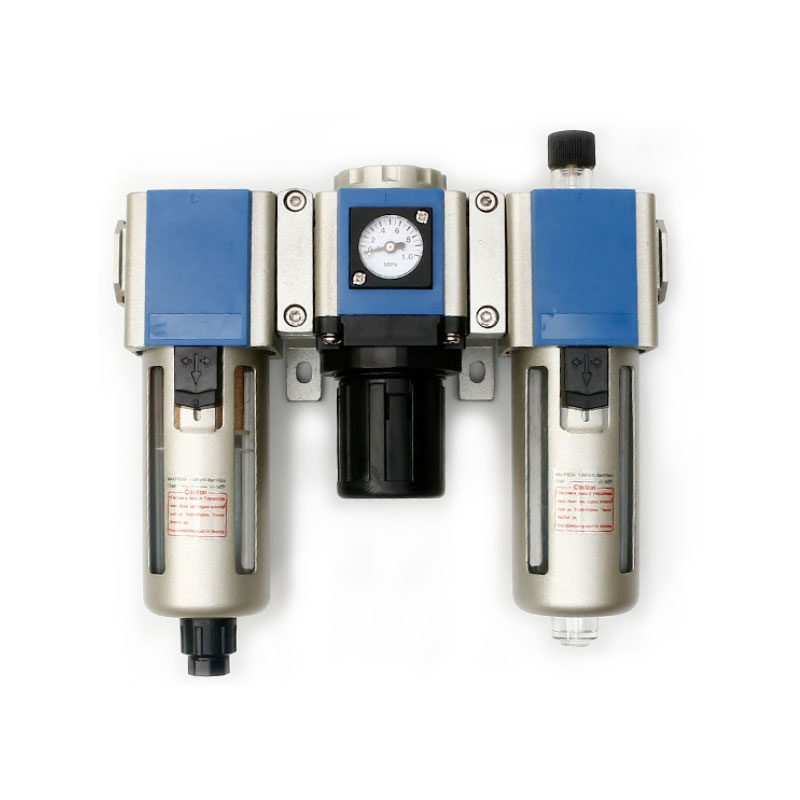

Product Features for GC Air Combination
1. The oil dropping structure of the
GC Air Combination adopts clearance seal type, which makes the oil regulation more stable and reliable.
2. The oil feeding adjusting ring can rotate only one cycle, and the oil feeding size is basically linear distribution. The oil feeding quantity can be roughly estimated according to the position of the calibration ring.
3. Non-stop gas refueling;
4. The special oil-drip nozzle structure, which produces negative pressure at the outlet of the drip oil and low fogging flow.
5. Fast and reliable fixed connection, easy to install and use.
6. Pressure regulation is stable and repeatability is high.
7. Efficient water and solid particle removal function;
8. There are three forms of drainage, such as manual, differential pressure and automatic drainage.
Installation and use instructions for GC Air Combination
1. Before use, check whether the GC Air Combination from
China Air Filter Regulator Lubricator FRL Manufacturers And Suppliers are damaged during transportation, then install and use them.
2. When installing, please pay attention to the direction of gas flow (attention to "→" direction) and check whether the pipe thread is correct.
3. Please check whether the installation conditions meet the technical requirements (such as "working pressure", "operating temperature range").
4. Please pay attention to the working medium or installation environment, as far as possible to avoid chlorine, carbon, aromatic compounds and oxidative acids and strong bases, so as not to damage the water cup, oil cup.
5. Regularly clean or replace the filter element, and the use of the regulator and lubricator should follow the principle of "From big to small".
6. Please pay attention to dust-proof, It should install the dustproof sleeve at the inlet and outlet after remove it.

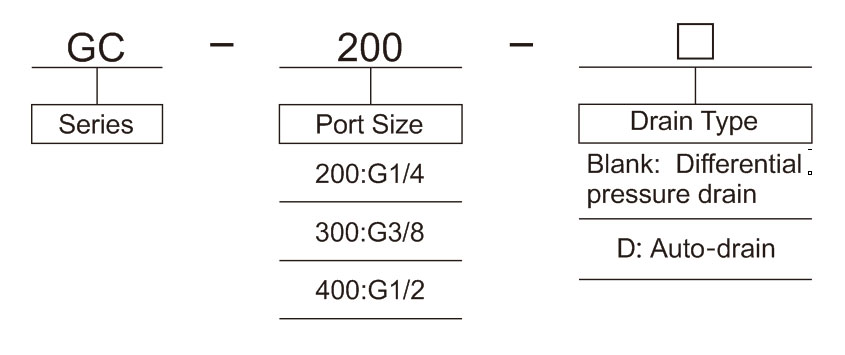

Ordering Code for GC Air Combination

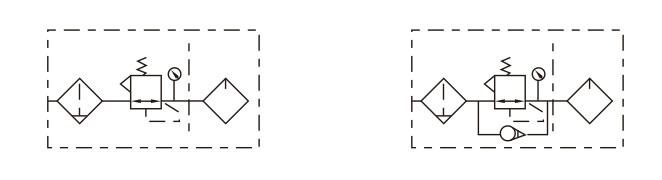

Symbol for GC Air Combination
Technical Parameter for GC Air Combination
| Model |
GC-200 |
GC-300 |
GC-400 |
| Assembly |
GF-200 |
GF-300 |
GF-400 |
| GL-200 |
GL-300 |
GL-400 |
| GR-200 |
GR-300 |
GR-400 |
| Port Size |
G1/4 |
G3/8 |
G1/2 |
| Working Medium |
Compressed Air |
| Range of pressure regulation |
0.05~0.85MPa |
| Max. Proof Pressure |
1.5MPa |
| Filtration aperture |
40μm(routine) or 5μm(customized) |
| Capacity of oil bowl |
25ml |
75ml |
160ml |
| Capacity of water bowl |
10ml |
40ml |
80ml |
| Lubrication |
ISO VG32 or the same grade oil |
| Ambient temperature |
-20~70℃ |
| Main material |
Body: Aluminium Alloy; Bowl: PC |

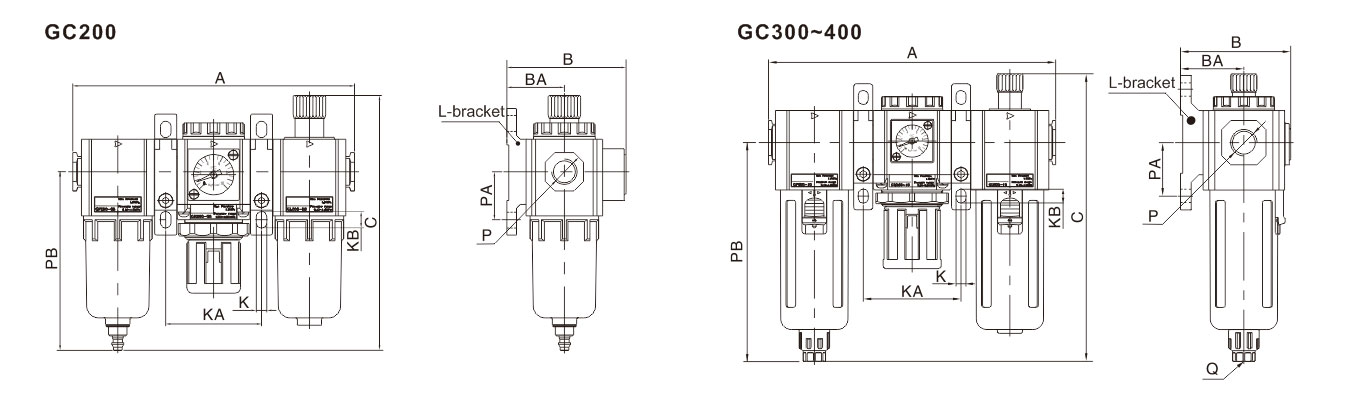

Overall Dimension
| Model |
A |
B |
BA |
C |
K |
KA |
KB |
P |
PA |
PB |
Q |
| GC200 |
147 |
62 |
30 |
133 |
5.5 |
50 |
8.4 |
G1/4 |
25 |
93 |
G1/8 |
| GC300 |
248 |
89 |
50 |
216 |
8.6 |
64 |
12 |
G3/8 |
40 |
166.5 |
G1/4 |
| GC400 |
248 |
89 |
50 |
216 |
8.6 |
84 |
12 |
G1/2 |
40 |
166.5 |
G1/4 |
Note: due to the different drainage components, the C values in the table will be slightly different. If necessary, please contact the sales department.
