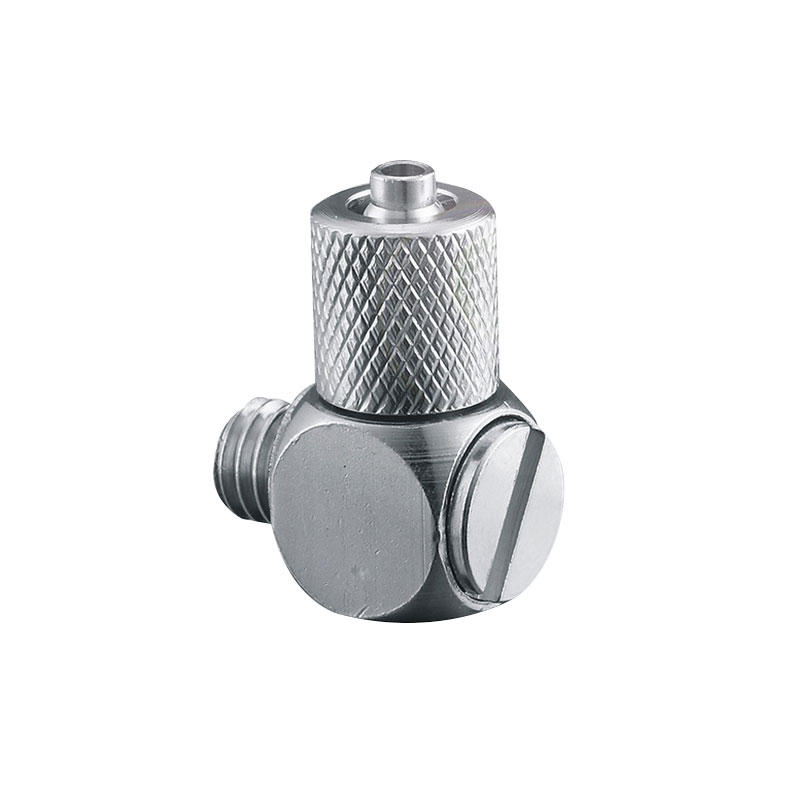

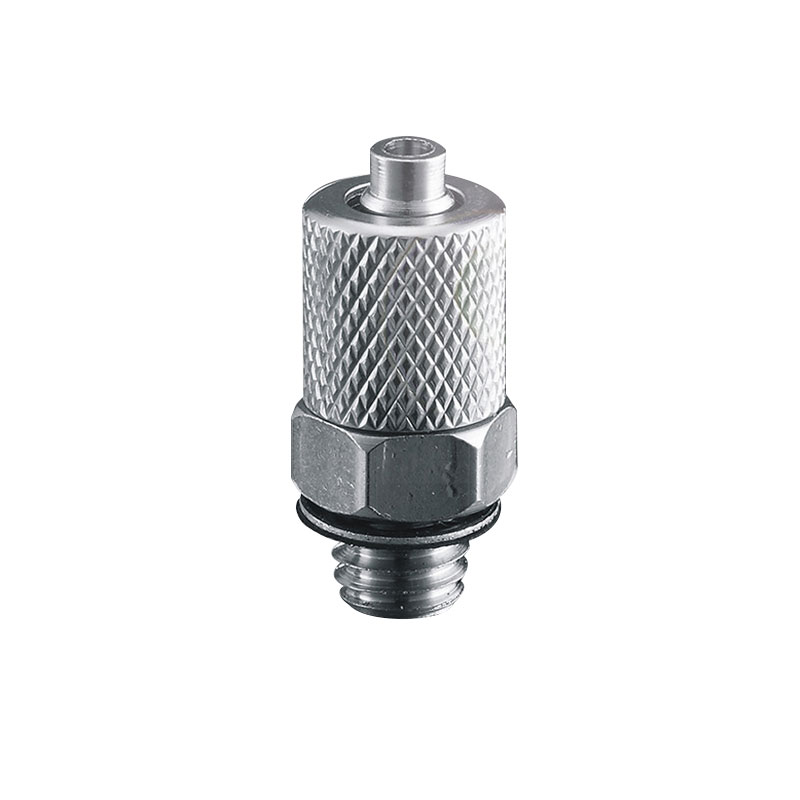

Air Pneumatic Fittings M

Cylinder dimensions: Φ3.18(O.D)×Φ2.18(I.D), Φ4×Φ2.5, Φ6×Φ4.
Operating Pressure: 0~1.0MPa
Thread Size: M3×0.5, M5×0.8, R1/8

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description of Air Pneumatic Fittings M

Cylinder dimensions: Φ3.18(O.D)×Φ2.18(I.D), Φ4×Φ2.5, Φ6×Φ4.
Operating Pressure: 0~1.0MPa
Thread Size: M3×0.5, M5×0.8, R1/8

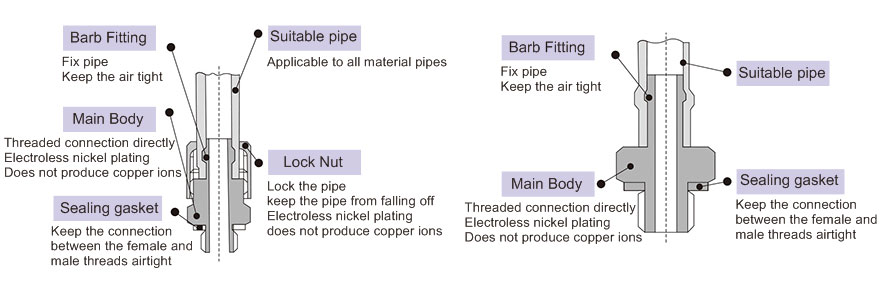

Material: brass, no nickel plating on the surface, so it does not produce copper ions.

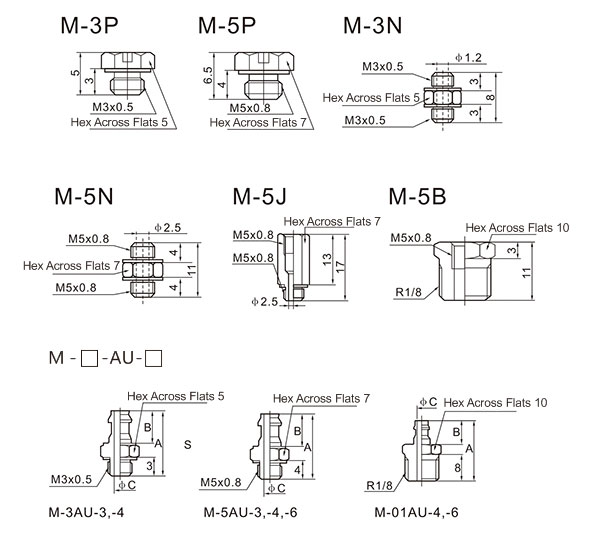

Overall Dimension (mm) for Air Pneumatic Fittings M

Model A B C
M-3AU-3 9.5 4.5 1.2
M-3AU-4 10 5 1.2
M-5AU-3 11.5 4.5 1.6
M-5AU-7 12 5 1.8
M-5AU-9 14 7 2.5
M-01AU-7 16 5 1.8
M-01AU-9 18 7 2.5

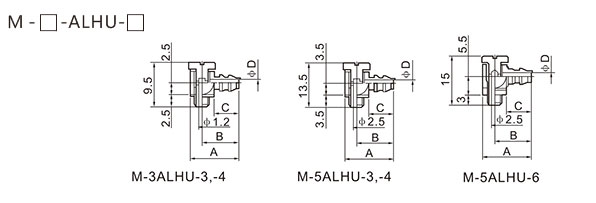

Model A B C D
M-3ALHU-3 9.5 7 4.5 1.6
M-3ALHU-4 10.3 7.8 5.3 1.8
M-5ALHU-3 11.5 8 4.5 1.6
M-5ALHU-4 12.3 8.8 5 1.8
M-5ALHU-6 14.3 10.8 7 2.5

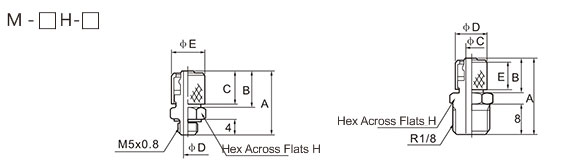

Model A B C D E F
M-5H-4 15.5 8.5 7 1.8 6.5 7
M-5H-6 16.5 9.5 8 2.5 8.5 8
M-01H-4 19.5 8.5 7 1.8 6.7 10
M-01H-6 20.5 9.5 8 3 8.5 10

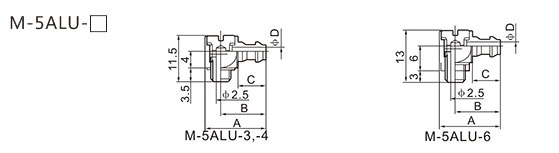

Model A B C D
M-5ALU-3 12.5 8.5 4.5 1.6
M-5ALU-4 13.3 9.3 5 1.8
M-5ALU-6 15.3 11.3 7 2.5

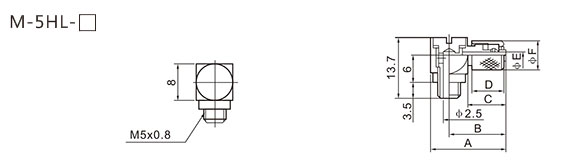

Model A B C D E F
M-5HL-4 16.5 12.5 8.5 7 1.8 6.5
M-5HL-6 17.5 13.5 9.5 8 2.5 8.5

Keywords:

Air Pneumatic Fittings M | Pneumatic Cylinder Actuator
