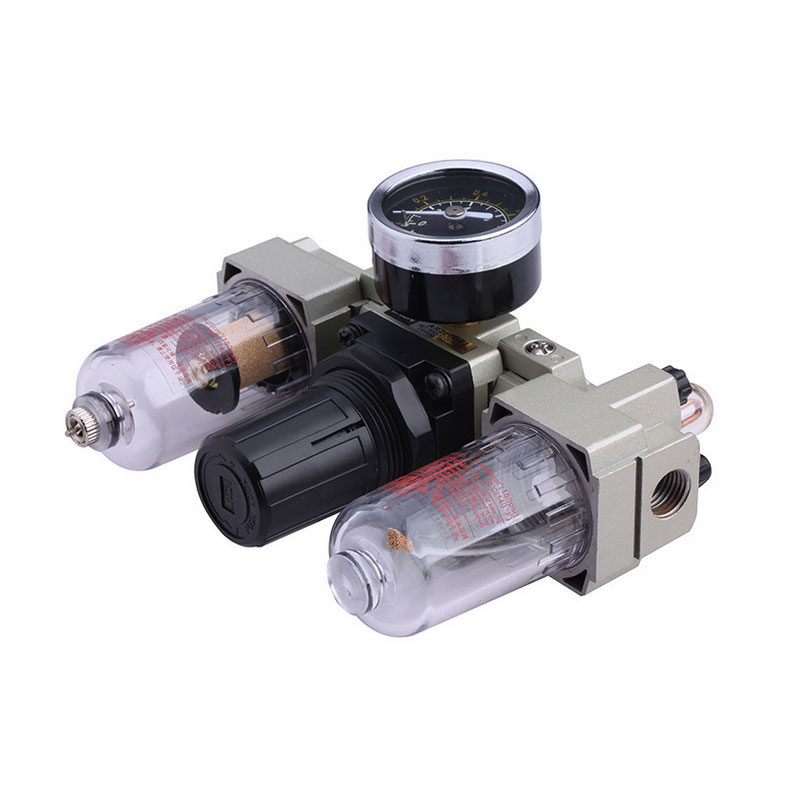

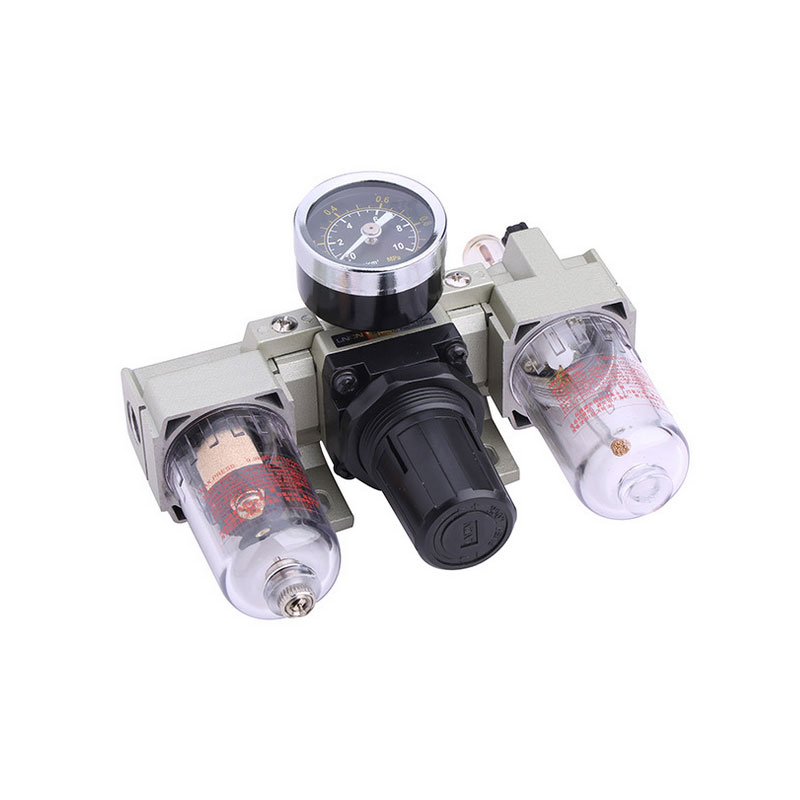

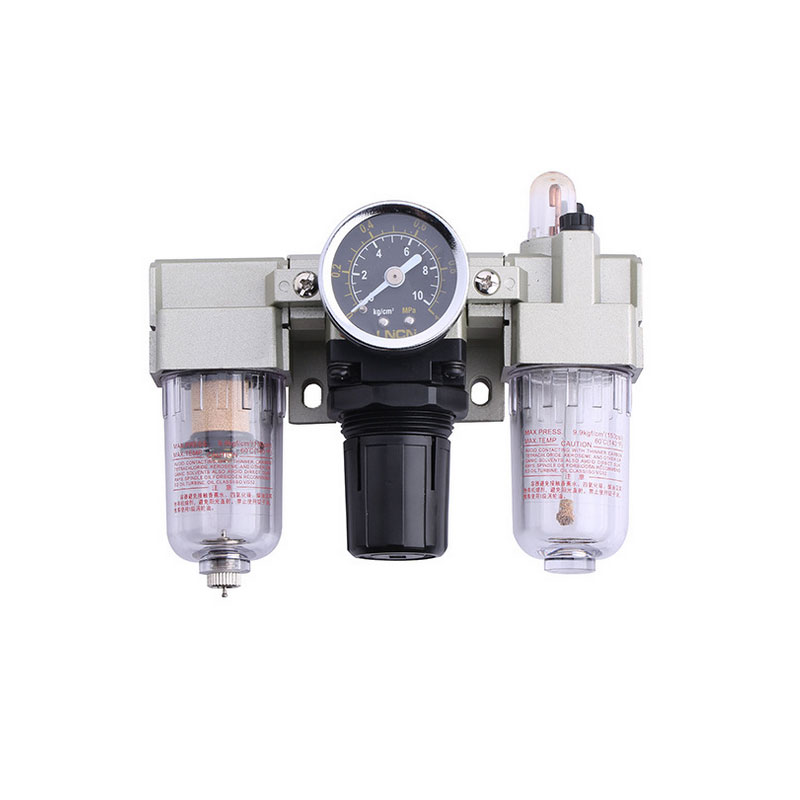

Overview for Air Filter Regulator Lubricator

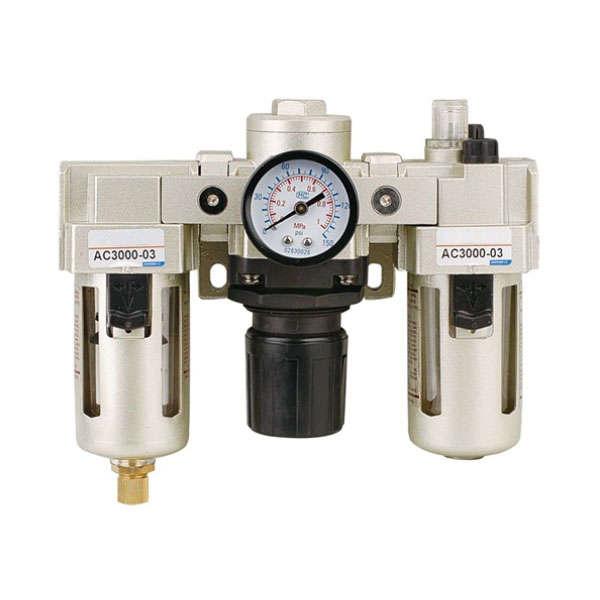

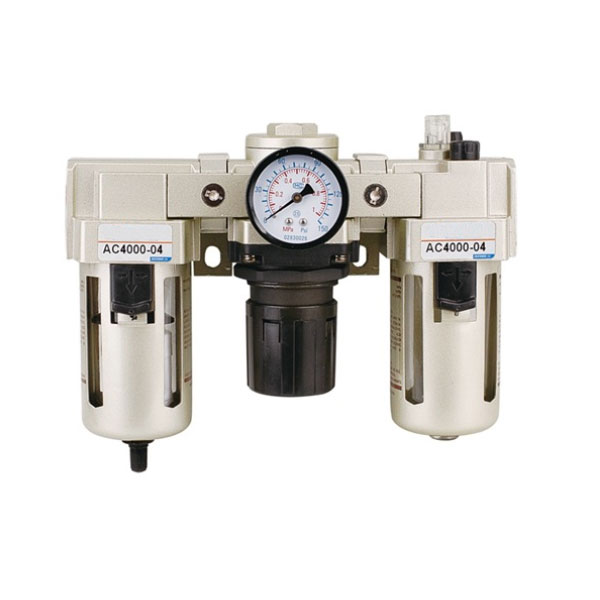

AC Series Filter+Regulator+Lubricator: AC2000-01, AC2000-02, AC3000-02, AC3000-03, AC4000-03, AC4000-04, AC4000-06, AC5000-06, AC5000-10, AC Series
Air Filter Regulator Lubricator is made up of three parts: water-separating gas filter, pressure reducing valve and Lubricator. The
Air Combination With Overflow connected by three parts without pipes are called FRL. The AC AFRL are indispensable gas source devices in most pneumatic systems. Installed near the gas equipment, they are the final guarantee of compressed air quality. The installation sequence of the
AC AFRL is Filter, Regulator and Lubricator according to the inlet direction. In use, one, two or three pieces can be used according to actual requirements. Air Combination With Overflow is also known as: pneumatic FRL, air source processing FRL, compressed air FRL, filter and regulator and lubricator.
Product Features for Air Filter Regulator Lubricator
FRL from
China Air Filter Regulator Lubricator FRL Manufacturers And Suppliers has the characteristics of small size, light weight, good performance, convenient use, beautiful appearance and so on.
AC AFRL use modular connection, can be used separately or in combination, easy installation, The square pressure gauge adopts embedded structure to save installation space.
The Regulator has high regulating precision, high flow rate, good pressure characteristic, long service life, flexible and stable adjusting handwheel, self-locking function, and is suitable for vibration occasions.
The Lubricator adopts a new type of oil capacity adjustment structure, which can realize non-stop refueling. Built-in oil capacity sensor has the advantages of low fogging oil capacity, fine oil fog particles and long transmission distance.
Ordering Code for Air Filter Regulator Lubricator

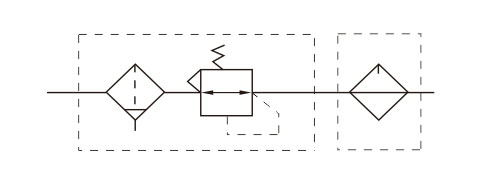

Symbol for Air Combination With Overflow
Technical Parameter for Air Combination With Overflow
| Model |
AC2000K-01 |
AC2000K-02 |
AC3000K-02 |
AC3000K-03 |
AC4000K-03 |
AC4000K-04 |
AC5000K-06 |
AC5000K-10 |
| Port Size |
PT1/8 |
PT1/4 |
PT1/4 |
PT3/8 |
PT3/8 |
PT1/2 |
G3/4 |
G1 |
| Rated flow (L/Min) |
500 |
500 |
2000 |
2000 |
4000 |
4000 |
5000 |
5000 |
| Pressure gauge |
Square embedded pressure gauge |
| Working Medium |
Compressed Air |
| Max. Operating Pressure |
1.0MPa |
| Range of pressure regulation |
0.05~0.85MPa |
| Overflow pressure |
Setting pressure [ When overflow is 0.1L/min (ANR) ] |
| Ambient temperature |
5~60(No Freezing) |
| Filtration aperture |
40μm(routine) or 5μm(customized) |
| Bracket (2) |
Y20L |
Y20L |
Y30L |
Y30L |
Y40L |
Y40L |
Y60L |
Y60L |
| Structure |
Overflow Type |
| Body material |
Aluminium Alloy |
| Bowl material |
PC |
| Bowl guide |
AC2000K(no); AC3000K-AC5000K(yes) |
Note: The rated flow is at the supply pressure of 0.7MPa.
Overall Dimension for AC AFRL
| Model |
Aperture |
B |
C |
D |
E |
F |
H |
I |
M |
J |
L |
| AC2000K |
PT1/8，PT1/4 |
147.5 |
15 |
5.3 |
57.5 |
42.5 |
4.8 |
24 |
38 |
42 |
121.5 |
| AC3000K |
PT1/4，PT3/8 |
178 |
16 |
7 |
63.5 |
54.5 |
7 |
35 |
53.5 |
34.5 |
160 |
| AC4000K |
PT3/8，PT1/2 |
236 |
22.5 |
9 |
83 |
69 |
7 |
40 |
62 |
37 |
196 |
| AC5000K |
G3/4，G1 |
300 |
23 |
12 |
105 |
92.5 |
10 |
50.5 |
80 |
46.5 |
199.5 |
Note: due to the different drainage components, the L values in the table will be slightly different. If necessary, please contact the sales department.
