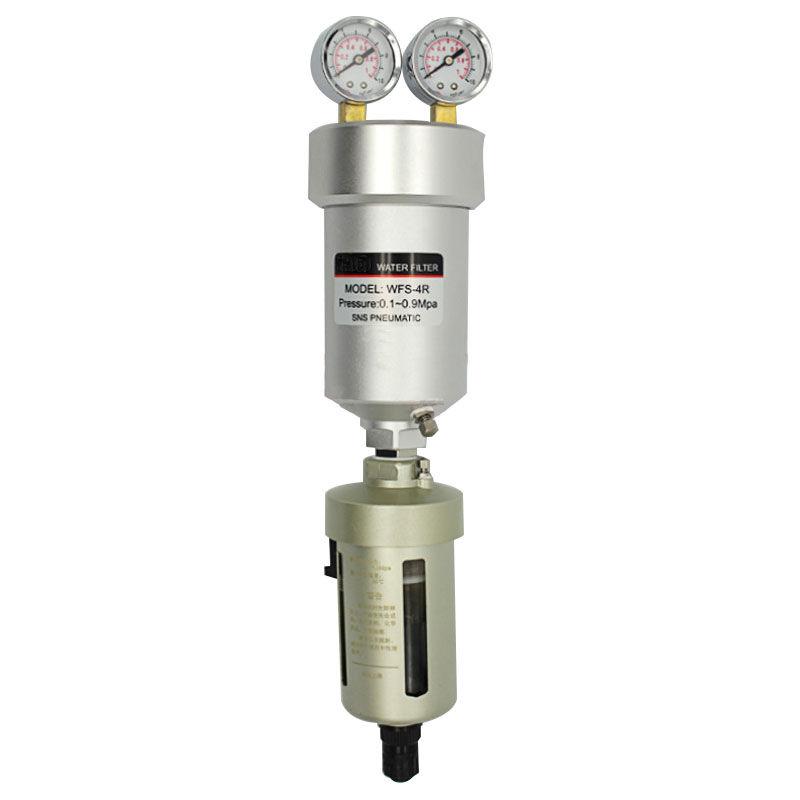

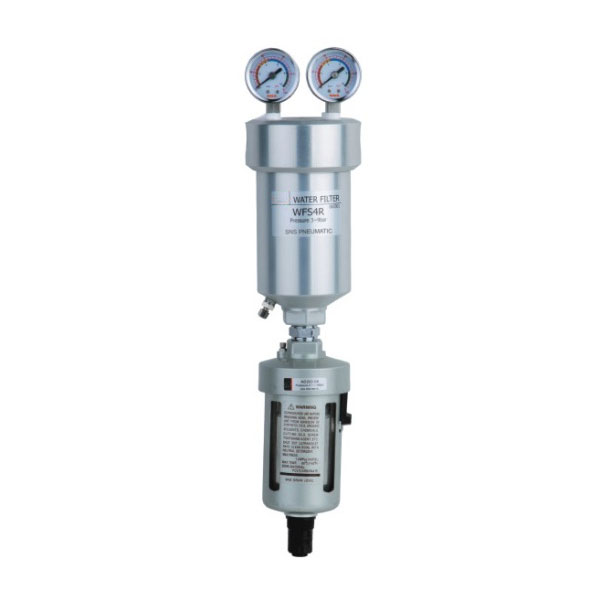

Air Compressor Dryers WF

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

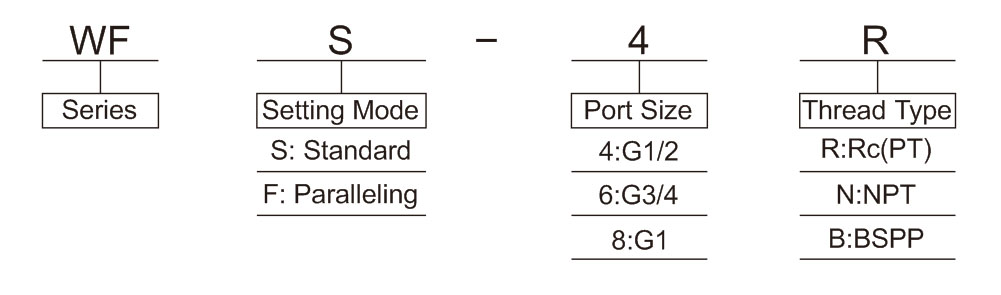

Ordering Code for Compressed Air Dehydrator WF Series

Technical Parameter for Compressed Air Dehydrator WF Series

Model WFS4R WFF4R WFS8R WFF8R
Port Size G1/2 G1&G1/2 G1 G1&G2
Air handling capacity 2500 5000 5000 10000
Working Medium Compressed air
Working Pressure 3~9.9bar(10.2kgf/cm²)
Ambient temperature 0~60℃
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guide Iron

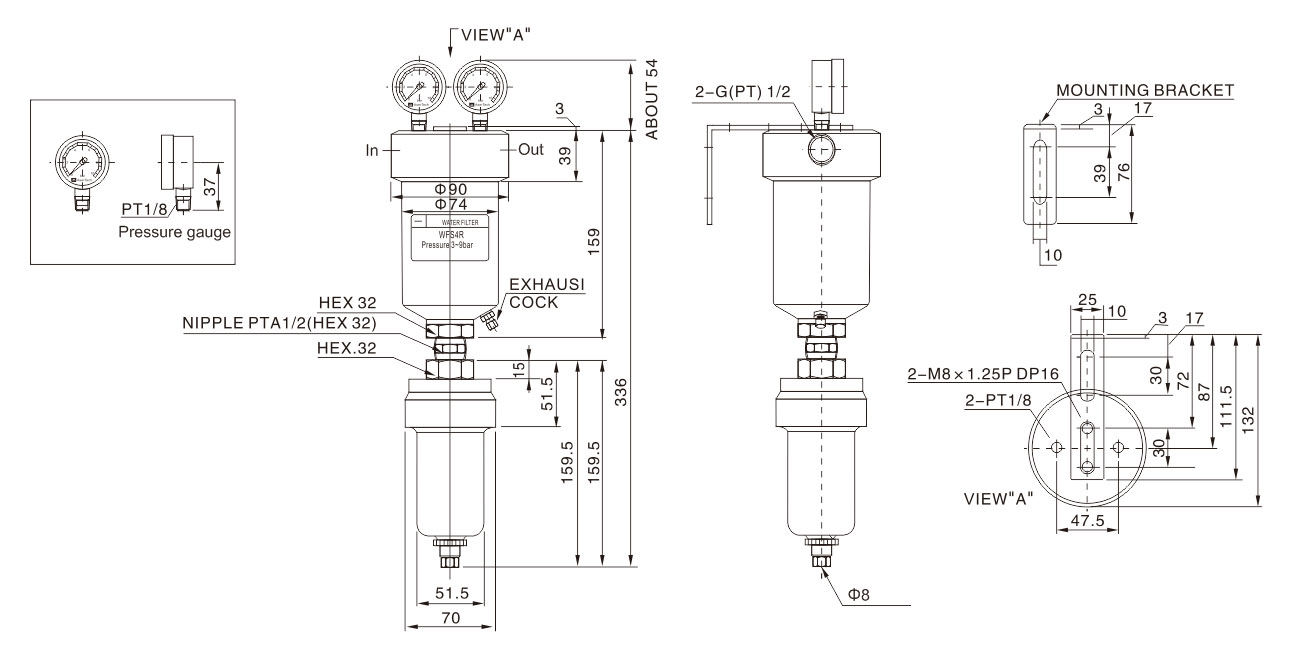

Overall Dimension for Compressed Air Dehydrator WF Series

Keywords:

Air Compressor Dryers | WF
