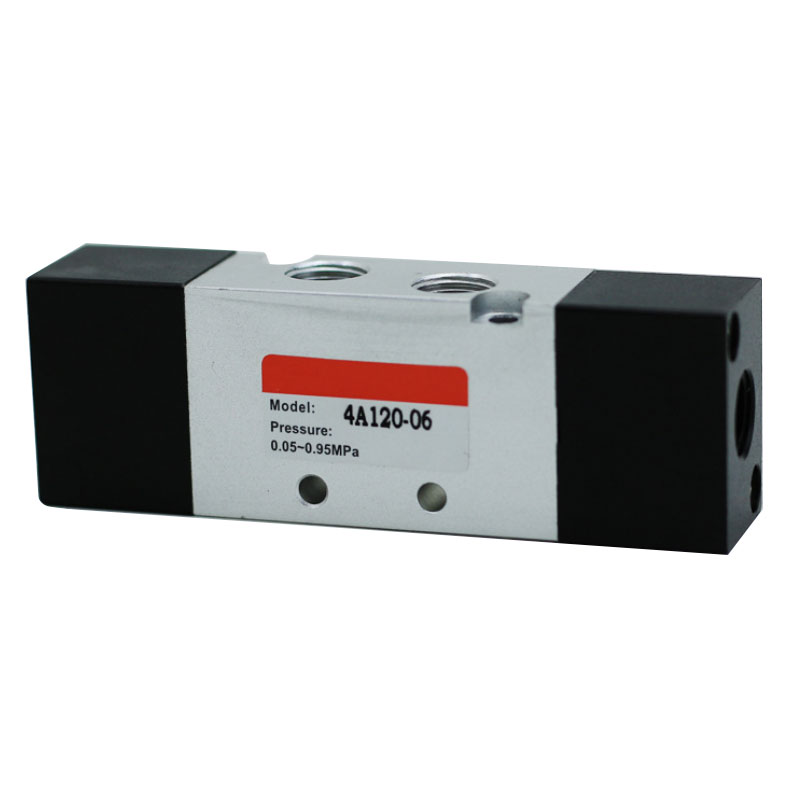

4 Way Pneumatic Solenoid Valve 4A1

Port Size: M5,G1/8
Operating Pressure: 0.15~0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for 4 Way Solenoid Valve 4A1

4A Pneumatic Solenoid Valve Turn on the power, when the pump reaches the normal speed, gradually open the valve on the outlet.
When the valve on the outlet is closed, the continuous operation time of the pump should not exceed 3 minutes.
During start-up and operation, it is necessary to observe instrument readings, bearing heating, packing leakage and heating, and vibration and noise of pumps.
The bearing high temperature is not more than 80℃, and the bearing temperature must not exceed 40℃.
The amount of leakage water at the mechanical seal should be ≤5ml/h.
The bearing oil level should be kept in the normal position, not too high or too low. When it is found to be too low, the oil should be added in time, N32 oil. However, the oil level cannot be higher than 1/2 of the sight glass.
When the clearance between the sealing ring and the impeller is excessively worn (single-sided clearance exceeds 0.5 mm), the new sealing ring should be replaced.
The clearance between two ends of the coupling circle is measured with a plunger and a dial gauge. The gap between the large and small gaps on a circle does not exceed 0.3mm, and the degree of eccentricity is not more than 0.1 mm.
Gradually close the outlet valve and cut off the power.

Technical Parameters for 4 Way Solenoid Valve 4A1

Port Size: M5,G1/8
Operating Pressure: 0.15~0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

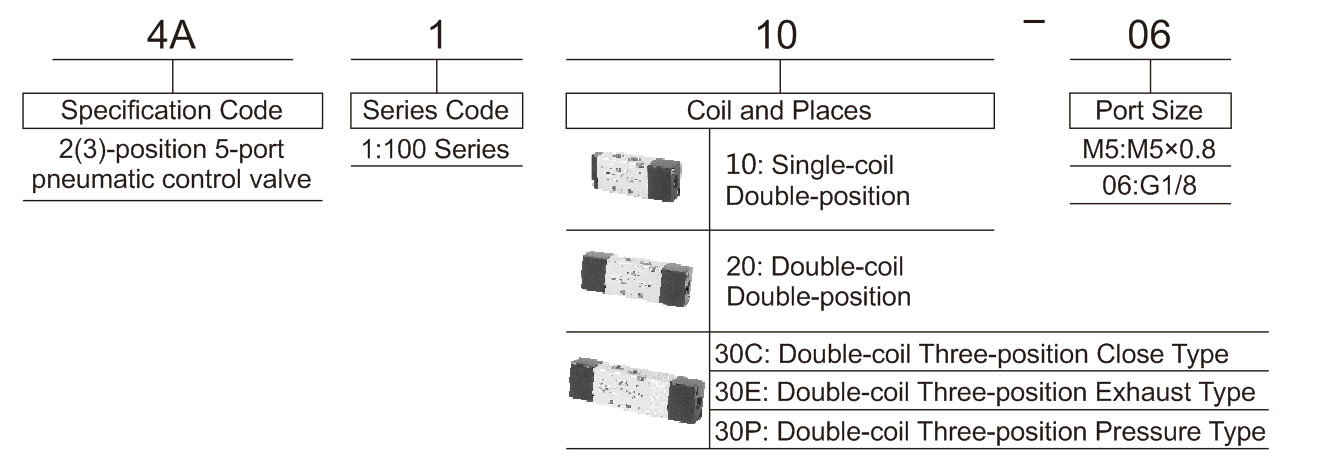

Ordering Code for 4 Way Solenoid Valve

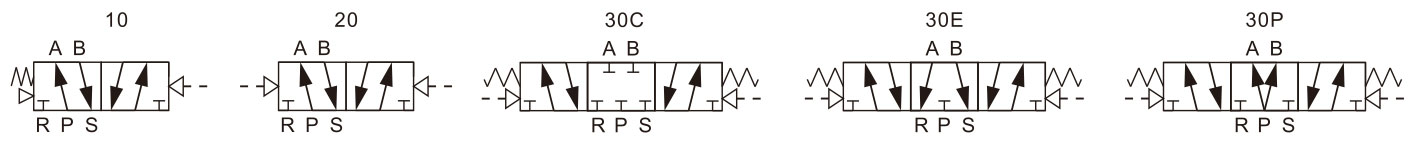

Symbol for 4 Way Solenoid Valve

Technical Parameter for 4 Way Solenoid Valve

Model 4A110-M5 4A120-M5 4A130C-M5 4A130E-M5 4A130P-M5 4A110-06 4A120-06 4A130C-06 4A130E-06 4A130P-06
Working Medium Air
Motion Pattern External pneumatic control type
Valve Type 2-position 5-port 3-position 5-port 2-position 5-port 3-position 5-port
Effective sectional area 5.5mm²(Cv=0.31) 5.0mm²(Cv=0.28) 12.0mm²(Cv=0.67) 9.0mm²(Cv=0.50)
Port Size Intake=Outlet=Exhaust=M5×0.8 Intake=Outlet=Exhaust=G1/8
Lubrication Non-lube
Operating Pressure 0.15~0.8MPa
Max. Proof Pressure 1.0MPa
Operating Temp. 0~60℃
Max. operating frequency 5 times/s 3 times/s 5 times/s 3 times/s
Main parts material Body Aluminium Alloy
Sealing element NBR

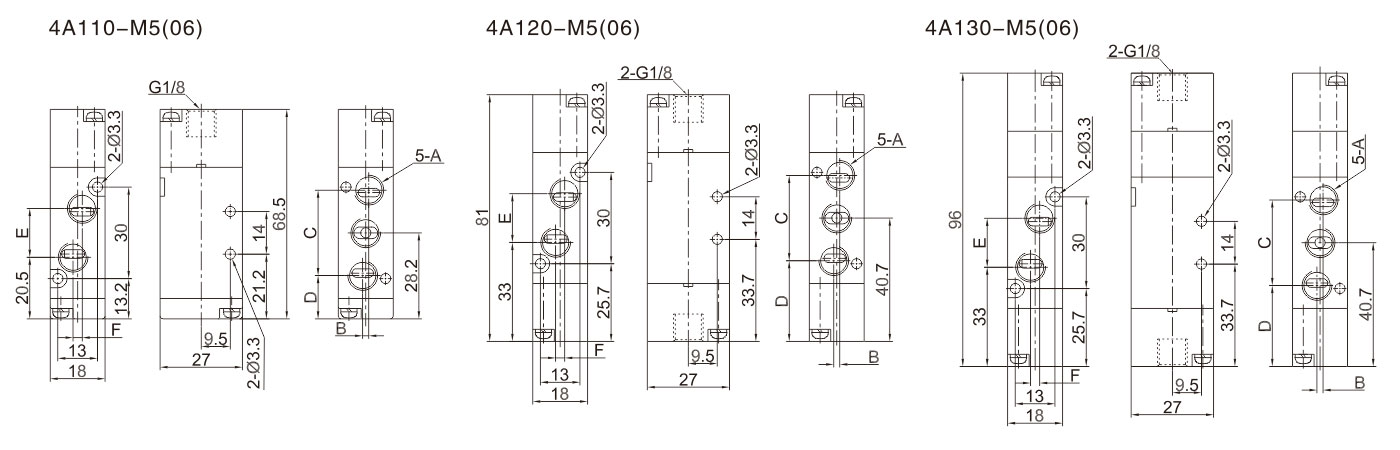

4 Way Solenoid Valve Overall Dimension

Model A B C D E F
4A110-M5 M5 0 27 14.7 13.6 0
4A110-06 G1/8 2 28 14.2 16 3
4A120-M5 M5 0 27 27.2 13.6 0
4A120-06 G1/8 2 28 26.7 16 3
4A130-M5 M5 0 27 27.2 13.6 0
4A130-06 G1/8 2 28 26.7 16 3
