3 Way Pneumatic Solenoid Valve VTA301

Port Size: PT1/8,PT1/4
Operating Pressure: 0.2~1Mpa
Working Environment Temperature: -5~40℃
Working Medium: Compressed air

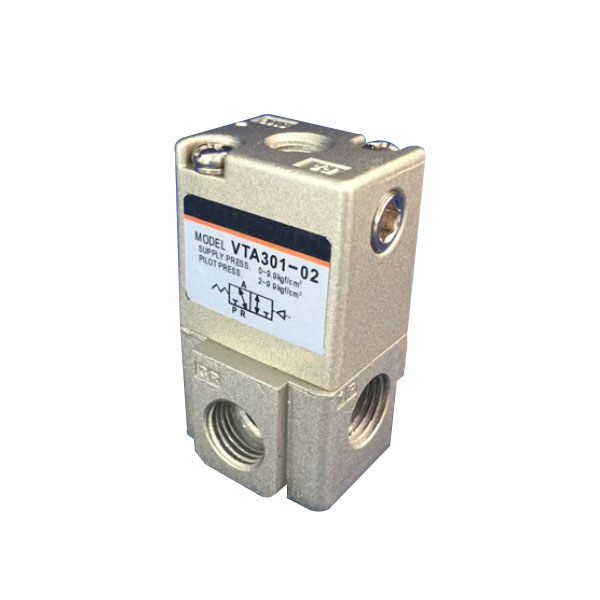

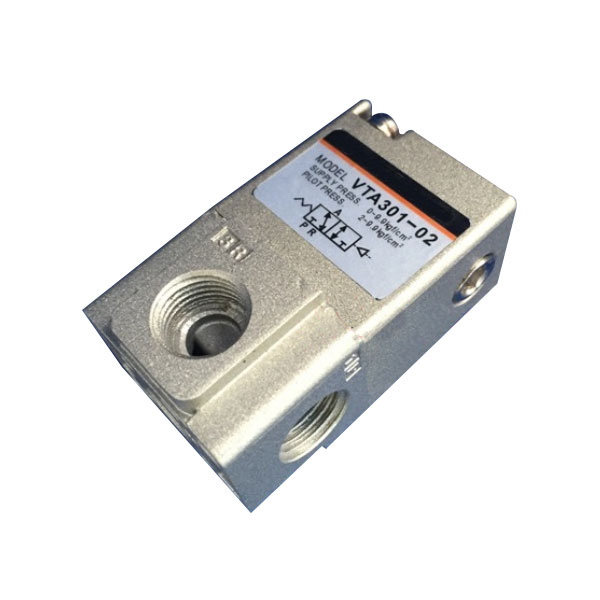

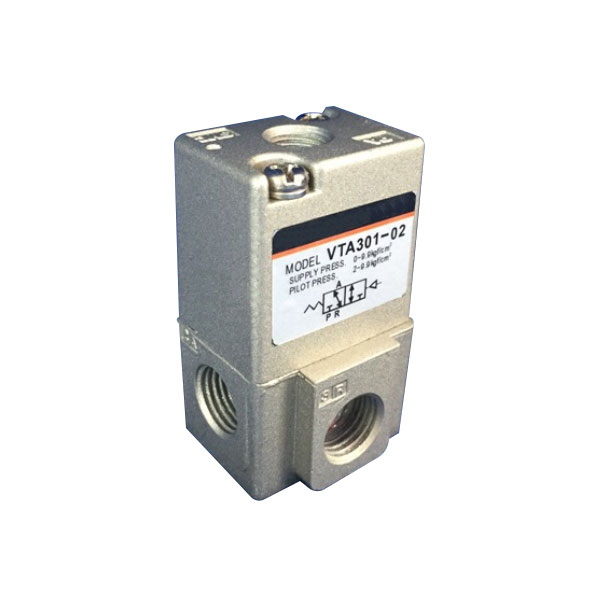

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for 3 Way Solenoid Valve VTA301

Port Size: PT1/8,PT1/4
Operating Pressure: 0.2~1Mpa
Working Environment Temperature: -5~40℃
Working Medium: Compressed air

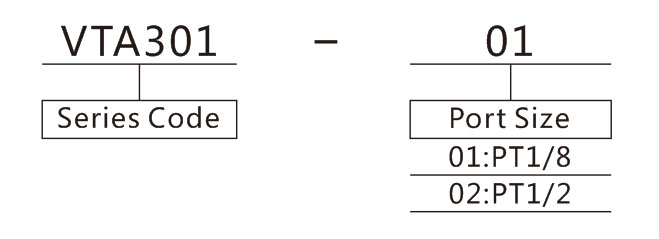

Ordering Code for 3 Way Solenoid Valve VTA301

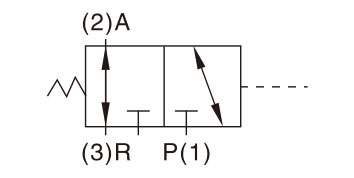

Symbol for 3 Way Solenoid Valve VTA301

Technical Parameter for 3 Way Solenoid Valve VTA301

Model Port Size Flow
1→2(P→A) 2→3(A→R) 3→2(R→A) 2→1(A→P)
C[dm³/(s·bar)] b Cv C[dm³/(s·bar)] b Cv C[dm³/(s·bar)] b Cv C[dm³/(s·bar)] b Cv
VTA301-01 PT1/8 0.63 0.30 0.16 0.59 0.30 0.15 0.59 0.32 0.15 0.65 0.30 0.16
VTA301-02 PT1/4 0.66 0.28 0.16 0.60 0.29 0.15 0.61 0.32 0.15 0.66 0.30 0.16

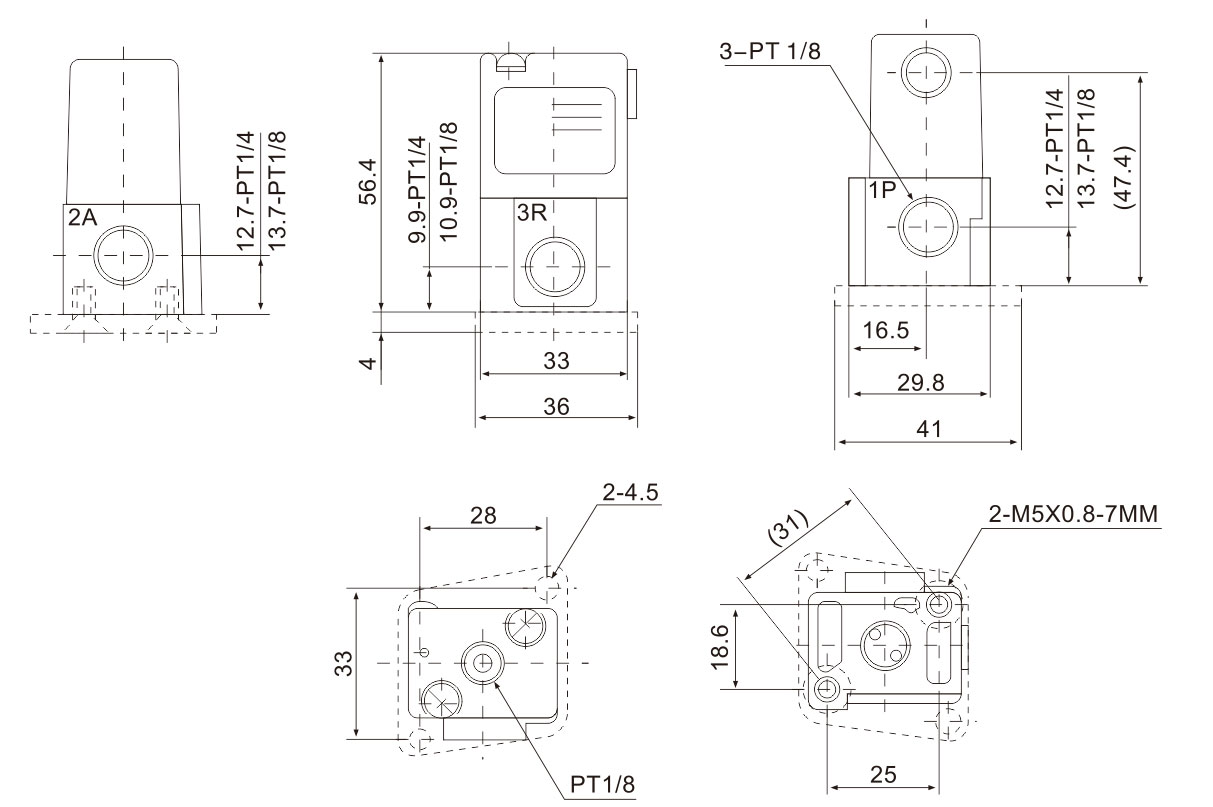

3 Port Air Operated Valve VTA301 Overall Dimension
