3/2 Way Pneumatic Manual Valve 3R/4R

Specification parameters of 3/2 Way Pneumatic Manual Valve 3R/4R Manual operation, the direction is coaxial with the shaft core, the operation is convenient, the positioning is accurate and reliable.

Port Size: G1/8,G1/4,G3/8,G1/2
Operating Pressure: 0~0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

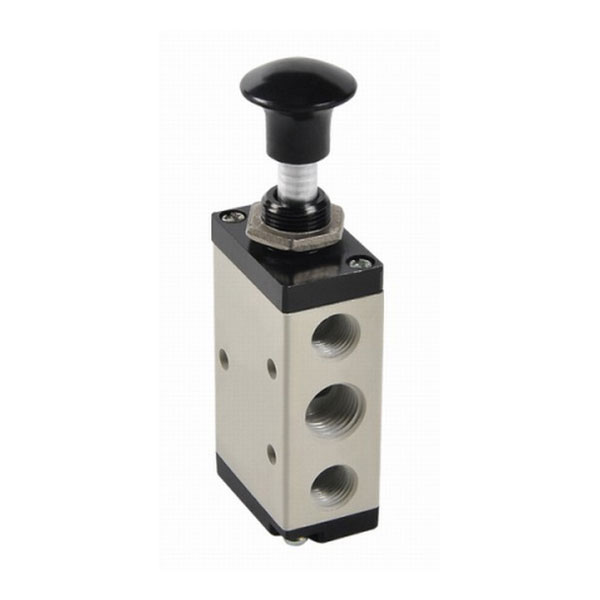

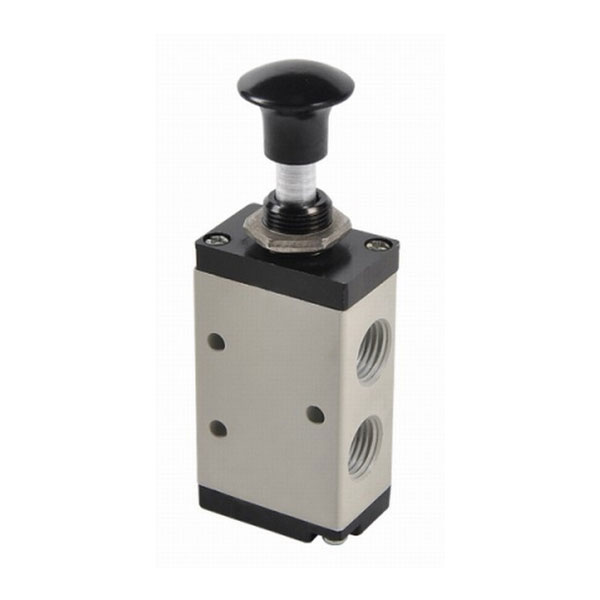

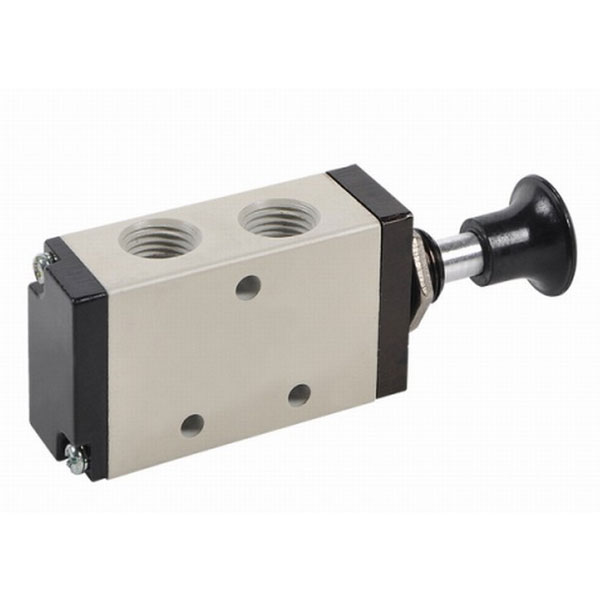

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for 3/2 Way Pneumatic Manual Valve 3R/4R

Specification parameters of 3/2 Way Pneumatic Manual Valve 3R/4R:
1. Manual operation, the direction is coaxial with the shaft core, the operation is convenient, the positioning is accurate and reliable;
2. The sliding column structure, good sealing, small size, light weight, convenient assembly and disassembly;
3. The Hand Operated Valve inner hole is processed by special process, the friction resistance is small, the service life is long; 4. No need to add lubrication;
5. Multi-position installation, easy to install and use.

Technical Parameters for 3/2 Way Pneumatic Manual Valve 3R/4R

Port Size: G1/8,G1/4,G3/8,G1/2
Operating Pressure: 0~0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

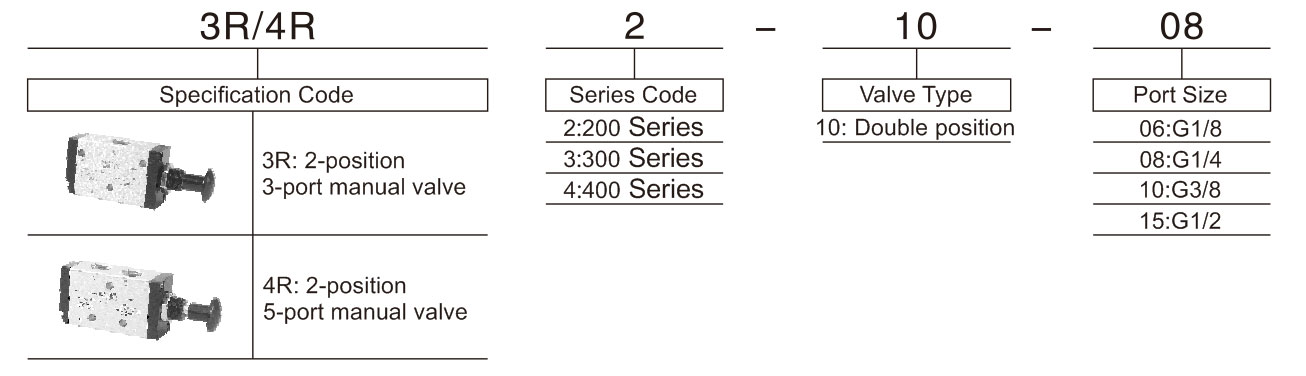

Ordering Code for 3/2 Way Pneumatic Manual Valve 3R/4R

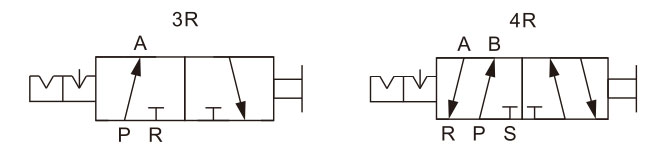

Symbol for 3/2 Way Pneumatic Manual Valve 3R/4R

Technical Parameter for 3/2 Way Pneumatic Manual Valve 3R/4R

Model 3R210-08/4R210-08 3R310-10/4R310-10 3R410-15/4R410-15
Working Medium Compressed Air
Motion Pattern Hand-operated direct-acting
Valve Type 3R: 2-position 3-port/4R: 2-position 5-port
Effective sectional area 16.0mm²(Cv=0.89) 30.0mm²(Cv=1.67) 50.0mm²(Cv=2.79)
Port Size Intake=Outlet=G1/4
Exhaust=G1/8		 Intake=Outlet=G3/8
Exhaust=G1/4		 Intake=Outlet=
Exhaust=G1/2
Lubrication Non-lube
Operating Pressure 0~0.8MPa
Max. Proof Pressure 1.0MPa
Operating Temp. 0~60℃
Main parts material Body Aluminium Alloy
Sealing element NBR

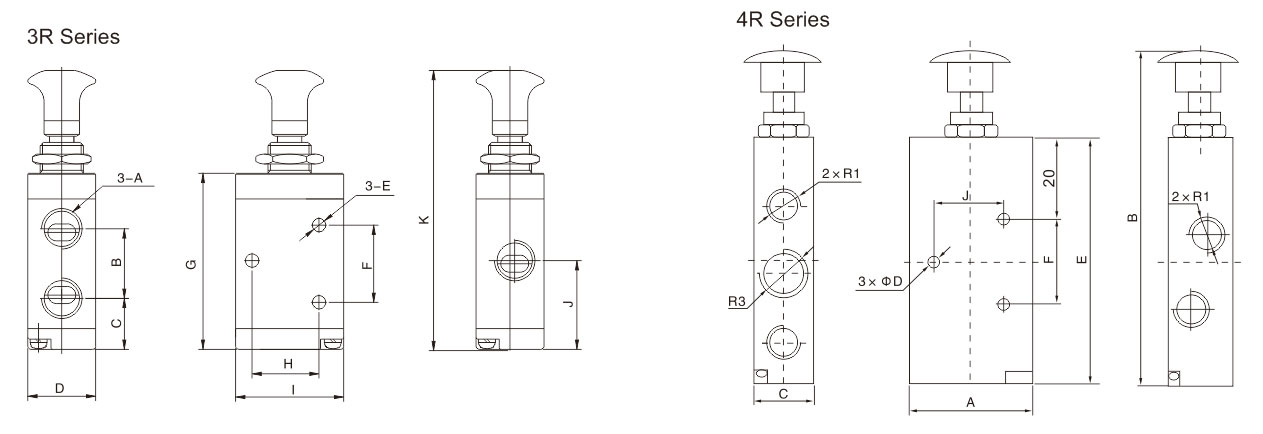

Overall Dimension

Model A B C D E F G H I J K
3R210-08 G1/4 18.5 19.2 22 4.3 38.7 57.5 18 35 31 90
3R310-10 G3/8 23.8 20.5 27 3.3 27.7 66.5 20 40 35.5 102.5
3R410-15 G1/2 32.5 32.5 34 4.3 45.5 99 27 50 50 132.5
Model ΦD A B C E F J H R1 R2 R3
4R210-08 4 35 100 22 63 20 21 17 G1/4 G1/8 G1/4
4R310-10 4 40 116 27 95 24.3 28 19 G3/8 G1/4 G3/8
4R410-15 5.5 50 154 34 114.3 28 35 24 G1/2 G1/2 G1/2
