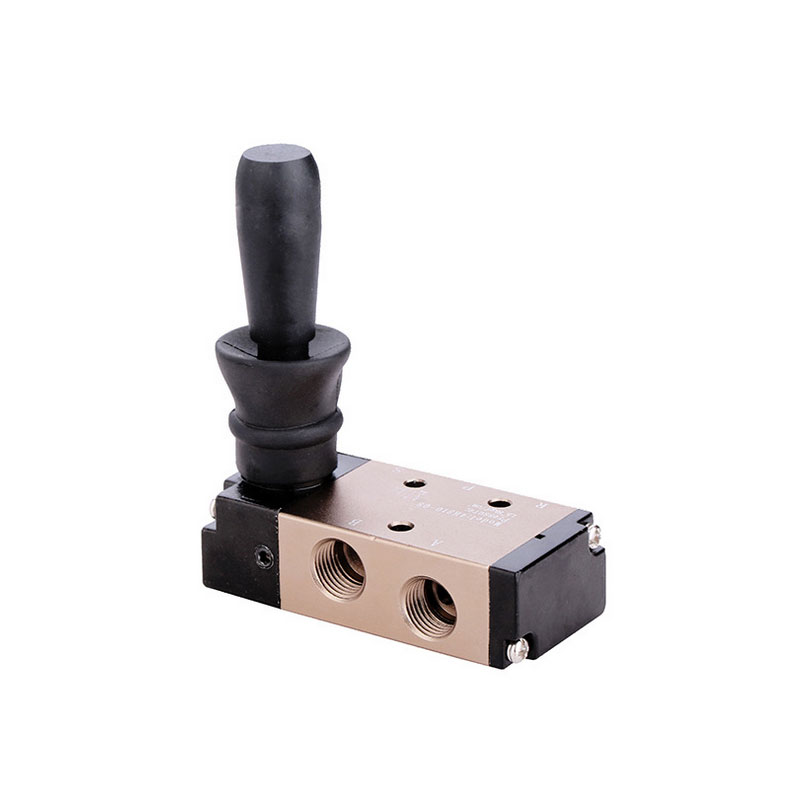

Hand Air Control Valve 3H/4H

Port Size: G1/8,G1/4,G3/8,G1/2
Operating Pressure: 0~0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

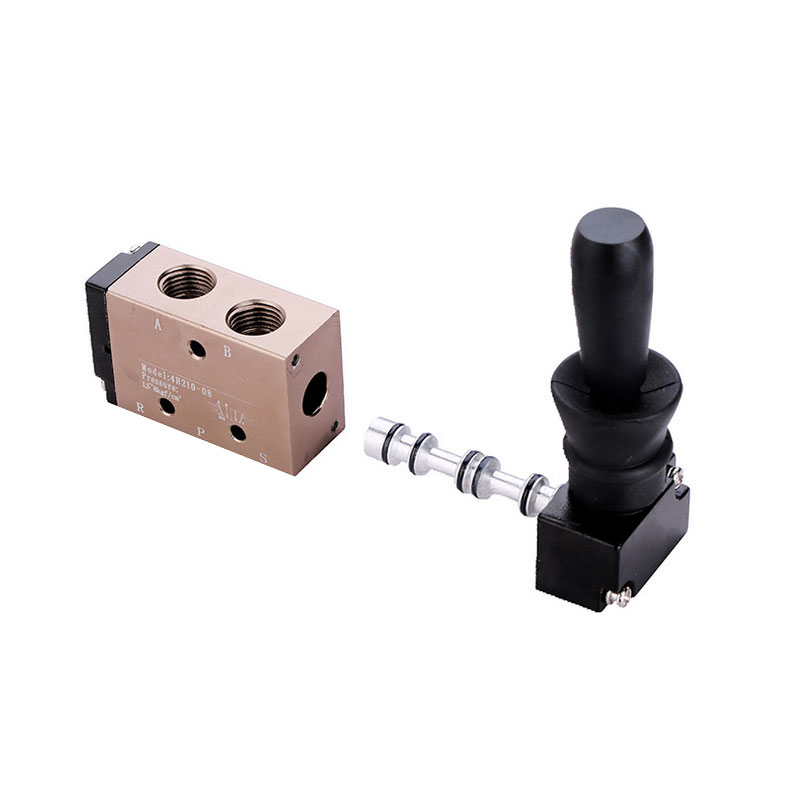

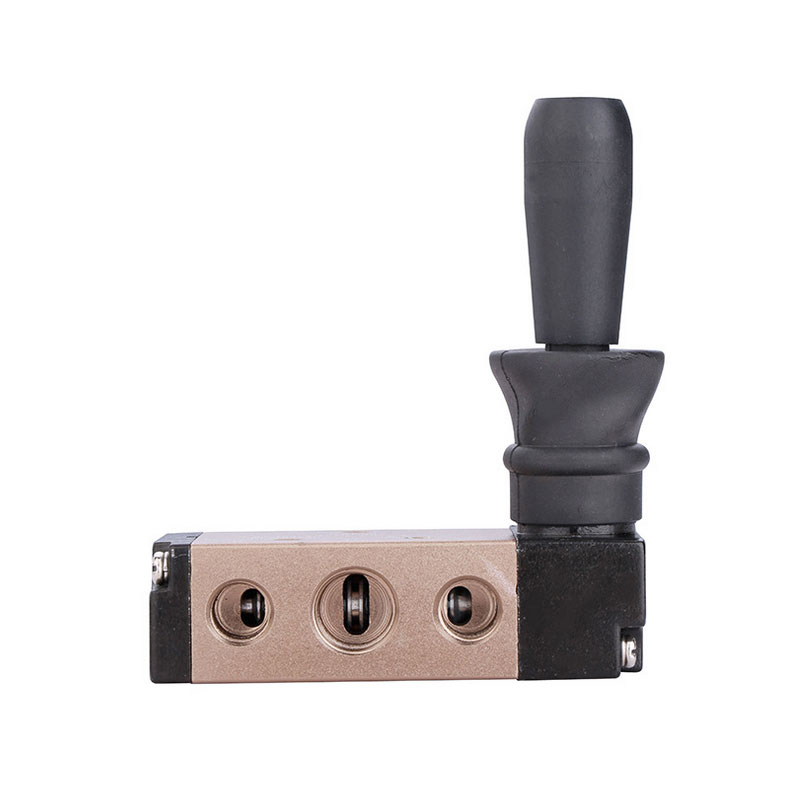

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for 3/2 Way Hand Lever Valve 3H/4H

Port Size: G1/8,G1/4,G3/8,G1/2
Operating Pressure: 0~0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

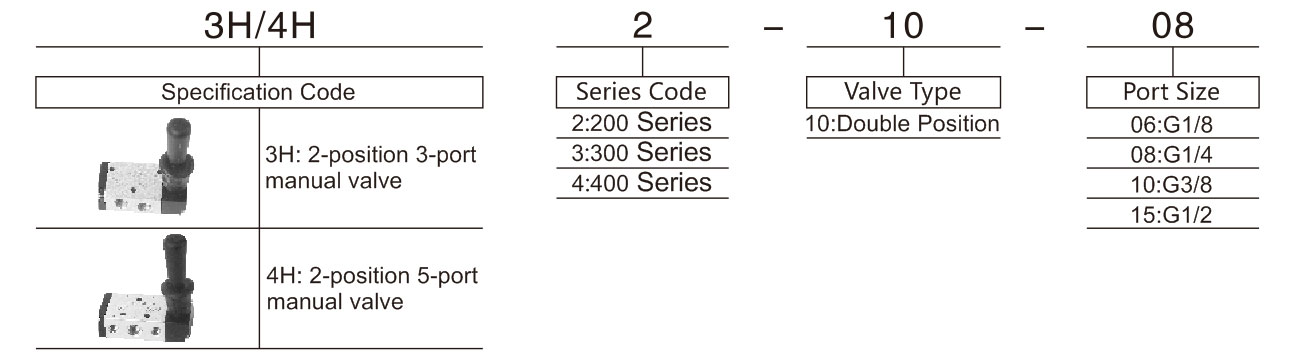

Ordering Code for 3/2 Way Hand Lever Valve 3H/4H

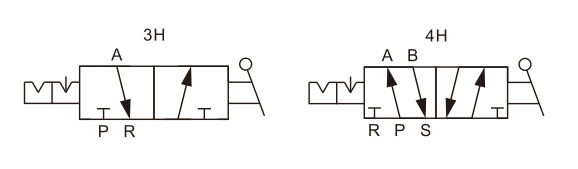

Symbol for 3/2 Way Hand Lever Valve 3H/4H

Technical Parameter for 3/2 Way Hand Lever Valve 3H/4H

Model 3H210-08/4H210-08 3H310-10/4H310-10 3H410-15/4H410-15
Working Medium Compressed Air
Motion Pattern Hand-operated direct-acting
Valve Type 3H: 2-position 3-port / 4H:2-position 5-port
Effective sectional area 16.0mm²(Cv=0.89) 30.0mm²(Cv=1.67) 50.0mm²(Cv=2.79)
Port Size Intake=Outlet=G1/4
Exhaust=G1/8		 Intake=Outlet=G3/8
Exhaust=G1/4		 Intake=Outlet=
Exhaust=G1/2
Lubrication Non-lube
Operating Pressure 0~0.8MPa
Max. Proof Pressure 1.0MPa
Operating Temp. 0~60℃
Main parts material Body Aluminium Alloy
Sealing element NBR

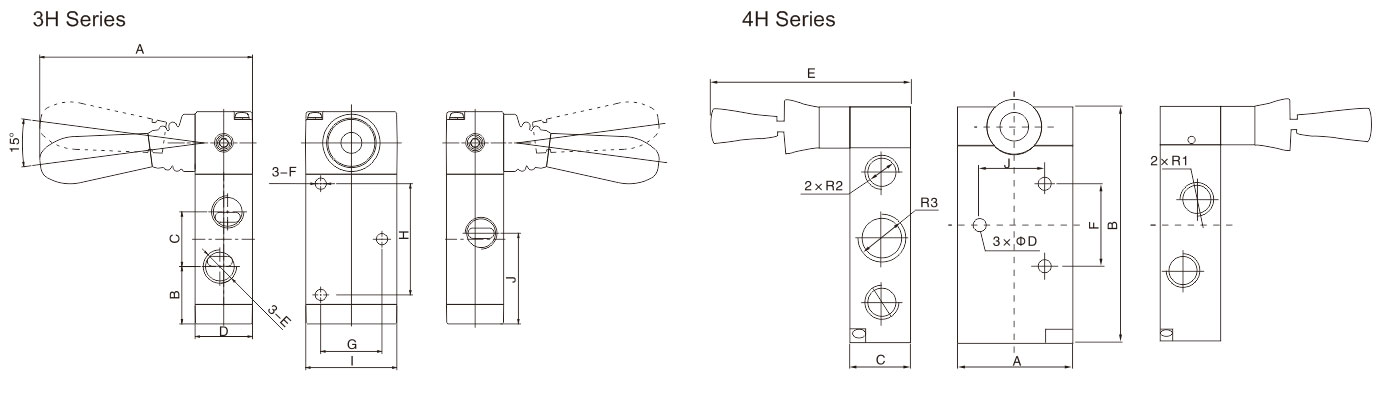

Overall Dimension for 3/2 Way Hand Lever Valve 3H/4H

Model A B C D E F G H I J
3H210-08 93 19.2 18.5 22 G1/4 4.3 18 38.7 35 31
3H310-10 99 20.5 23.8 24 G3/8 3.3 20 27.7 40 35.5
3H410-15 105 32.5 33 34 G1/2 4.3 27 45.5 50 50

Model ΦD A B C E F J R1 R2 R3
4H210-08 4 35 76.3 22 94.5 21 21 G1/4 G1/8 G1/4
4H310-10 4 40 92 27 100 28 28 G3/8 G1/4 G3/8
4H410-15 5.5 50 124 34 105 28.2 34.6 G1/2 G1/2 G1/2
