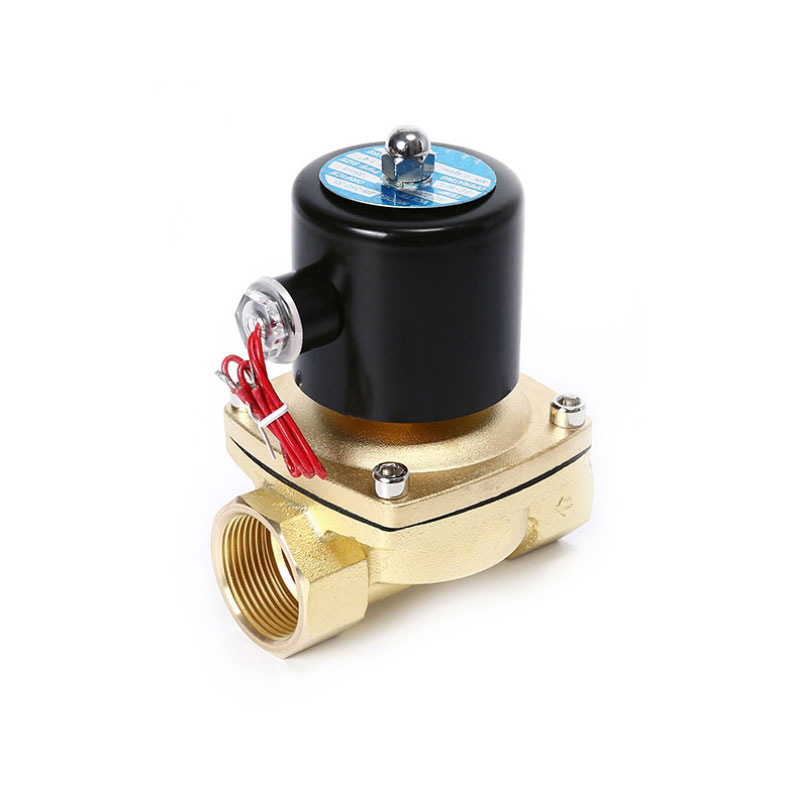

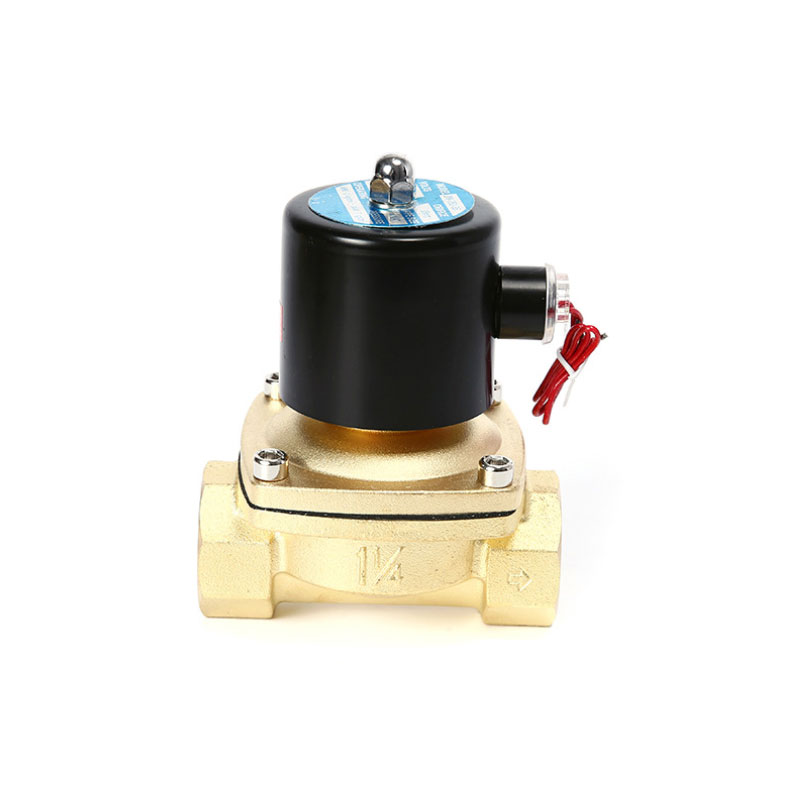

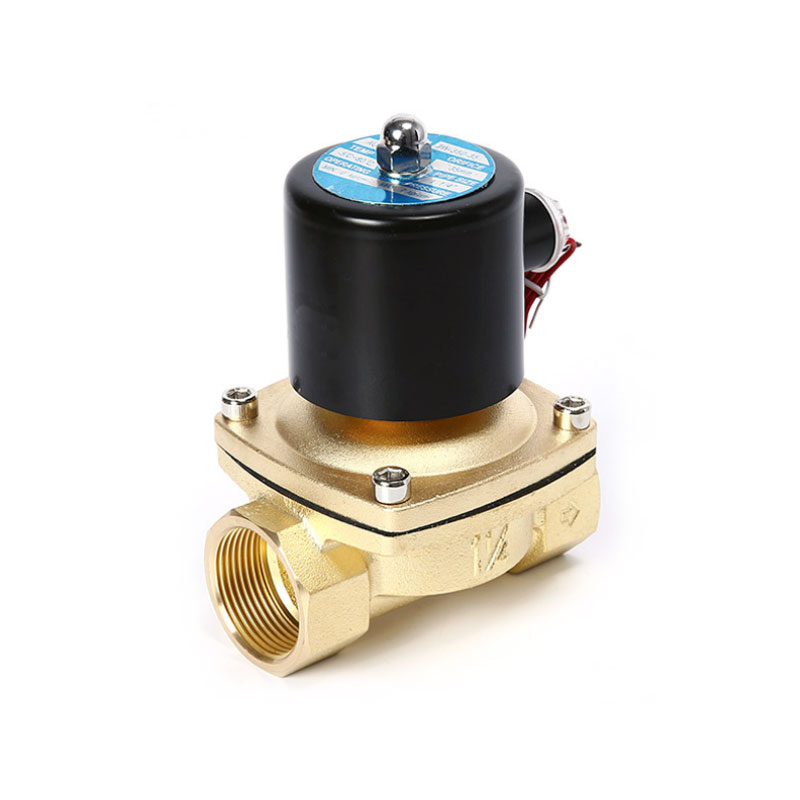

Overview for 24 Volt Solenoid Valve 2W
1. 24 Volt Solenoid Valve Piston pilot normally closed type two-port two-position solenoid valve, with quick commutation and large flow;
2. 24 Volt Solenoid Valve Compact structure, small size, light weight and convenient assembly and disassembly;
3. 24 Volt Solenoid Valve body material brass, electromagnetic coil heat resistance grade B, standard seal material is FPM-F (fluoro rubber), suitable for a variety of working media, other material seals can be customized, please consult the TAIXI technical part;
4. 24 Volt Solenoid Valve coil protection grade IP65, the power supply mode has direct outlet type, DIN socket type.
Technical Parameters for 24 Volt Solenoid Valve 2W
Port Size: G1/4,G3/8,G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: Water and oil: 0~5.0kgf/cm²; Air:0~7.0kgf/cm²
Working Environment Temperature: -5~85℃
Material: Brass,EPDM

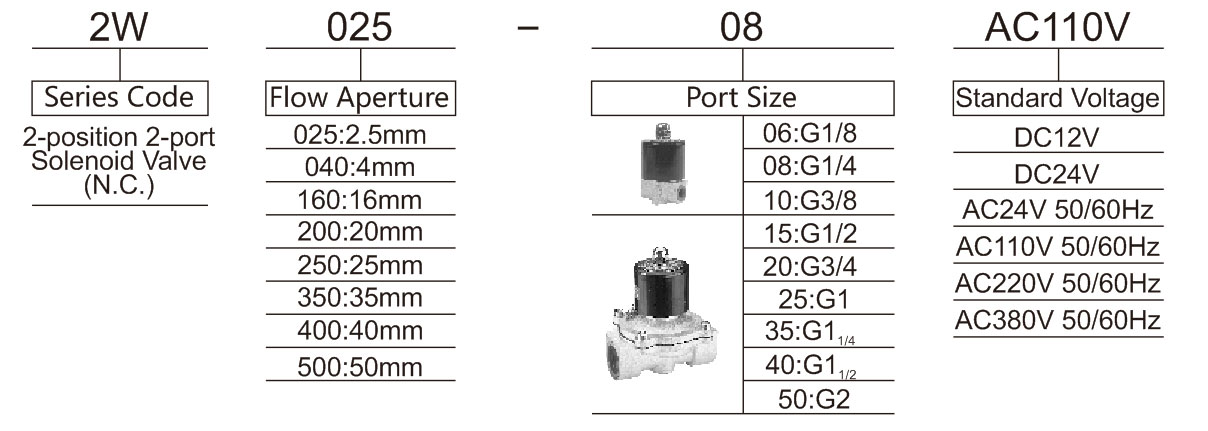

Ordering Code for 24 Volt Solenoid Valve 2W Series

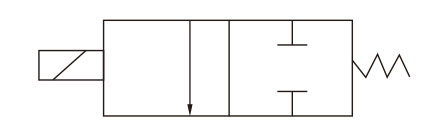

Symbol for 24 Volt Solenoid Valve 2W Series
Technical Parameter for 24 Volt Solenoid Valve 2W Series
| Model |
2W025-08 |
2W040-10 |
2W160-25 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
| Working Medium |
Air, water, oil |
| Motion Pattern |
Direct-acting type |
Pilot type |
| Type |
Normally closed type |
| Flow Aperture (mm²) |
2.5 |
4.0 |
16 |
20 |
25 |
35 |
40 |
50 |
| Cv value |
0.23 |
0.60 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
| Port Size |
G1/4 |
G3/8 |
G1/2 |
G3/4 |
G1 |
G1(1/4) |
G1(1/2) |
G2 |
| Fluid Viscosity |
Under 20CS |
| Operating Pressure |
Water and oil: 0~5.0kgf/cm²; Air:0~7.0kgf/cm² |
| Max. Proof Pressure |
10kgf/cm² |
| Ambient and Fluid Temp. |
-5~85℃ |
| Operating Voltage |
±10% |
| Main parts material |
Body |
Brass |
| Sealing element |
NBR |
| Coil Power |
15VA |
20VA |
50VA |

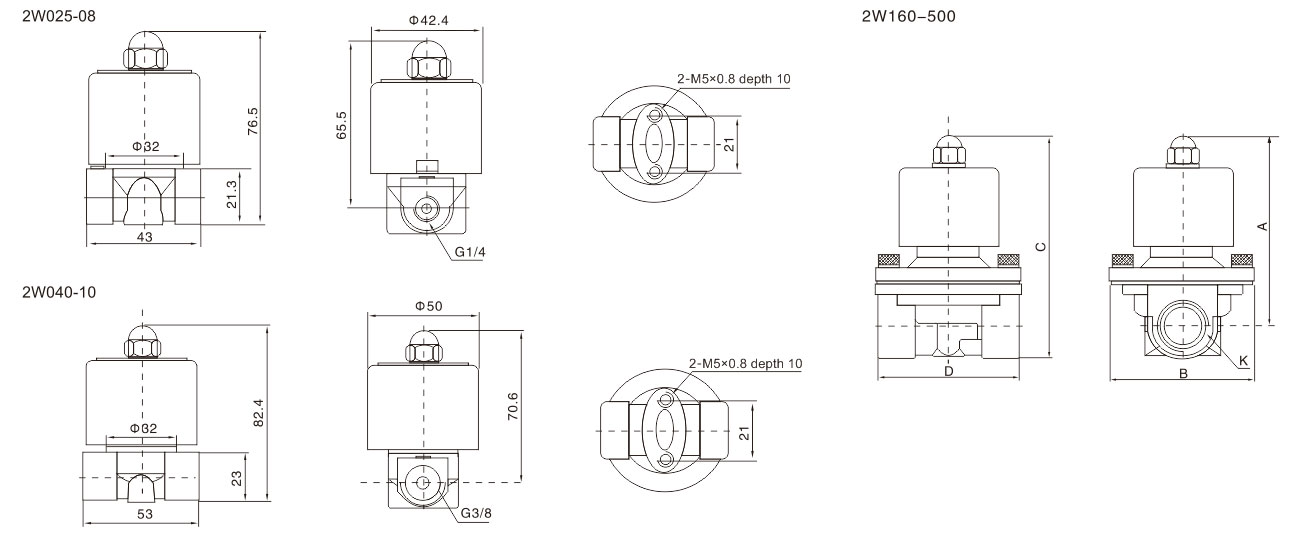

Overall Dimension
| Model |
K |
A |
B |
C |
D |
| 2W160-10 |
G3/8 |
93 |
55.5 |
106.5 |
67.5 |
| 2W160-15 |
G1/2 |
93 |
55.5 |
106.5 |
67.5 |
| 2W200-20 |
G3/4 |
97 |
55.5 |
113 |
73 |
| 2W250-25 |
G1 |
102.5 |
72.5 |
121 |
94 |
| 2W350-35 |
G1(1/4) |
134.7 |
92.5 |
159 |
120 |
| 2W400-40 |
G1(1/2) |
137.5 |
92.5 |
165 |
122 |
| 2W500-50 |
G2 |
151.5 |
123 |
188 |
170 |
