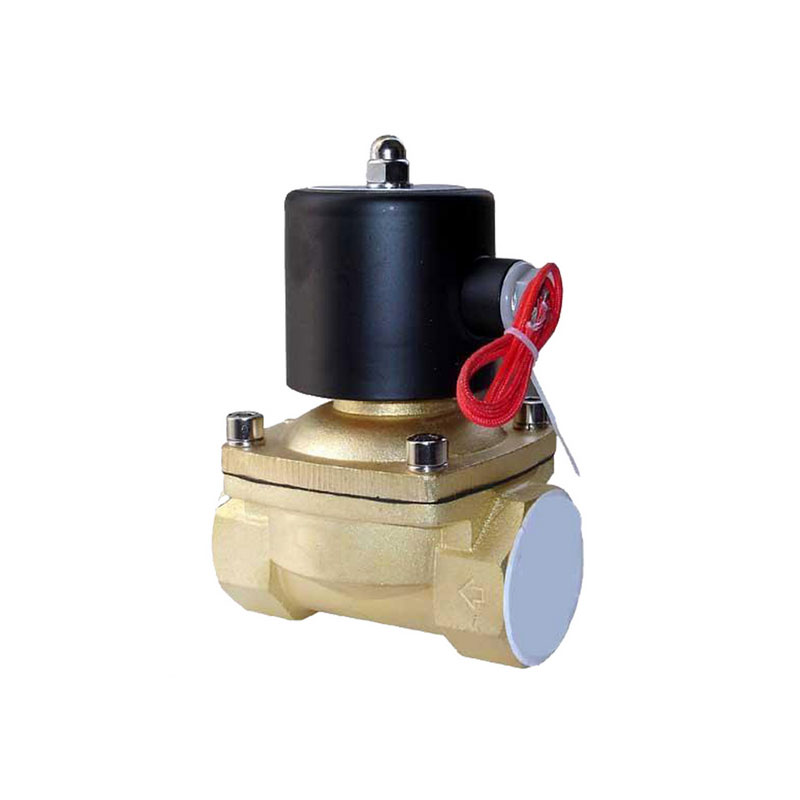

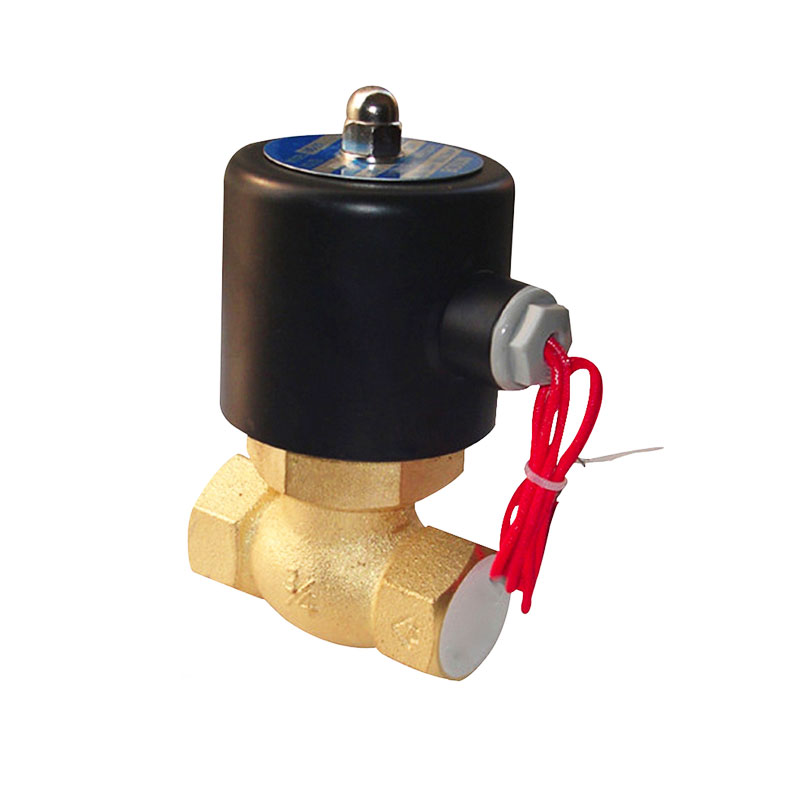

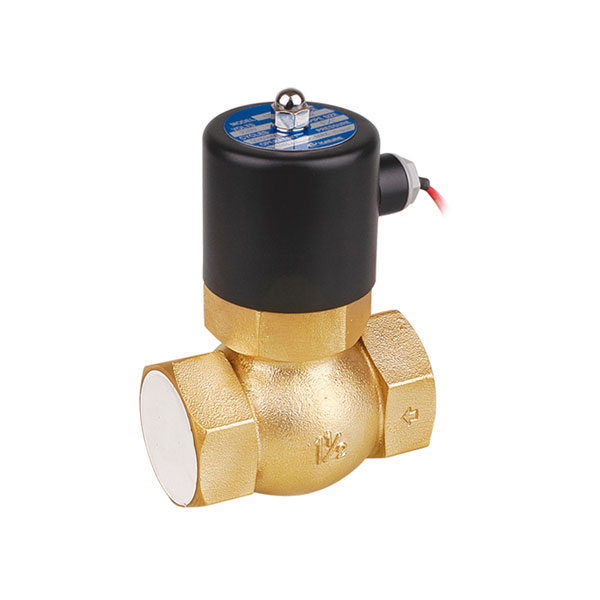

Overview for 2 Way Solenoid Valve 2L
2L 2 Way Solenoid Valve is an industrial equipment controlled by electromagnetism, used in industrial control system to adjust the direction, flow, speed and other parameters of the media. Solenoid valve control the valve movement to block or leak different oil drain holes. 2L 2 Way Solenoid Valve is suitable for compressed air, water, low pressure steam, mashgas, coal gas, natural gas, oil, strong acid and alkali, micro-corrosive medium, etc.
2L Pneumatic Solenoid Valve is used for automatic control of medium two-position on-off switching in pipeline. Working pressure: 1～15kg/cm²; Maximum pressure resistance: 15kg/cm²; Applicable fluid: steam, liquid, gas; Applicable fluid viscosity: below 20CST; Working temperature: -5～180℃
Technical Parameters for 2 Way Solenoid Valve 2L
Port Size: G3/8,G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: 1~15kgf/cm²
Working Environment Temperature: -5~180℃
Material: Brass,EPDM

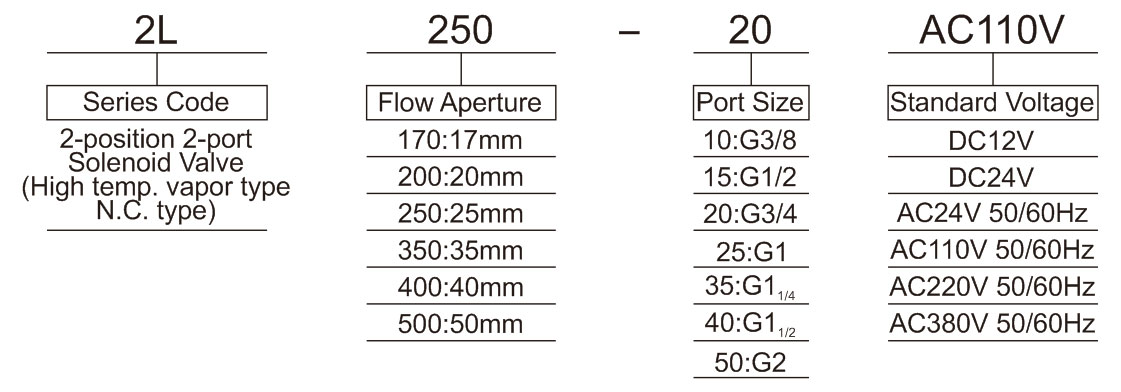

Ordering Code for 2 Way Solenoid Valve 2L

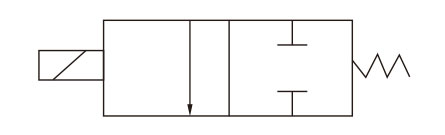

Symbol for Air Operated Solenoid Valve 2L Series
Technical Parameter for Air Operated Solenoid Valve 2L Series
| Model |
2L170-10 |
2L170-15 |
2L200-20 |
2L170-25 |
2L350-35 |
2L400-40 |
2L500-50 |
| Working Medium |
Air, water, steam |
| Motion Pattern |
Direct-acting type |
| Type |
Normally closed type |
| Flow Aperture(mm²) |
17 |
17 |
20 |
25 |
35 |
40 |
50 |
| Cv value |
12.6 |
12.6 |
17.46 |
27.27 |
53.46 |
69.83 |
69.83 |
| Port Size |
G3/8 |
G1/2 |
G3/4 |
G1 |
G1(1/4) |
G1(1/2) |
G2 |
| Operating Pressure |
1~15kgf/cm² |
| Max. Proof Pressure |
15kgf/cm² |
| Operating Temp. |
-5~180℃ |
| Operating Voltage |
±10% |
| Main parts material |
Body |
Brass |
| Sealing element |
EPDM |

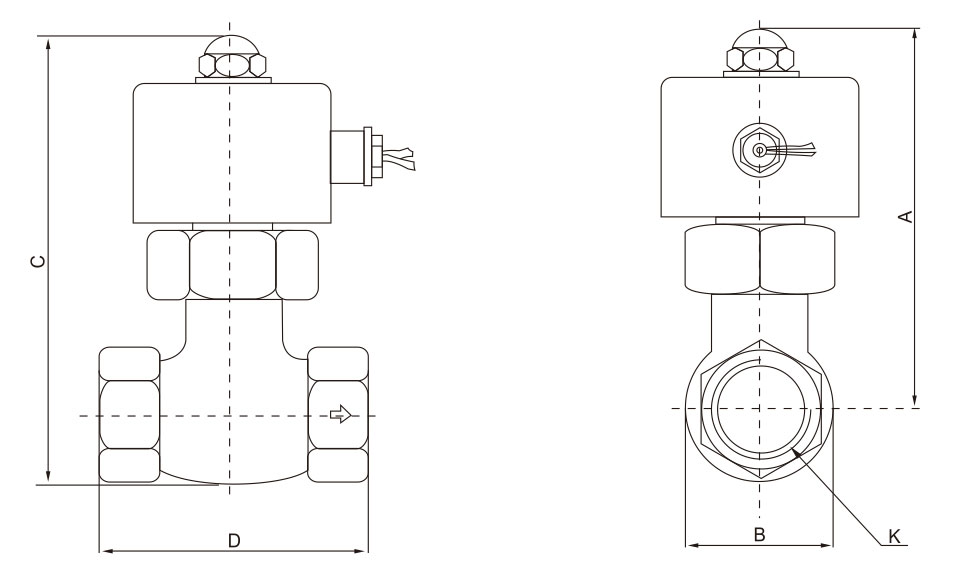

2 Way Solenoid Valve 2L Overall Dimension
| Model |
A |
B |
C |
D |
K |
| 2L170-10 |
126 |
42 |
146 |
82 |
G3/8 |
| 2L170-15 |
126 |
42 |
146 |
82 |
G1/2 |
| 2L200-20 |
125 |
42 |
147 |
93 |
G3/4 |
| 2L250-25 |
134 |
48 |
156 |
94 |
G1 |
| 2L350-35 |
147 |
74 |
184 |
112 |
G1(1/4) |
| 2L400-40 |
147 |
74 |
184 |
112 |
G1(1/2) |
| 2L500-50 |
170 |
90 |
215 |
170 |
G2 |
Keywords:
2L Pneumatic Solenoid Valve | 2 Way Solenoid Valve
