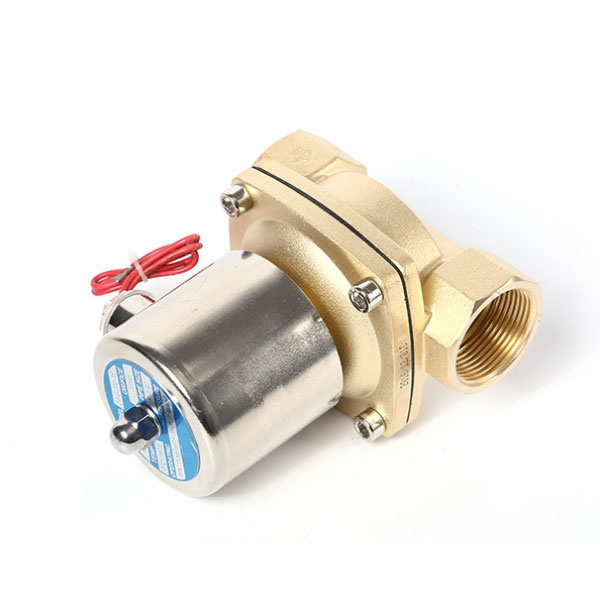

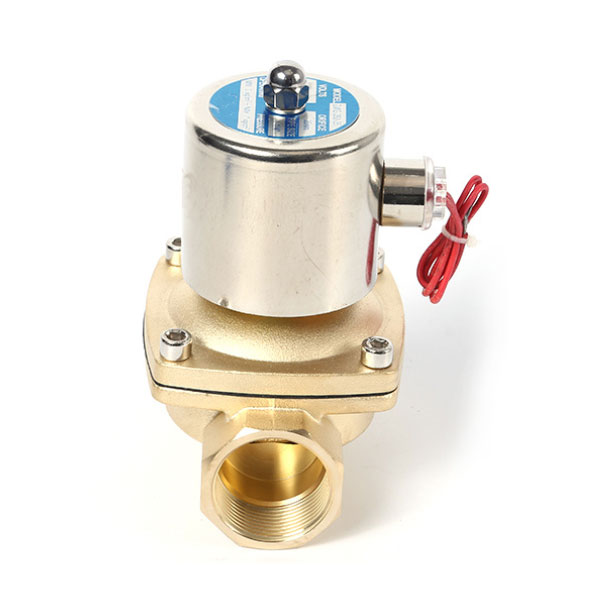

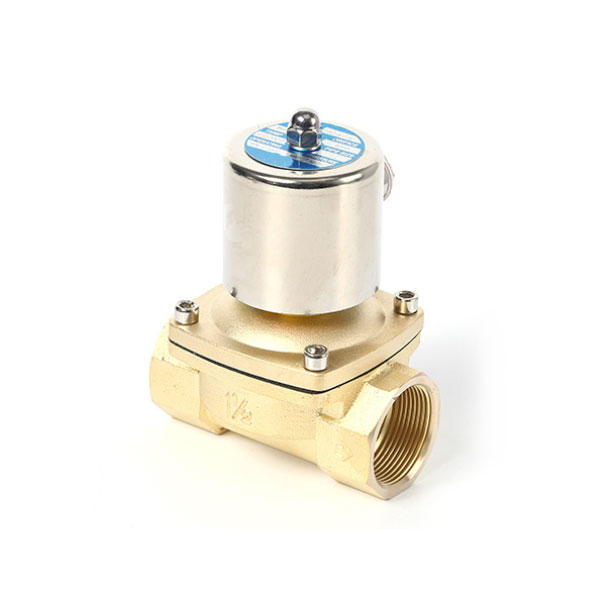

Overview for 12V Solenoid Valve
WG 12V Solenoid Valve, two-position three-way solenoid valve can be divided into two types: normally open and normally closed. According to the form of nozzle, 12V Solenoid Valve WG can be divided into several types: plate-connected, pipe-connected and serial-connected, the valve is often used as a light-guided control valve for large-flow reversing valves, it is also known as electromagnetic pilot valve. 12V Solenoid Valve WG can also be used as a two-position three-way reversing valve to directly control the actuator with less gas consumption.
Instructions for using the 12V Solenoid Valve WG:
1. Check if the components are damaged before use, then install and use them.
2. When installing, please pay attention to the gas flow direction and whether the connection is correct, and whether the voltage meets the requirements.
3. Pay attention to dust prevention.
4. When connecting the pipeline, pay attention to remove the metal particles, dust and oil in the pipe joints and pipes.
Technical Parameters for 12V Solenoid Valve
Port Size: G1/4,G3/8,G1/2,G3/4,G1,G1(1/4),G1(1/2),G2
Operating Pressure: 0~7.0kgf/cm²
Working Environment Temperature: -5~180℃
Material: Brass,EPDM

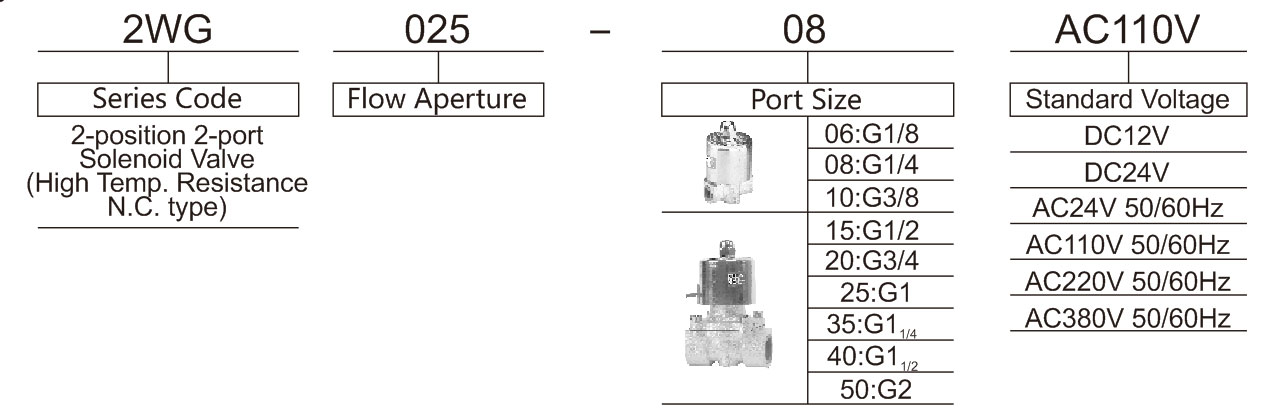

Ordering Code for 12V Solenoid Valve 2WG

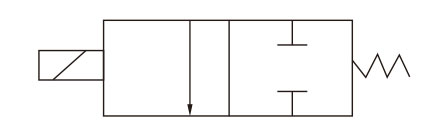

Symbol for 12V Solenoid Valve 2WG
Technical Parameter for 12V Solenoid Valve 2WG
| Model |
2W025-08 |
2W040-10 |
2W160-25 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
| Working Medium |
Air, water, oil |
| Motion Pattern |
Direct-acting type |
Pilot type |
| Type |
Normally closed type |
| Flow Aperture (mm²) |
2.5 |
4.0 |
16 |
20 |
25 |
35 |
40 |
50 |
| Cv value |
0.23 |
0.60 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
| Port Size |
G1/4 |
G3/8 |
G1/2 |
G3/4 |
G1 |
G1(1/4) |
G1(1/2) |
G2 |
| Operating Pressure |
0~7.0kgf/cm² |
| Max. Proof Pressure |
10kgf/cm² |
| Ambient and Fluid Temp. |
-5~180℃ |
| Operating Voltage |
±10% |
| Main parts material |
Body |
Brass |
| Sealing element |
EPDM |
| Coil Power |
15VA |
20VA |
50VA |

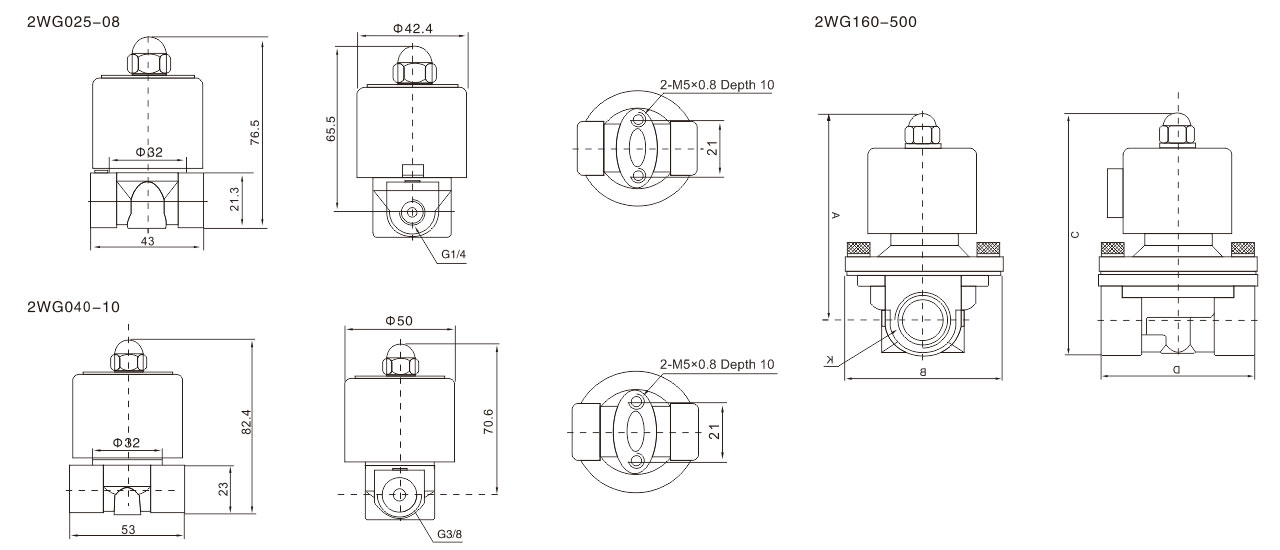

Overall Dimension for 12V Solenoid Valve 2WG
| Model |
K |
A |
B |
C |
D |
| 2WG160-10 |
G3/8 |
93 |
55.5 |
106.5 |
67.5 |
| 2WG160-15 |
G1/2 |
93 |
55.5 |
106.5 |
67.5 |
| 2WG200-20 |
G3/4 |
97 |
55.5 |
113 |
73 |
| 2WG250-25 |
G1 |
102.5 |
72.5 |
121 |
94 |
| 2WG350-35 |
G1(1/4) |
134.7 |
92.5 |
159 |
120 |
| 2WG400-40 |
G1(1/2) |
137.5 |
92.5 |
165 |
122 |
| 2WG500-50 |
G2 |
151.5 |
123 |
188 |
170 |
