Air Filter Regulator Lubricator AC

AC Series Three Units Air Combination is made up of three parts: water-separating gas filter, pressure reducing valve and Lubricator. The AC Air Combination connected by three parts without pipes are called FRL.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Range of pressure regulation: AC1000: 0.05-0.7MPa, AC2000-5000: 0.05-0.85MPa

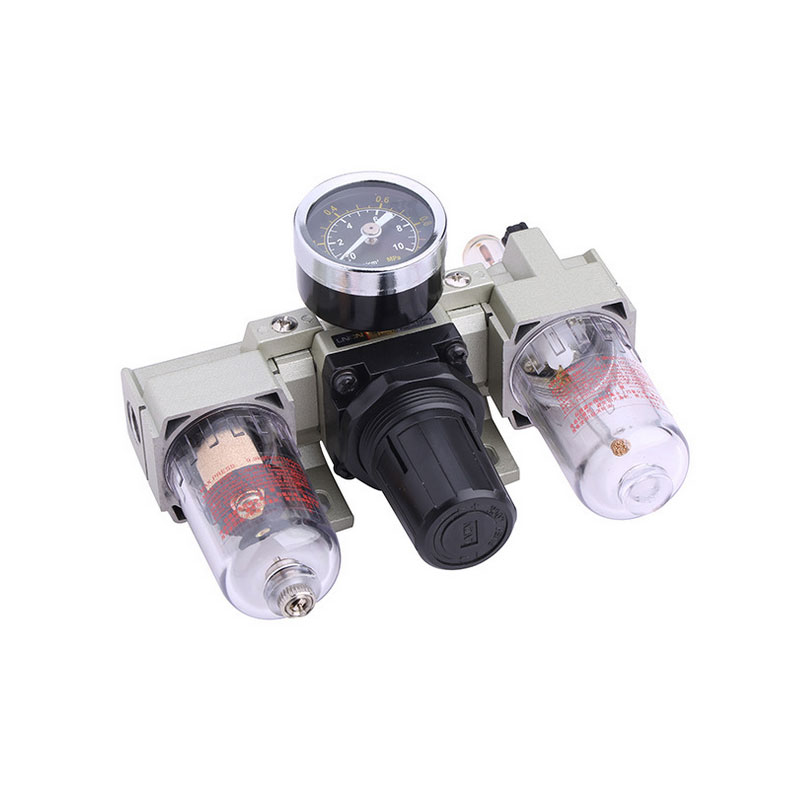

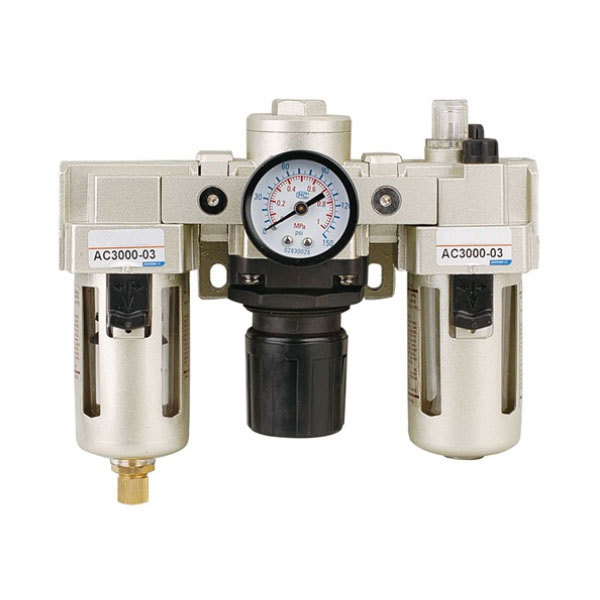

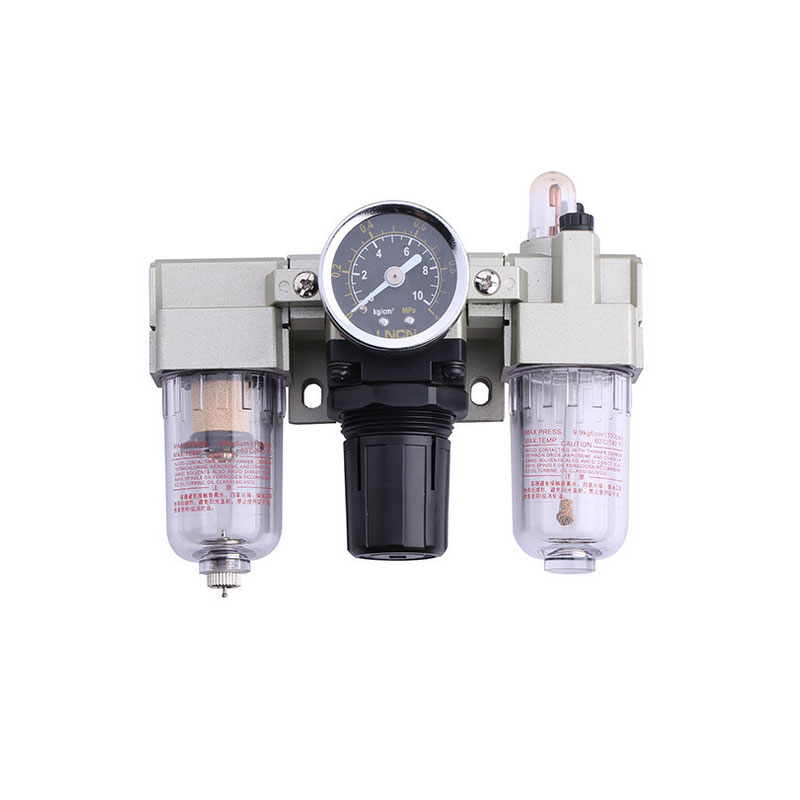

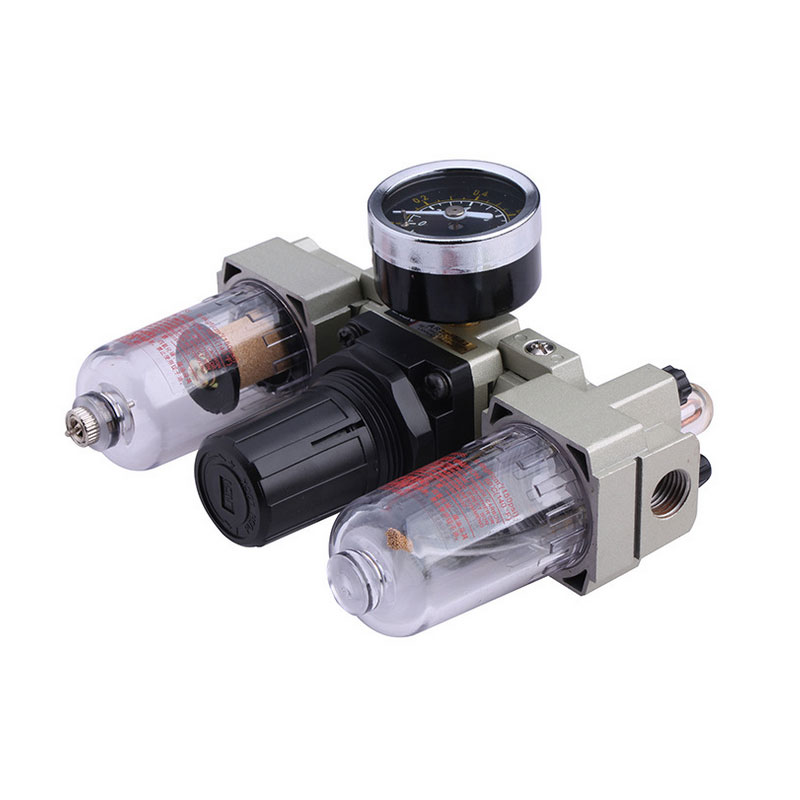

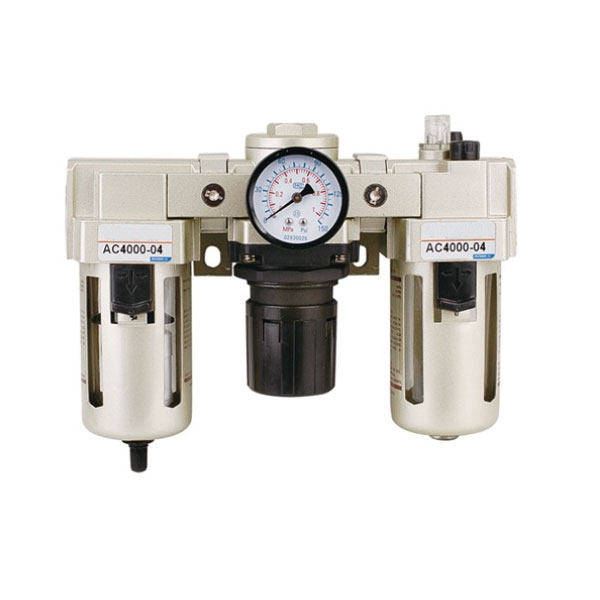

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Three Units Air Combination

AC Series Filter+Regulator+Lubricator: AC2000-01, AC2000-02, AC3000-02, AC3000-03, AC4000-03, AC4000-04, AC4000-06, AC5000-06, AC5000-10, AC Series Three Units Air Combination is made up of three parts: water-separating gas filter, pressure reducing valve and Lubricator. The AC Air Combination connected by three parts without pipes are called FRL. The three parts are indispensable gas source devices in most pneumatic systems. Installed near the gas equipment, they are the final guarantee of compressed air quality. The installation sequence of the 3 Units Air Combination is Filter, Regulator and Lubricator according to the inlet direction. In use, one, two or three pieces can be used according to actual requirements. 3 Units Air Combination is also known as: pneumatic FRL, air source processing FRL, compressed air FRL, filter and regulator and lubricator.

Product Features for Three Units Air Combination

AC Air Combination from China Air Filter Regulator Lubricator FRL Manufacturers And Suppliers has the characteristics of small size, light weight, good performance, convenient use, beautiful appearance and so on.
3 Units Air Combination use modular connection, can be used separately or in combination, easy installation, The square pressure gauge adopts embedded structure to save installation space.
The Regulator has high regulating precision, high flow rate, good pressure characteristic, long service life, flexible and stable adjusting handwheel, self-locking function, and is suitable for vibration occasions.
The Lubricator adopts a new type of oil capacity adjustment structure, which can realize non-stop refueling. Built-in oil capacity sensor has the advantages of low fogging oil capacity, fine oil fog particles and long transmission distance.

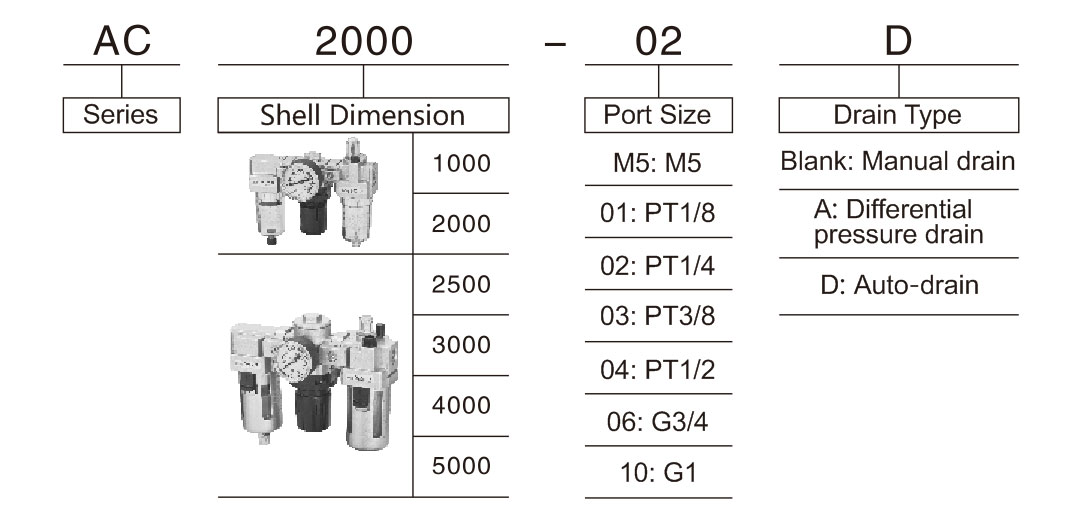

Ordering Code for Three Units Air Combination

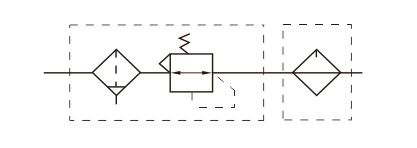

Symbol for AC Air Combination

Technical Parameter for AC Air Combination

Model AC1000-M5 AC2000-01 AC2000-02 AC2500-02 AC2500-013 AC3000-02 AC3000-03 AC4000-03 AC4000-04 AC4000-03 AC5000-06 AC5000-10
Assembly Filter AF1000 AF2000 AF2000 AF2500 AF2500 AF3000 AF3000 AF4000 AF4000 AF4000 AF5000 AF5000
Regulator AR1000 AR2000 AR2000 AR2500 AR2500 AR3000 AR3000 AR4000 AR4000 AR4000 AR5000 AR5000
Lubricator AL1000 AL2000 AL2000 AL2500 AL2500 AL3000 AL3000 AL4000 AL4000 AL4000 AL5000 AL5000
Port Size M5×0.8 PT1/8 PT1/4 PT1/4 PT3/8 PT1/4 PT3/8 PT3/8 PT1/2 G3/4 G3/4 G1
Gauge Port Size M5×0.8 PT1/8 PT1/8 PT1/8 PT1/8 PT1/8 PT1/8 PT1/4 PT1/4 PT1/4 PT1/4 PT1/4
Rated Flow (L/Min) 90 500 500 1500 1500 2000 2000 4000 4000 4500 5000 5000
Working Medium Compressed Air
Proof Pressure 1.5MPa
Range of pressure regulation 0.05~0.7MPa 0.05~0.85MPa
Ambient temperature 5~60℃
Filtration aperture 40μm(routine) or 5μm(customized)
Lubrication ISO VG32
Bracket (2) Y10L Y20L Y30L Y40L Y50L Y60L
Pressure Gauge Y25-M5 Y40-01 Y50-02
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guide AC1000~AC2000: no; AC2500~AC5000: yes (Iron)

Note: The rated flow is at the supply pressure of 0.7MPa.

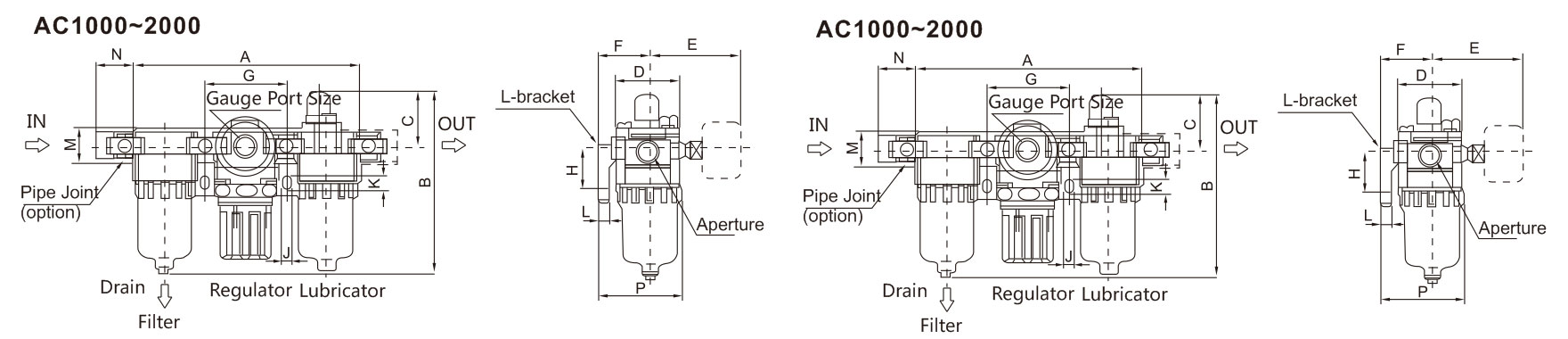

Overall Dimension

Model Aperture A B C D E F G H J K L M N P
AC1000 M5×0.8 91 84.5 25.5 25 26 25 33 20 4.5 7.5 5 17.5 16 38.5
AC2000 PT1/8, PT1/4 140 125 38 40 56.8 30 50 24 5.5 8.5 5 22 23 50
AC2500 PT1/4, PT3/8 181 156.5 38 53 60.8 41 64 35 7 11 7 34.2 26 70.5
AC3000 PT1/4, PT3/8 181 156.5 38 53 60.8 41 64 35 7 11 7 34.2 26 70.5
AC4000 PT3/8, PT1/2 283 191.5 41 70 65.5 50 84 40 9 13 7 42.2 33 88
AC4000-06 G3/4 253 193 40.5 70 69.5 50 89 40 9 13 7 46.2 36 88
AC5000 G3/4, G1 300 271.5 48 90 75.5 70 105 50 12 16 10 55.2 40 115

Note: due to the different drainage components, the B values in the table will be slightly different. If necessary, please contact the sales department.
