Rotary Air Actuator MSQ (Rotary Table)

MSQ Rotary Air Cylinder is a gear-rack type cylinder, divided into 7 optional bores: 10mm, 20mm, 30mm, 50mm, 70mm, 100mm and 200mm. Angle adjustment ranges is from 0° to 190°.

Bore: 10, 20, 30, 50, 70, 100, 200mm
Motion Pattern: Double-acting
Operating pressure: 0.1~1.0MPa
Angle adjustment range: 0~190°
Ambient and fluid temperature: 0~60℃ (No Freezing)

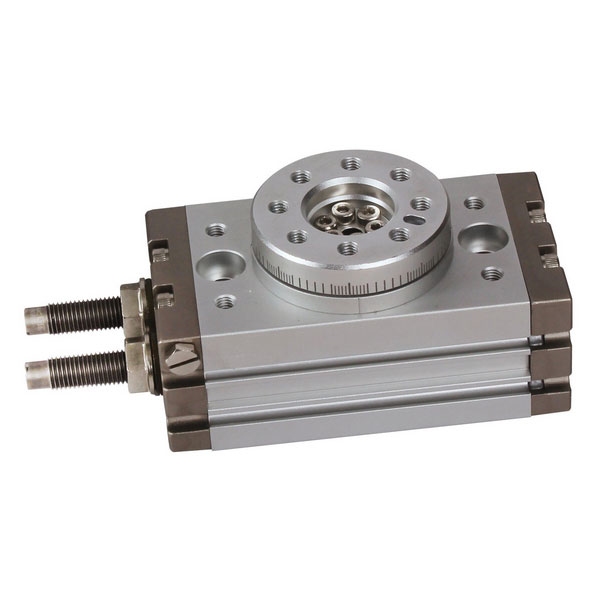

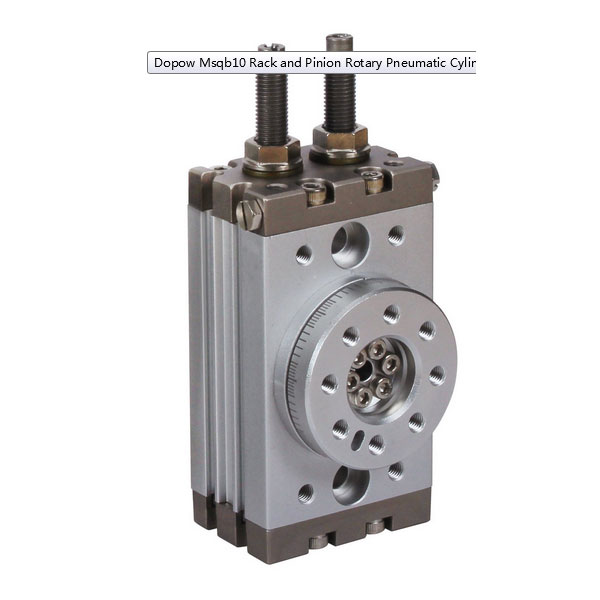

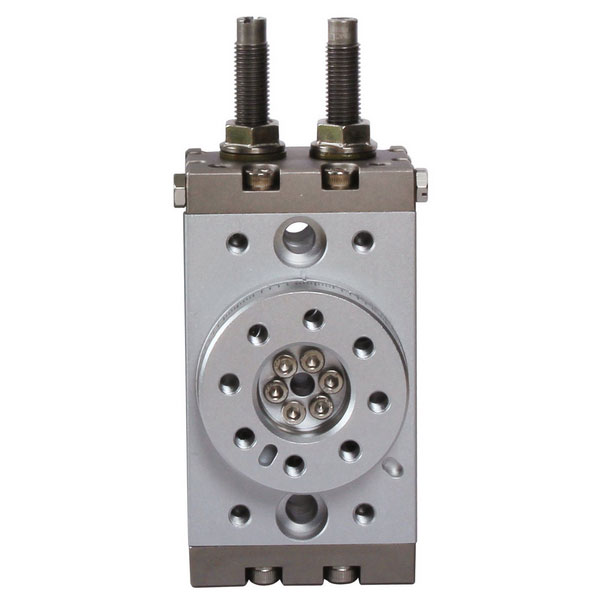

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: 0086+13356192265
What’sApp: 13356192265

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MSQ Rotary Tables

MSQ Rotary Air Cylinder is a gear-rack type cylinder, divided into 7 optional bores: 10mm, 20mm, 30mm, 50mm, 70mm, 100mm and 200mm. Angle adjustment ranges is from 0° to 190°. Buffer is divided into rubber buffer and oil pressure shock absorber. The conventional model is attached to the magnet, and MSQ Rotary Tables provide a variety of installation forms.

Product Feature for MSQ Rotary Tables

* High-precision use of high-precision ball bearings, so the vertical and horizontal position accuracy increased to ± 0.01mm.
* Rotary Table type, easy to install the workpiece.
* Roller bearing design, load than the CRQ series 3 to 4 times.
* Swing of Rotary Table is smooth and accurate.
* Hollow shafts of Rotary Table can be used to introduce wires or trachea.
* Standard with angle adjustment device, adjust the angle range. (0 ~ 190 °)
* Built-in magnetic ring type, can be installed magnetic switch.

Specification for MSQ Rotary Tables

Bore (mm) 10 20 30 50 70 100 200
Working Medium Air (Non-lube)
Motion Pattern Double-acting
Max. Operating Pressure Angle adjusting screw 1MPa
Hydraulic buffer 0.6MPa
Min. Operating Pressure 0.1MPa(High-precision type: 10 for 0.2MPa,20~50 for 0.1MPa)
Ambient and fluid temp. 0~60℃ (No Freezing)
Buffer Rubber buffer (standard)/Hydraulic buffer (optional)
Allowable kinetic energy Angle adjusting screw 0.007J 0.025J 0.048J 0.081J 0.24J 0.32J 0.56J
Hydraulic buffer 0.039J 0.116J
0.294J 1.1J 1.6J 2.9J
Angle adjustment range 0~190°
Max. swing angle 190°
Stable swing time range Angle adjusting screw 0.2~1.0s/90° 0.2~1.5s/90° 0.2~2.0s/90° 0.2~2.5s/90°
Hydraulic buffer 0.2~0.7s/90° 0.2~1.0s/90°
Bore Φ15 Φ18 Φ21 Φ25 Φ28 Φ32 Φ40
APort Size M5×0.8 Rc1/8

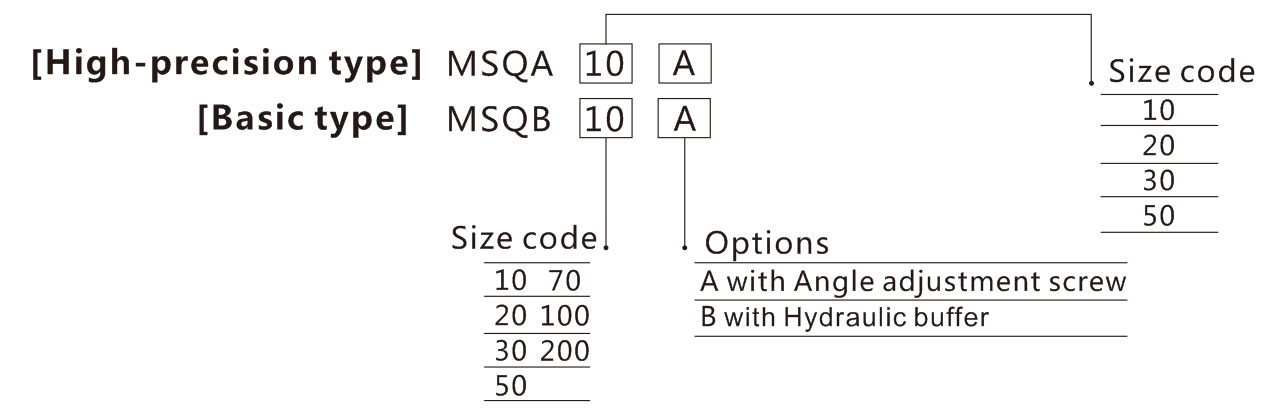

Ordering Code for MSQ Rotary Tables

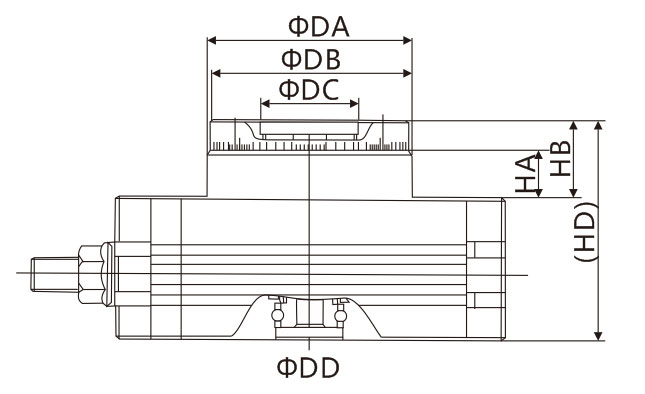

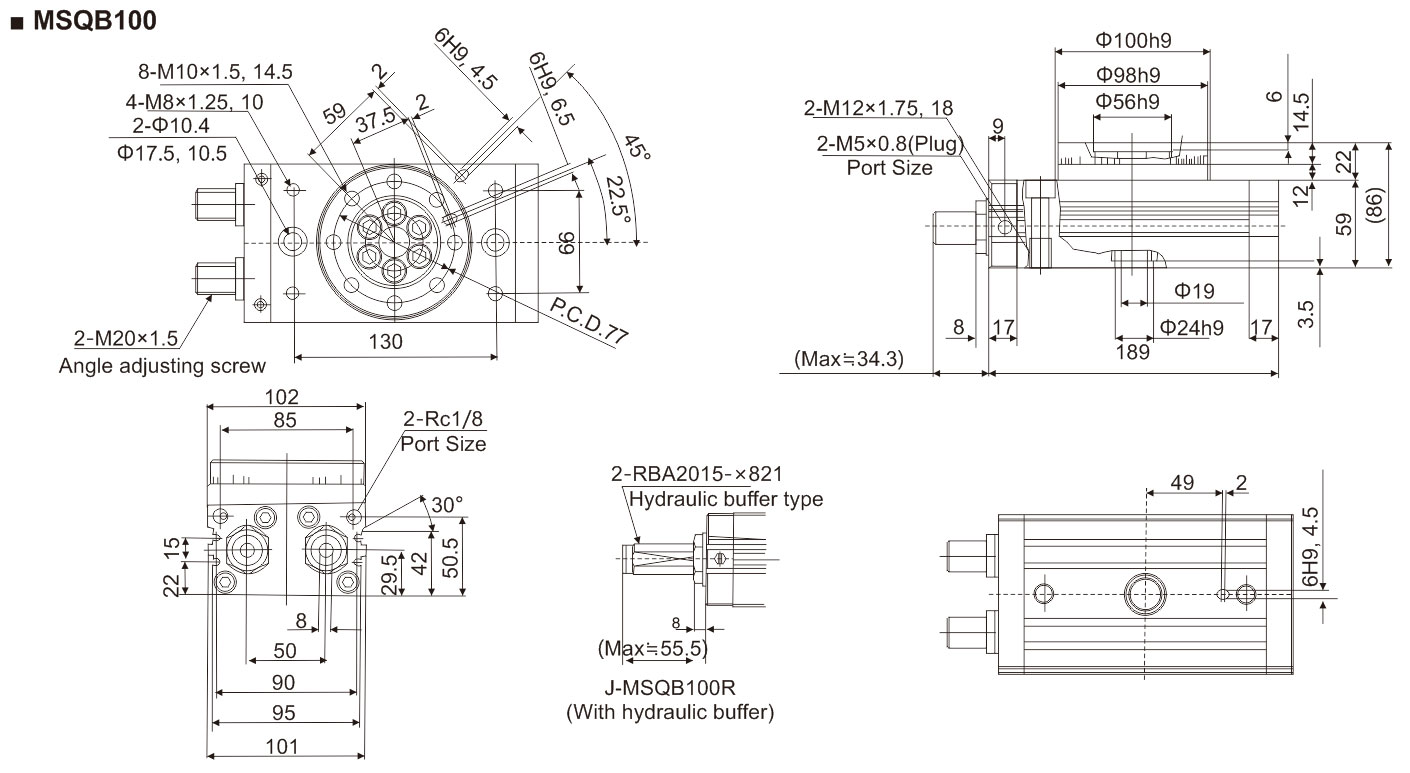

Dimension (mm) for MSQ Rotary Table

Model DA DB DC DD HA HB HD
MSQA10□ 46H8 45H8 20H8 15H8 10 18.5 52.5
MSQA20□ 61H8 60h8 28H8 17H8 15.5 26 63
MSQA30□ 67H8 65h8 32H8 22H8 16.5 27 67
MSQA50□ 77H8 75h8 35H8 26H8 17.5 30 76

Model Adjusting angle per 1 turn*
MSQB10□ About 10.2°
MSQB20□ About 7.2°
MSQB30□ About 6.5°
MSQB40□ About 8.2°

* Refers to the case of the angle adjustment screw or hydraulic buffer per 1 turn.
Note: The maximum size is when the swing angle is at maximum (190 °).

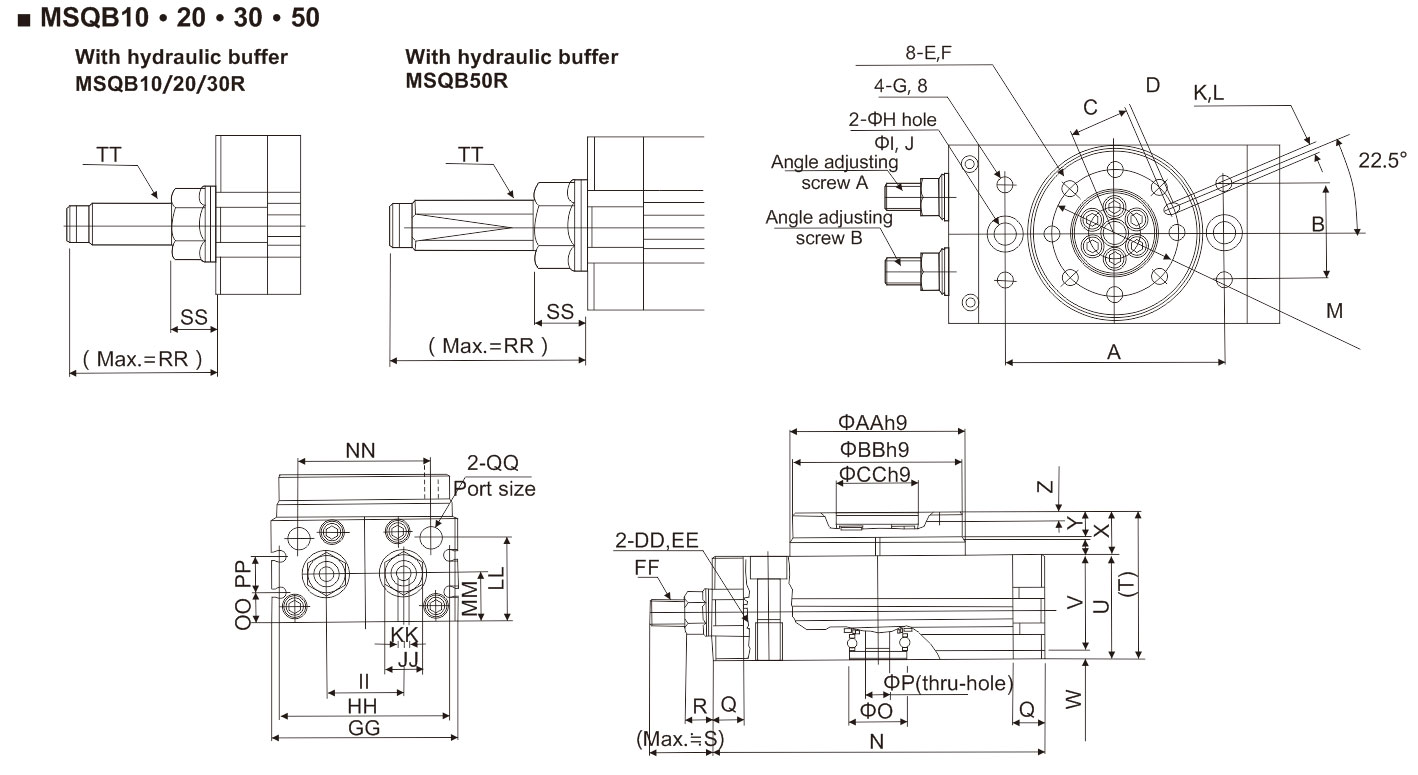

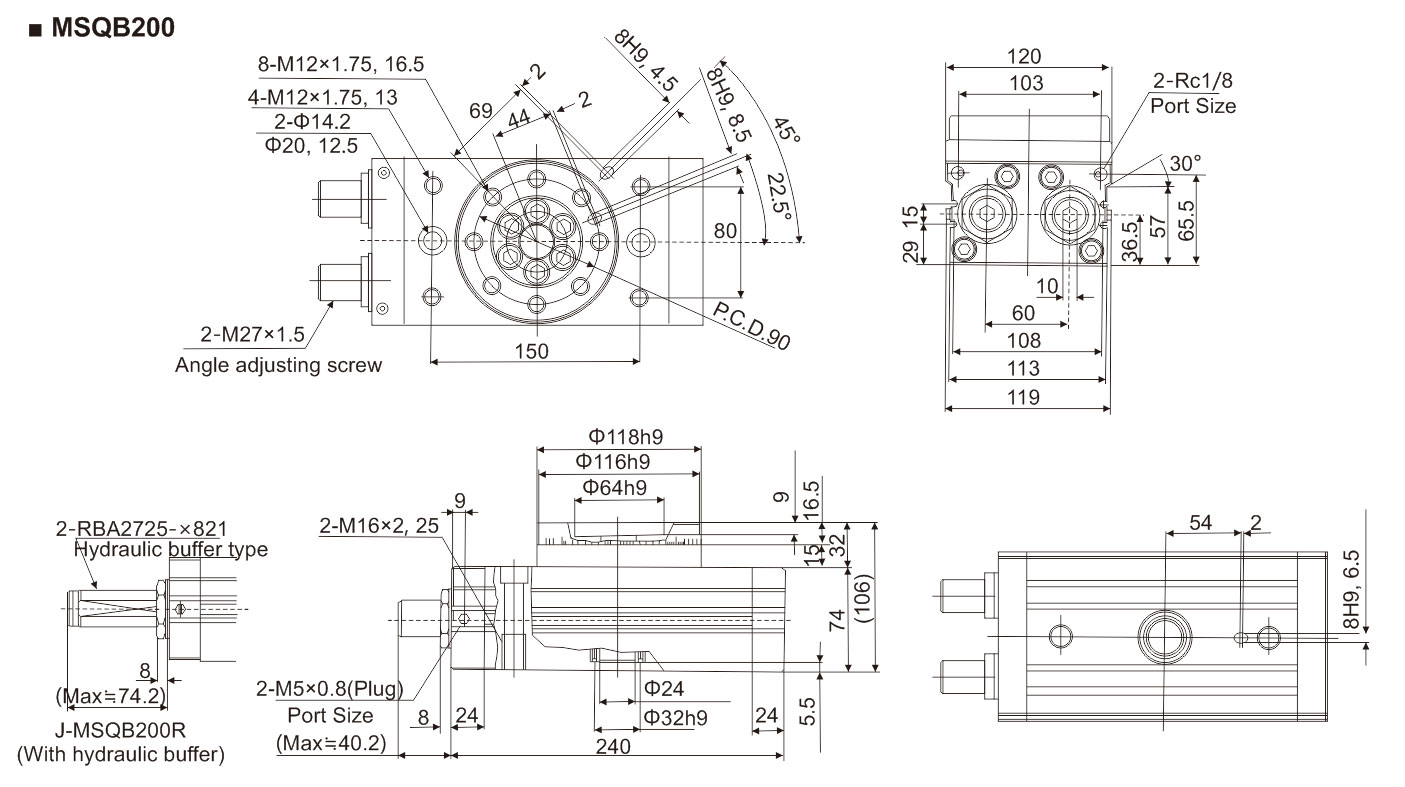

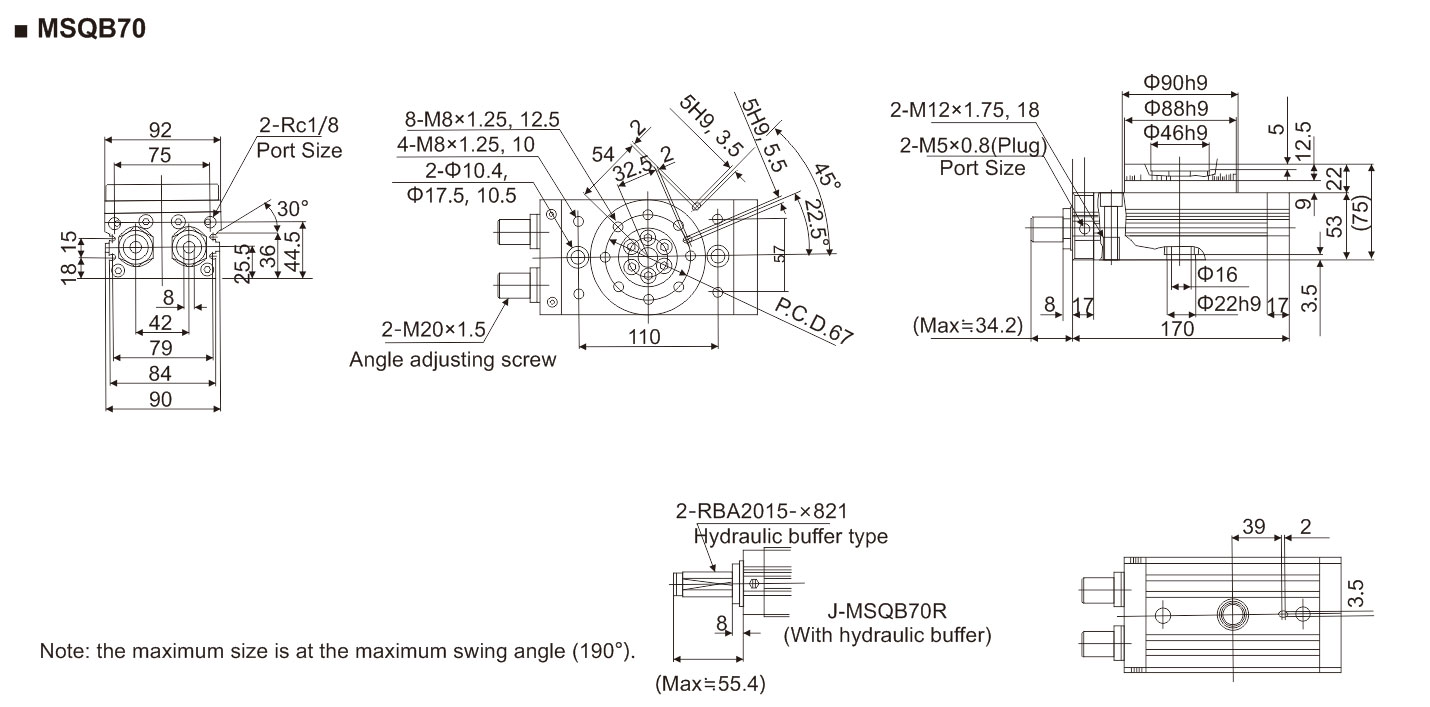

Model A B C D E F G H I J K L M N O P Q R S T U V W X Y Z AA BB CC DD EE FF GG HH II JJ KK LL MM NN OO PP QQ RR SS TT Hydraulic buffer
MSQB10□ 60 27 15 2 M5×0.8 8 M5×0.8 6.8 11 6.5 3H9 3.5 32 93 15H9 5 9.5 8.6 17.7 47 34 4.5 3 13 8 4 46 45 20 M8×1.25 12 M8×1 50 45 20 12 4 27.8 15.5 34.5 9 13 M5×0.8 31.5 8.6 M8×1 RBA0805-X692
MSQB20□ 76 34 20.5 2 M6×1 10 M6×1 8.6 14 8.5 4H9 4.5 43 117 17H9 9 12 10.6 25 54 37 6.5 2.5 17 10 6 61 60 28 M10×1.5 15 M10×1 65 60 27.5 14 5 28.5 16 51 10 12 M5×0.8 34.7 10.6 M10×1 RBA1006-X692
MSQB30□ 84 37 23 2 M6×1 10 M6×1 8.6 14 8.5 4H9 4.5 48 127 22H9 9 12 10.6 25 57 40 6.5 3 17 10 4.5 67 65 32 M10×1.5 15 M10×1 70 65 29 14 5 32 18.5 50 11.5 14 1/8 34.7 10.6 M10×1 RBA1006-X692
MSQB50□ 100 50 26.5 2 M8×1.25 12 M8×1.25 10.5 18 10.5 5H9 5.5 55 152 26H9 10 15.5 14 31.4 66 46 7.5 3 20 12 5 77 75 35 M12×1.75 18 M14×1.5 80 75 38 19 6 37.5 22 63 14.5 15 1/8 51.7 14 M14×1.5 RBA1411-X692
