Air Filter Regulator AC

C Series 2 Piece Filter Regulator combine the air filter and air regulator together. 2 Piece Filter Regulator is an indispensable gas source device in most pneumatic systems. Installed near the gas equipment, it is the final guarantee of compressed air quality.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Range of pressure regulation: AC1010: 0.05~0.7MPa; AC2010~5010: 0.05~0.85MPa

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for AC Series 2 Piece Filter Regulator

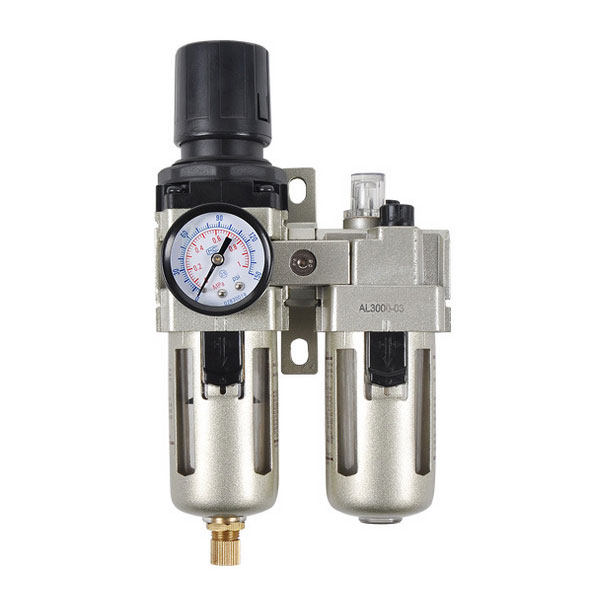

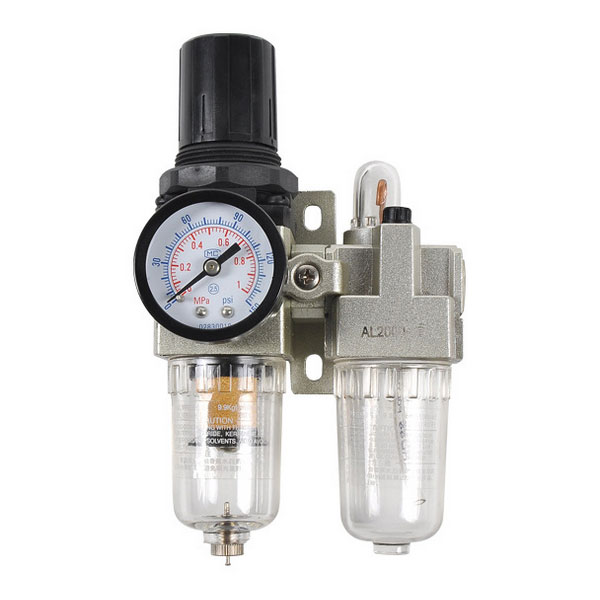

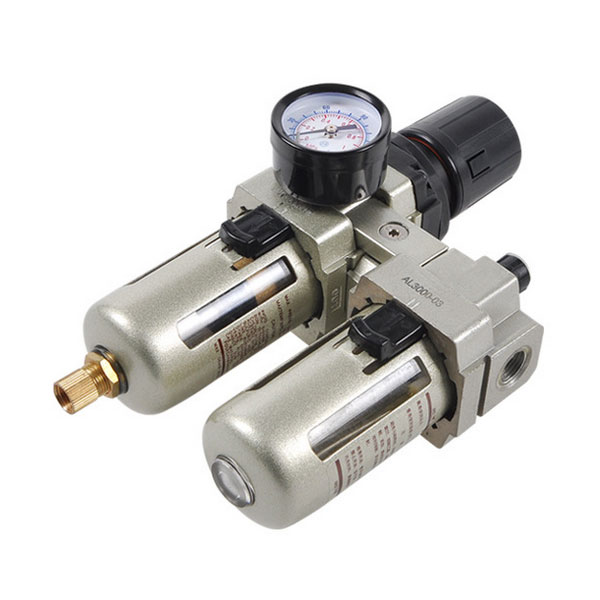

AC Series 2 Piece Filter Regulator: AC2010-01 AC2010-02 AC3010-02 AC3010-03 AC4010-03 AC4010-04 AC4010-06 AC5010-06 AC5010-10
AC Series 2 Piece Filter Regulator is: Combine the air filter and air regulator together is called automatic drainage pneumatic two-piece, its function is the same as the FRL. It can filter and purify the compressed air, add lubricating oil, make the air source instrument wind more suitable for the use of pneumatic instruments and pneumatic equipment, and realize the function of filtering and automatic drainage at the same time. 2 Piece Filter Regulator is an indispensable gas source device in most pneumatic systems. Installed near the gas equipment, it is the final guarantee of compressed air quality. Pneumatic Air Filter Regulator AFR is also known as: automatic drainage gas source treatment two parts; automatic drainage compressed air two parts; automatic drainage pneumatic two parts; automatic drainage function two parts.

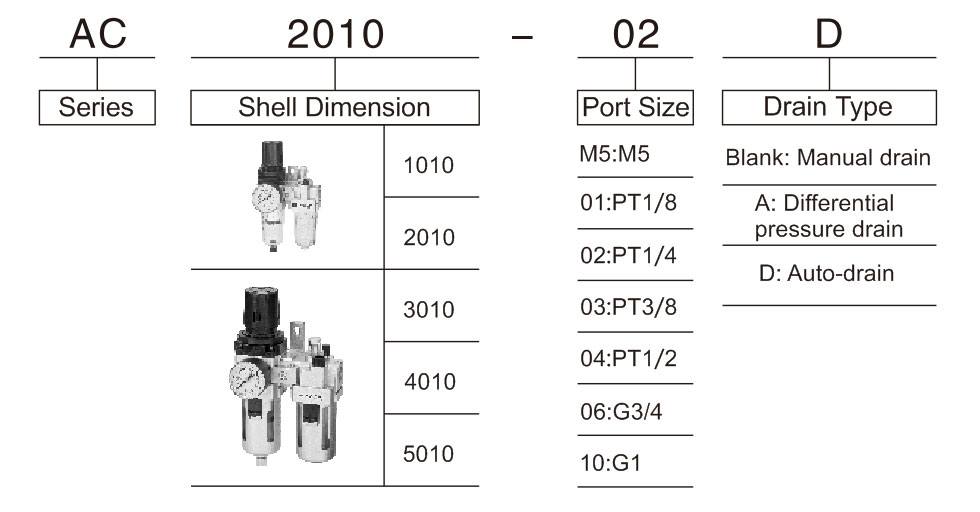

Ordering Code for AC Series 2 Piece Filter Regulator

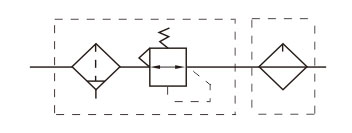

Symbol for AC Series 2 Piece Filter Regulator

Technical Parameter for AC Series 2 Piece Filter Regulator

Model AC1010-M5 AC2010-01 AC2010-02 AC3010-02 AC3010-03 AC4010-03 AC4010-04 AC4010-06 AC5010-06 AC5010-10
Assembly Filter AW1000 AW2000 AW2000 AW3000 AW3000 AW4000 AW40000 AW4000 AW5000 AW5000
Lubricator AL2000 AL2000 AL2000 AL3000 AL3000 AL4000 AL4000 AL4000 AL5000 AL5000
Port size M5×0.8 PT1/8 PT1/4 PT1/4 PT3/8 PT3/8 PT1/2 PT3/4 PT3/4 G1
Gauge Port Size M5×0.8 PT1/8 PT1/8 PT1/8 PT1/8 PT1/4 PT1/4 PT1/4 PT1/4 PT1/4
Rated flow (L/min) 90








Working Medium Compressed Air
Proof Pressure 1.5MPa
Range of pressure regulation 0.05~0.7MPa 0.05~0.85MPa
Ambient temperature 5~60℃
Filtration aperture 40μm(routine) or 5μm(customized)
Lubrication ISO VG32
Bracket (1) Y10T Y20T Y30T Y40T Y50T Y60T
Pressure gauge Y25-M5 Y40-01 Y50-02
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guide AC1010~AC2010: No; AC3010~AC5010: Yes (Iron)

Note: The rated flow is at the supply pressure of 0.7MPa.

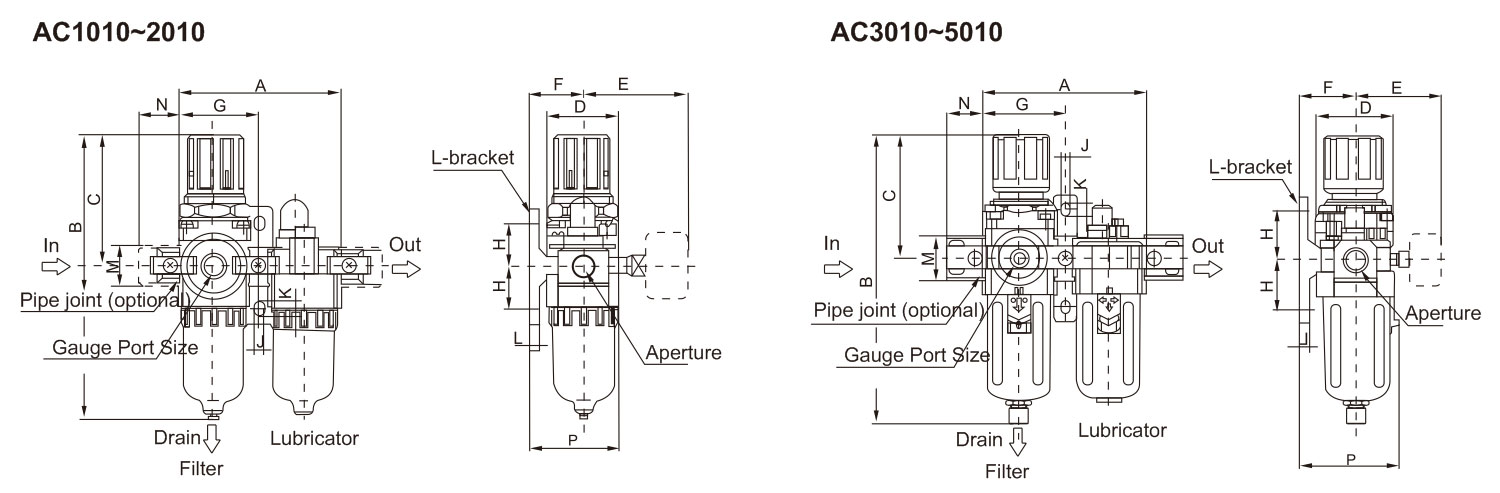

Overall Dimension

Model Aperture A B C D E F G H J K L M N P
AC1010 M5×0.8 58 109.5 50.5 25 26 25 29 20 4.5 7.5 5 17.5 16 38.5
AC2010 PT1/8,PT1/4 90 164.5 78 40 56.8 30 45 24 5.5 8.5 5 22 23 50
AC3010 PT1/4,PT3/8 117 211 92.5 53 60.8 41 58.5 35 7 11 7 34.5 26 70.5
AC4010 PT3/8,PT1/2 154 262.5 112 70 70.5 50 77 40 9 13 7 42.2 26 88
AC4010-06 G3/4 164 267 114 70 70.5 50 82 40 9 13 7 46.2 36 88
AC5010 G3/4,G1 195 345 115 70 70.5 50 95 45 12 16 10 51 46 98

Note: due to the different drainage components, the B values in the table will be slightly different. If necessary, please contact the sales department.
