Vacuum Filter ZFC

Small size and light weight, Quick change joint type, convenient and quick to configure, the filter element can be replaced.

Flow (L/min): 10,20,30,50
Working Medium: Air / nitrogen
Operating Pressure: -100~0kPa
Filtration Accuracy: 10μm

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

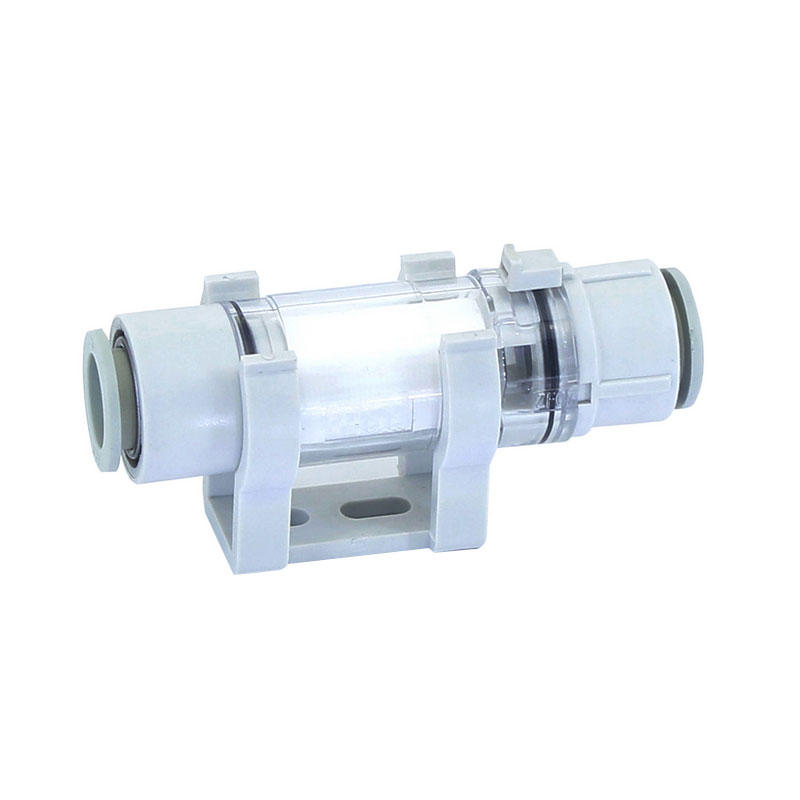

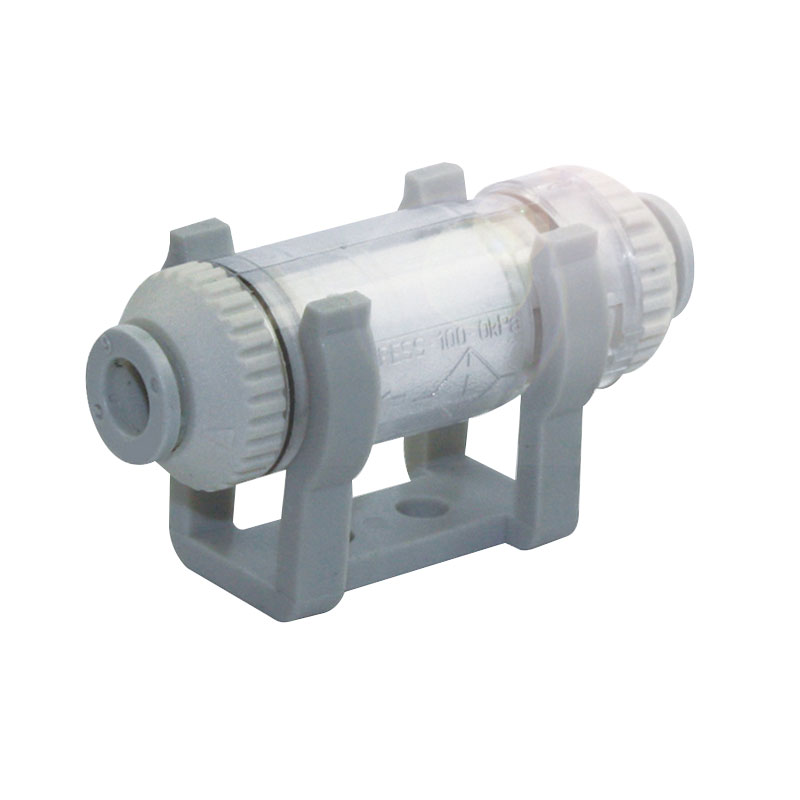

Overview for Vacuum Filter ZFC

Product Name: Vacuum Filter
Model: ZFC54B (5: flow 20L/min, 4: pipe 6mm, B: with bracket)
Specifications: 6mm tube at both ends, flow 20L/min, with bracket
Product accessories: no
Product material: PBT plastic
Packing type: Products are foam or plastic film packaging, overall is carton packaging
Performance characteristics: compact structure, easy installation, and filter core can be replaced.
Optional specifications: ZFC53B, ZFC54B, ZFC74B, ZFC75B, ZFC76B, ZFC77B
Small size and light weight
Quick change joint type, convenient and quick to configure, the filter element can be replaced.
Adopts quick assembly and disassembly structure, the filter element can be replaced without tools.
Straight-through type, inlet and outlet on the same line, easy to install.
Standard type with brackets.
Operating pressure range: 0.1MPa~-100kPa; filter element pressure difference: 0.15MPa; Operating temperature range: 0~60°C; Filtration accuracy: 5μm

Technical Parameters for Vacuum Filter ZFC

Flow (L/min): 10,20,30,50
Working Medium: Air / nitrogen
Operating Pressure: -100~0kPa
Filtration Accuracy: 10μm

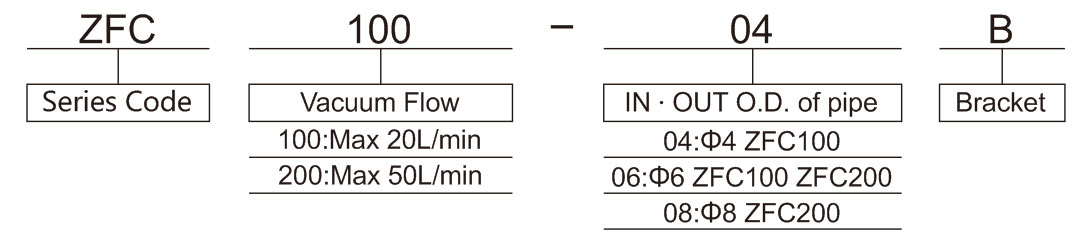

Ordering Code

Symbol

Technical Parameter

Model ZFC100-04B ZFC100-06B ZFC200-06B ZFC200-08B
Outside diameter of pipe (mm) Φ4 Φ6 Φ6 Φ8
Flow (L/min) 10 20 30 50
Working Medium Air / nitrogen
Operating Pressure -100~0kPa
Filtration Accuracy 10μm
Ambient and Fluid Temp. 0~60℃ (No Freezing)
Differential pressure resistance of Filter element 1.5bar
Suitable hose material Nylon, soft nylon, PU hose, extremely soft U tube
Filter element (spare parts) FC-100 FC-200

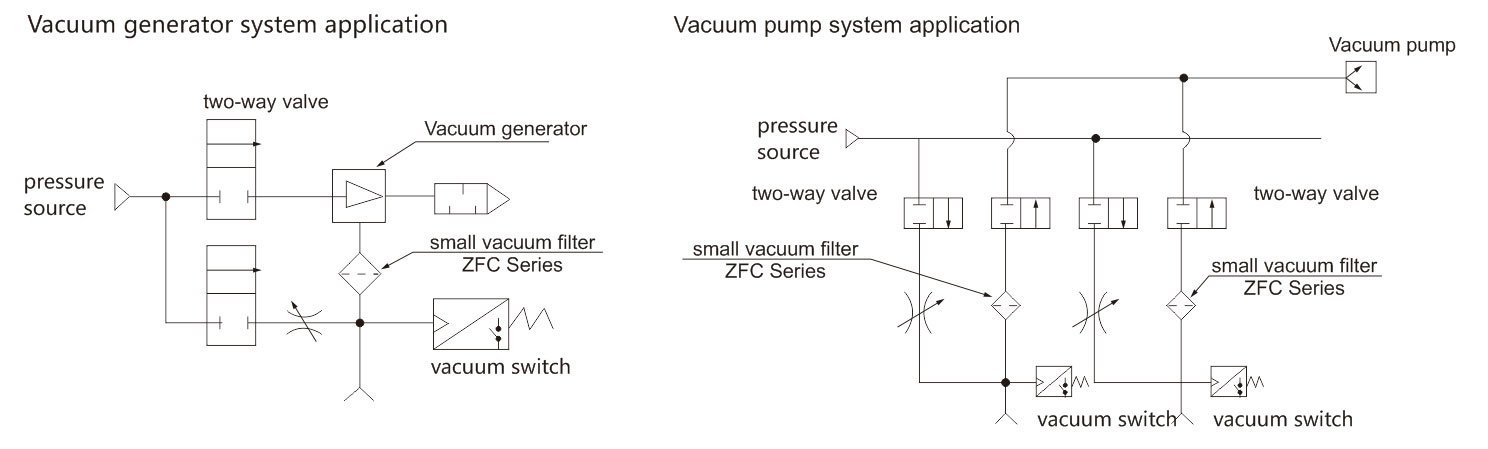

Application Example

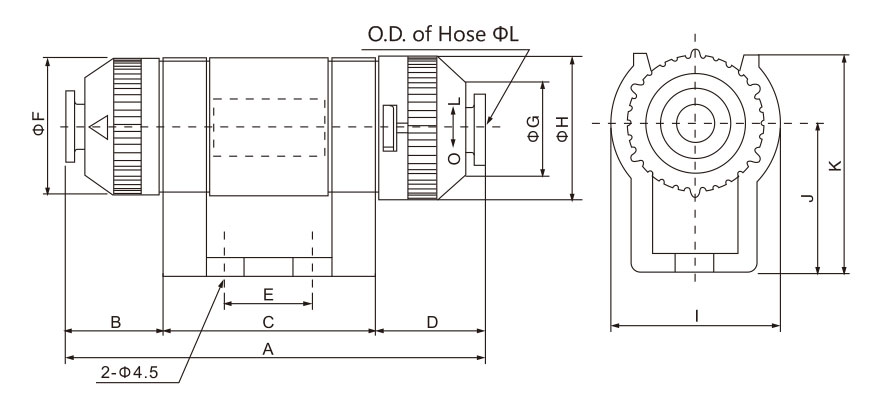

Overall Dimension

表格
Model A B C D E F G H I J K L
ZFC-100-04B 53.2 9.1 30 14.1 10 18 11.6 19.5 23 20 29 4
ZFC-100-06B 53.2 9.1 30 14.1 10 18 11.6 19.5 23 20 29 6
ZFC-200-06B 67 15.5 34 17.5 14 22 15.6 23.1 27 24 35 6
ZFC-200-08B 67 15.5 34 17.5 14 22 15.6 23.1 27 24 35 6
