Air Filter Regulator Lubricator UFRL

UFRL 3 Units Combination has 360˚ Omni-directional Visual Lubricator Observation Window, Air Combination remove water and particle very effectively. Accurate and easy pressure setting. Lubricator can be replenished without stopping air supply.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: -10~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Range of pressure regulation: 0.05~0.9MPa

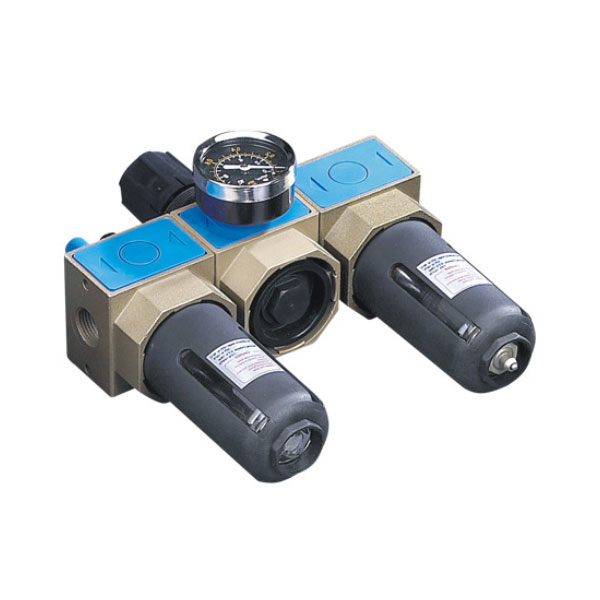

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for UFRL 3 Units Combination

UFRL 3 Units Combination has 360˚ Omni-directional Visual Lubricator Observation Window, Optional metal cup cover , Port size: G1/4~1, Pressure Range: 0.15-0.85 Mpa.
Air Combination's pressure range is 0.5 to 10 bar, pressure tested to 15 bar. 40μm and 5μm PE and sintered bronze filter element are easily interchangeable and replaceable. Drain standard semi automatic, optional manual or fully automatic drain. Air Combination remove water and particle very effectively. Air Combination from China Air Filter Regulator Lubricator FRL Manufacturers And Suppliers has accurate and easy pressure setting. Lubricator can be replenished without stopping air supply. Oil spray in mist ensures good lubrication for machines. Bowl standard polycarbonate, option Acid & alkali resistant bowl or aluminium bowl provide excellent protection against aggressive or chemical working environment.

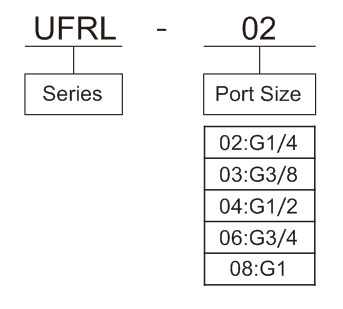

Ordering Code for UFRL 3 Units Combination

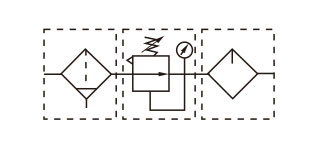

Symbol for UFRL 3 Units Combination

Technical Parameter for Air Combination

Specification UFRL-02 UFRL-03 UFRL-04 UFRL-06 UFRL-08
Assembly UR-02 UR-02 UR-02 UR-02 UR-02
UL-02 UL-02 UL-02 UL-02 UL-02
UF-02 UF-02 UF-02 UF-02 UF-02
Port Size G1/4 G3/8 G1/2 G3/4 G1
Working Medium Compressed Air
Range of pressure regulation 0.05~0.9MPa
Max. Proof Pressure 1.5MPa
Filtration aperture 40μm(routine) or 5μm(customized)
Max. flow 2080L/min 2100L/min 2600L/min 7940L/min 8200L/min
Capacity of oil bowl 125ml 235ml
Capacity of water bowl 105ml 210ml
Lubrication ISO VG32 or the same grade oil
Ambient temperature -10~60℃
Main material Body: Die cast aluminum; Bowl: PC

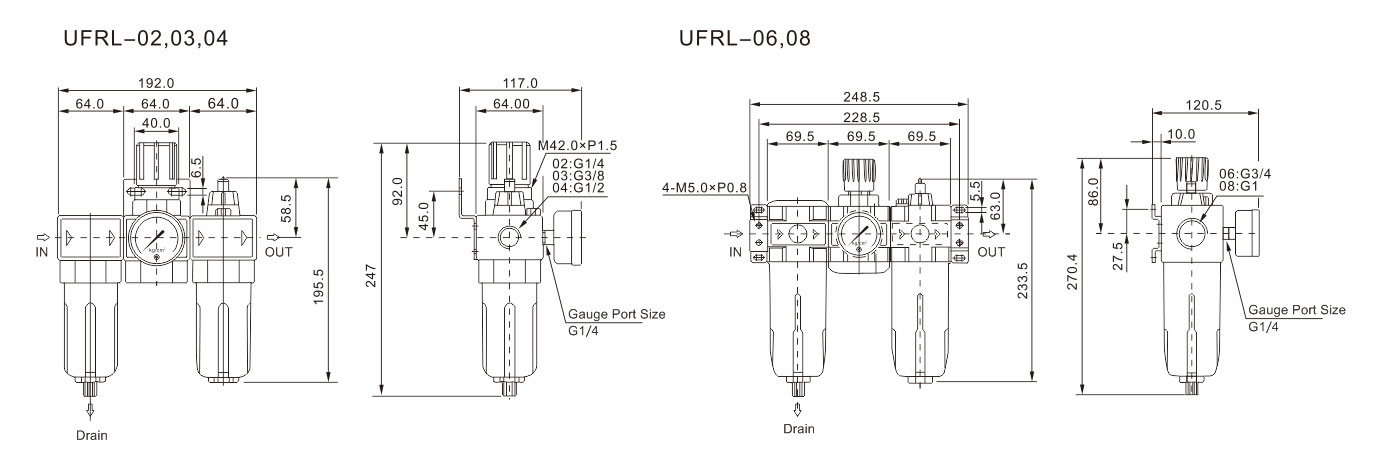

Overall Dimension
