Air Filter Regulator SFC

SFC-300 Pneumatic Air Filter Regulator is a new generation of gas source treatment equipment developed by introducing foreign advanced technology and combining with our own processing strength. SFC-300 has high regulation accuracy, long service life, simple maintenance and so on.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: 5~60℃
Filtration aperture: 40μm(routine) or 5μm(customized)
Range of pressure regulation: 0.05~0.85MPa

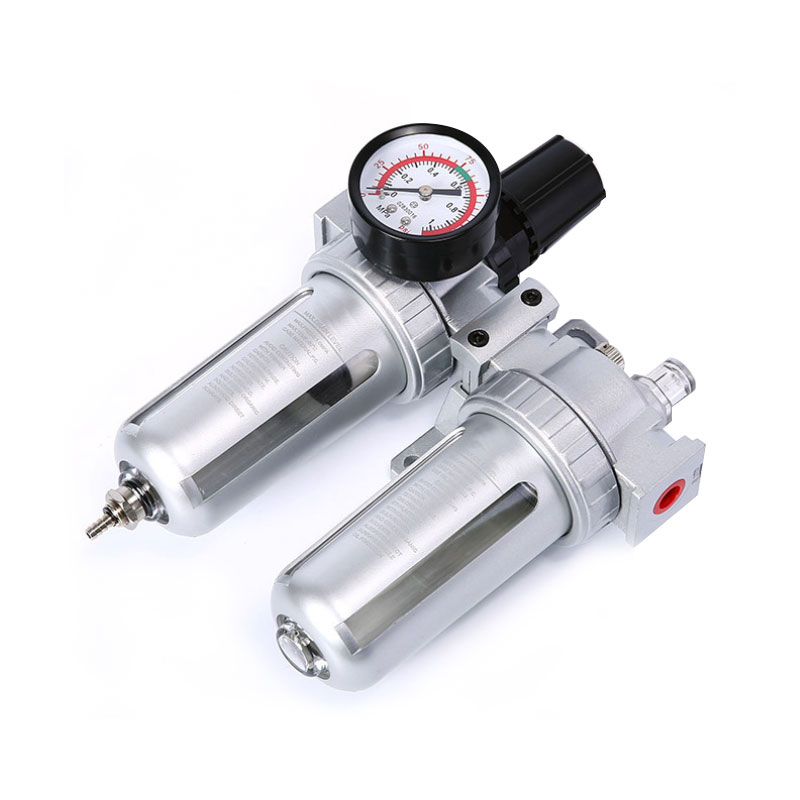

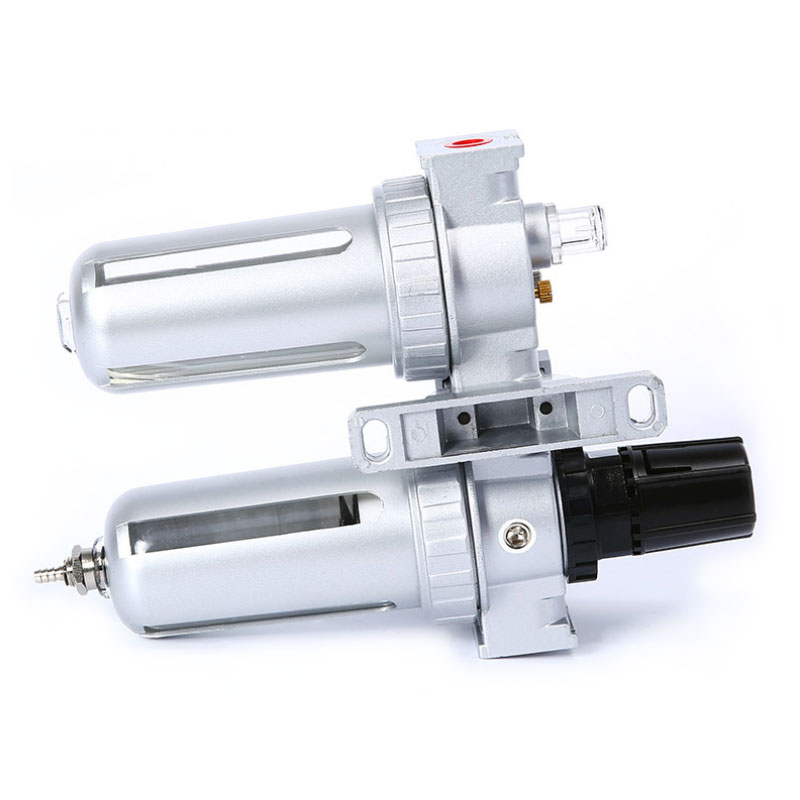

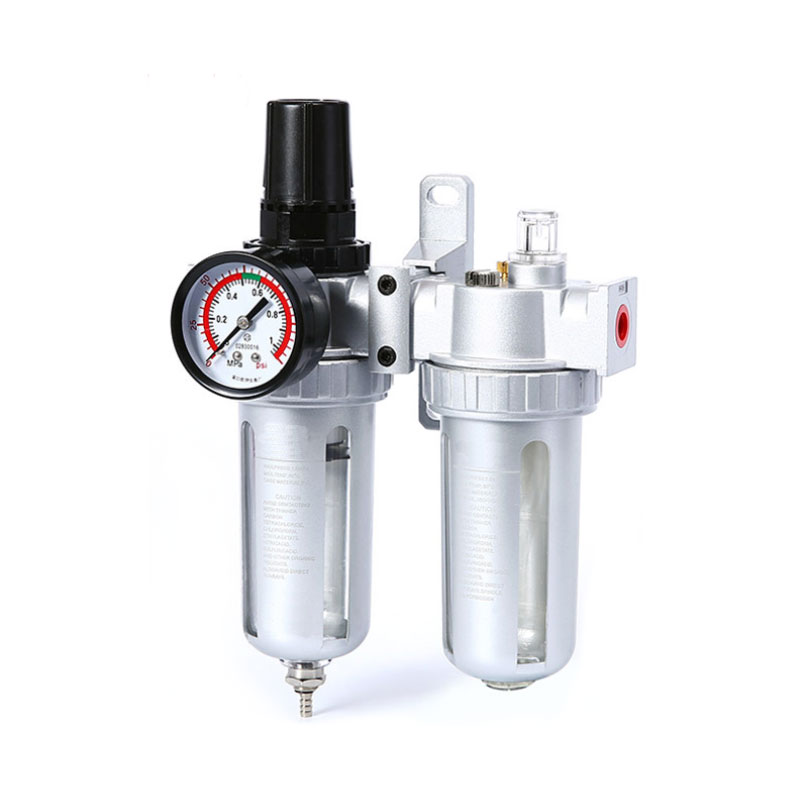

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Pneumatic Air Filter Regulator

SFC series Pneumatic Air Filter Regulator: SFC-02, SFC-03, SFC-04. SFC-300 Pneumatic Air Filter Regulator is a new generation of gas source treatment equipment developed by introducing foreign advanced technology and combining with our own processing strength. SFC-300 Pneumatic Air Filter Regulator has the characteristics of high regulation accuracy, long service life, simple maintenance and so on. Pneumatic Air Filter Regulator AFR is a good matching choice for many pneumatic equipments. Now it is also called: Filter regulator lubricator, compressed air two-piece, instrument air treatment two-piece, air filtration combination, two-point combination, etc.

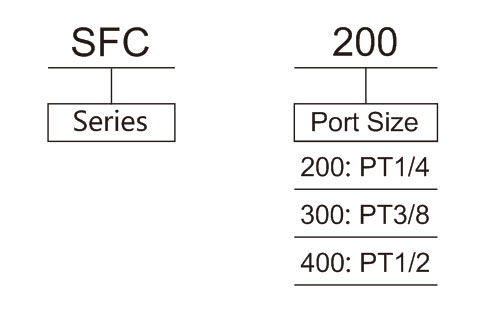

Ordering Code for SFC Pneumatic Air Filter Regulator

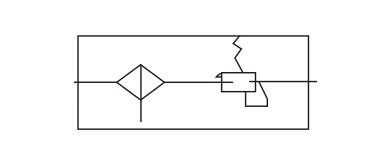

Symbol for SFC-300 Pneumatic Air Filter Regulator

Technical Parameter for SFC-300 Pneumatic Air Filter Regulator

Model SFC 200 SFC 300 SFC 400
Port Size PT1/4 PT3/8 PT1/2
Working Medium Compressed air
Proof Pressure 1.5MPa
Max. Pressure Regulation 0.85MPa
Operating Temperature Range 5~60℃
Filtration aperture 40μm(routine) or 5μm(customized)
Lubrication ISO VG32
Main parts material Body material Aluminium Alloy
Bowl material PC
Bowl guide Plastics

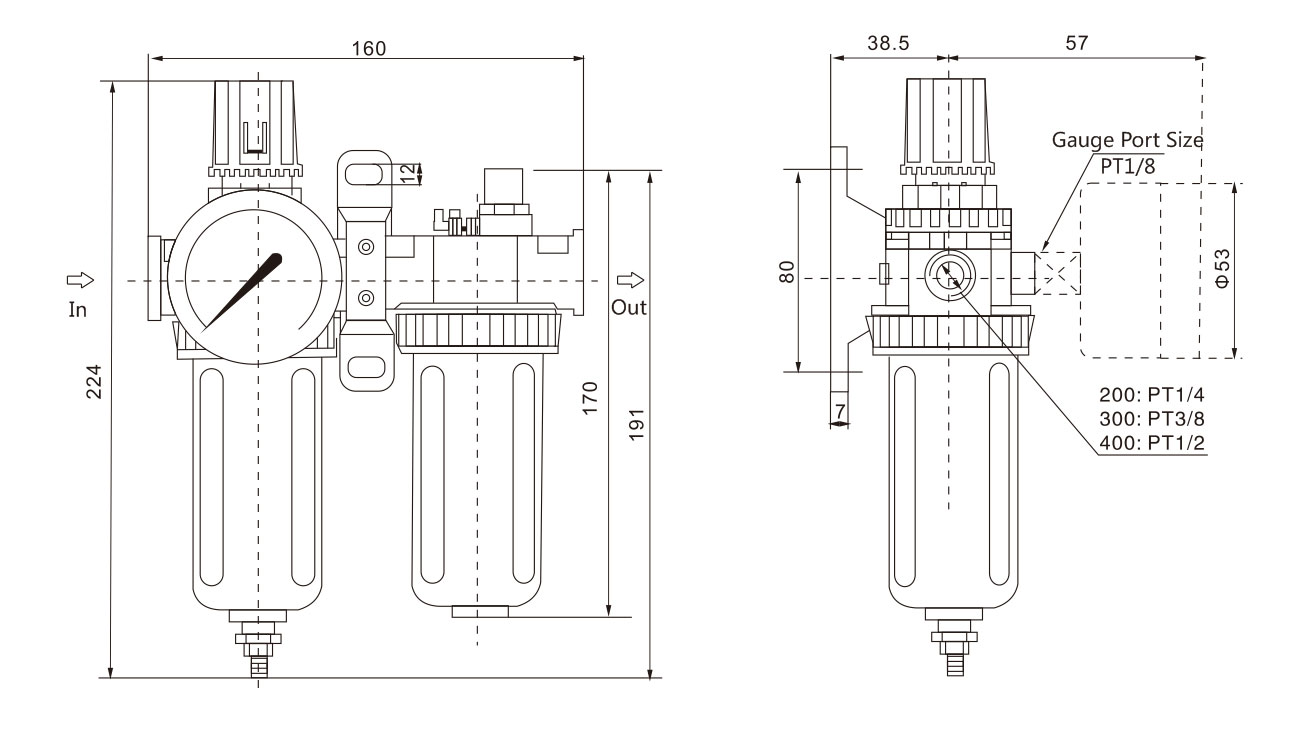

Overall Dimension
