Metal Pneumatic Fittings KTC

The Metal Pneumatic Fittings KTC is a kind of connecting piece mainly used for pneumatic tools and air piping to realize pipeline connection.

Proof Pressure: 1.32MPa(1.35kgf/cm²)
Max. Operating Pressure: 0~0.9MPa(0~9.2kgf/cm²)
Ambient and fluid temperature: 0~60℃
Applicable Hose: PU hose, nylon tube

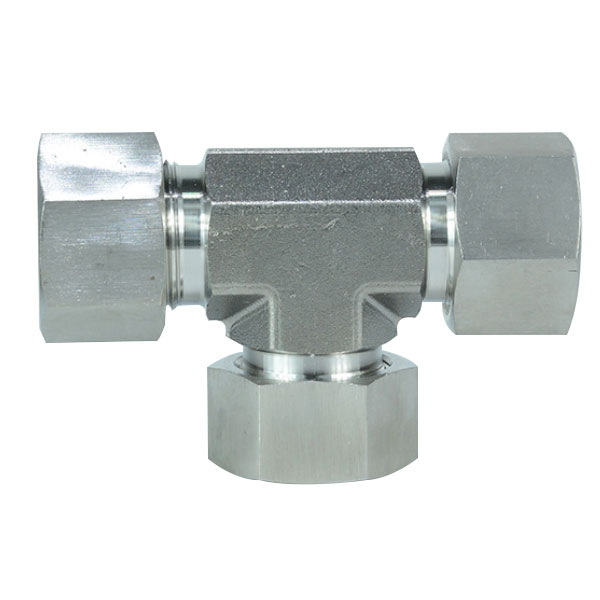

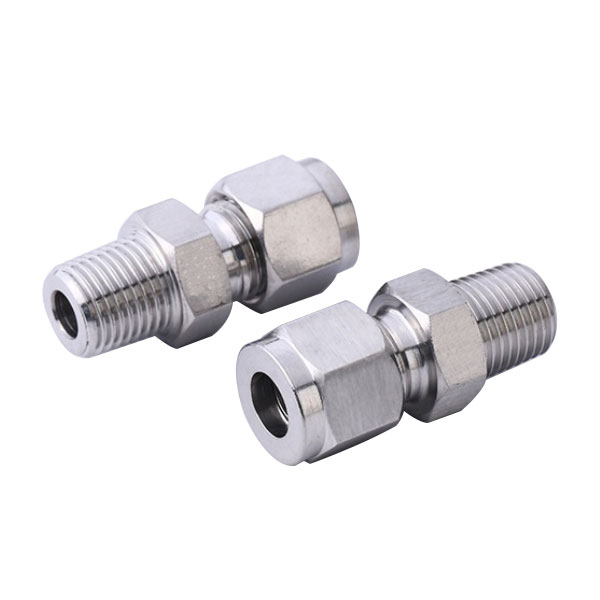

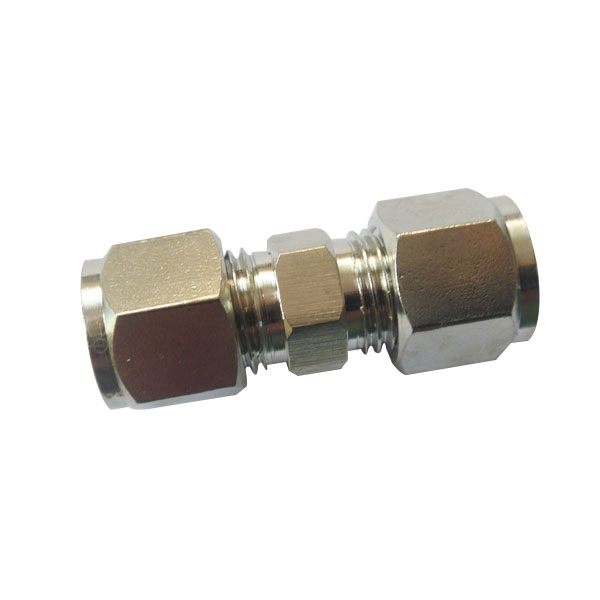

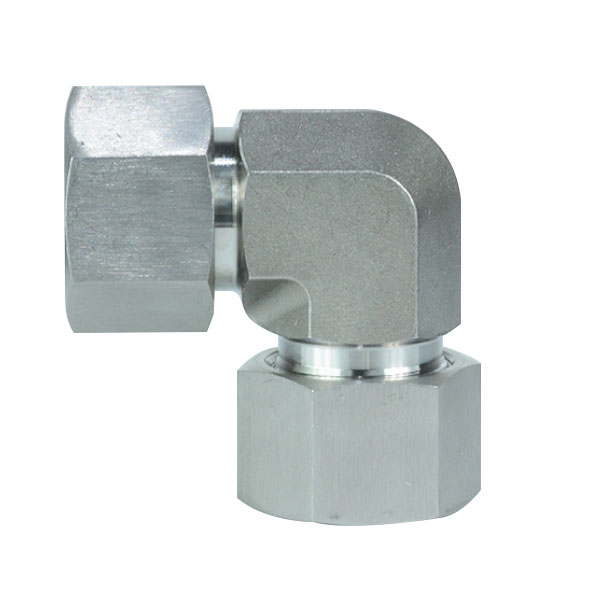

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Metal Pneumatic Fittings KTC

The Metal Pneumatic Fittings KTC is a kind of connecting piece mainly used for pneumatic tools and air piping to realize pipeline connection.
The material of the Pneumatic Fittings is usually copper, plastic, plastic steel, stainless steel, etc.
The features of quick connector:
1. Quick installation, simple and convenient, save space.
2. Various types, to meet the needs of any pneumatic pipe.
3. After installation, the plastic pipe body can also be arbitrarily turned.
4. The release ring adopts an elliptical design, which makes the disassembly more labor-saving and convenient.
Pneumatic joint shape: The shape of the pneumatic joint usually has straight-through, right angle, three-way, four-way, five-way, through-plate, throttling and other categories, which can be used for pipe connection under different conditions.

Technical Parameters for Metal Pneumatic Fittings KTC

Proof Pressure: 1.32MPa(1.35kgf/cm²)
Max. Operating Pressure: 0~0.9MPa(0~9.2kgf/cm²)
Ambient and fluid temperature: 0~60℃
Applicable Hose: PU hose, nylon tube

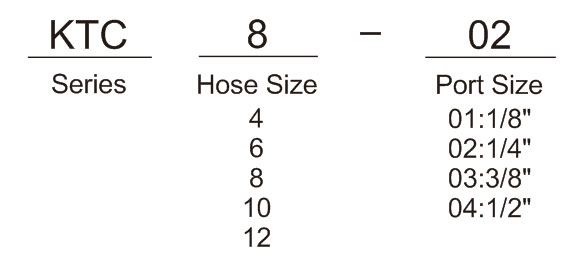

Ordering Code for Metal Pneumatic Fittings KTC

Technical Parameter for Metal Pneumatic Fittings KTC

Working Medium Clean air, vacuum
Proof Pressure 1.32MPa(1.35kgf/cm²)
Max. Operating Pressure Max. Operating Pressure 0~0.9MPa(0~9.2kgf/cm²)
Vacuum -99.99~0KPa(-750~0kgf/cm²)
Ambient and fluid temperature 0~60℃
Applicable Hose PU hose, nylon tube
Material Copper
