Air Filter Regulator FR

The filter of FR Air Combination is designed with a novel cyclone blade, high water separation efficiency and with drainage device. The regulator of FR Air Combination adopts a balanced pressure regulating structure, which has good pressure stability, high precision, and sensitive reaction.

Working Medium: Compressed Air
Proof Pressure: 1.5MPa
Ambient temperature: -10~60℃
Filtration aperture: 25μm)
Range of pressure regulation: 0.05~0.85MPa

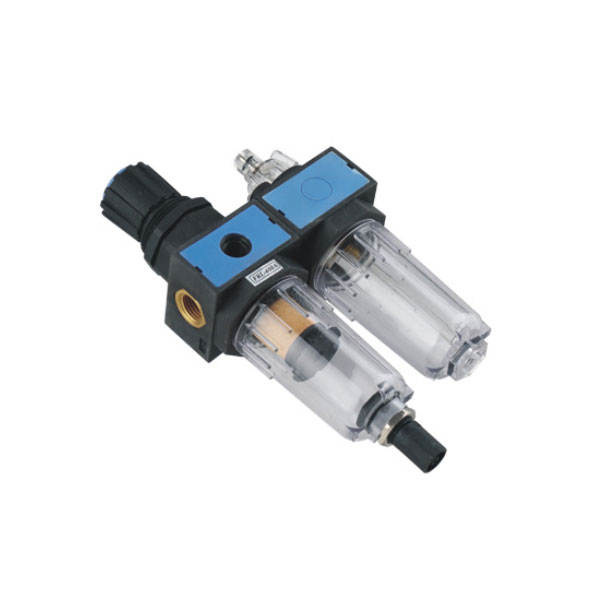

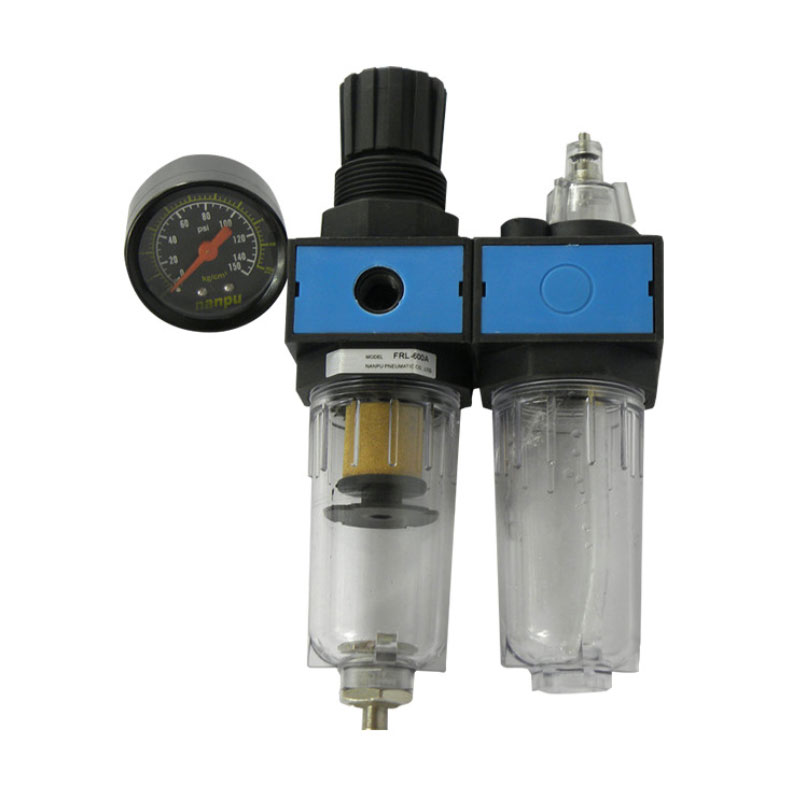

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for FR Air Filter Regulator

The filter of FR Air Combination is designed with a novel cyclone blade, high water separation efficiency and with drainage device.
The regulator of FR Air Combination adopts a balanced pressure regulating structure, which has the characteristics of good pressure stability, high precision, and sensitive reaction.
The lubricator of FR Air Combination adopts balanced air intake with overflow device, which has the advantages of high stabilizing pressure precision, sensitive response and firm locking.
Machining valve holes with high precision finishing process, the service life is longer.
Pneumatic Air Filter Regulator AFR is widely used in equipment, and is one of the most basic components of automation. FR Air Filter Regulator can replace similar products.
Various specifications are optional, and installation is more convenient.
Using the technology of oxidation first then spray painting, double protection valve body, can adapt to worse environment.

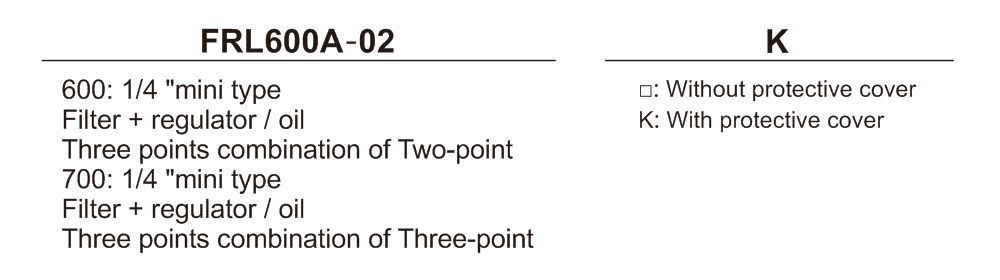

Ordering Code for FR Air Filter Regulator

Technical Parameter for FR Air Filter Regulator

Model FRL-600A FRL-700A
Port Size 1/4"
Max. flow 1850L/min 1800L/min
Weight 560g 810g
Capacity of water bowl 35cc
Capacity of oil bowl 50cc
Working Medium Compressed air
Structure Diaphragm Type
Material Body: Engineering plastics
Bowl: Engineering plastics
Filter Precision Standard 5 micron
Operating Pressure Range 0.5~8.0kgf/cm²
Temperature Range -10~60℃
Lubrication ISO VG32
Drain Type Semi auto drain (less than 0.5kgf/cm²)
Accessory Pressure gauge, Fixed mount

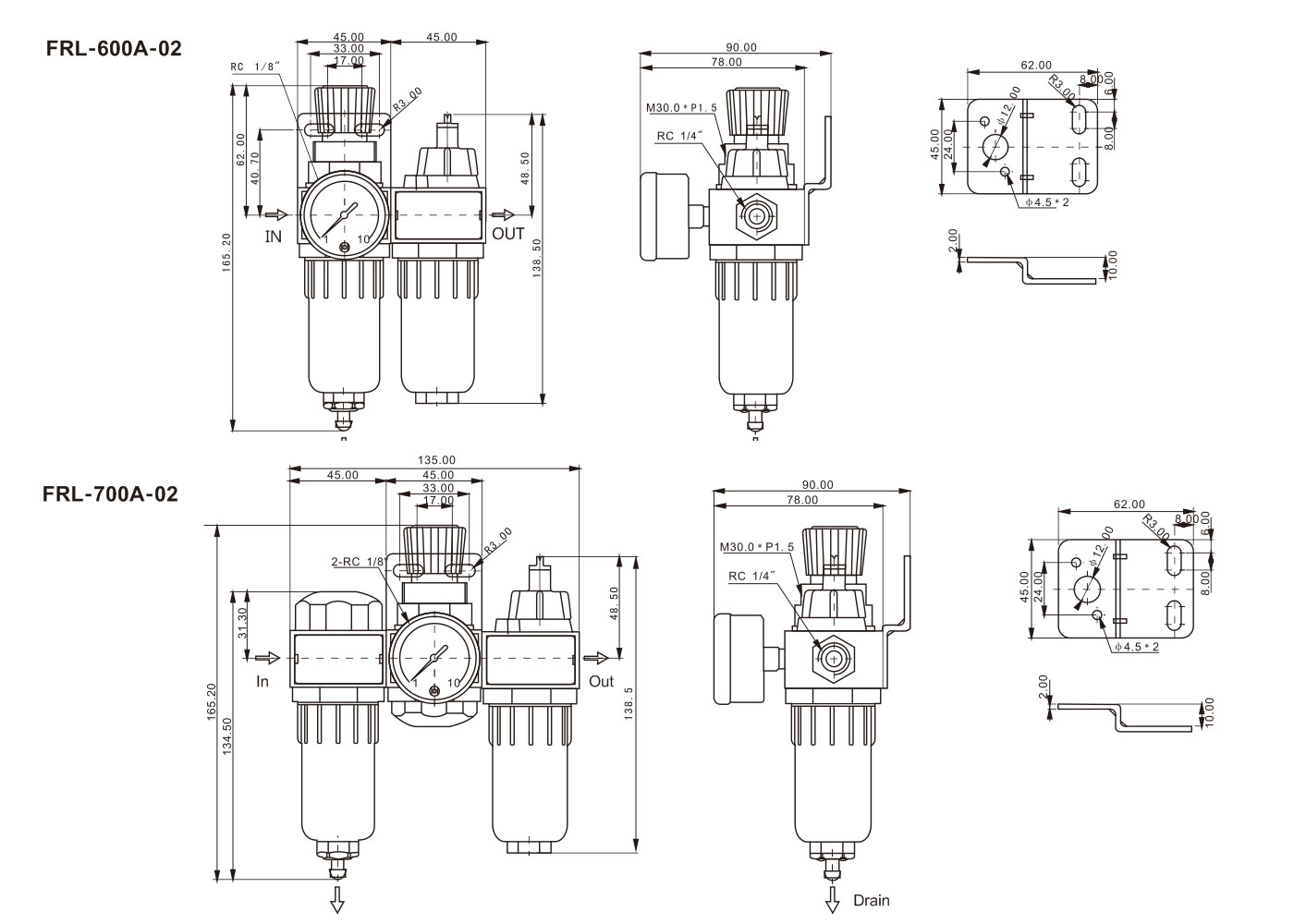

Overall Dimension for FR Air Combination
