CY1L Rodless Air Cylinder

CY1L Rodless Pneumatic Cylinder has no rigid piston rod of ordinary cylinder, it uses piston to realize reciprocating movement directly or indirectly. The advantage of this kind of cylinder is to save installation space, especially suitable for occasions with small bore and long stroke.

Bore Sizes: 6,10,15,20,25,32,40
Stroke Lengths: 50,100,150,200,250,300,400,500,600,700,800,900,1000,1500mm
Operating Pressure: 0.18-0.7 MPa
Speed: 50-1000mm/s;
Working Environment Temperature: -10 to 60°C

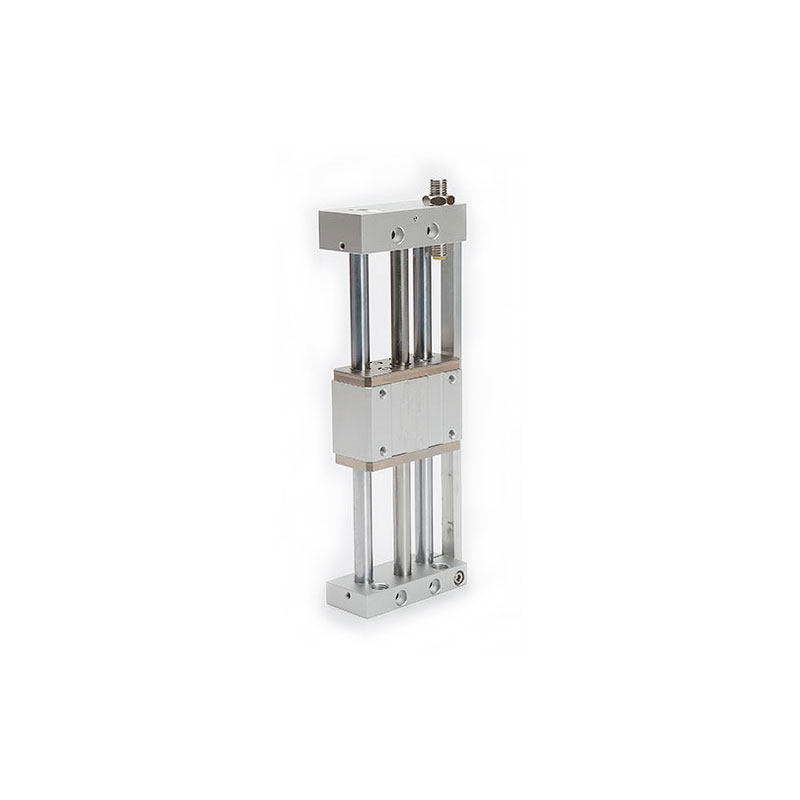

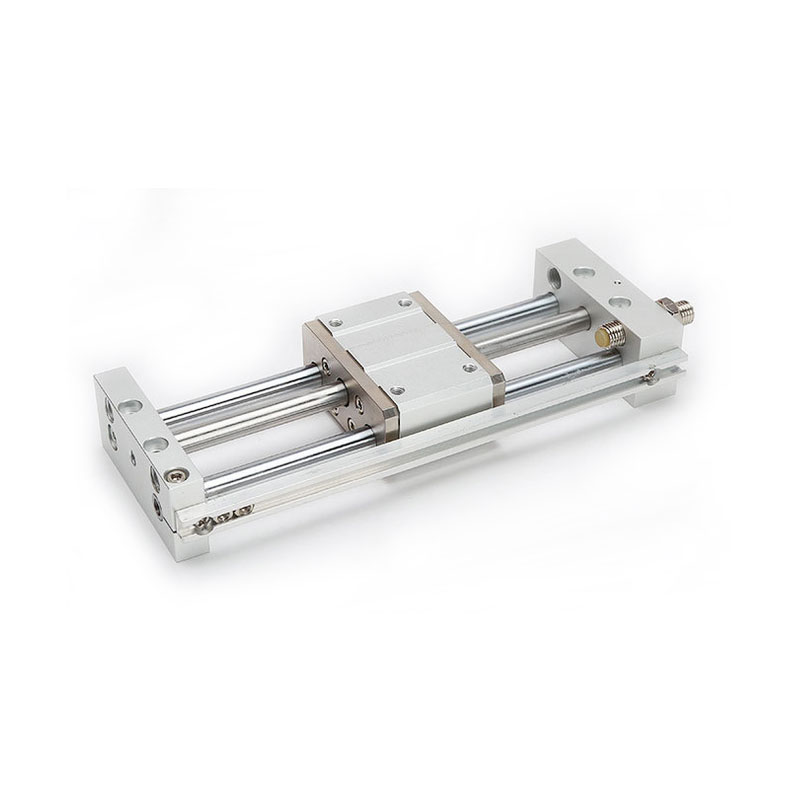

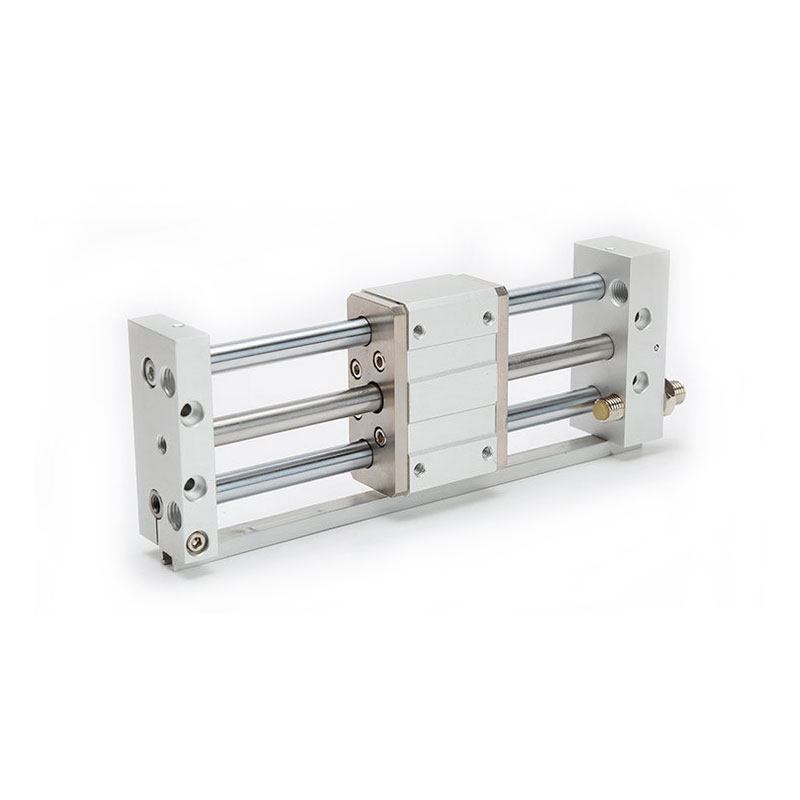

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for CY1L Rodless Air Cylinder

1. CY1L Rodless Pneumatic Cylinder has no rigid piston rod of ordinary cylinder, it uses piston to realize reciprocating movement directly or indirectly. The advantage of this kind of cylinder is to save installation space, especially suitable for occasions with small bore and long stroke.
2. The CY1L Linear Guides Actuator mainly includes mechanical contact cylinder, magnetic coupling cylinder, rope cylinder and steel belt cylinder. The first two kinds of rod less cylinders have been widely applied in pneumatic automation systems and pneumatic robots. Generally speaking, the mechanical coupling rodless cylinder is referred to as the rodless cylinder, and the magnetic coupling cylinder is referred to as the magnetic cylinder.
3. The working principle of CY1L Linear Guides Actuator: A set of high-strength magnetic permanent magnet rings is mounted on the piston. The magnetic force line acts on another set of magnetic rings sleeved outside through the thin-walled cylinder. Because the two sets of magnetic rings have opposite magnetism, they have strong suction force. When the piston is pushed by air pressure in the cylinder, the magnetic ring sleeve outside the cylinder is driven to move together under the action of magnetic force. The thrust of the cylinder piston must be compatible with the suction of the magnetic ring.

Technical Parameters for CY1L Rodless Air Cylinder

CY1L Linear Guides Actuator Bore Sizes: 6,10,15,20,25,32,40
CY1L Linear Guides Actuator Stroke Lengths: 50,100,150,200,250,300,400,500,600,700,800,900,1000,1500mm
Operating Pressure: 0.18-0.7 MPa
Speed: 50-1000mm/s;
Working Environment Temperature: -10 to 60°C

Characteristics of CY1L Rodless Air Cylinder

1. Built-in magnetic ring type, can be operated with magnetic switch.
2. The magnet has high retention.

Specification for CY1L Rodless Air Cylinder

Bore(mm) 6 10 15 20 25 32 40
Working Medium Air
Motion Pattern Double-acting
Max. Operating Pressure MPa 0.7MP
Min. Operating Pressure MPa 0.18MP
Ambient and fluid temperature -10~+60℃ (No Freezing)
Piston speed 50~1000mm/s
Cushion Both Side Rubber/Hydraulic Buffer (Option)
Stroke Tolerance mm 0~250: +1.0/-0, 251~1000:+1.4/-0 , 1001~:+1.8/-0
*Lubrication Non-lube
Port Size Rc M5×0.8 1/8 1/4
Mounting Type No limit

*For Lubrication, please use ISOVG32.

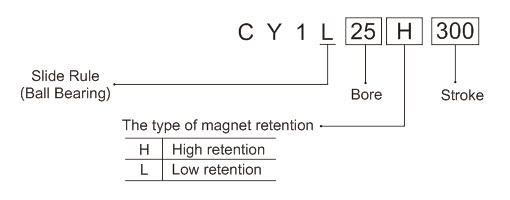

Ordering Code for CY1L Rodless Air Cylinder

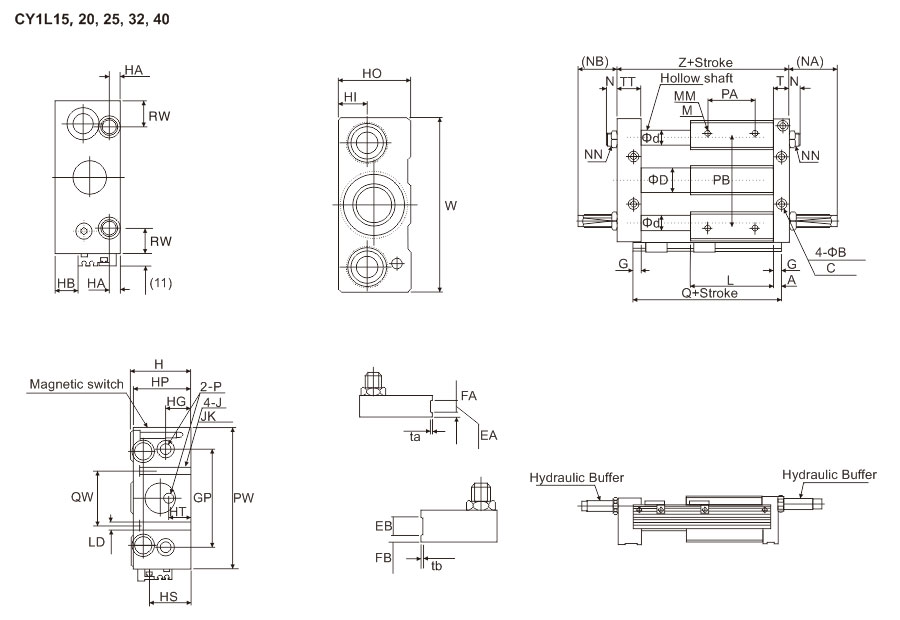

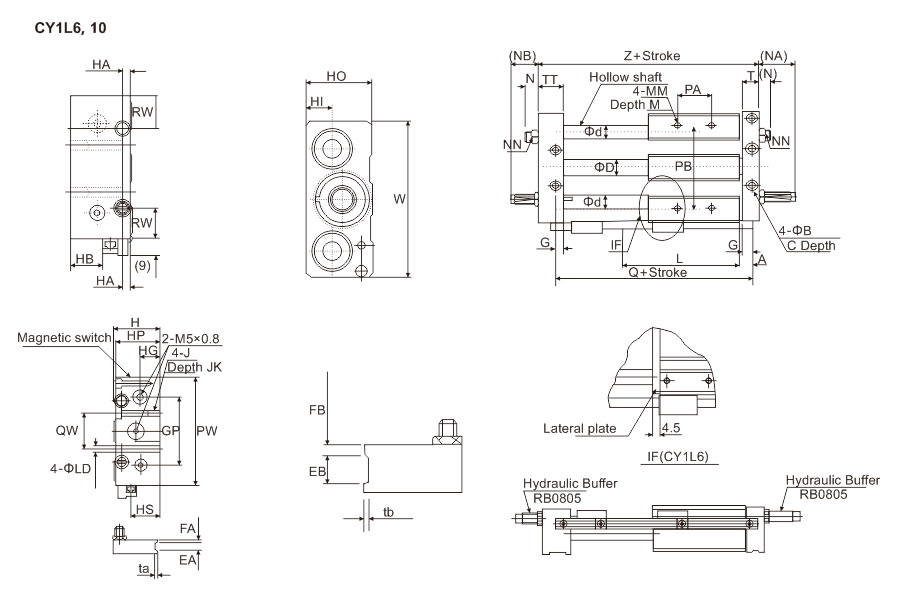

Dimension (mm) for Rodless Cylinder CY1L Series

Model Stroke range A B C D d EA EB FA FB G GP H HA HB HG HI HO HP HS HT J JK L LD M MM N (NA) (NB) NN *PA PB PW Q QW RW T TT ta tb W Z
CY1L6 ~300 7 6.5 3 7.6 8 - - - - 6 36 27 6 10 11 9 25 26 14 16 M4×0.7 6.5 40 3.5 6 M4×0.7 10 30 24 M8×1.0 24 40 60 54 20 12 10 16 - - 56 68
CY1L10 ~500 8.5 8 4 12 10 6 12 3 5 7.5 50 34 6 17.5 14.5 13.5 33 33 21.5 18 M5×0.8 9.5 68 4.3 8 M4×0.7 9.5 27 19 M8×1.0 30 60 80 85 26 17.5 12.5 20.5 0.5 1.0 77 103

Model Stroke A B C D d EA EB FA FB G GP H HA HB HG HI HO HP HS HT J JK L LD M MM (N) (NA) (NB) NN P *PA PB PW Q QW RW T ta tb TT W Z Hydraulic buffer
CY1L15 ~750 7.5 9.5 5 16.6 12 6 13 3 6 6.5 65 40 6.5 4 16 14 38 39 25 16 M6×1.0 9.5 75 5.6 8 M5×0.8 7.5 27 17 M8×1.0 M5×0.8 45 70 95 90 30 15 12.5 0.5 1.0 22.5 92 112 RB0805
CY1L20 ~1500 9.5 9.5 5.2 21.6 16 - - - - 8.5 80 46 9 10 18 16 44 45 31 20 M6×1.0 10 86 5.6 10 M6×1.0 10 29 20 M10×1.0 Rc1/8 50 90 120 105 40 28 16.5 - - 25.5 117 130 RB1006
CY1L25 ~1500 9.5 11 6.5 26.4 16 8 14 4 7 8.5 90 54 9 18 23 21 52 53 39 20 M8×1.25 10 86 7 10 M6×1.0 11 49 40 M14×1.5 Rc1/8 60 100 130 105 50 22 16.5 0.5 1.0 25.5 127 130 RB1411
CY1L32 ~1500 10.5 14 8 33.6 20 8 16 5 7 9.5 110 66 12 26.5 26.5 24.5 64 64 47.5 25 M10×1.5 15 100 9.2 12 M8×1.25 11.5 52 42 M20×1.5 Rc1/8 70 120 160 121 60 33 18.5 0.5 1.0 28.5 157 149 RB2015
CY1L40 ~1500 11.5 14 8 41.6 25 10 20 5 10 10.5 130 78 12 35 30.5 28.5 76 74 56 30 M10×1.5 15 136 9.2 12 M8×1.25 10.5 51 36 M20×1.5 Rc1/4 90 140 190 159 84 34 20.5 1.0 1.0 35.5 187 194 RB2015

*The center of size PA is the same as the center of size L
