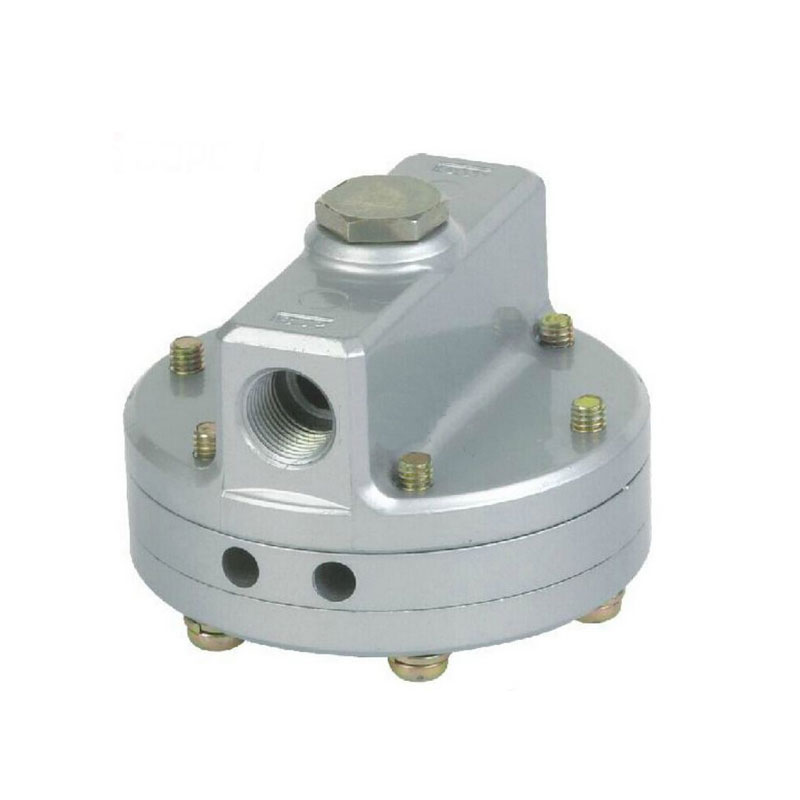

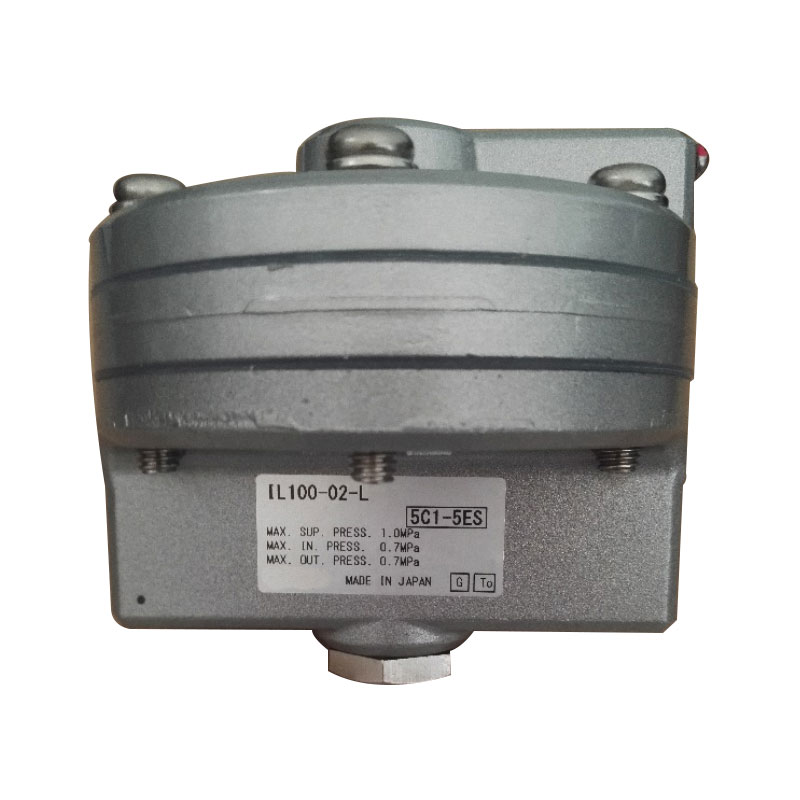

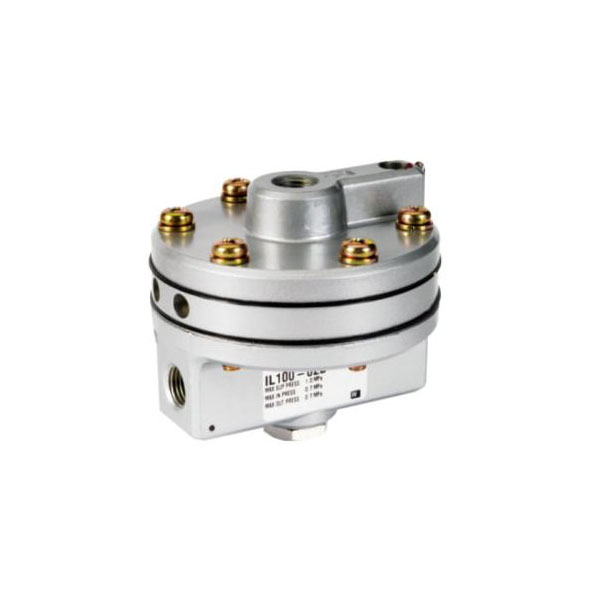

Booster Relay IL100

IL100-02 pneumatic Booster Relay is an auxiliary device, it is actually a pneumatic power amplifier installed in the air path to the actuator to receive the pressure signal at the positioner outlet

Operating Pressure: Max: 0.9MPa
Rated Flow: 600e/min
Linearity: 1%
Environment and fluid temperature: -5~60℃

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Booster Relay IL100

IL100-02 pneumatic Booster Relay is also called IL100-02 speed increasing relay, IL100-02 pneumatic amplifier and so on. IL100-02 pneumatic Booster Relay is an auxiliary device, it is actually a pneumatic power amplifier installed in the air path to the actuator to receive the pressure signal at the positioner outlet, providing a large flow to the actuator, used to increase the speed of the valve. In 1:1 (signal to output ratio), the speed-increasing relay is used to transmit pneumatic signals to long distances (0-300 m) to reduce the effects of transmission hysteresis.
The characteristics of pneumatic accelerator IL100-02, speed increasing relay IL100-02, domestic pneumatic amplifier IL100-02 pneumatic Booster Relay:
1. Provide air according to 1:1 pressure, fast speed and high accuracy.
2. The response is very sensitive to small changes in the input signal.
3. It is sensitive to the small input signal of the positioner and can provide a large flow of gas to the actuator.

Technical Parameters for Booster Relay IL100

Operating Pressure: Max: 0.9MPa
Rated Flow: 600e/min
Linearity: 1%
Environment and fluid temperature: -5~60℃

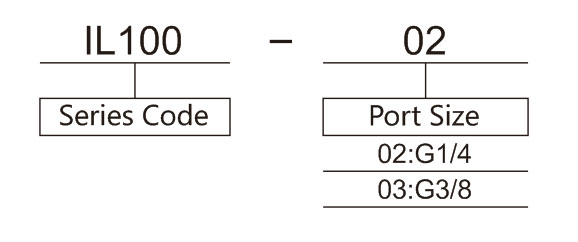

Booster Relay IL100 Ordering Code

Booster Relay IL100 Technical Parameter

Model IL100-02 IL100-03
Working Medium Compressed Air
Operating Pressure Max: 0.9MPa
Signal pressure Max: 0.7MPa
Output pressure Max: 0.7MPa
Rated Flow 600e/min
Air Consumption 3e/min or less
Linearity 1%
Cv value 1.1
Environment and fluid temperature -5~60℃
Port Size G1/4

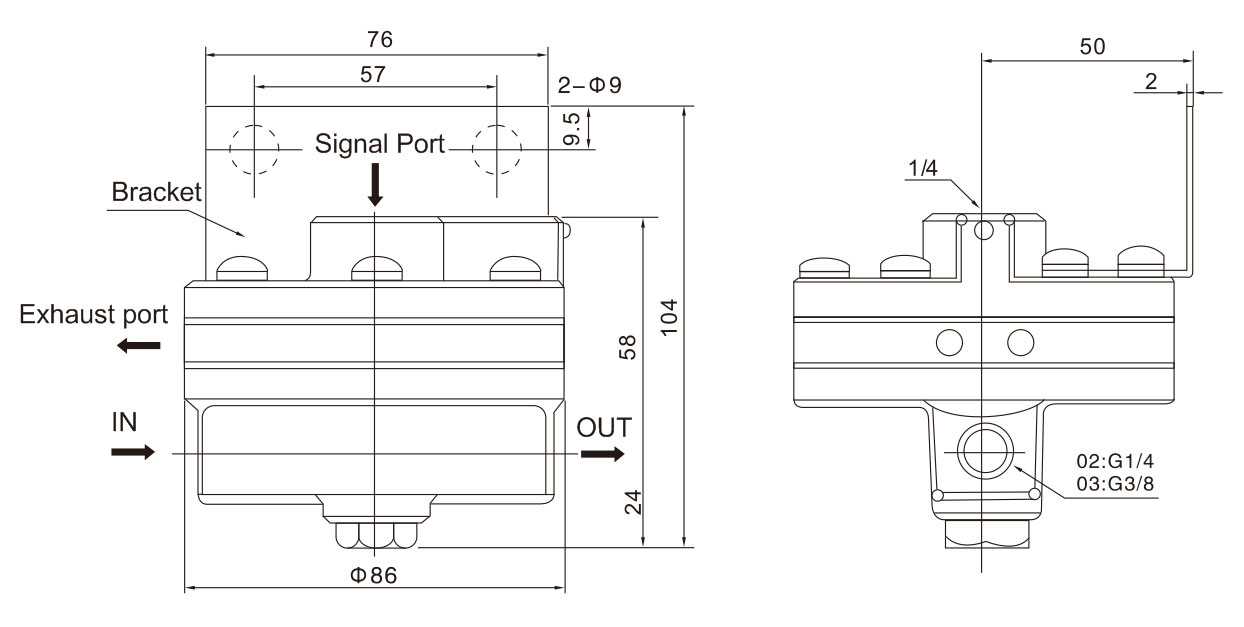

Overall Dimension
