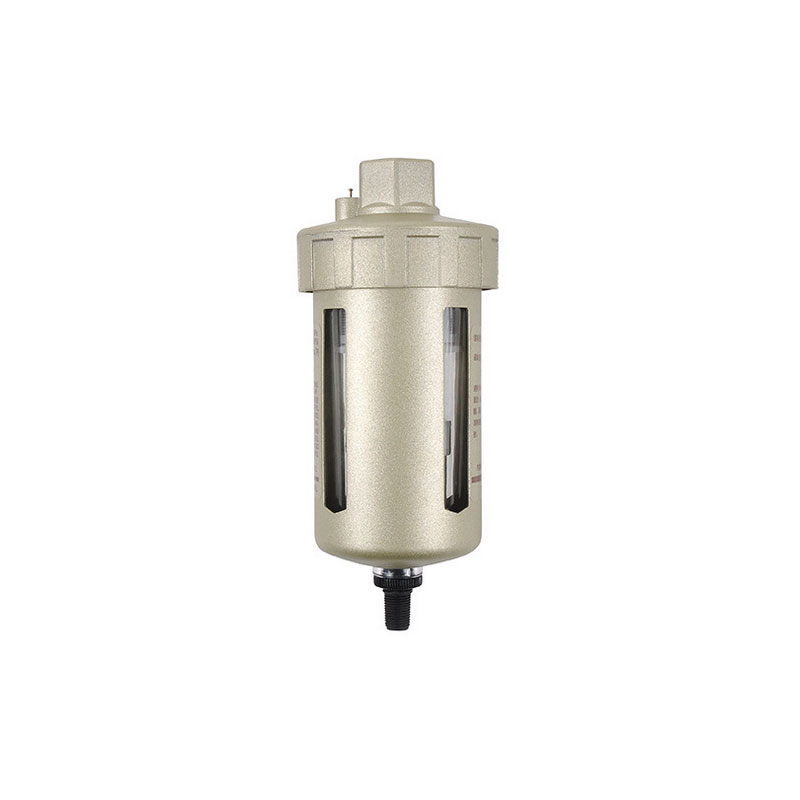

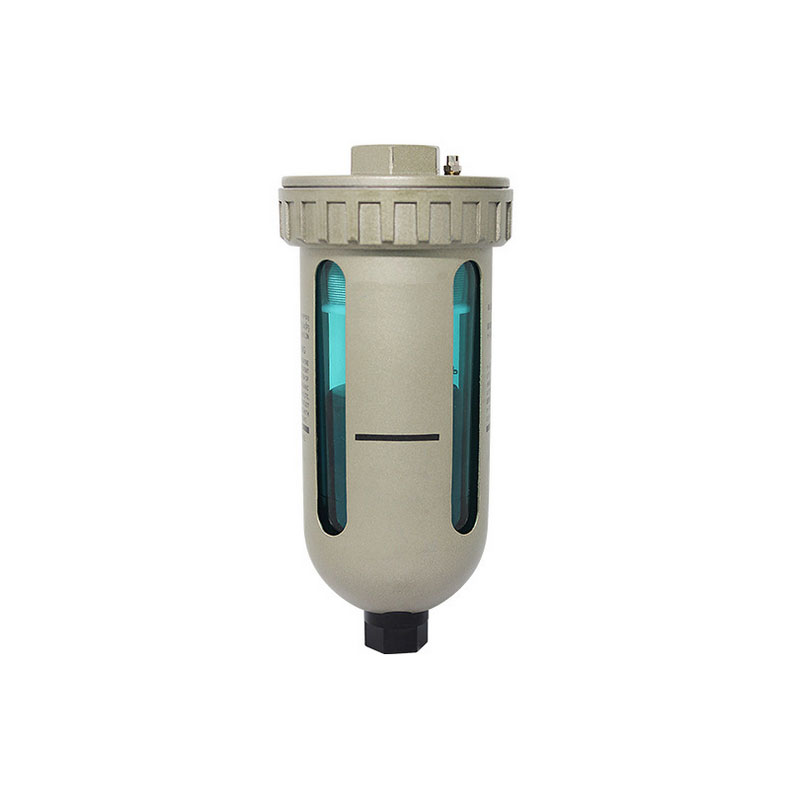

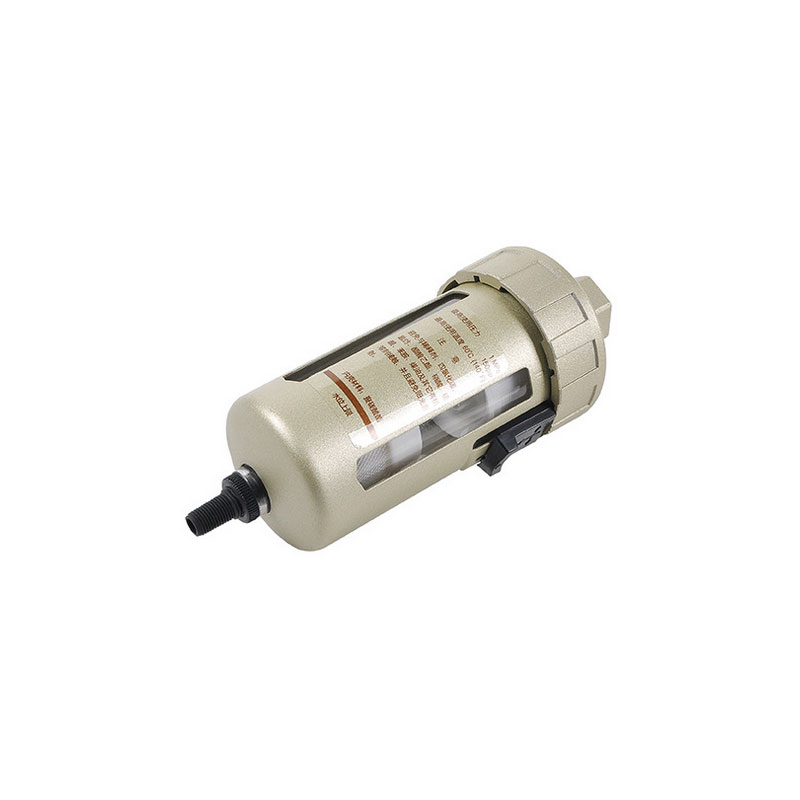

End Automatic Drainer AD

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

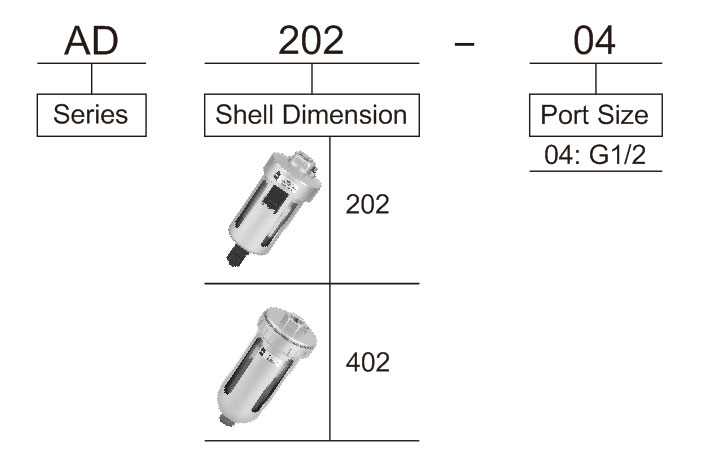

Ordering Code for Auto Drain Valve AD Series

Technical Parameter for Auto Drain Valve AD Series

Model AD202 AD402
Working Medium Air
Port Size G1/2
Drain Type Pipe Φ8 Thread 3/8
Max. Pressure 0.95MPa(9.5kgf/cm²)
Ambient Temperature 5~60℃
Material Body Aluminium Alloy
Seal ring NBR
Strainer SUS

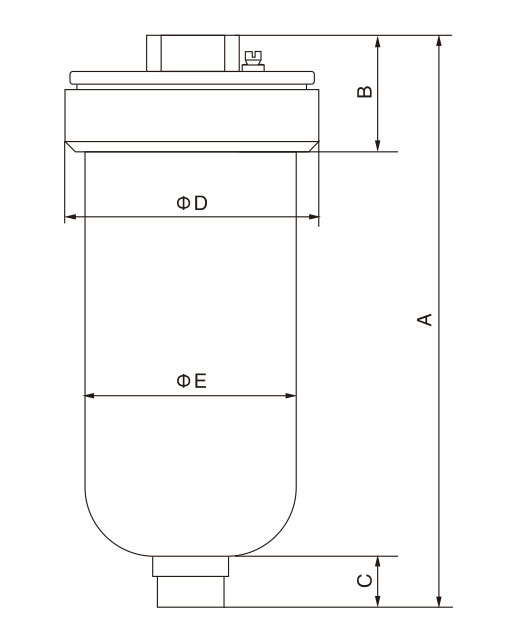

Overall Dimension for Auto Drain Valve AD Series

Model A B C ΦD ΦE
AD202 175 40 32 72 60
AD402 185 36 16.5 83 70
