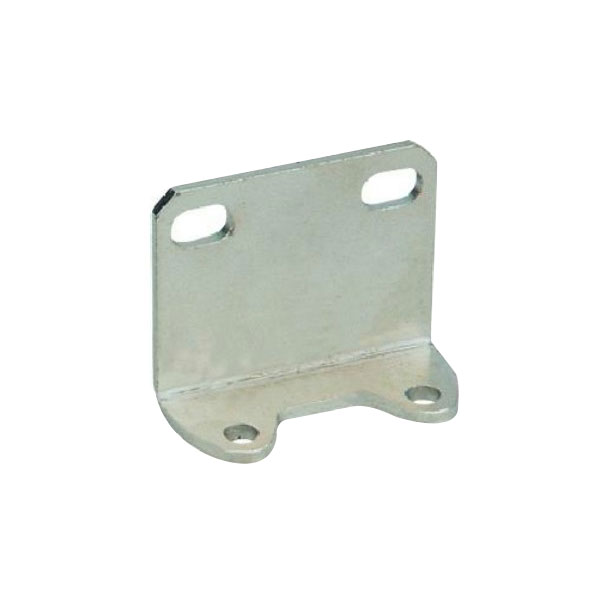

AF AL Series Bracket

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

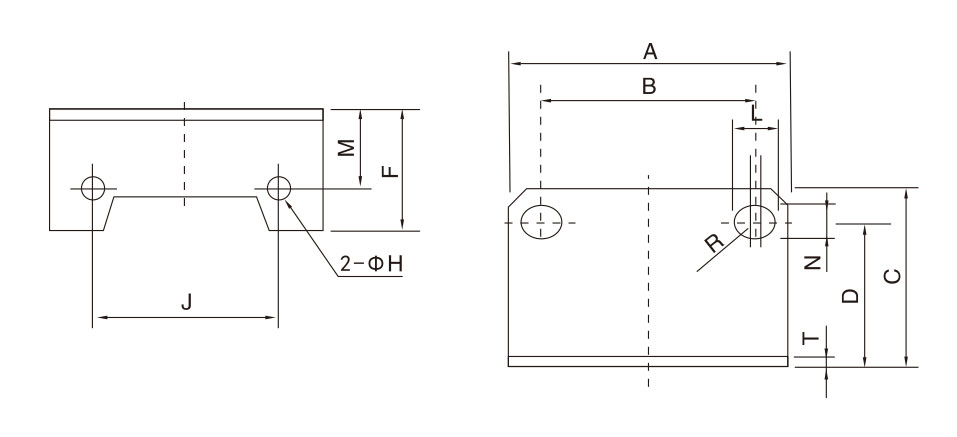

Overall Dimension for AF AL Series Bracket

Model A B C D F H J L M N R T Mounting screw Applicable Model Material
B240A 40 27 33.5 27.5 18 4.5 26 8.3 13 5.4 2.7 2 M4×81(cross screw) AF2000, AL2000 Iron
B340A 53 40 40.5 33.5 25.5 4.5 35 8 18.8 6.5 3.25 2 M4×81(inner hex screw) AF3000, AL3000
B440A 59 37.5 46 38 25.5 5.5 44.5 10.5 20.5 8.4 4.2 2.5 M5×101(inner hex screw) AF4000, AL4000
B540A 59 37.5 46 38 25.5 5.5 44.5 10.5 20.5 8.4 4.2 2.5 M5×101(inner hex screw) AF4000-06, AL4000-06
B640A 70 54.5 54 46 27.5 7 59 19 20 8.5 4.25 2.5 M6×101(inner hex screw) AF5000, AL5000
